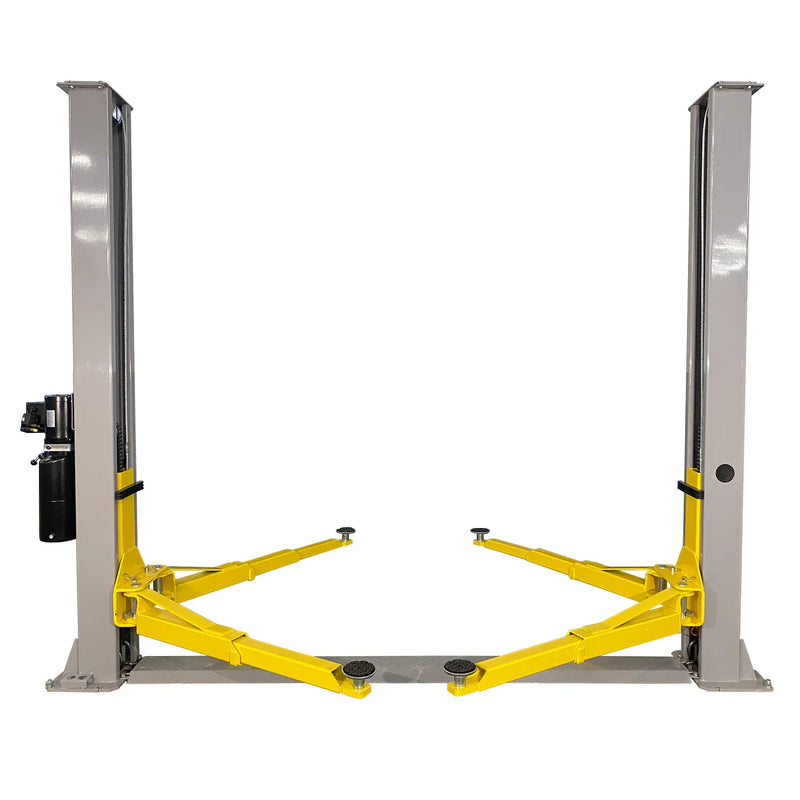

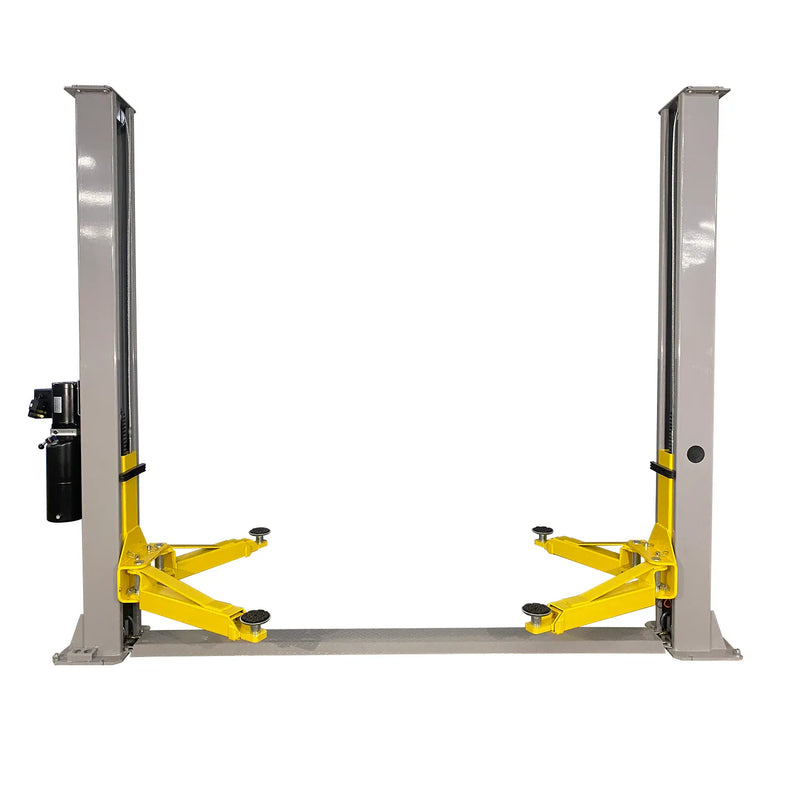

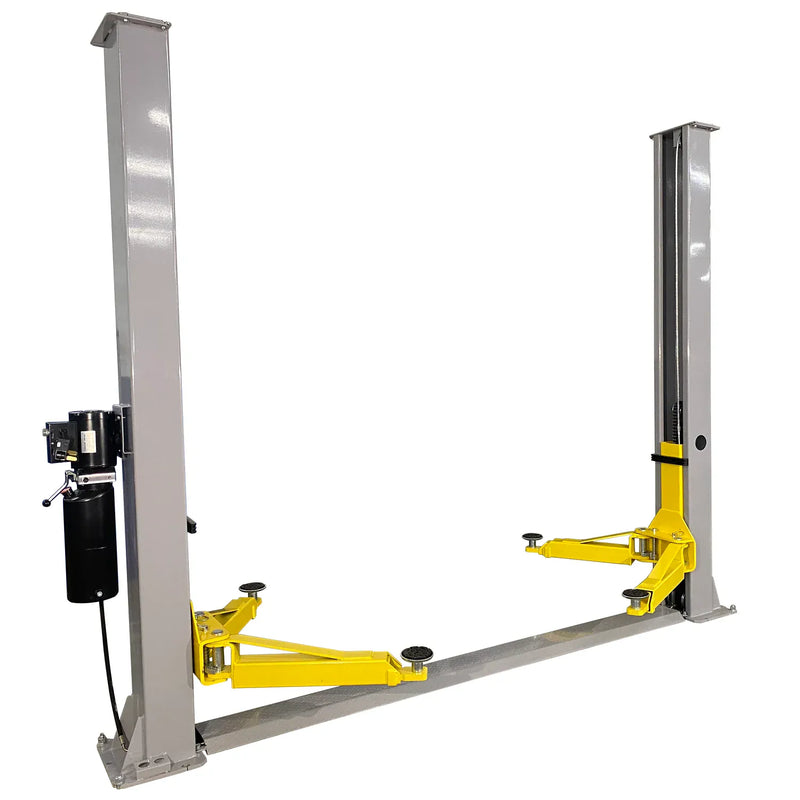

The Triumph NT-9 is a 9,000 lbs capacity floor-plate two-post lift designed for home garages and smaller repair shops that need full under-vehicle access without requiring a tall ceiling. Its floor-plate design keeps the equalization cables and hydraulic hose routed along the ground instead of using an overhead crossbar, making it a practical choice for spaces where ceiling height limits traditional overhead two-post lifts. Note: installation requires a concrete foundation rated at 3,000 PSI.

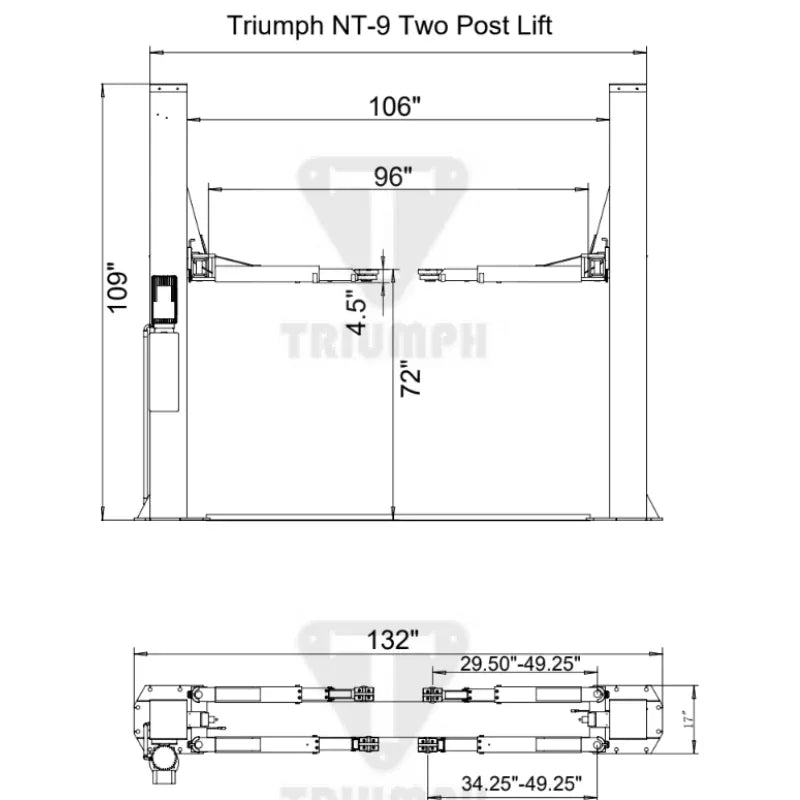

The NT-9 features three-stage front swing arms that telescope to reach factory lifting points across a wide range of cars, SUVs, and pickup trucks. This adjustable arm design improves vehicle compatibility while maintaining proper positioning during lifting. The lift provides a 72-inch maximum lifting height for comfortable access underneath vehicles and lowers to just 4.5 inches, allowing easier loading and clearance for vehicles with lower profiles. A dual-point lock release system allows both column safety locks to disengage together for smoother operation.

Designed as a complete lifting solution, the NT-9 includes a 220V power unit with a 3 HP motor, floor mounting hardware, and truck adapters. The included adapters add extra height when lifting higher-clearance vehicles such as pickups and SUVs, expanding the range of vehicles the lift can service. The floor-mounted configuration also keeps the garage workspace open without sacrificing lifting performance.

This lift is ideal for home garage enthusiasts, independent mechanics, and small automotive shops that need professional-style vehicle access in a compact installation space. With its low-ceiling-friendly design, adjustable three-stage arms, and included accessories, the Triumph NT-9 provides a practical solution for routine maintenance, repairs, and vehicle projects where space efficiency matters.

Features

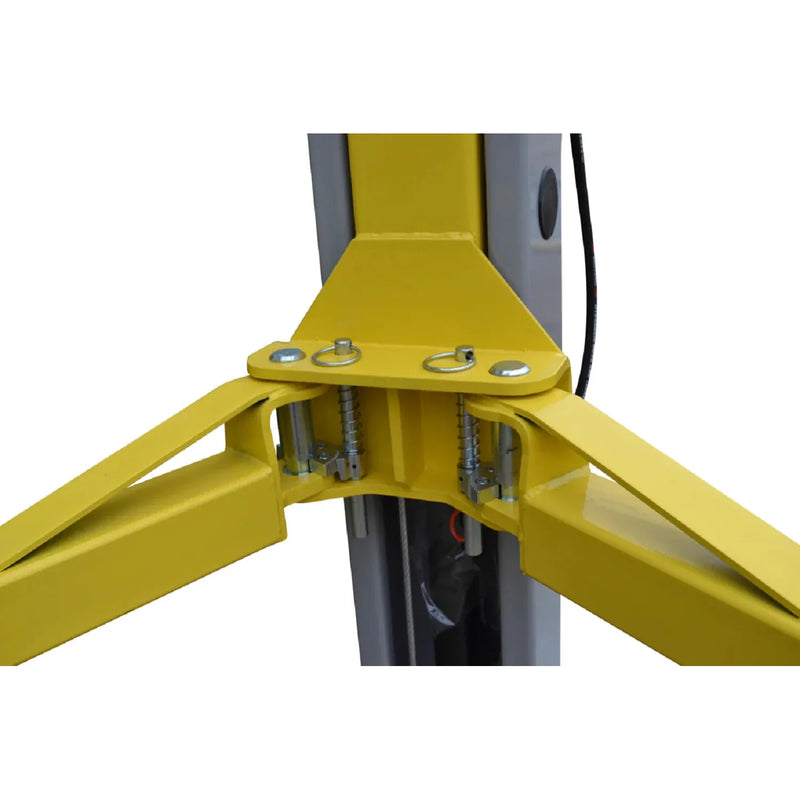

• Three-stage front arms with telescoping swing arms provide extended reach to accommodate a wide range of vehicle lifting points

• Floor-plate design conceals cables and hydraulic hoses at ground level, making it suitable for shops with lower ceiling heights

• Dual-point lock release disengages safety locks on both columns simultaneously for convenient operation

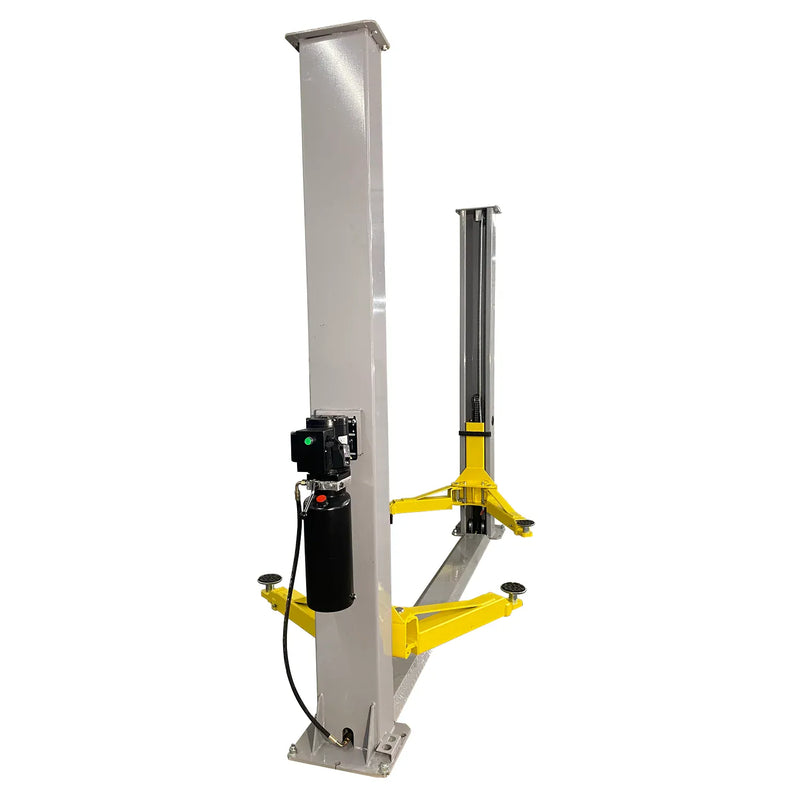

• 220V hydraulic power unit with a 3 HP motor included for reliable lifting performance

• Truck adapters included to increase lift pad height for higher-clearance trucks and SUVs

• Floor mounting hardware included, with anchor hardware shipped in the crate for installation convenience


What's Included

• 220V hydraulic power unit with 3 HP motor

• Floor mounting hardware, including anchor components

• Truck adapters for higher-clearance vehicles

• Installation manual with setup and operating instructions

Specifications

Warranty

The Triumph NT-9 is backed by a 1-year parts-only warranty. If a covered component fails, Triumph provides phone-based troubleshooting and ships the replacement part at no charge via ground service. Both the replacement part and shipping are covered; however, labor costs for installation are not included.

Documents

Triumph NT-9 Installation Manual (PDF)
