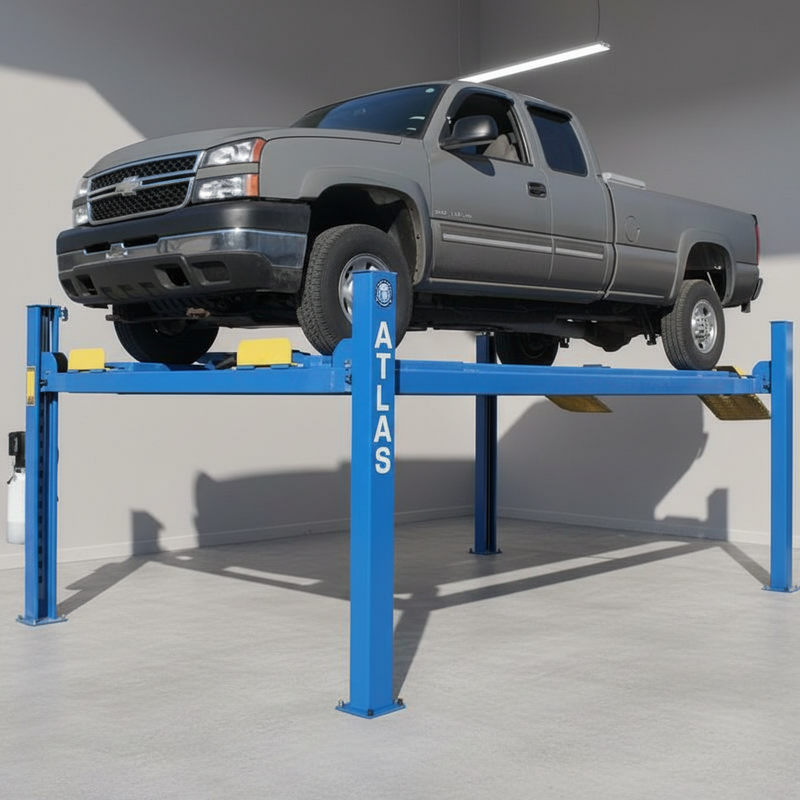

Atlas 412 12,000 lb Commercial 4-Post Lift

The Atlas 412 12,000 lb. 4-post lift is built for heavy-duty storage and service work, offering a capacity and structure typically found in more expensive commercial-grade systems. It stands out in its class with a cable-driven lifting system paired with an oversized hydraulic cylinder mounted beneath the runways, designed to deliver consistent lifting performance while keeping critical components protected and out of the work area. Note: installation requires 220V single-phase power with a 30-amp breaker, and delivery must accommodate a 53' truck.

At the core of the Atlas 412 is its high-strength cable system and under-runway hydraulic cylinder design, which improves leveling accuracy and reduces the alignment issues commonly seen in older chain-style lifts. Unlike exposed-cylinder chain systems, this setup helps minimize potential damage risks while also keeping the lifting motion more stable and predictable. The result is a lift that’s easier to operate and better suited for repeated daily use, whether for storage or service tasks.

A key advantage is the integrated runway track system, which allows compatibility with rolling bridge jacks (sold separately), expanding the lift’s functionality for tire, brake, and suspension work. Combined with diamond-plated runways, double safety locks, and air-operated single-point lock release, the system is designed for both usability and controlled operation under load.

This lift is a strong fit for professional repair shops, tire and alignment centers, fleet maintenance facilities, and serious home garage builders who need a reliable 12,000 lb. platform that can handle both storage and light service work without compromise.

Features

• 12,000 lb. capacity designed for heavy-duty, commercial-grade use.
• Extra-tall, extra-wide, and extra-long construction accommodates a wide range of vehicles.
• Diamond-plated runways provide enhanced grip and stability during loading and lifting.
• Air-operated single-point lock release system (external air supply required) for convenient operation.
• Lock ladder design combined with a double-lock safety system for added security.
• Durable powder-coated finish helps resist corrosion and wear over time.
• Steel approach ramps included for easy vehicle access.
• Optional drive-off ramps available separately for added flexibility.
• Optional runway extensions available separately to increase platform length.
• Mounting hardware included for straightforward installation.
• Powered by 220V single-phase electric system (requires a 30-amp breaker).
• Shipping weight: 2,800 lbs.
• Backed by a 5-year structural warranty and a 2-year hydraulic warranty (parts only).
