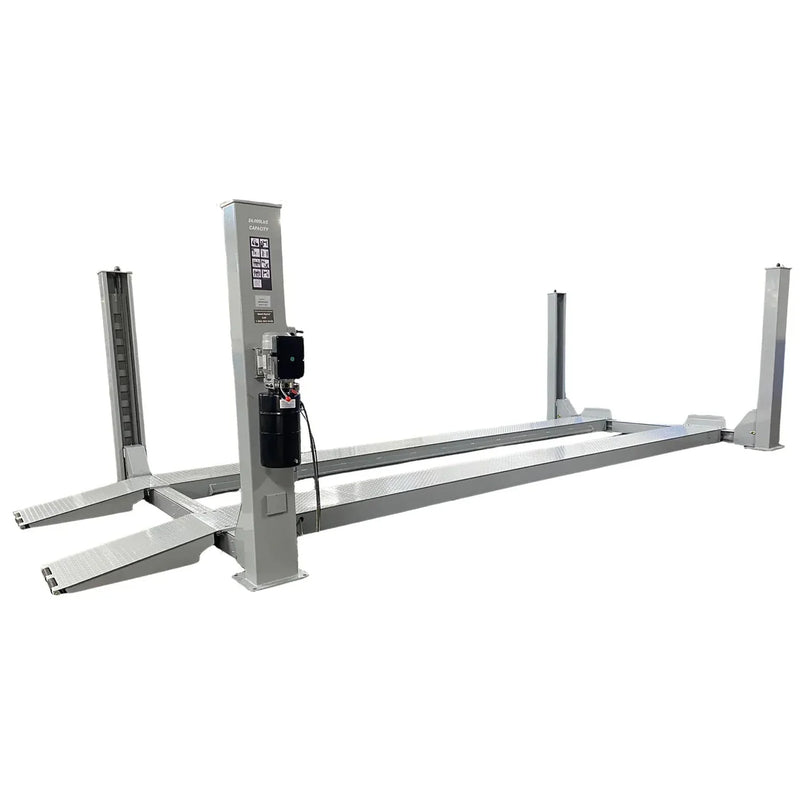

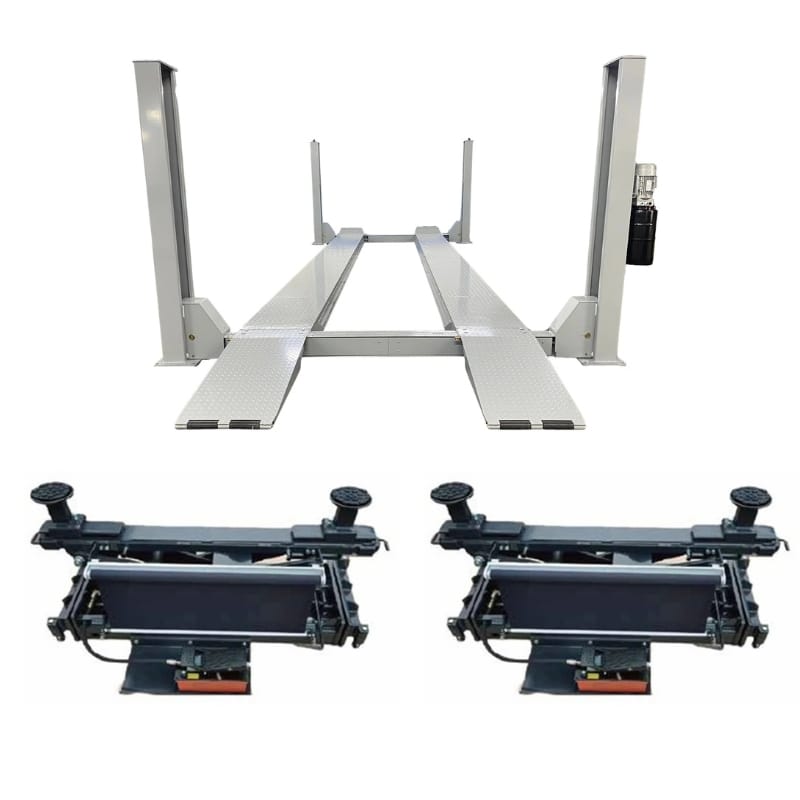

The Triumph NTR-16 package with two RJ-9000 rolling bridge jacks is a complete 16,000 lbs capacity four-post lifting system designed for commercial garages, fleet service bays, and advanced home shops that need both vehicle storage capability and full wheel-off service access. The lift supports heavy-duty applications including trucks, vans, large SUVs, and commercial light-duty vehicles, while the included bridge jacks add up to 9,000 lbs of axle lifting capacity each for brake work, tire service, suspension repairs, and alignment preparation without removing the vehicle from the lift.

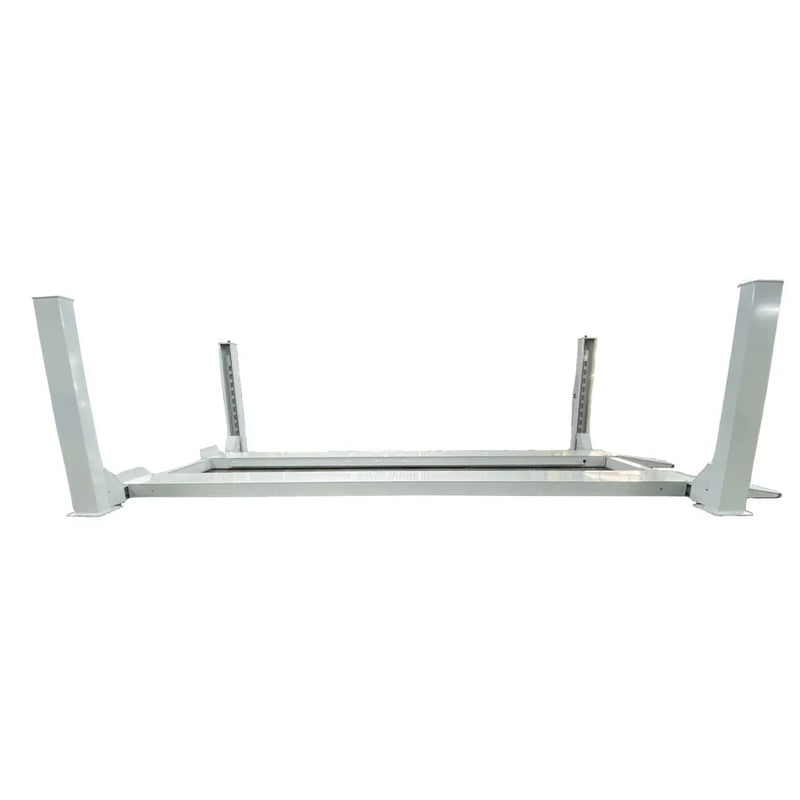

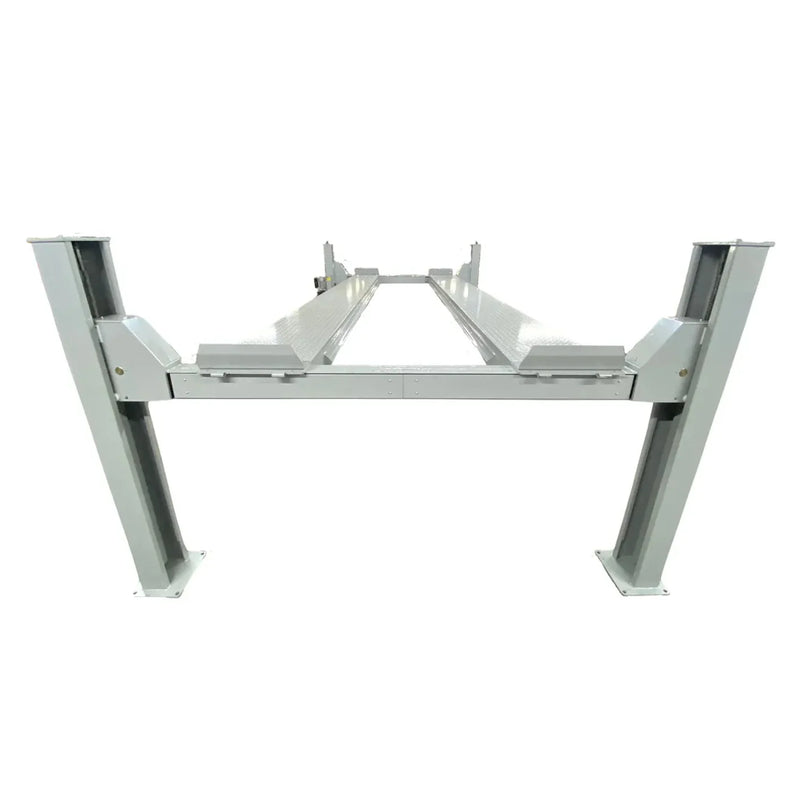

The NTR-16 provides a 74.4-inch maximum runway height with 12 mechanical locking positions, allowing technicians to set a comfortable working height for different service tasks. Its adjustable runway spacing from 42.5" to 46.4" between rails accommodates a wide range of vehicles, while the diamond-plate runway surface and dual approach ramps provide secure loading. The lift operates on 220V single-phase power and includes safety features such as a cable break-proof device, parachute valve, and anti-falling wheel stoppers.

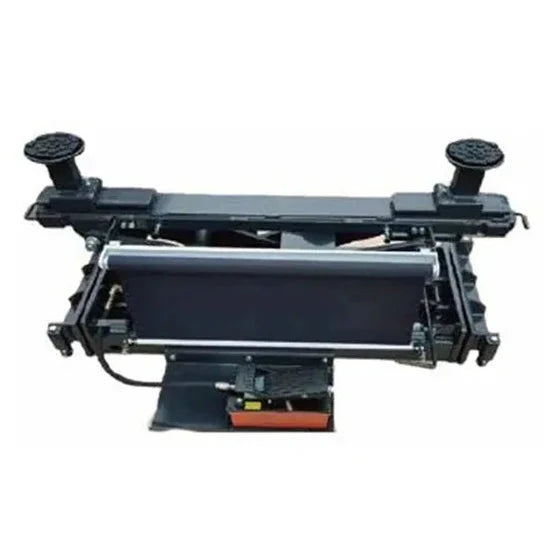

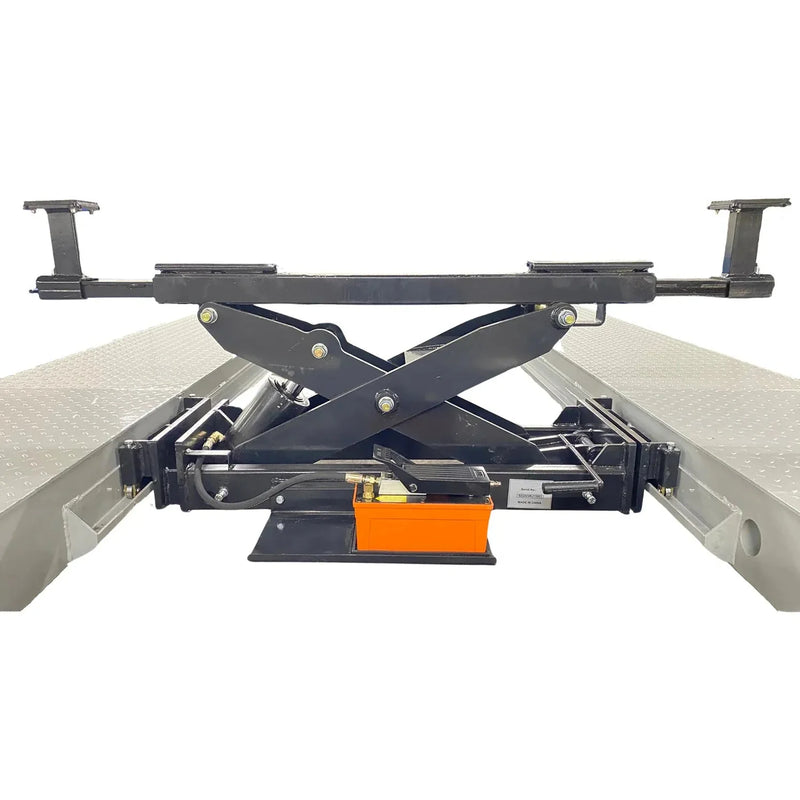

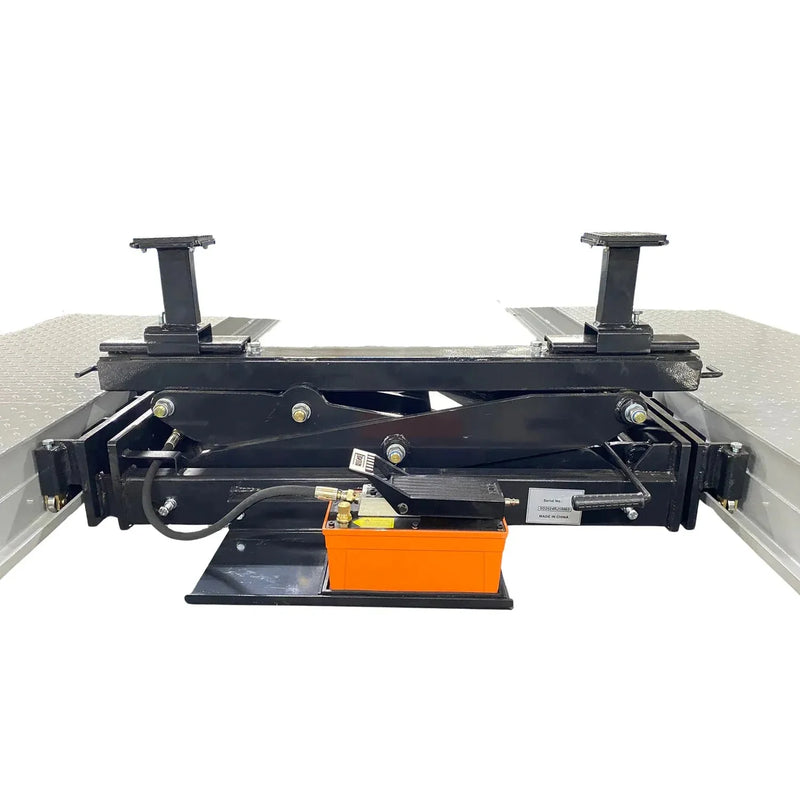

The included RJ-9000 rolling bridge jacks transform the four-post lift into a more versatile service station. Each jack moves along the inner runway rails and can be positioned wherever the vehicle’s lifting points require. With 9,000 lbs capacity, adjustable pad spacing from 40.1" to 59.8", and lifting heights from 16.9" to 32.4", they provide the clearance needed for wheels-off repairs. Each jack also includes 1.5" and 5" height adapters for better contact with different vehicle frames.
This package is ideal for professional repair shops, fleet maintenance facilities, dealerships, and serious vehicle enthusiasts who need one setup for storage, inspections, and heavy-duty service work. With its 16,000-lb capacity, adjustable four-post platform, and two included rolling jacks, the Triumph NTR-16 delivers a complete lifting solution for demanding automotive environments.
Features
- 16,000 lb lifting capacity across the runways, suitable for trucks, vans, large SUVs, and most light-duty commercial vehicles within the rated weight limit
- 74.4" maximum lifting height provides generous standing clearance beneath raised vehicles for comfortable servicing
- 12 mechanical locking positions allow adjustable working heights for different service needs
- Pneumatic lock release system powered by four air cylinders for convenient operation

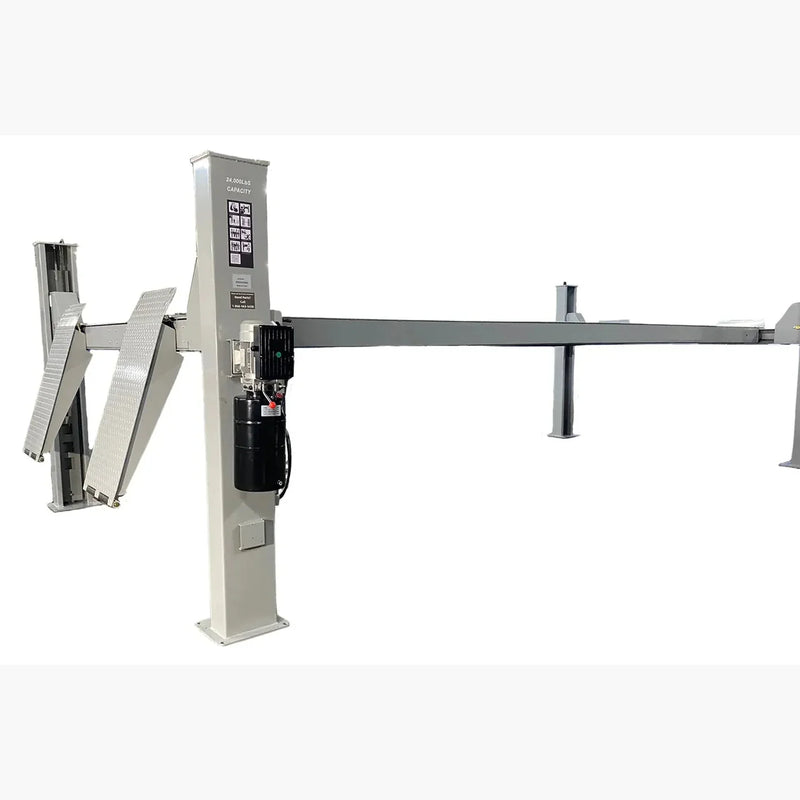

- 3.0 kW power unit with aluminum motor and metal hydraulic tank for dependable performance
- Integrated safety systems include cable break protection, parachute valve, and anti-falling wheel stoppers for added security

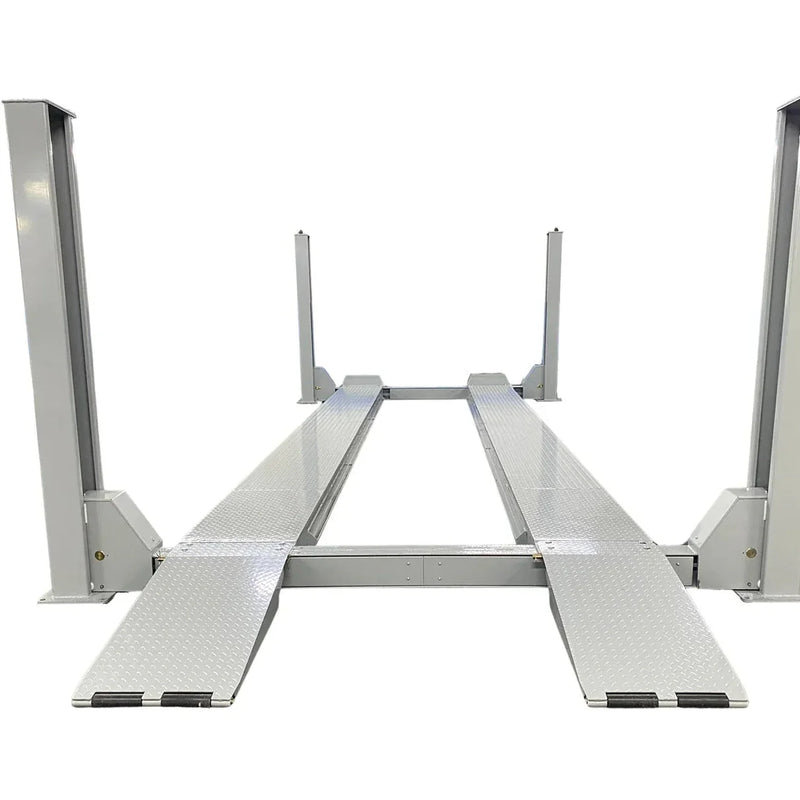

- Flat diamond-plate runway surface provides traction and stable vehicle positioning

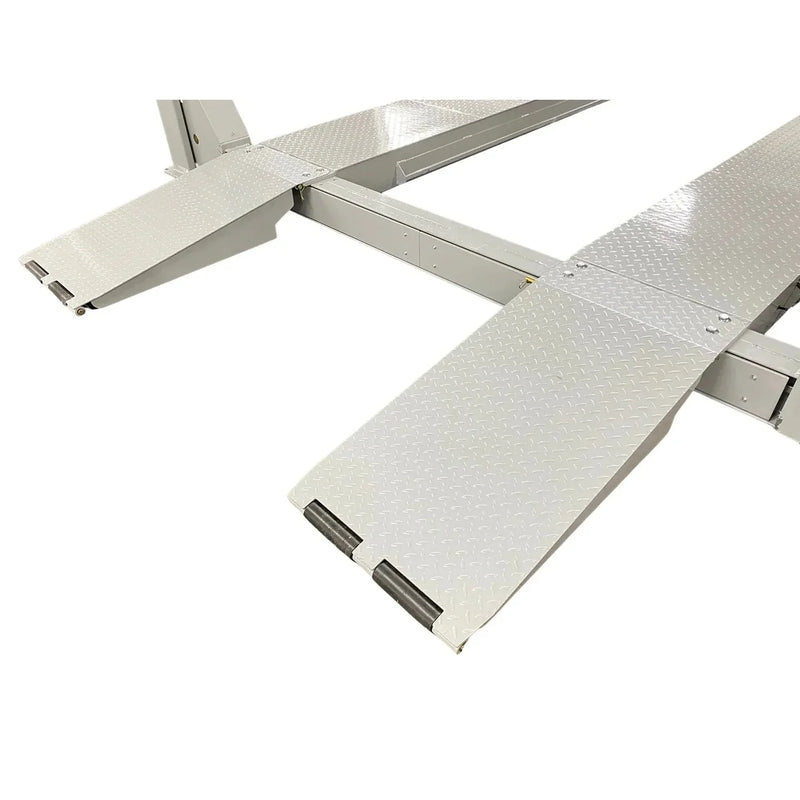

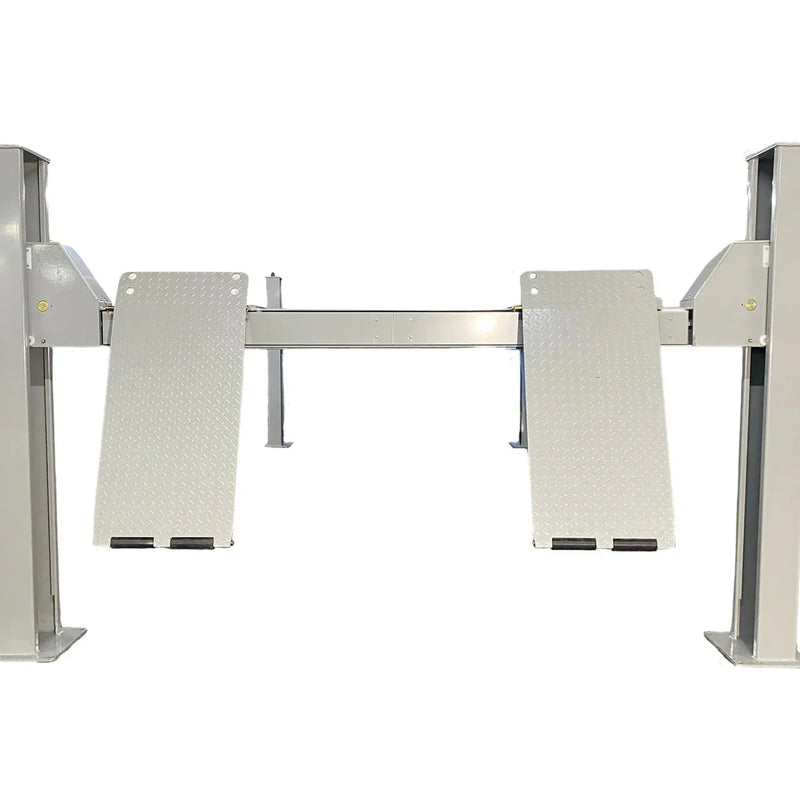

- Dual approach ramps make loading and unloading vehicles easier
- Adjustable runway spacing from 42.5" to 46.4" between rails accommodates different vehicle widths
- 134.2" column-to-column width provides additional clearance for wider vehicles
- Requires 220V single-phase electrical power
- Includes two RJ-9000 rolling bridge jacks, each with 9,000 lb lifting capacity for independent axle lifting
- Bridge jack pad spacing adjusts from 40.1" to 59.8" to fit a variety of vehicle lift-point widths
- Bridge jack travel range of 16.9" to 32.4" allows axle service without removing the vehicle from the lift
- Includes two height-adapter sets per jack (1.5" and 5") for improved lift-point compatibility
What's Included
- One Triumph NTR-16 16,000 lb four-post auto lift
- Two Triumph RJ-9000 9,000 lb rolling bridge jacks
- Two height-adapter sets per jack (1.5" and 5")
- Two diamond-plate approach ramps
- 3.0 kW power unit with aluminum motor
- Hydraulic components, safety systems, and required installation hardware

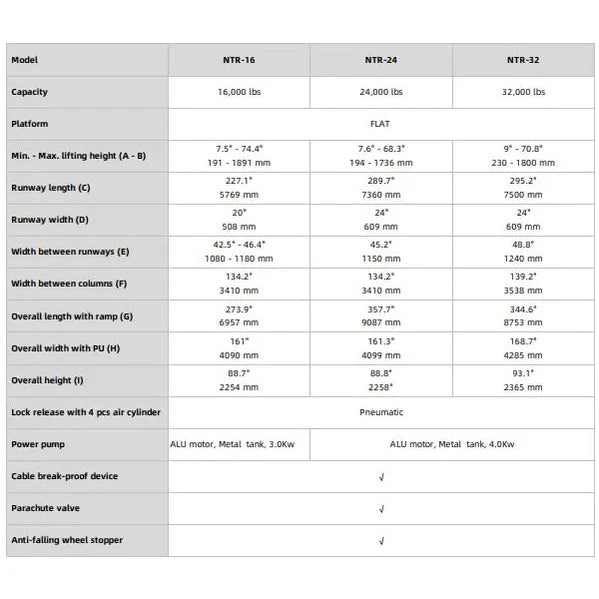

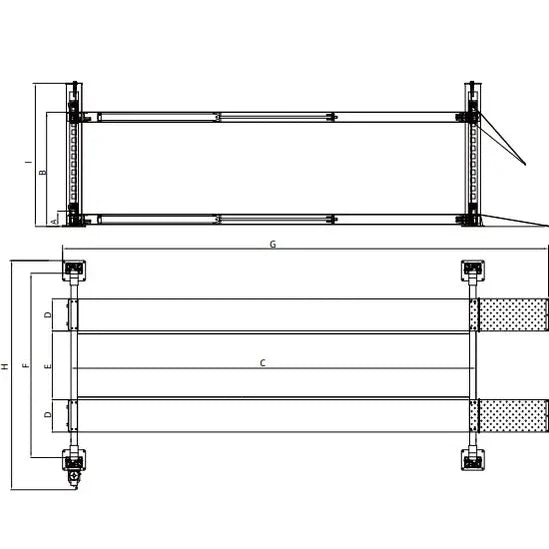

Specifications
| Triumph NTR-16 16,000 lb 4-Post Lift |
| Capacity |
16,000 lbs |
| Overall height |
88.7" |
| Overall length without approach ramps |
235" |
| Overall length with approach ramps |
273.9" |
| Overall width |
161" |
| Minimum runway height |
7.5" |
| Maximum lifting height |
74.4" |
| Runway length |
224.5" |
| Runway width |
20" |
| Width between runways |
42.5" – 46.4" |
| Width between columns |
134.2" |
| Number of lock positions |
12 |
| Lock release |
Pneumatic, 4 air cylinders |
| Power unit |
3.0 kW, aluminum motor, metal tank |
| Electrical requirement |
220V single phase |
| Shipping weight |
3,112 lbs |
| Shipping dimensions |
234 × 23 × 43 inches |
| Triumph RJ-9000 Rolling Bridge Jack (each, two included) |
| Capacity |
9,000 lbs |
| Lowered height |
16.9" |
| Maximum lifting height |
32.4" |
| Minimum width between pads |
40.1" |
| Maximum width between pads |
59.8" |
| Minimum width between runways |
43.8" |
| Maximum width between runways |
52.3" |
| Height adapters included |
1.5" and 5" sets |
| Shipping weight |
600 lbs |
| Shipping dimensions |
48 × 28 × 16 inches |
Warranty
The Triumph NTR-16 is backed by a 1-year parts warranty. If a covered component fails, customers can contact MGS for phone-based troubleshooting, and Triumph will ship the replacement part free of charge with standard ground shipping included.
Warranty Coverage
- 1-year parts warranty on covered components
- Replacement parts and ground shipping included for approved warranty claims
- Labor costs are not covered; replacement installation can typically be completed by a qualified technician or experienced owner
Documents
Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
