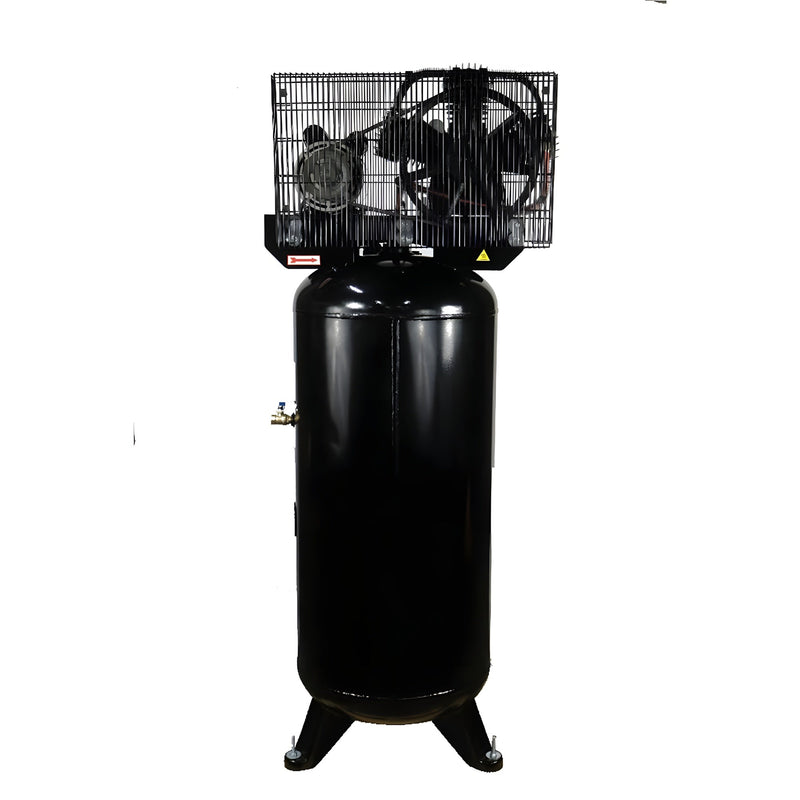

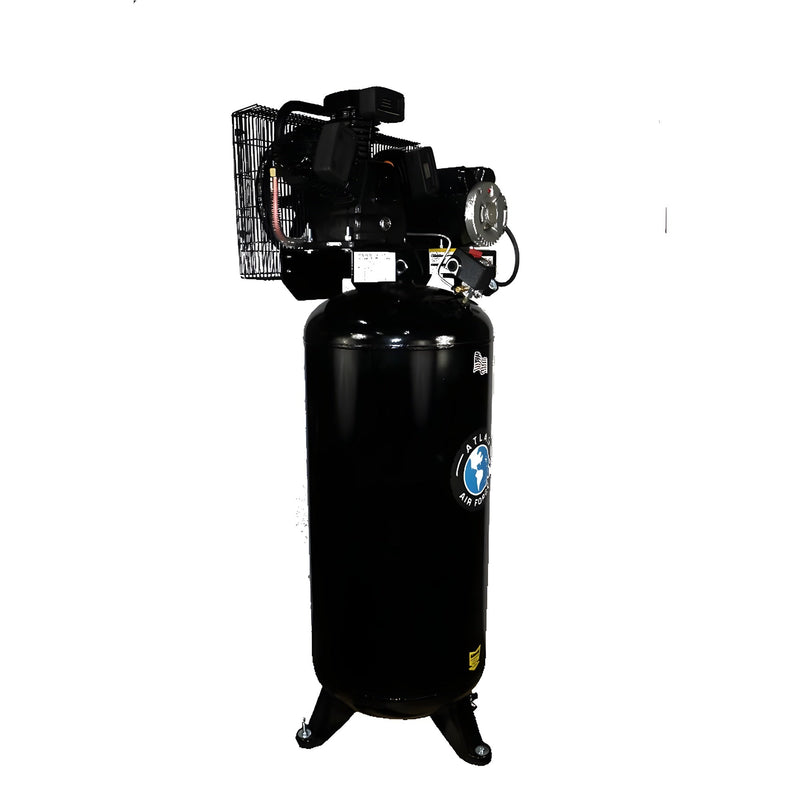

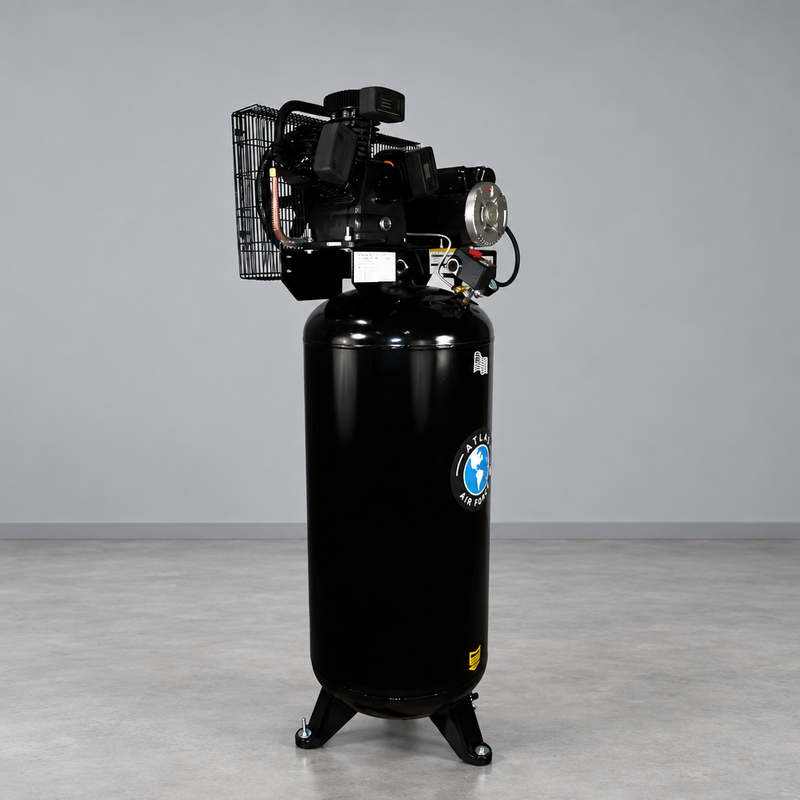

The Atlas Air Force AF5 is a 5 HP, single-stage air compressor with a 60-gallon vertical tank, designed for steady compressed-air use in one- and two-bay shops. Its three-cylinder cast-iron reciprocating pump delivers 20 CFM at 40 PSI and 18 CFM at 90 PSI, with the tank cycling between 90 and 125 PSI. The USA-made 60-gallon tank uses a vertical design measuring 68" tall and 28" wide, helping conserve floor space. The compressor operates on 220V single-phase service.

The AF5 uses a three-cylinder cast-iron pump to provide the airflow needed for common pneumatic equipment, while the vertical tank stores enough compressed air to help manage normal shop demand. A finned tank-inlet tube helps reduce moisture accumulation inside the tank, and the hands-free drain extension makes daily condensate removal easier without reaching behind the tank. The heavy-duty metal belt guard covers the pump and motor drive, while included vibro-isolation pads help reduce vibration transferred to the floor. A 1/2" NPT outlet with ball valve provides the connection point for the shop's air hose or piping.

The AF5 is suited to small automotive shops, home garages, and other applications using impact wrenches, ratchets, die grinders, and paint sprayers. It can also operate an Atlas SBC420 entry-level sandblast cabinet for short periods, although extended sandblasting requires a larger compressor such as the AF6. With its 60-gallon vertical tank and 5 HP motor, the AF5 provides a compact option for shops that need more stored air than a portable compressor can offer.

Features

• 3-cylinder, single-stage cast-iron pump — Designed for high air volume
• 5 HP running motor, 6.5 HP peak, operating at 3,450 RPM
• 60-gallon vertical steel tank, made in the USA — Space-saving design with reserve air capacity

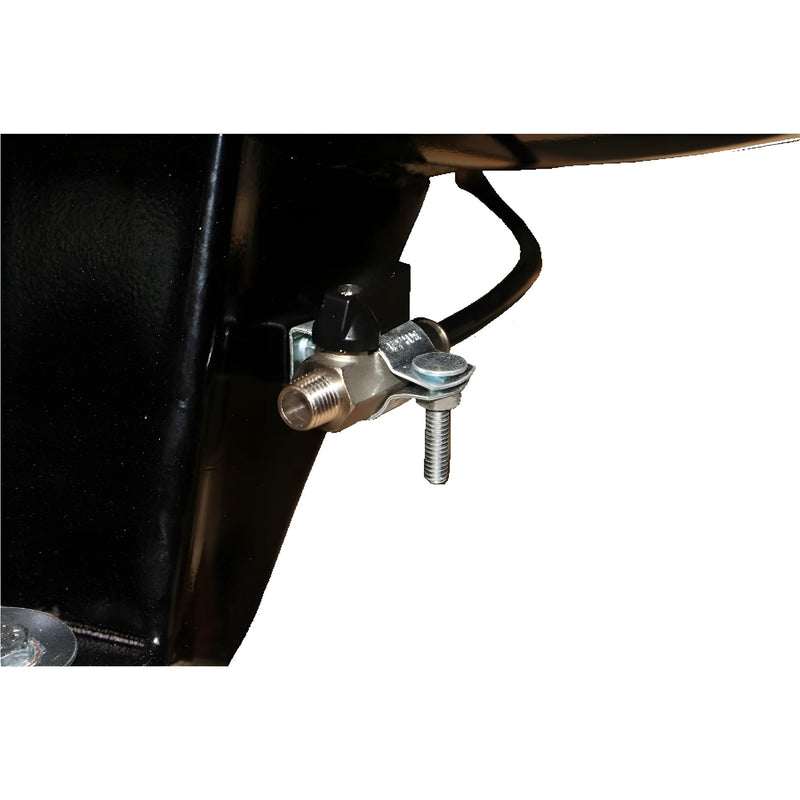

• Hands-free tank drain extension — Makes routine condensate draining easier
• Finned tank-inlet tube — Helps reduce moisture accumulation inside the tank
• Heavy-duty metal belt guard — Protects the pump and motor drive components
• Vibration-isolation pads — Help reduce vibration transferred to the floor

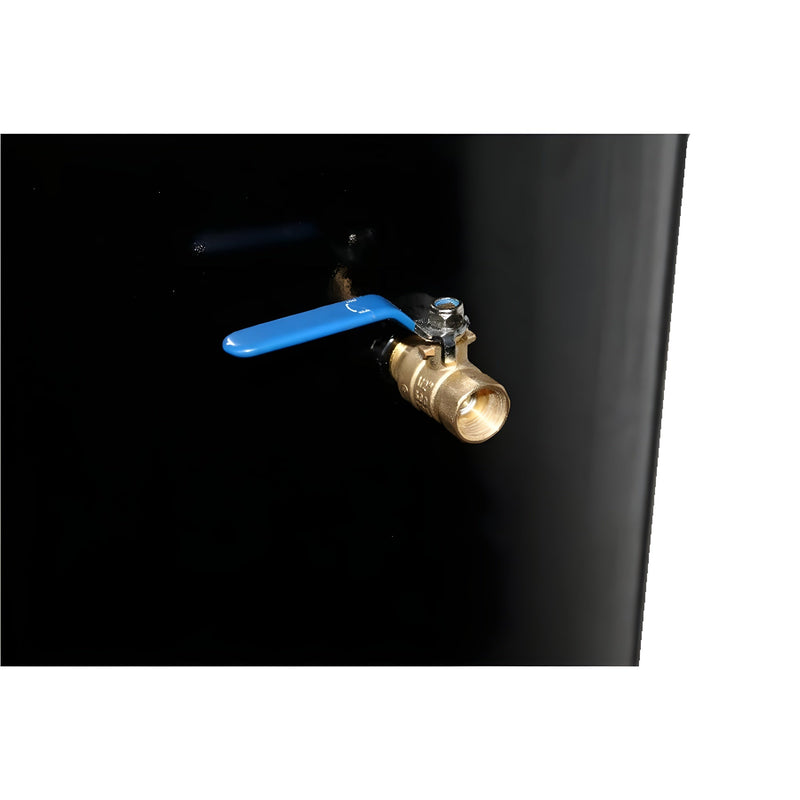

• 1/2" NPT air outlet with included ball valve
• Atlas Air Force series — Built for professional shop applications

Specifications

Warranty

The AF5 includes a 1-year parts-only warranty from Atlas Automotive Equipment.

FAQ

Can the AF5 run an Atlas SBC420 sandblast cabinet?

Yes, for short periods. The AF5 can operate the SBC420 entry-level cabinet, but its airflow is not intended for extended continuous blasting. For frequent or sustained sandblasting, consider the AF6 or a larger compressor.

What electrical service does the AF5 require?

The AF5 requires 220V single-phase power, a 30A breaker, and #10 wire. Confirm that your shop has the required dedicated circuit before delivery.

What size is the air outlet?

The AF5 has a 1/2" NPT air outlet with an included ball valve.

Is the tank made in the USA?

Yes. The 60-gallon vertical tank is made in the USA.

What pneumatic tools can the AF5 power?

The AF5 delivers 18 CFM at 90 PSI, providing airflow for many common shop tools. High-consumption equipment that requires continuous airflow, such as large sandblast cabinets, may require a larger compressor. Check the CFM requirement of your specific tool before use.

Documents

An AF5-specific manual is not currently published by Atlas. Setup and operating questions — contact support@carliftsupply.com or call 877-600-5227.
