The Atlas Wheel Stands are a set of four steel wheel stands rated at 6,000 lbs combined (1,500 lbs per stand) that give two-post and mid-rise lift owners a practical alternative to a dedicated four-post alignment rack. At 39.5 inches tall — taller than most competing stands — they position the wheel at the correct height for hanging alignment sensors, and the 19.5" × 19.5" solid steel surface with 0.38-inch thick top plating provides a stable, level platform for turntable placement. Place a turntable on each stand, raise the vehicle on the existing two-post or mid-rise lift, and the setup functions as a four-post alignment platform without a dedicated rack or additional floor space.

The alignment workflow is straightforward: position the wheel stands under each wheel, use the two-post or mid-rise lift arms to raise the vehicle to working height for lateral runout compensation and front or rear end adjustments, and run the alignment sensors from the stands. The stands are height-adjustable for leveling, which matters on shop floors that aren't perfectly flat and where an unlevel platform introduces measurement error before the alignment even starts. Beyond alignment, the stands work for exhaust, suspension, and undercar service where wheel support at a fixed height is needed independently of the lift arms.

Atlas Wheel Stands are the right fit for small independent shops that don't have floor space for a dedicated four-post alignment lift but perform enough alignment work to need a repeatable setup, two-post lift owners who want alignment capability without a second piece of equipment, and shops running mid-rise lifts that need a stable wheel support platform for sensor-based alignment work.

Features

• Set of 4 solid steel wheel stands
• 6,000 lb total capacity (1,500 lb per stand)
• 19.5" × 19.5" solid steel surface
• 0.38" thick top steel plating
• 39½" height

Specifications

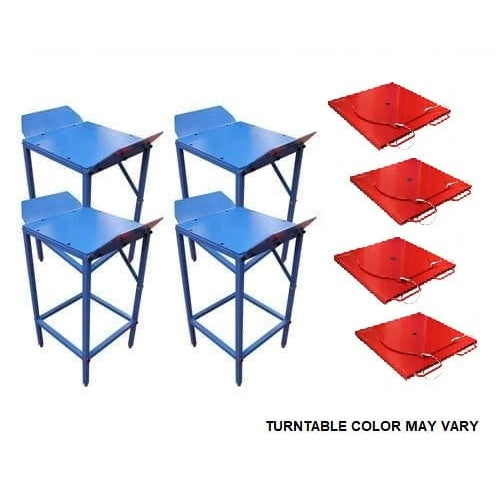

The Atlas Wheel Stands with Turntables is a set of four steel wheel stands with four included alignment turntables, rated at 6,000 lbs combined (1,500 lbs per stand), that gives two-post and mid-rise lift owners full alignment capability without a dedicated four-post alignment rack. At 39.5 inches tall — taller than most competing stands — they position each wheel at the correct height for hanging alignment sensors. The 19.5" × 19.5" solid steel surface with 0.38-inch thick top plating provides a stable platform, and the stands are height-adjustable for leveling on imperfect shop floors where an unlevel surface introduces measurement error before the alignment begins. Note: turntable color may vary. Delivery requires access for a 53-foot truck.

The workflow is straightforward: position a stand under each wheel with a turntable in place, use the existing two-post or mid-rise lift arms to raise the vehicle to working height, and run alignment sensors from the stands. The setup handles lateral runout compensation and front and rear end adjustments the same way a dedicated four-post alignment rack would — without the rack's floor space requirement. Beyond alignment, the stands support exhaust, suspension, and general undercar service where stable wheel support at a fixed height is needed independently of the lift arms.

The Atlas Wheel Stands with Turntables suit small independent shops that don't have floor space for a dedicated alignment lift but perform enough alignment work to need a repeatable, sensor-ready setup, and two-post lift owners who want a complete alignment solution — stands and turntables included — without purchasing components separately.

Features

• Set of 4 solid steel wheel stands with alignment turntables included (color may vary)
• 6,000 lb total capacity (1,500 lb per stand)
• 19.5" × 19.5" solid steel surface
• 0.38" thick top steel plating
• 39½" height
