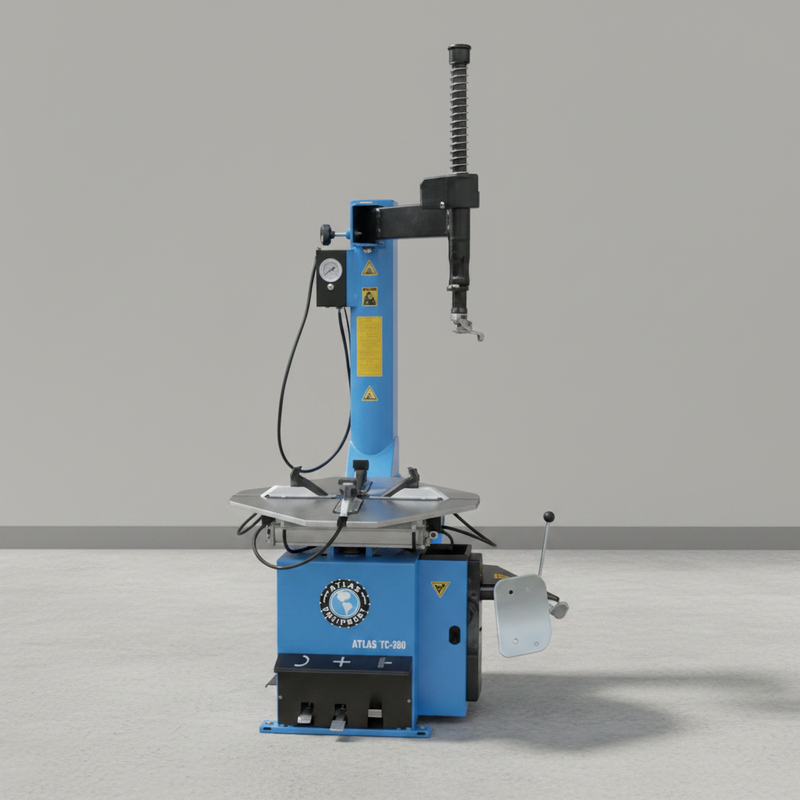

The Atlas® TC289 rim-clamp swing arm tire changer is built for shops and users who regularly work with larger wheels and heavier tire assemblies, where extra clearance and clamping range make a real difference in daily use.

This model expands on the TC229 platform with a larger turntable and increased working clearance, allowing it to handle oversized passenger wheels, large SUVs, and one-ton truck tires more comfortably. It uses an electric turntable paired with an air-operated bead breaker and rim-clamp jaw system, which can be adjusted across three positions to accommodate a wide range of wheel sizes. The built-in beadblaster helps seat stiff or low-profile tires during inflation, improving efficiency when working with modern tire constructions. External air supply is required.

A key upgrade on the TC289 is the adjustable bead breaker plate, which gives the operator more control when working with difficult or heavily seated beads. This is especially useful in farm environments, commercial tire service, or high-volume shops where wheel conditions vary widely. Protective jaw covers and a metal mount/demount head (with plastic insert options) help reduce the risk of wheel damage during installation and removal.

The Atlas TC289 Tire Changer is best suited for general automotive service departments, medium-sized tire shops, agricultural use, and home users who frequently service larger vehicles. It is designed to bridge the gap between standard passenger tire machines and more heavy-duty commercial equipment.

Like the rest of the TC series, it operates on 110V power, requires external air supply, and includes a 1-year parts-only warranty, with replacement parts and wear items readily available.

Features

• Large rim clamp swing arm tire changer design for increased clearance and handling capacity
• Extra-large turntable provides improved clearance and easier operation with larger wheels
• Air-operated jaws and bead breaker (external air supply required)
• Electric turntable for smooth and consistent tire service operation
• Adjustable jaws with three mounting positions for flexible setup options
• Adjustable bead breaker plate for improved control and performance
• Metal mount/demount head with metal roller or replaceable plastic inserts
• Column-mounted inflator box with gauge included for accurate inflation
• Filter / regulator / lubricator (FRL) included for air system protection
• 20" tire tool included for standard tire service operations
• Lube bucket with brush included for bead lubrication
• Large plastic jaw covers included for rim protection
• Plastic cover for bead breaker shovel included
• Multiple replacement plastic inserts included for mount/demount head
• Motorcycle and ATV adapters available (sold separately)
• Built-in beadblaster system for improved bead seating performance
• Replacement parts and wear items always available through Atlas support network
• Backed by a 1-year parts-only warranty

Specifications

Atlas® TC289 Specifications

Documents

Atlas® TC289 Manual

Atlas® TC289 Parts List
