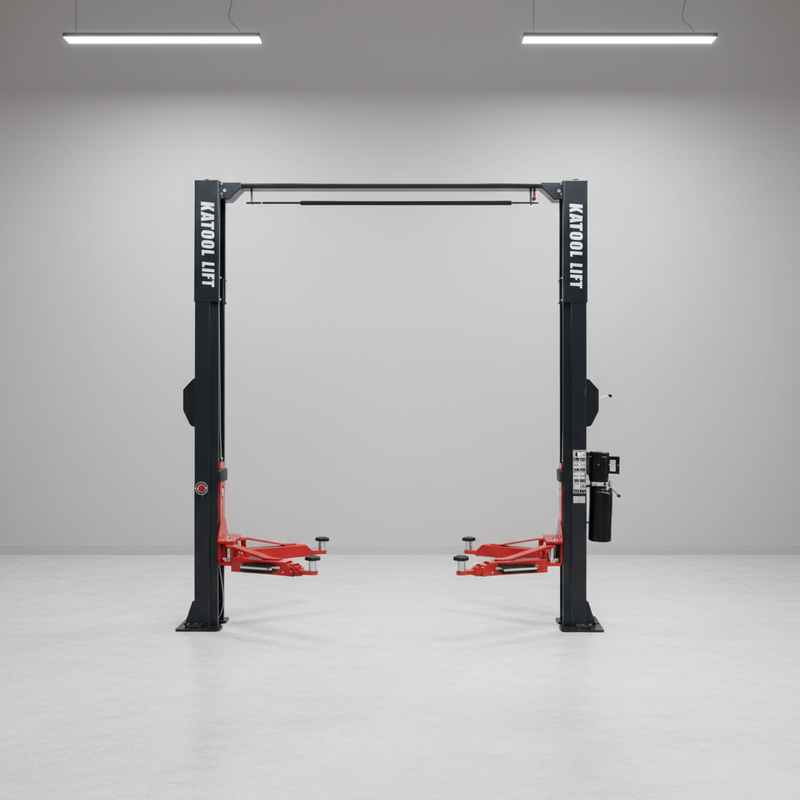

The Katool KT-AS110D is an 11,000-lb asymmetric two-post lift — the asymmetric arm configuration positions the vehicle further back from the columns, leaving enough clearance to open doors fully while the car is in the air. That's the practical difference between a symmetric and asymmetric design, and it matters in any shop where technicians need interior access during a lift. It's CE approved and tested to 115% dynamic and 150% static load capacity. Standard power is 220V/60Hz/1PH, with a 110V option available. Note: requires 5.9" (150mm) concrete rated at 3,000 PSI.

The direct drive cylinders move the arms without a chain in the system, which means fewer wear points and more consistent lifting performance over time compared to chain-drive setups. A single-point lock release handles all positions simultaneously, and adjustable extended support adaptor sets ranging from 3.94" to 6" give you the flexibility to fit the lift pads to different vehicle contact points without sourcing separate adapters. Rubber pad door opening protection guards vehicle finishes during the lift process. Safety coverage extends beyond the lock system: an overhead safety shutoff bar stops the lift if it contacts an obstacle at the top of travel, and feet-protection safety guardrails with an integrated toolbox keep the area around the base organized and protected during operation.

The KT-AS110D suits auto repair shops where technicians regularly need door or interior access while a vehicle is elevated, dealerships and service centers running a mix of sedans and larger vehicles where door clearance is a daily consideration, and independent garages handling higher-end vehicles where door protection and adapter flexibility matter as much as raw capacity.

Key Features

• 11,000 lb Lifting Capacity: Built to handle heavy-duty vehicles with confidence and ease.
• CE Approved and Certified: Meets strict 115% dynamic and 150% static load capacity standards for verified safety and compliance.
• Single-Point Lock Release: Ensures secure, efficient, and controlled lifting operations from one convenient location.
• Asymmetric Arms: Provides enhanced versatility and improved adaptability across a wide range of vehicle sizes and configurations.
• Direct Drive Cylinders: Delivers smooth, consistent, and efficient lifting performance with every use.
• Rubber Pad Door Opening Protection: Safeguards your vehicle's doors and body panels from contact or damage during lifting operations.

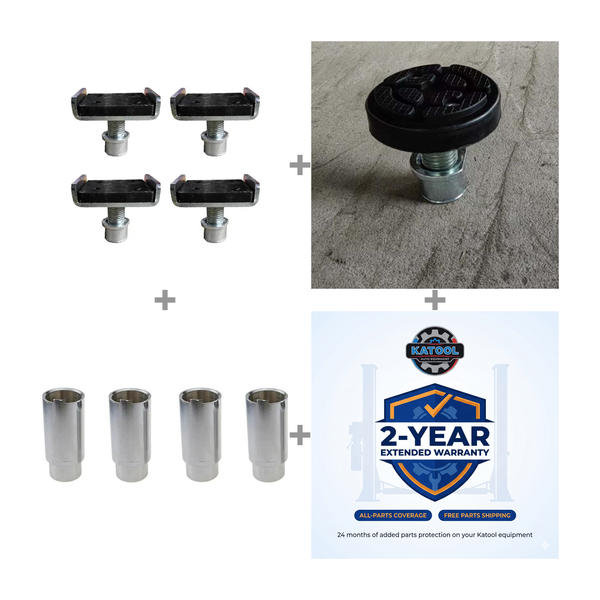

• Adjustable Extended Support Adaptor Sets: Ranging from 3.94" to 6", these adaptors ensure broad compatibility across different vehicle types and lift point heights.
• Overhead Safety Shutoff Bar: Automatically halts operation when triggered, providing an essential layer of protection during every lift.
• Feet-Protection Safety Guardrails: Shields the operator's feet during use, with an integrated toolbox included for added on-the-spot convenience.
• High-Quality Hydraulic System: Available in 220V/60Hz/1PH as standard, with an optional 110V/60Hz/1PH configuration for flexible installation.


Specifications

User Manual

For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-AS110D User Manual. Click the link below to download:

Download User Manual (PDF)

Installation Video

Warranty

Katool backs its products with a 1-year limited warranty covering all parts and product defects, along with an additional 3-year warranty on structural components for vehicle lifts. Optional 2-year extended warranty plans are available for purchase.

What's Covered:

• Cylinders, power units, motors, displays, and electronics.
• Structural components for vehicle lifts.

Warranty Conditions:

• Claims must be submitted within the active warranty period and are non-transferable.
• Approved claims receive replacement parts at no cost, including free shipping.
• Labor costs are not covered under this warranty.
• Equipment must not be disassembled prior to warranty review and approval.

All claims are subject to review by Katool's warranty and service department. Supporting documentation, such as photos or videos of the defect, may be requested as part of the approval process.
