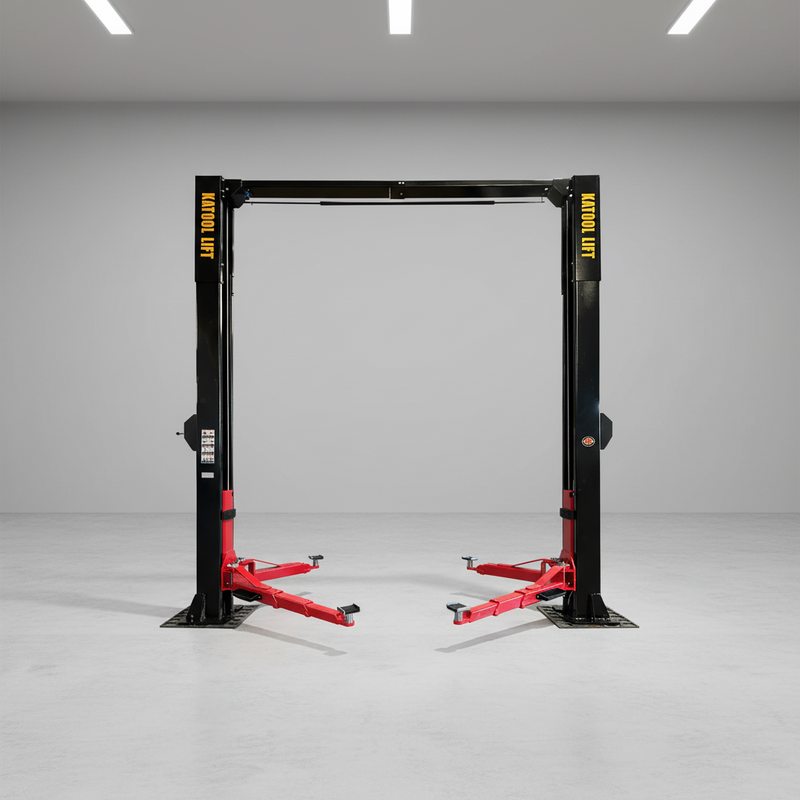

The Katool KT-M150D is a 15,000-lb symmetric two-post lift built for fleet shops, truck service bays, and commercial garages that have outgrown the 10,000–12,000 lb class. The direct-drive cylinder system replaces chain-over-sheave lifting with a cleaner mechanical path — fewer wearing parts, smoother cycles, and less routine maintenance over time. Symmetric column geometry centers the load between the posts for balanced lifting across the full 15,000-lb range. Note: requires 220V/60Hz power and a minimum 5.9" concrete floor rated at 3,000 PSI — verify your slab before scheduling installation. Ships freight.

The single-point lock release drops both columns simultaneously from one lever, so the operator never has to walk the lift to release each side independently. The lifting frame is fabricated from Q235 and Q245 structural steel, and the standard arm package ships with round pads and stacking sleeves — the right hardware for trucks, vans, and vehicles with higher frame rails that standard pads can't reach cleanly. Maximum lifting height reaches 72.83 inches for full stand-up undercar access, with 116 inches of clearance between columns and an overall installed height of 176.8 inches. A 3 kW (4 HP) motor drives the hydraulic system.

The KT-M150D suits commercial fleet operations running full-size trucks, cargo vans, and heavier service vehicles that need a lift rated for the actual weight being put in the air, truck service centers where direct-drive reliability and single-point descent control reduce operator fatigue across a full shift, and high-volume repair shops stepping up in capacity from a standard two-post and needing the stacking adapter hardware already in the box for their vehicle mix.

Features

• 15,000 lb Lifting Capacity: Rated for trucks, vans, and commercial fleet vehicles across a wide range of service applications.
• Direct-Drive Cylinder System: Delivers smoother, more consistent lift cycles with fewer wearing parts than traditional chain-over-sheave designs, reducing long-term maintenance demands.
• Symmetric Two-Post Geometry: Centers the load between the columns for balanced, stable lifting on every use.
• Single-Point Lock Release: A single lever simultaneously disengages both columns for smooth, controlled, and synchronized lowering.
• 72.83" Maximum Lifting Height: Provides ample undercar clearance for comfortable stand-up service on a wide range of vehicle types.
• Q235/Q245 Structural Steel Construction: High-grade structural steel used throughout the column and lifting frame fabrication for lasting strength and reliability.
• Standard Adapter Kit Included: Ships with round pads and stacking sleeves for the arms, providing out-of-the-box compatibility with a broad range of vehicle lift points.


Specifications

Documents

Katool KT-M150D User Manual (PDF)
