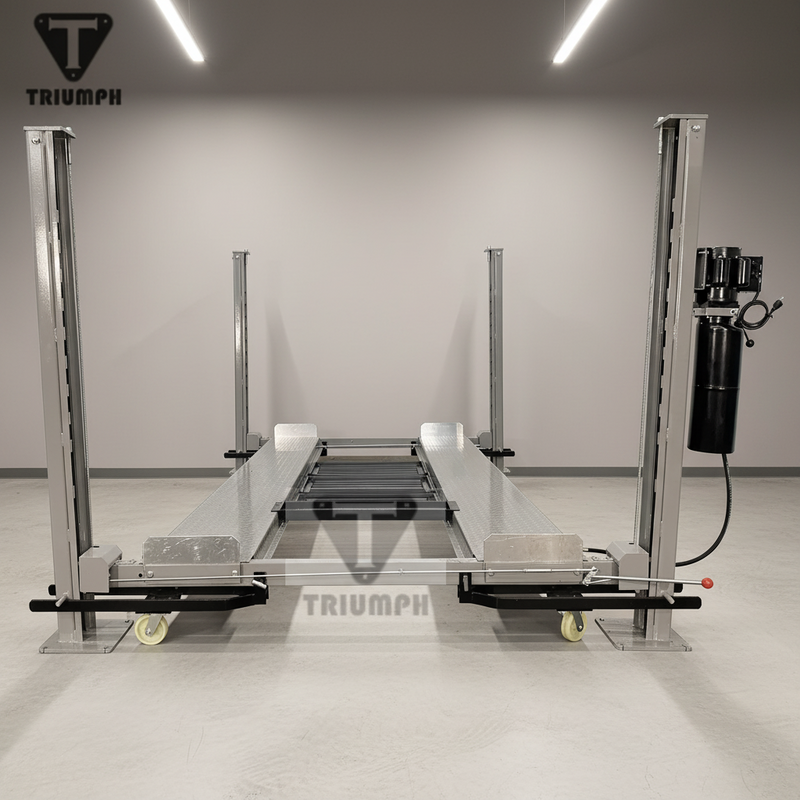

The Triumph NSS-8SQ “The Classic” is an 8,000 lbs capacity four-post lift designed for garages that need maximum flexibility from a limited footprint. Its shorter-length design provides the same lifting capability as a full-size storage lift while fitting better in tighter spaces. Built for both vehicle storage and routine service work, it allows you to park a second vehicle underneath while keeping the upper vehicle elevated for maintenance access. With a 72-inch maximum lift height and 69 inches of clearance under the runway, it creates valuable usable space without requiring a permanent expansion of your garage.

The NSS-8SQ combines proven four-post stability with convenient operation. Its 10 automatic locking positions engage as the lift rises, while the single-point lock release lowers all four corners together for simple operation. A complete lifting cycle takes approximately 40 seconds using the self-contained hydraulic power unit, which runs on standard 110V power with a steel oil tank and UL-listed plug. The included four-wheel caster kit allows the entire assembled lift to be moved around the garage, giving owners the ability to change layouts when needed instead of dedicating one permanent bay.

Designed for both storage and maintenance, the lift includes practical accessories that improve everyday usability. Three drip trays help prevent fluids from the upper vehicle reaching the one below, while the steel jack tray provides a secure platform for using a bottle jack or floor jack during wheel and brake service. Diamond-plate drive-on ramps also make vehicle loading quick and straightforward.

The NSS-8SQ is ideal for home garage enthusiasts, collectors, and small workshops that need a compact lift for vehicle storage, detailing, inspections, and light maintenance. With its shorter 141-inch overall length, portable design, and included accessories, it provides a smart way to increase garage capacity while keeping the workspace adaptable.

Features

• 8,000 lb lifting capacity on a four-post design, providing stable overhead parking and reliable service capability

• 72" maximum lifting height with 69" of clearance beneath the runways for additional vehicle storage space

• 10 automatic locking positions with a single-point lock release system for secure and convenient operation

• Fully portable design with included four-wheel caster kit, allowing the assembled lift to be moved around the garage

• Diamond-plate drive-on approach ramps for easy vehicle loading and improved traction

• Steel jack tray allows one end of the vehicle to be raised using a bottle jack or floor jack for maintenance tasks

• Three drip trays help protect the vehicle below by catching oil, coolant, and other fluids

• Self-contained hydraulic power unit with steel oil tank and approximately 40-second full lifting time on 110V power

• Compact 141" overall length without ramps, making it suitable for garages with limited space

Specifications

Warranty

The Triumph NSS-8SQ is backed by a 1-year parts-only warranty. If a covered component fails, Triumph provides phone-based troubleshooting and ships the required replacement part free of charge via ground service.

Warranty Coverage

• 1-year parts warranty on covered components

• Replacement parts and ground shipping included for approved warranty claims

• Labor and installation costs are not covered; replacement installation is the owner’s responsibility

• Hydraulic cylinders include a 30-day full warranty; after 30 days, a seal kit is provided if needed

• Rubber lifting pads are excluded from warranty coverage

Documents

Installation Manual (PDF)
Cable Routing Guide (PDF)
