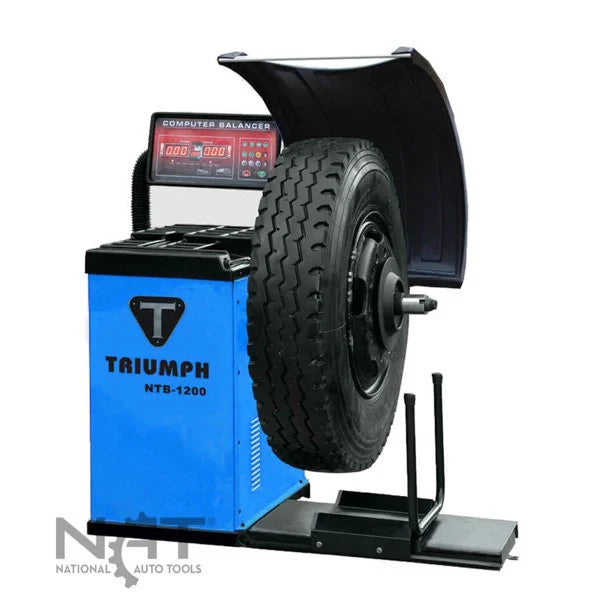

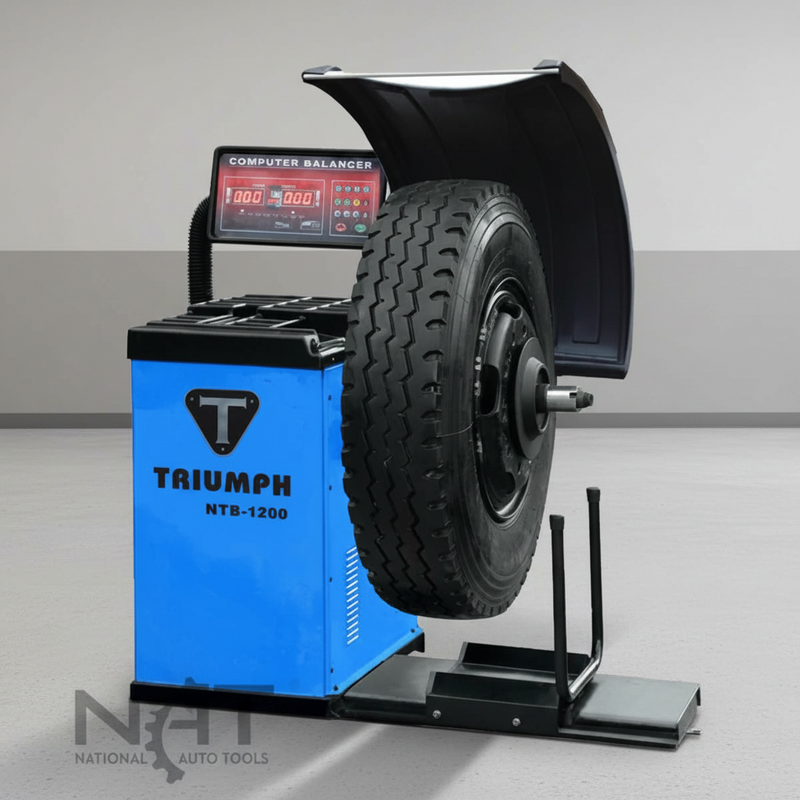

The Triumph NTB-1200 Electronic Truck Wheel Balancer is a heavy-duty computer wheel balancer designed to service everything from passenger vehicles to over-the-road truck wheels on a single machine. With support for 10" to 28" wheels, tire diameters up to 51", rim widths from 1.5" to 20", and wheel assemblies weighing up to 350 lbs, it eliminates the need for separate passenger and commercial balancers in many professional service environments.

Built for efficiency, the NTB-1200 features an automatic gauge arm that measures wheel distance and diameter, reducing manual setup and helping technicians move through balancing jobs more quickly. Powered by a 1/3 HP motor, the machine completes a balancing cycle in approximately 8 seconds while delivering ±1 gram balancing resolution for standard applications and ±10 grams when working with heavier counterweights. The display can be switched between standard and metric units, providing flexibility for different shop preferences.

The balancer offers multiple operating modes to accommodate a wide variety of wheel types and weight placement methods, including Dynamic, Static, ALU 1–3, ALU-S, and OPT balancing programs. A protective wheel hood is included to improve operator safety during the balancing process while helping protect the machine from debris.

The NTB-1200 is ideal for commercial tire shops, truck repair facilities, fleet maintenance centers, dealerships, and high-volume service shops that work on a broad range of vehicles. It is compatible with passenger cars, half-ton through one-ton trucks, box trucks, and over-the-road truck wheels, including 14"–24", 16.5", 19.5", and 21.5" wheels, as well as Load Range C, D, and E tires, implement wheels, and run-flat tires. Its wide operating range and heavy-duty capacity make it a versatile solution for shops servicing both light- and heavy-duty vehicles.

Features

• Truck-to-passenger balancing range handles wheels from 10" to 28" and assemblies weighing up to 350 lbs, making it suitable for heavy trucks, light trucks, and passenger vehicles on a single machine
• Automatic distance and diameter measurement uses the gauge arm to automatically record wheel distance and diameter, while rim width is entered manually
• Fast 8-second balance cycle powered by a 1/3 HP motor for efficient shop productivity
• ±1 gram balancing resolution provides precise electronic measurements (±10 grams for heavier weight ranges) with selectable standard or metric units
• Multiple balancing programs include Dynamic, Static, ALU 1–3, ALU-S, and OPT modes to support a wide variety of wheel types and weight-placement methods
• Protective wheel hood included to enhance operator safety and help contain debris during the balancing cycle

Specifications

Warranty

The Triumph NTB-1200 is backed by a 1-year parts-only warranty. If a covered component fails, customers can contact MGS for phone-based troubleshooting, and the required replacement part will be shipped free of charge with standard ground shipping included.

Warranty Coverage

• 1-year parts warranty on covered components
• Replacement parts and ground shipping included for approved warranty claims
• Labor costs for installation are not covered; replacement installation is the owner's responsibility

Documents

Triumph NTB-1200 Product Manual (PDF)
