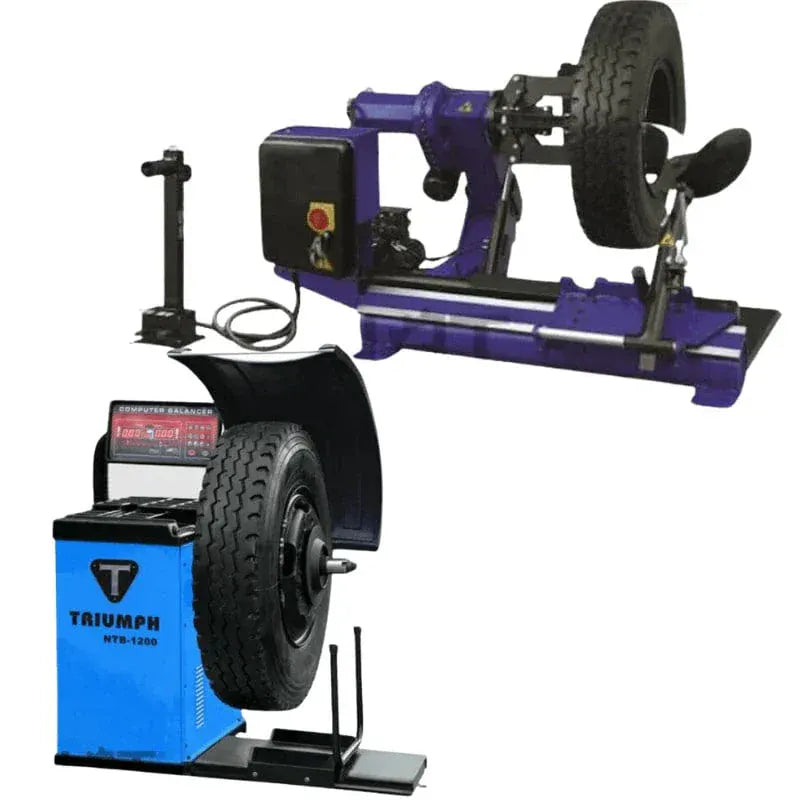

The Triumph NTC-690 and NTB-1200 combo combines a heavy-duty tire changer and electronic wheel balancer for shops servicing commercial trucks, buses, tractors, and industrial equipment while still handling passenger and light-truck wheels on the balancer. The NTC-690 stands out with a 14"–56" clamping range and capacity for tires up to 90" in diameter, while the NTB-1200 adds balancing capability from 10" to 28" wheels with ±1 gram accuracy. Note: the tire changer requires 220V power, while the balancer runs on standard 110V service.

The robotic arm tire changer handles bead-breaking and mounting operations on large tires, while the included wireless remote allows the operator to control the machine without standing directly at the wheel. The NTC-690 supports tires up to 42" wide and operates at up to 120 PSI working pressure. The NTB-1200 complements it with automatic wheel distance and diameter measurement, an 8-second balance cycle, and a 350 lb maximum wheel capacity for a wide range of commercial and passenger applications.

Built for commercial tire shops, fleet maintenance facilities, agricultural service centers, and industrial repair operations, this package covers high-demand wheel service without needing separate equipment for every vehicle category. The combo ships by LTL freight with lift-gate service and includes essential accessories such as clamp covers, a bead press clamp, wireless remote, crowbar, and protective cover.

Features

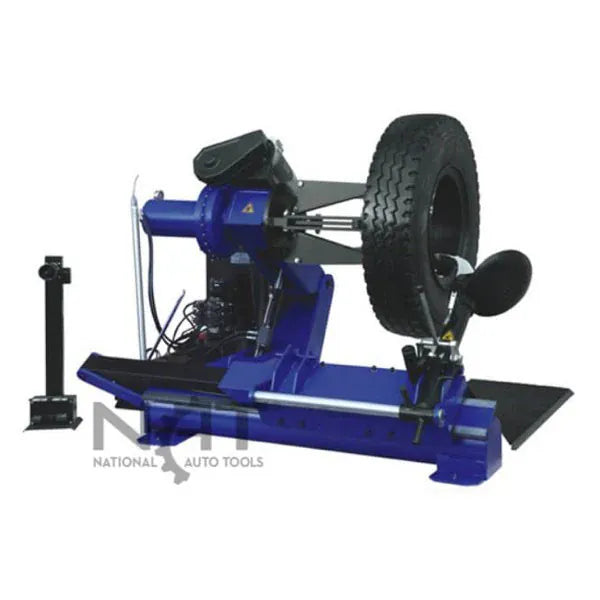

NTC-690 Tire Changer

• Robotic arm operation — Automates bead breaking and tire mounting for large commercial and industrial tires
• Wireless remote control — Allows operation from a safe and convenient position away from the wheel assembly
• Heavy-duty tire capacity — Handles tires up to 90" in diameter and wheels up to 42" wide
• Wide clamping range — Adjustable from 14" to 56" to service truck, bus, tractor, and industrial equipment wheels
• 120 PSI maximum working pressure — Designed for demanding commercial tire service applications
• 220V single-phase power — Provides the electrical capacity required for heavy-duty operation
• Complete accessory package included — Ships with a crowbar, clamp covers, bead press clamp, and instructional video

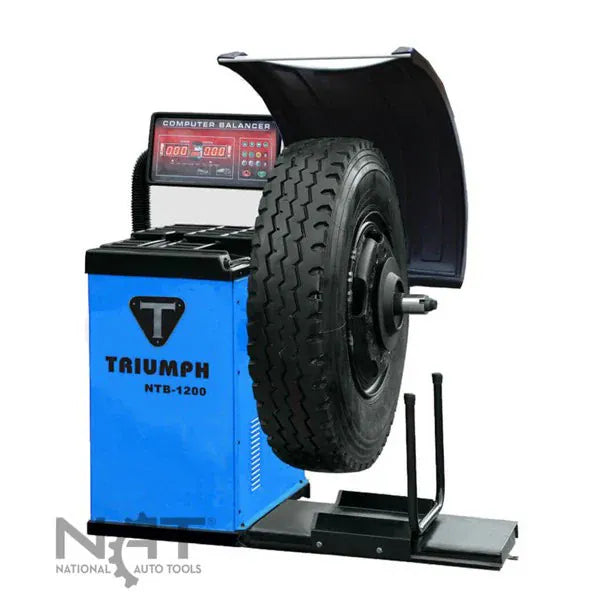

NTB-1200 Electronic Wheel Balancer

• Wide vehicle coverage — Balances 10" to 28" wheels, supporting both passenger vehicles and larger truck applications
• High-capacity balancing range — Handles tires up to 51" in diameter, rim widths from 1.5" to 20", and wheels up to 350 lbs
• Precision balancing — Provides ±1 gram accuracy in standard mode and ±10 grams accuracy when using heavier weights
• 8-second balance cycle — Delivers fast balancing for higher-volume shops
• Automatic measurement system — Automatically detects wheel distance and diameter for faster setup
• Standard and metric display modes — Easily switch between measurement formats
• 42 mm shaft design — Built for heavy-duty wheel assemblies
• 110V operation with protective cover included

Compatibility

• Heavy commercial vehicles — Designed for trucks, buses, tractors, and industrial equipment using the NTC-690’s 14"–56" clamping range and tire capacity up to 90" diameter
• Passenger vehicles and light trucks — Supported by the NTB-1200 balancer with a 10" minimum wheel size
• Mixed-fleet service shops — Ideal for facilities servicing both passenger vehicles and commercial equipment with one balancing machine

What's Included

NTC-690 Tire Changer

• Crowbar
• Wireless remote control
• Clamp covers
• Bead press clamp
• Instructional video

NTB-1200 Wheel Balancer

• Protective cover

Specifications

Documents

Manual and technical documents for this combo are available on request — contact support@carliftsupply.com or call 877-600-5227.
