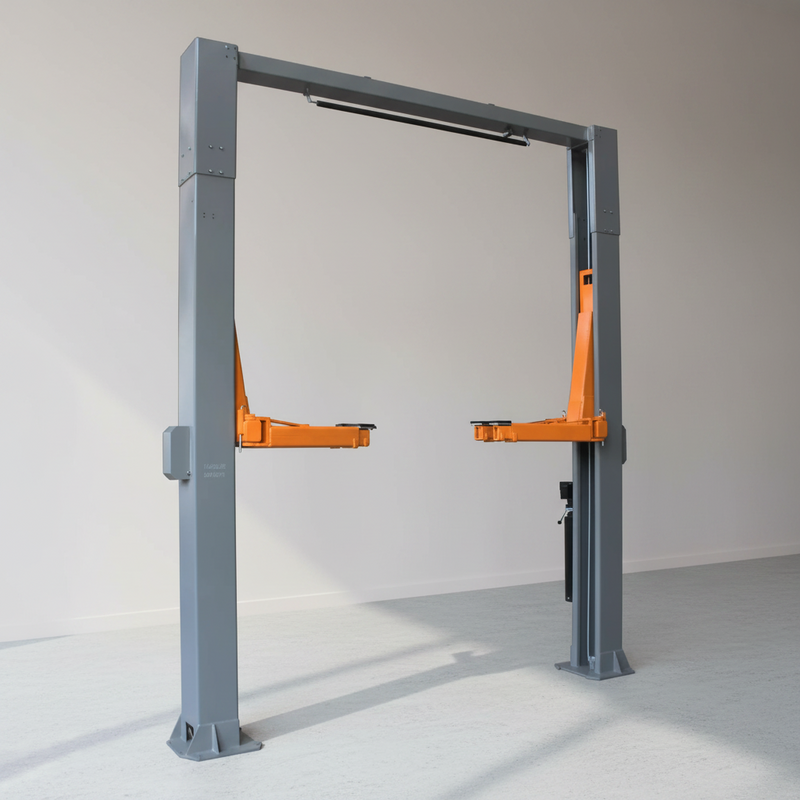

The Triumph NTO-16 is a 16,000 lbs capacity overhead two-post lift built for professional shops servicing heavy-duty trucks, dual-rear-wheel vans, and large diesel pickups that require more capacity than standard automotive lifts provide. Its overhead configuration keeps the space between the columns completely open, giving technicians room for tools, equipment, and service carts while maintaining easy access around the vehicle. Note: installation requires a 6" concrete slab rated at 3,000 PSI minimum, approximately 165" of ceiling clearance, and a 220V circuit for the 3 HP motor.

The NTO-16 uses direct-drive hydraulic cylinders to provide smooth and consistent lifting performance without the added complexity of chain or screw-drive systems. A single-point lock release allows both columns’ safety locks to disengage together, while the electrical override automatic safety shut-off helps prevent operation beyond the designed lifting range. With a 72" maximum lifting height, 102" drive-through width, and approximately 40-second lift cycle, it provides the working space needed for larger commercial vehicles.

Designed for demanding service environments, the NTO-16 is manufactured to ISO 9001 and CE Certified / Compliant standards and includes essential accessories for heavy-duty applications. The standard package comes with truck adapters and mounting hardware, helping simplify installation and vehicle positioning for pickups, vans, and service trucks.

This lift is ideal for commercial repair shops, fleet maintenance facilities, truck service centers, and dealerships that regularly work on larger vehicles. With its 16,000-lb capacity, clear-floor overhead design, and heavy-duty lifting system, the Triumph NTO-16 provides the strength and accessibility needed for serious automotive and truck service operations.

Features

• 16,000 lb lifting capacity designed for heavy-duty service vehicles, dual-rear-wheel trucks, and full-size diesel pickups
• Direct-drive cylinders provide smooth, dependable lifting performance without the complexity of chain or screw-drive systems
• Single-point lock release allows both column safety locks to disengage simultaneously for convenient operation
• Electrical override with automatic safety shut-off helps prevent over-travel and adds an extra layer of protection
• Approximately 40-second lift time from fully lowered to maximum height for improved service efficiency
• Overhead design with top crossbar and safety shut-off bar keeps the floor area between the columns completely clear
• Manufactured to ISO 9001 standards and CE certified/compliant for quality assurance and safety conformity
• Includes truck adapters and mounting hardware as part of the standard package

What's Included

• Triumph NTO-16 two-post lift assembly, including:

  • Two lifting columns

  • Overhead crossbar with safety shut-off bar

  • Four swing arms with adapters

• Truck adapters

• Mounting hardware

• Installation instruction manual (see Documents)

Specifications

Warranty

The Triumph NTO-16 is backed by a 1-year parts warranty covering eligible structural and mechanical components. Labor is not included. If a covered component fails, customers can contact Triumph for phone-based troubleshooting, and the replacement part will be shipped at no cost with free ground shipping.

Warranty Coverage

• 1-year parts warranty on covered structural and mechanical components
• Replacement parts and ground shipping included for approved warranty claims
• Labor costs for installation are not covered; installation is the owner’s responsibility

Warranty Exclusions & Special Terms

• Rubber lifting pads are not covered under the parts warranty
• Hydraulic cylinders include a 30-day full warranty; after 30 days, Triumph provides a seal kit instead of full cylinder replacement if service is required

Documents

Triumph NTO-16 Installation Instruction Manual (PDF)
