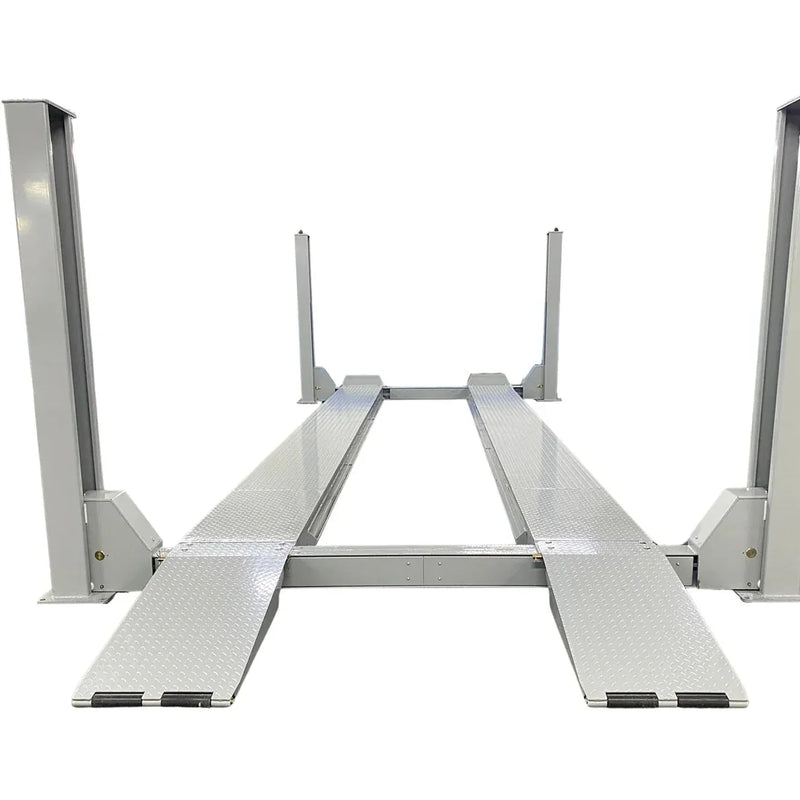

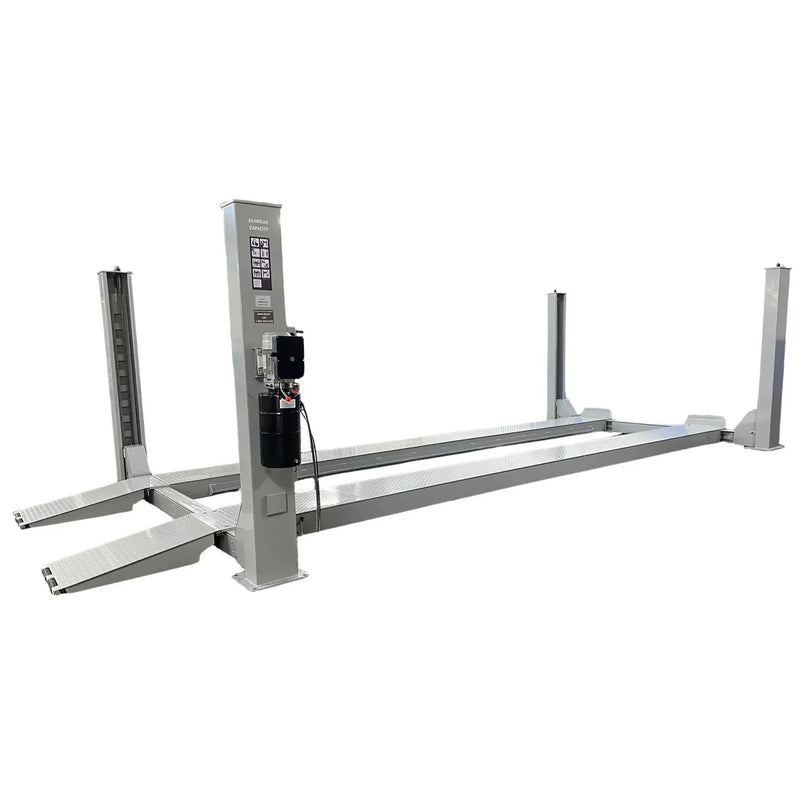

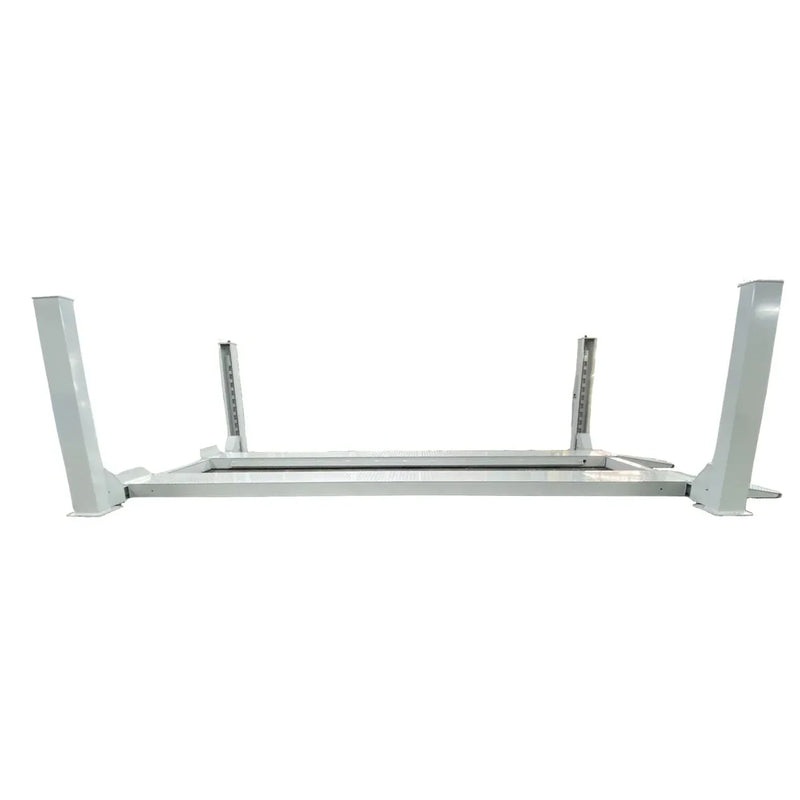

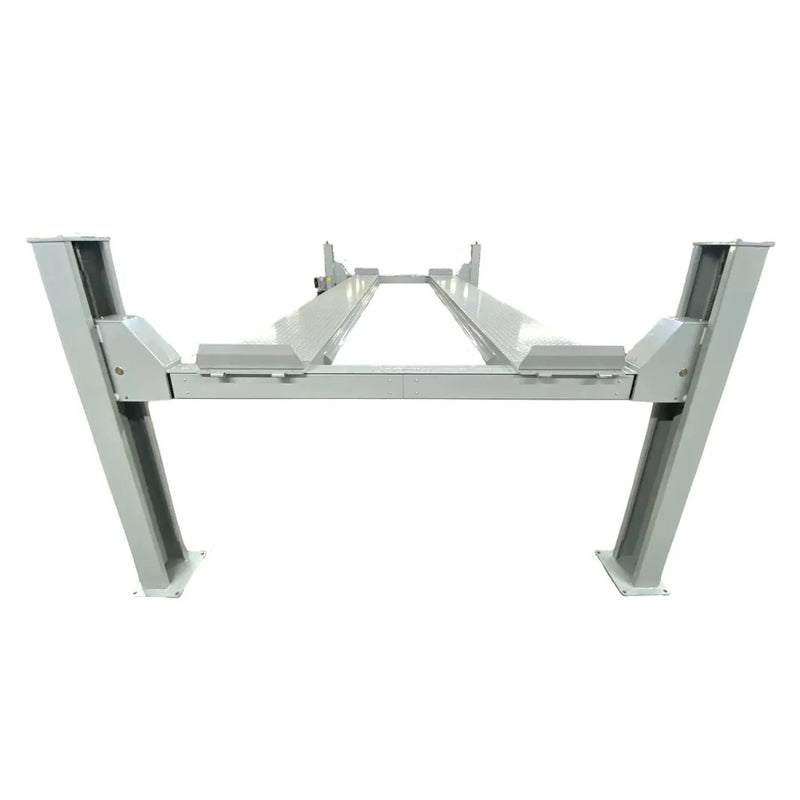

The Triumph NTR-32 is a 32,000 lb four-post lift engineered for heavy-duty commercial service, making it an excellent choice for buses, box trucks, motorhomes, tow trucks, fire apparatus, and fleet vehicles. Its 295.2-inch runways and 70.8-inch maximum lifting height provide the size and working clearance needed for long-wheelbase vehicles, while adjustable runway spacing from 48.75" to 52.7" accommodates a wide variety of track widths. Note: the lift operates on 220V single-phase power.

A 4 kW motor paired with a metal hydraulic tank delivers dependable lifting performance, while the pneumatic lock release system uses four air cylinders to disengage all safety locks simultaneously for smooth operation. With nine mechanical locking positions, technicians can select the ideal working height for different service tasks. The 9-inch lowered runway height also allows large vehicles to drive onto the lift with minimal clearance concerns.

Built for commercial repair shops, fleet maintenance centers, municipal service departments, and heavy-duty truck facilities, the NTR-32 is designed for demanding daily use. Integrated safety systems—including a cable break protection device, parachute valve, and anti-falling wheel stoppers—provide additional protection during operation, while the diamond-plate drive-on runways and approach ramps offer secure vehicle loading and long-lasting durability.

Features

• 32,000 lb lifting capacity — Built for buses, commercial trucks, motorhomes, and heavy-duty fleet vehicles
• 70.8" maximum lifting height with a 9" minimum runway height for easy drive-on loading and excellent under-vehicle working clearance
• 9-position mechanical locking system — Provides multiple working heights with a pneumatic lock release operated through a four-cylinder air circuit
• Adjustable runway spacing — Configures from 48.75" to 52.7" to accommodate both narrow-track and wide-track commercial vehicles
• 295.2" long runways — Designed to support long-wheelbase vehicles from front to rear

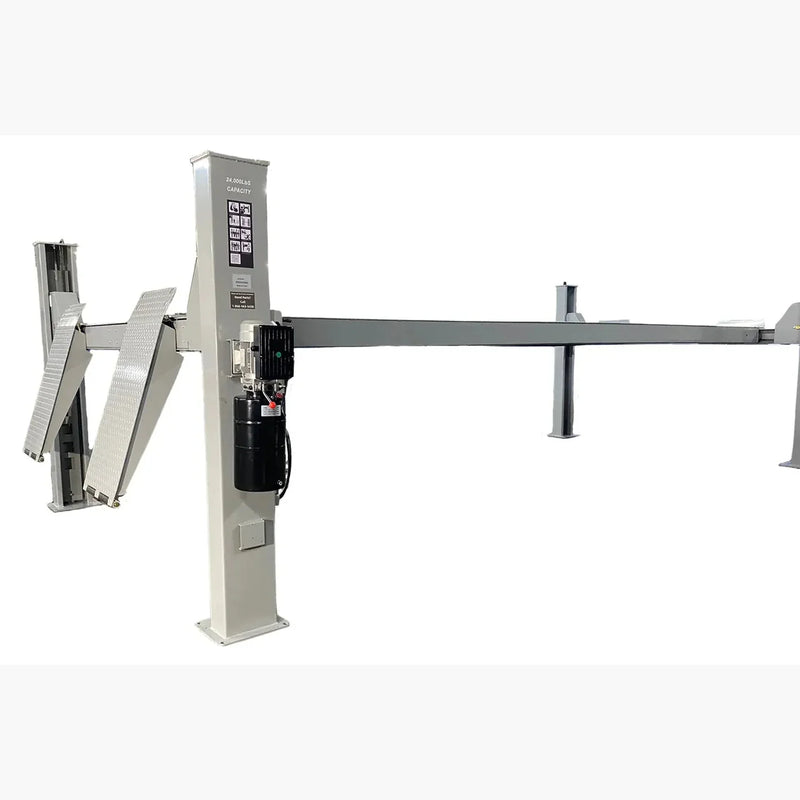

• 4 kW hydraulic power system — Features an aluminum motor, metal hydraulic tank, and operates on 220V single-phase power
• Integrated safety features — Includes a cable break protection device, parachute valve, and anti-falling wheel stoppers for enhanced operating safety

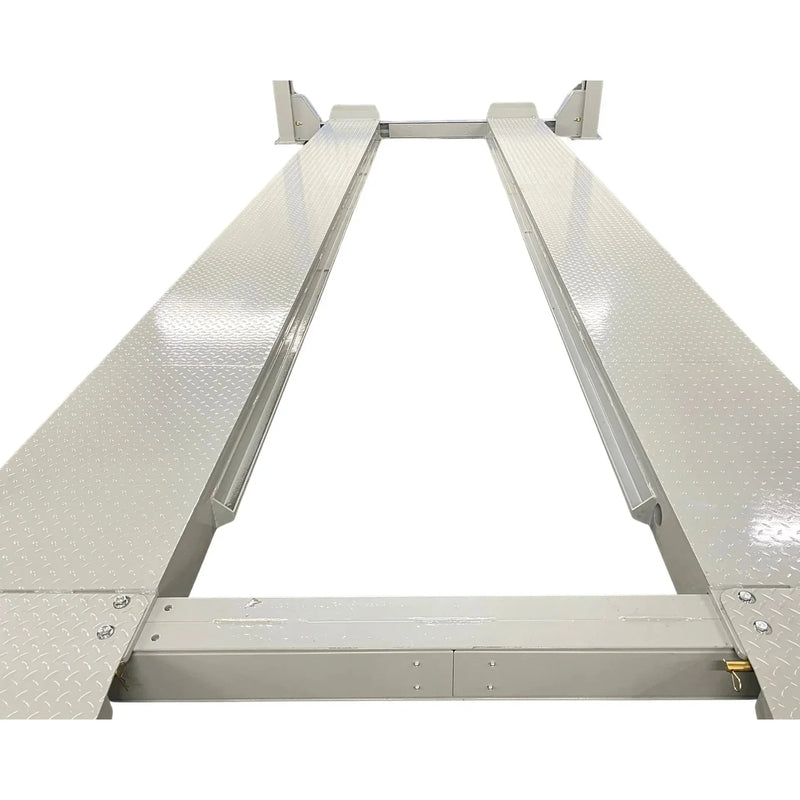

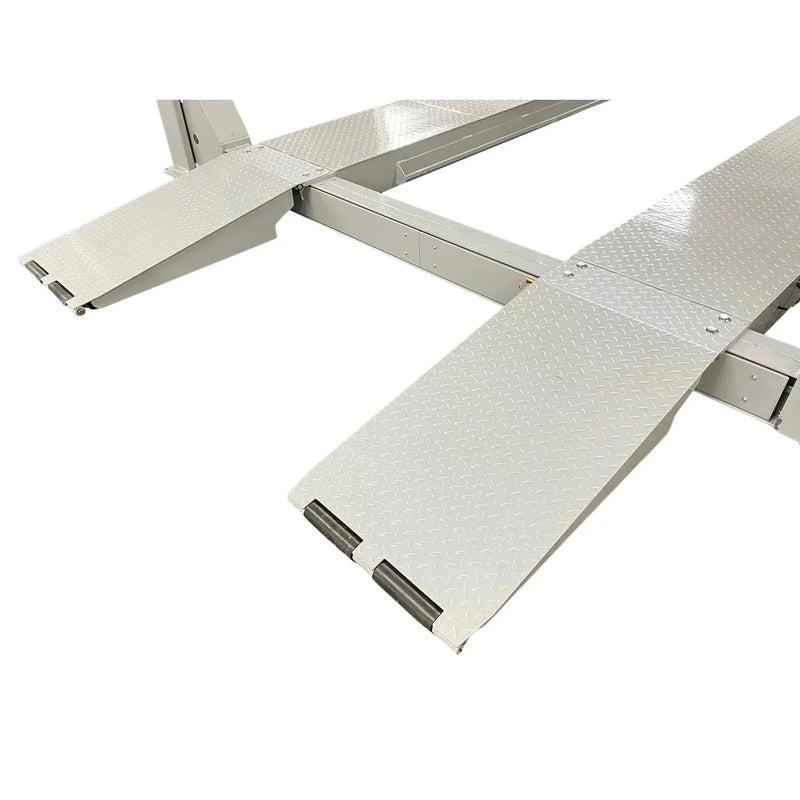

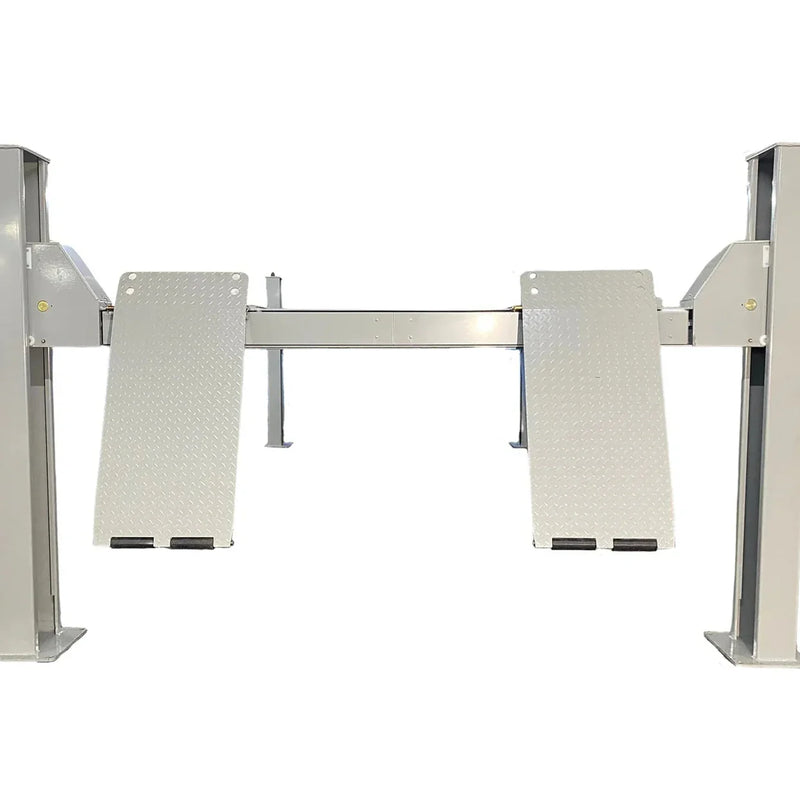

• Diamond-plate drive-on runways — Flat platform design with integrated approach ramps for secure traction and convenient vehicle loading

Specifications

Compatibility

The Triumph NTR-32 is engineered for heavy commercial applications, including buses, box trucks, motorhomes, dual-rear-wheel pickups, tow trucks, fire apparatus, and other Class 5–8 vehicles. Its 32,000 lb lifting capacity, 48.75"–52.7" adjustable runway spacing, and 295.2" runway length provide the versatility needed for a wide range of commercial vehicles.

Before ordering, verify the following:

• The heaviest vehicle you plan to lift is comfortably below the 32,000 lb rated capacity

• Your shop has sufficient ceiling clearance for the lift's 93.1" overall height plus the maximum height of the vehicle when fully raised

• Your service bay can accommodate the lift's 344.6" overall length (including ramps) and 168.7" overall width, while maintaining adequate workspace around the lift

Shipping & Delivery

The Triumph NTR-32 ships via LTL common-carrier freight on a 48-foot semi-truck. Before purchasing, please review the delivery requirements:

• The customer is responsible for unloading the lift from the truck; the freight driver does not unload the equipment
• Lift-gate service is not available for lifts of this size and weight
• The lift cannot be unloaded manually; equipment capable of handling the full 9,037 lb shipping weight is required, such as a forklift, skid steer, tractor, tow truck, or backhoe
• If unloading equipment is unavailable at your location, MGS can arrange shipment to the carrier's nearest freight terminal for pickup using a trailer or moving vehicle
• Customers are responsible for scheduling the delivery appointment directly with the freight carrier

Warranty

The Triumph NTR-32 is backed by a 1-year parts warranty (parts only — labor is not included). If a covered component fails during the warranty period, MGS provides phone-based troubleshooting support and ships the required replacement part free of charge with ground shipping included.

Warranty Coverage

• 1-year warranty on covered parts and components
• Replacement parts and ground shipping included for approved warranty claims
• Labor costs for installation are not covered

Documents

Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
