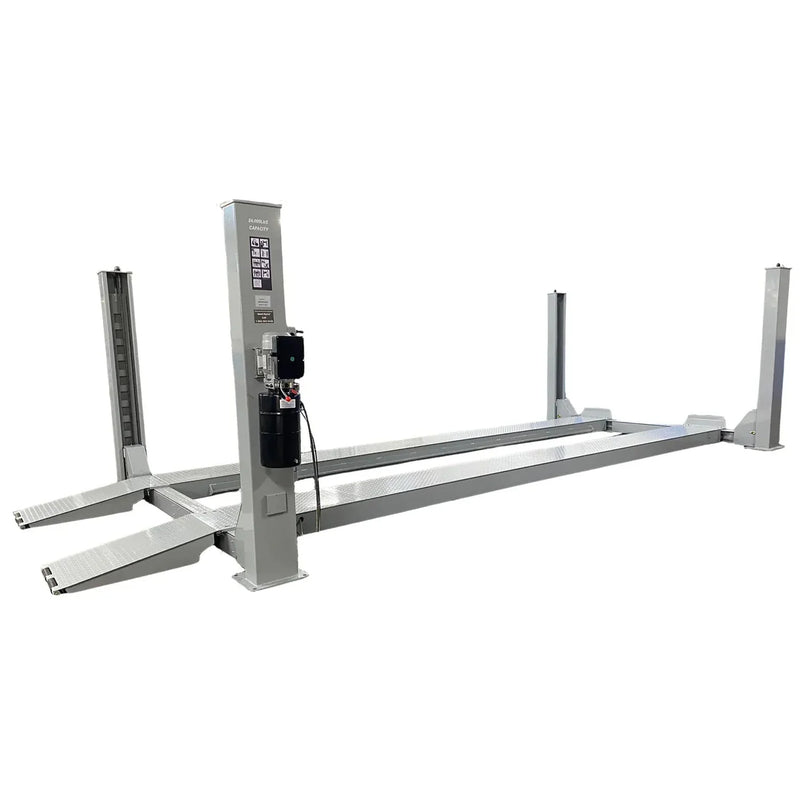

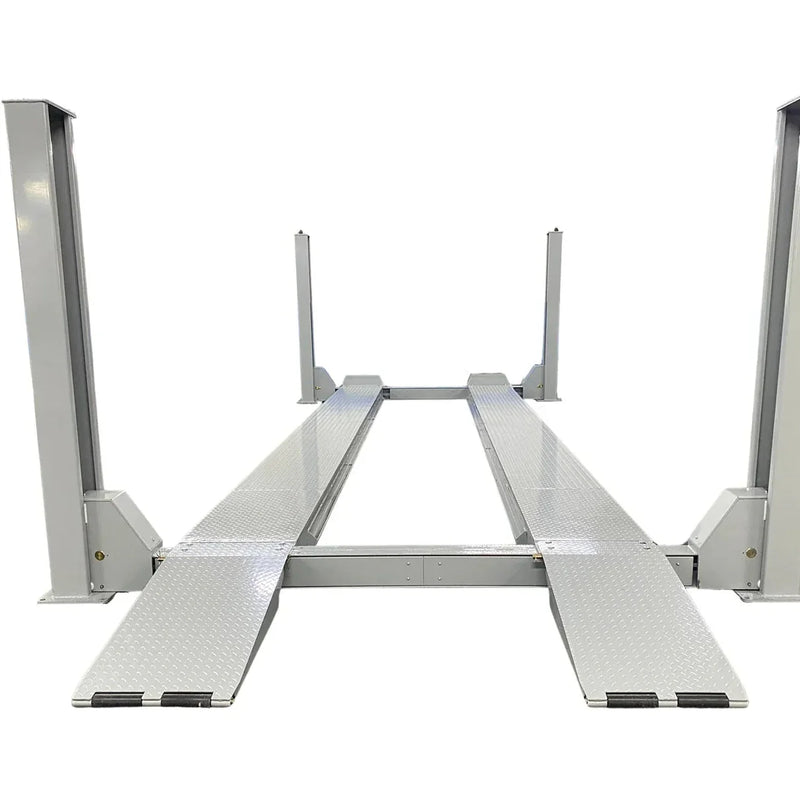

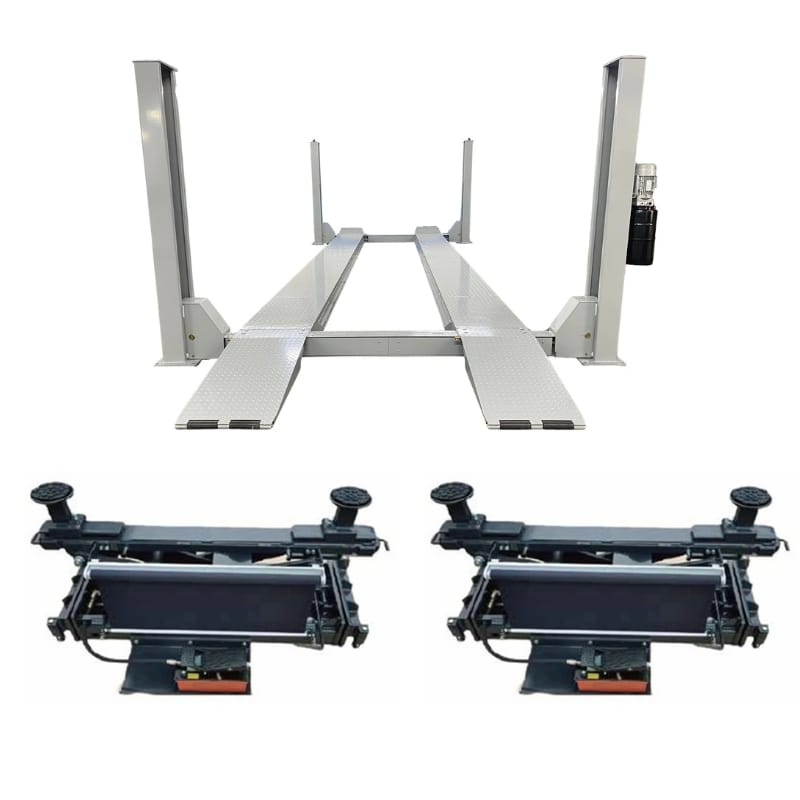

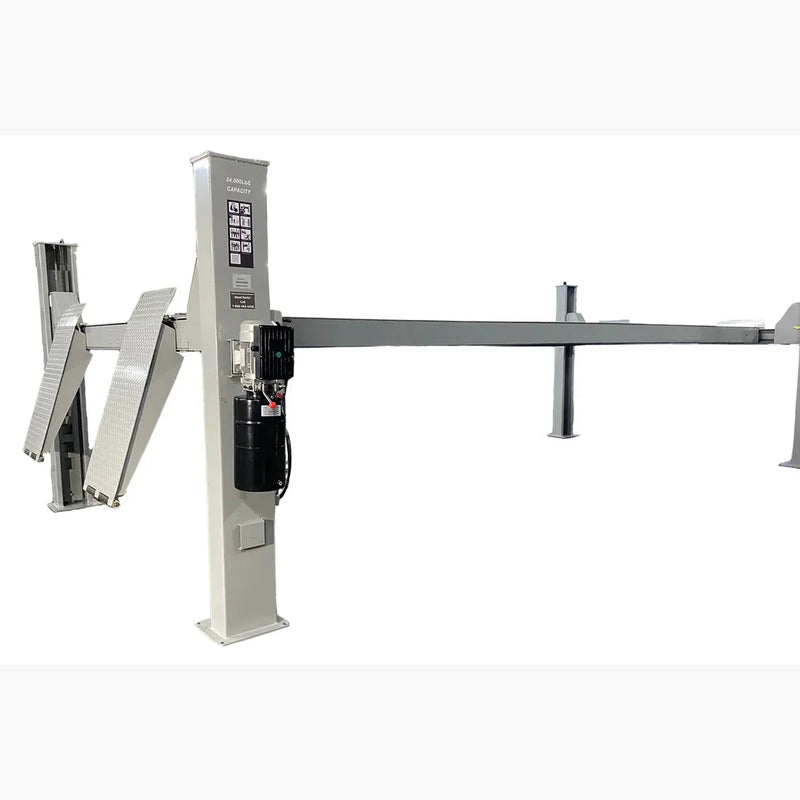

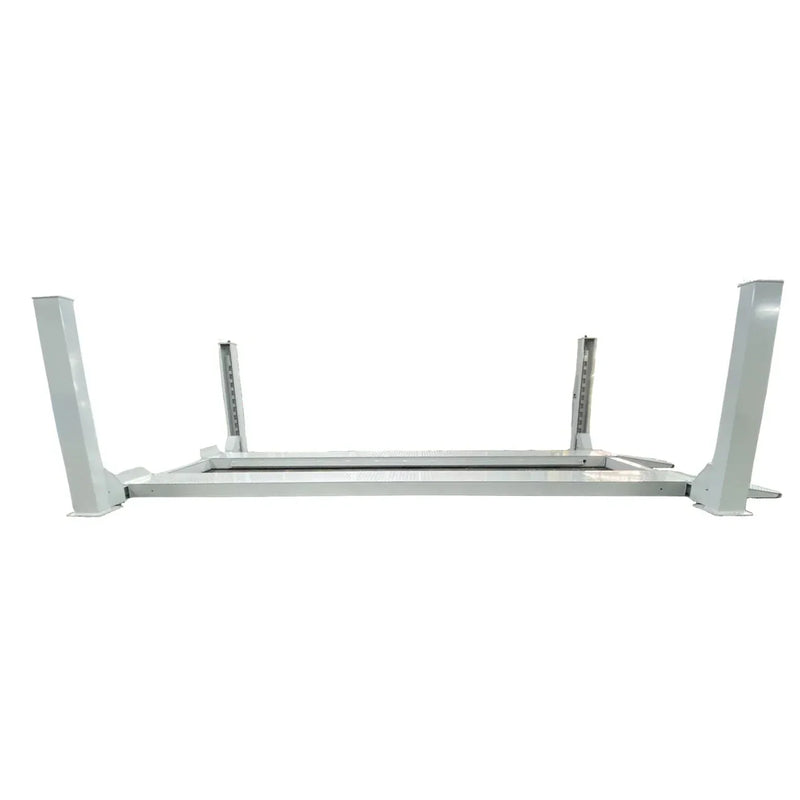

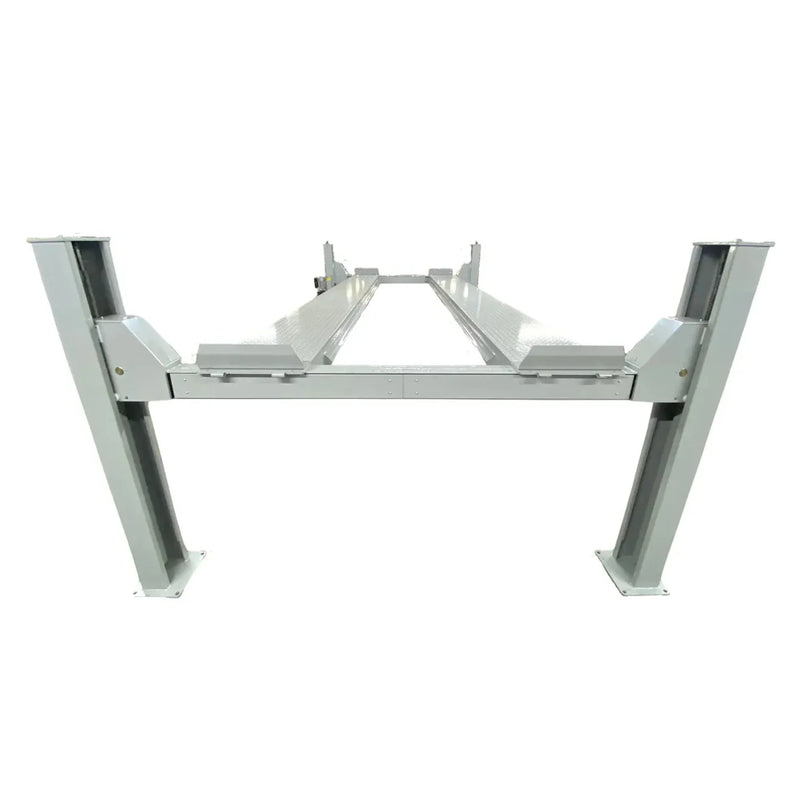

The Triumph NTR-32 four-post lift combo is a 32,000 lb heavy-duty lifting system designed for commercial service operations handling buses, box trucks, RVs, fleet vehicles, and large chassis equipment. It includes two RJ-15 rolling bridge jacks rated at 15,000 lb each, allowing technicians to lift an axle for wheel, brake, suspension, and undercarriage work while the vehicle remains positioned on the runways. Note: the lift requires 220V single-phase power.

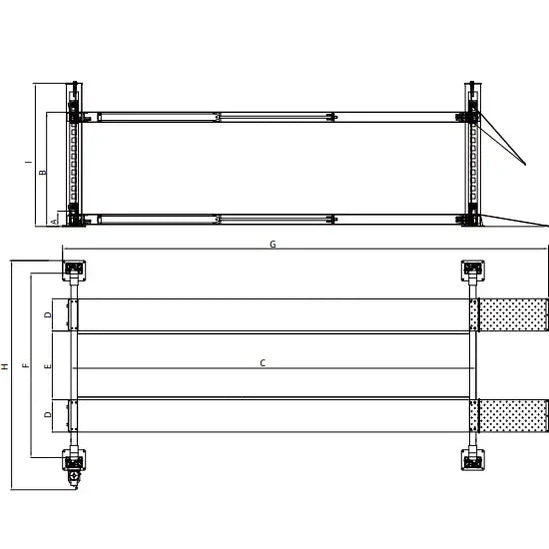

The NTR-32 uses 24-inch wide diamond-plate runways measuring 295.2 inches long, with adjustable spacing from 48.75" to 52.7" between runways to accommodate different vehicle widths and wheel configurations. A 4.0 kW power unit, pneumatic lock release system, and nine mechanical locking positions provide controlled lifting and secure working heights. The included RJ-15 bridge jacks slide between the runways and adjust from 15.3" to 28.3" in lifting height, with pad spacing from 42.6" to 68.7" for different chassis designs.

Built for commercial truck repair facilities, fleet maintenance shops, bus service centers, and heavy-equipment operations, the NTR-32 provides a complete platform for high-capacity vehicle service. Each RJ-15 jack includes 5" and 6.75" height adapters to match different frame clearances, while integrated safety features such as cable break protection, parachute valves, and anti-falling wheel stoppers help secure the load during operation.

Features

• 32,000 lb lifting capacity — Built for heavy commercial vehicles, buses, fleet trucks, and large equipment

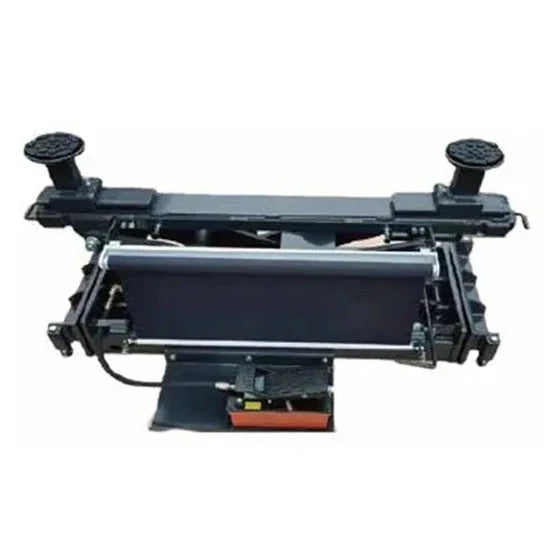

• Two RJ-15 rolling bridge jacks included — Each rated at 15,000 lb, allowing axle lifting and service work without removing the vehicle from the runways
• 9-position mechanical locking system — Provides adjustable and secure working heights throughout the lifting range
• 70.8" maximum lifting height — Provides under-vehicle working clearance while maintaining a 9" minimum runway height for lower-clearance loading

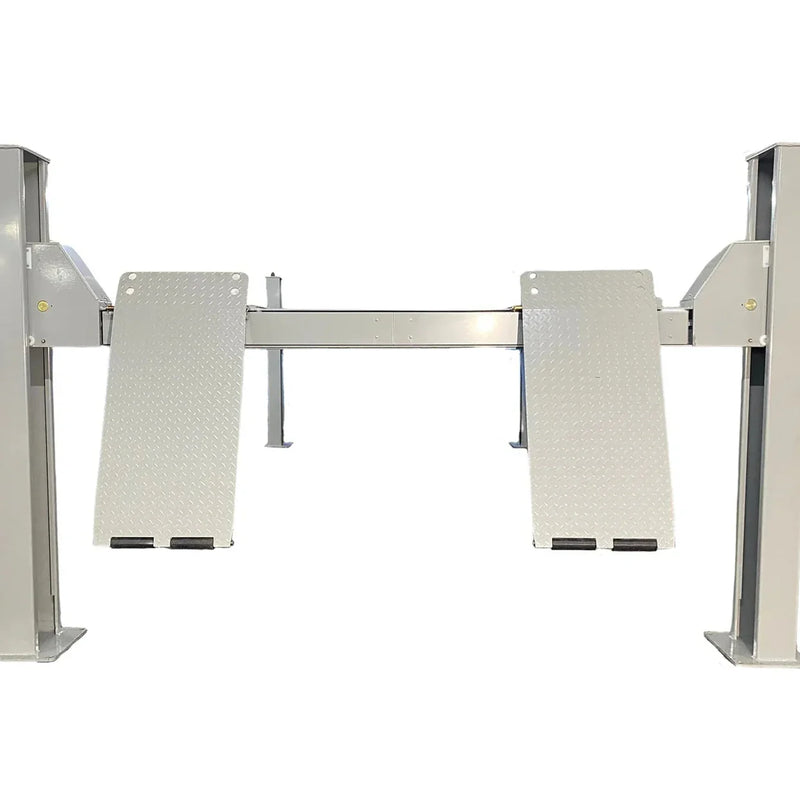

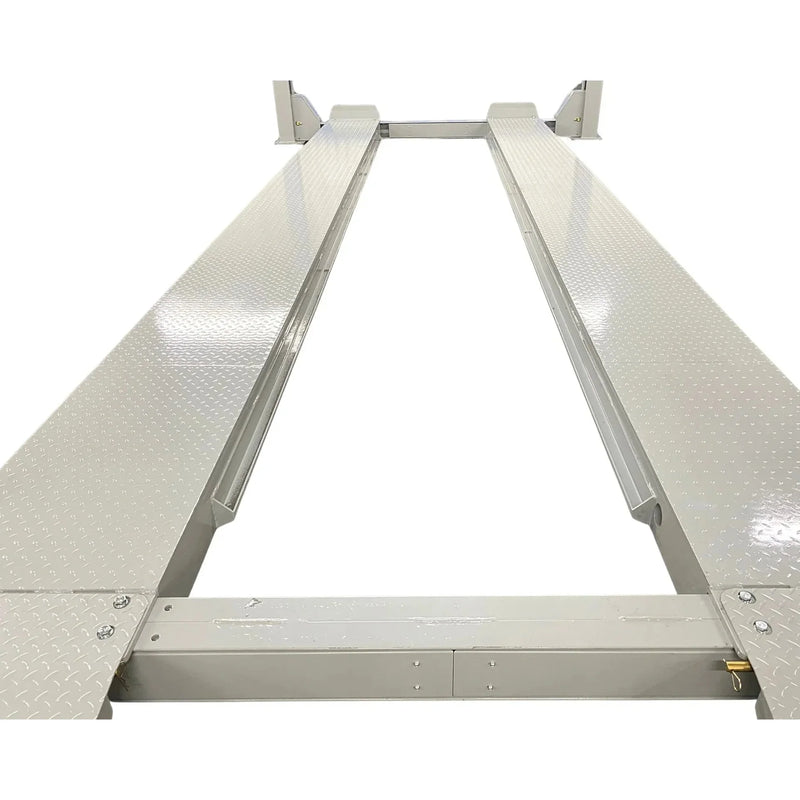

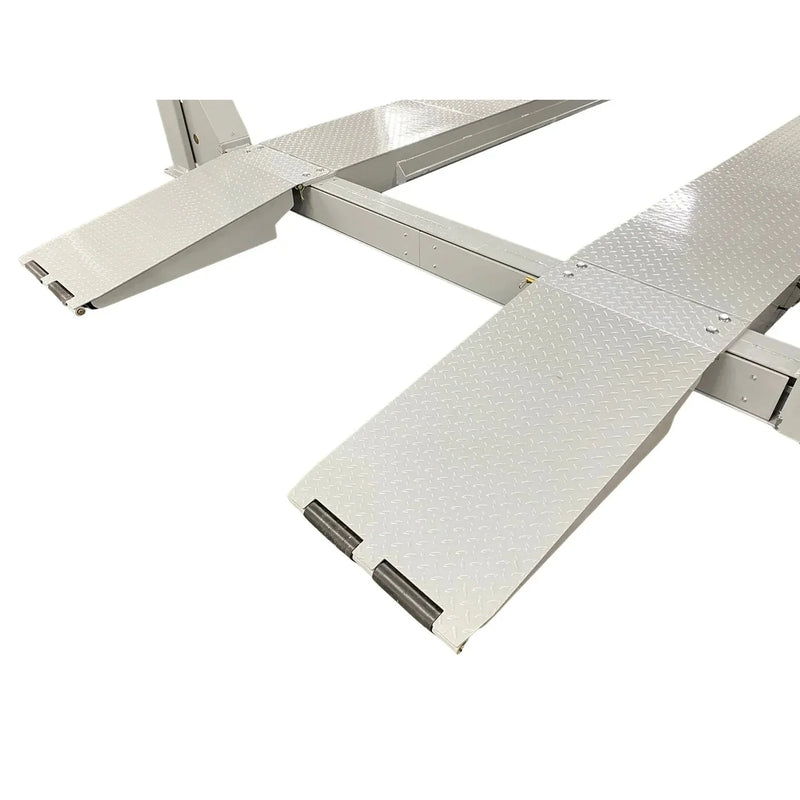

• Heavy-duty diamond-plate runways — Features 24" wide, 295.2" long runways with included approach ramps for easier vehicle positioning
• Adjustable runway spacing — Configures from 48.75" to 52.7" to accommodate different vehicle track widths
• 4.0 kW hydraulic power system — Equipped with an aluminum motor and metal hydraulic tank for reliable heavy-duty operation
• Pneumatic lock release system — Uses a four-cylinder air circuit for convenient safety-lock operation
• Integrated safety systems — Includes cable break protection, parachute valve, and anti-falling wheel stoppers for added lifting security
• RJ-15 adapter sets included — Each rolling bridge jack includes 5" and 6.75" height adapters for proper contact-point adjustment across different chassis designs

What's Included

• 1 × Triumph NTR-32 four-post lift
  • Four lifting columns
  • Two diamond-plate runways
  • Cross-tie assembly
  • Approach ramps
  • 4.0 kW hydraulic power unit
• 2 × Triumph RJ-15 15,000 lb rolling bridge jacks
  • One set of 5" height adapters per jack
  • One set of 6.75" height adapters per jack

Specifications

Warranty

Triumph lifts are backed by a 1-year parts warranty. If a covered component fails, Triumph provides phone-based troubleshooting and ships the replacement part at no charge, including ground shipping, during the warranty period.

Warranty Coverage

• 1-year warranty on covered parts and components
• Replacement parts and ground shipping included for approved warranty claims
• Labor costs for installing replacement parts are not covered

Documents

Manual and technical documents for this combo are available on request — contact support@carliftsupply.com or call 877-600-5227.
