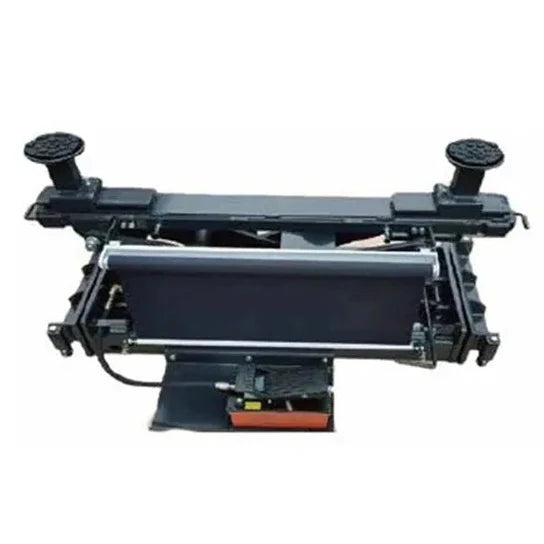

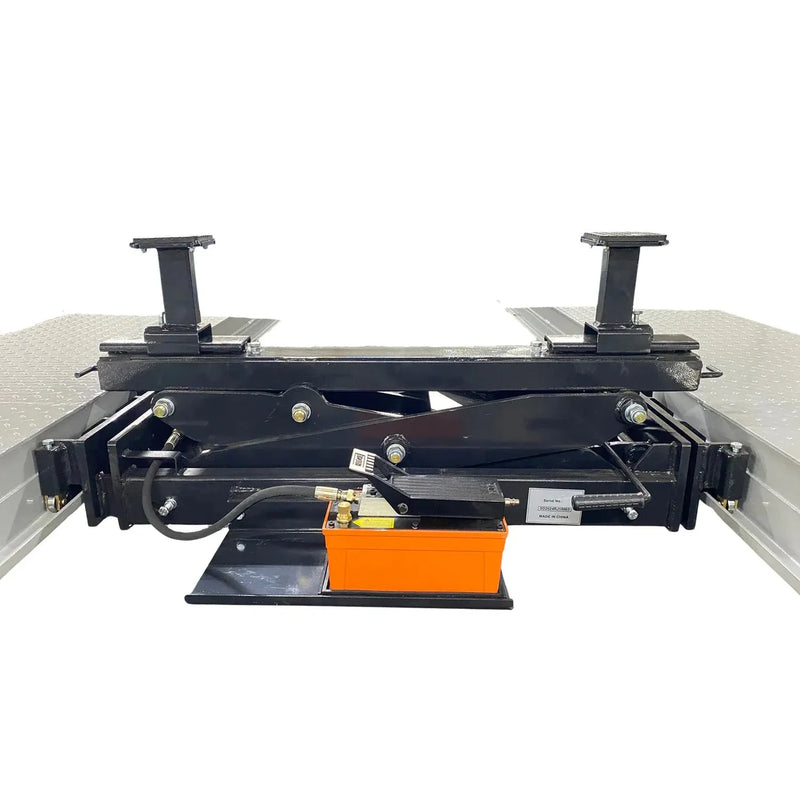

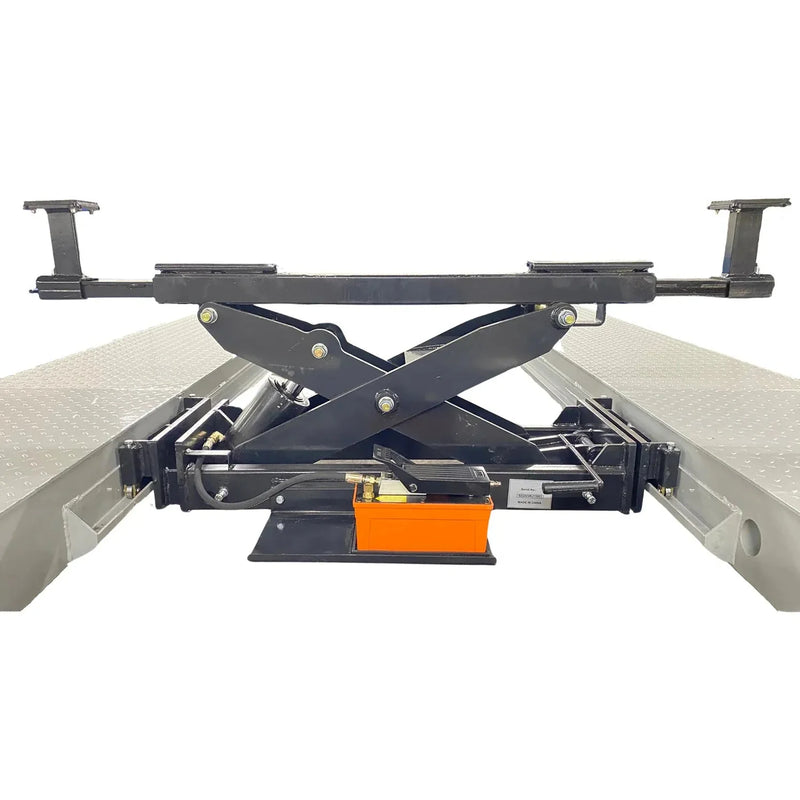

The Triumph RJ-9000 rolling bridge jack adds wheels-free service capability to compatible four-post lifts with a 9,000 lb lifting capacity. It rolls along the lift runways to raise the front or rear axle, allowing technicians to perform brake repairs, tire changes, suspension work, and wheel service without removing the vehicle from the lift. Note: it fits four-post lifts with runway spacing between 43.8" and 52.3".

The integrated foot-pedal hydraulic system keeps both hands available for positioning the lifting pads, while the adjustable pad width from 40.1" to 59.8" helps align with factory lift points on cars, SUVs, and light trucks. The RJ-9000 includes 1.5" and 5" height adapters to adjust contact height for different vehicle clearances, with a lifting range from 16.9" lowered height to 32.4" maximum height.

Designed for professional repair shops, fleet maintenance facilities, and serious home garages, the RJ-9000 turns a four-post lift into a more complete service station. Many users pair two jacks on the same lift — one for each axle — to complete full wheel-off repairs without repositioning equipment. It is compatible with Triumph NTR-series lifts and other four-post systems that match the required runway dimensions.

Features

• 9,000 lb lifting capacity per jack — Designed for full-frame trucks and SUVs when using one jack per axle
• Wide lifting range — Adjusts from a 16.9" lowered height to a 32.4" maximum lift height, accommodating low-clearance vehicles and lifted trucks
• Two height adapter sets included — Includes 1.5" and 5" adapters for proper lift-point positioning without purchasing additional extensions
• Adjustable lifting-pad span — Expands from 40.1" to 59.8" to reach factory lift points on cars, SUVs, and light trucks
• Broad four-post compatibility — Fits lift runways spaced 43.8" to 52.3" apart
• Foot-pedal hydraulic operation — Keeps both hands available for positioning lift pads and securing the vehicle

Compatibility

The Triumph RJ-9000 is compatible with four-post lifts featuring runway spacing between 43.8" and 52.3". This includes the Triumph NTR-16, NTR-24, and NTR-32 four-post lifts, along with many other commercial-grade four-post lifts within this spacing range.

Before ordering, measure the inside-to-inside distance between the runways on your existing lift to confirm compatibility. If you need assistance verifying fitment, contact MGS at 307-381-1810.

What's Included

• One Triumph RJ-9000 rolling bridge jack
• Two sets of height adapters:
  • 1.5" adapters
  • 5" adapters

Most shops purchase RJ-9000 jacks in pairs — one for each axle — allowing front and rear service without repositioning the vehicle. The Triumph NTR-16 four-post lift is also available as a package with two RJ-9000 rolling bridge jacks for customers purchasing both together.

Specifications

Warranty

The Triumph RJ-9000 is backed by a 1-year parts warranty (labor not included). If a covered component fails during the warranty period, customers can contact MGS at 307-381-1810 for phone-based troubleshooting support.

Once the issue is confirmed, the replacement part will be shipped free of charge with ground shipping included. Installation of replacement parts is the owner's responsibility; customers may complete the repair themselves or arrange service with a local mechanic. Most replacements are designed to be straightforward for qualified users.

Documents

Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
