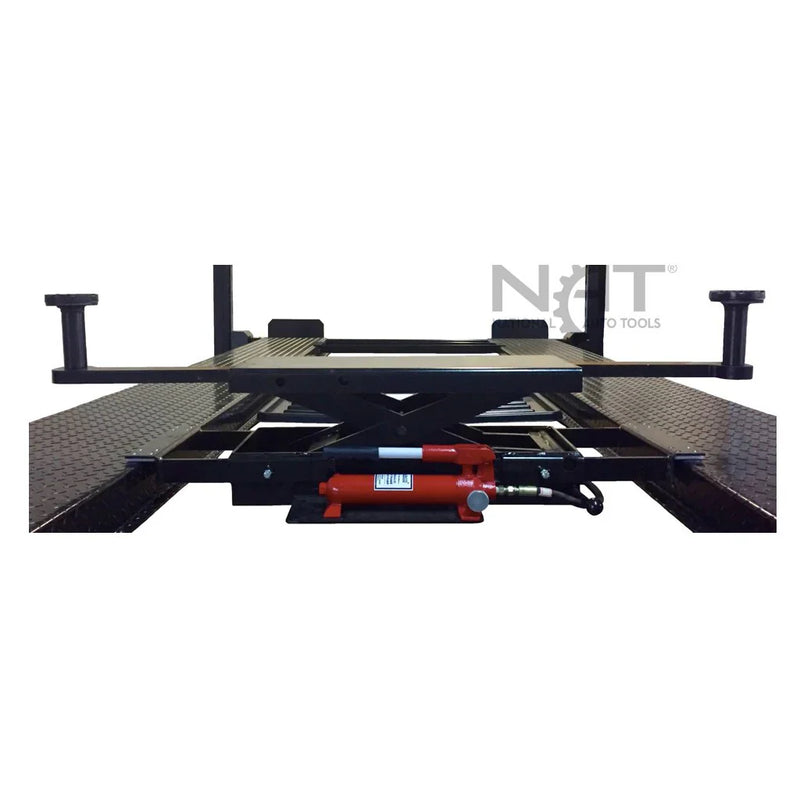

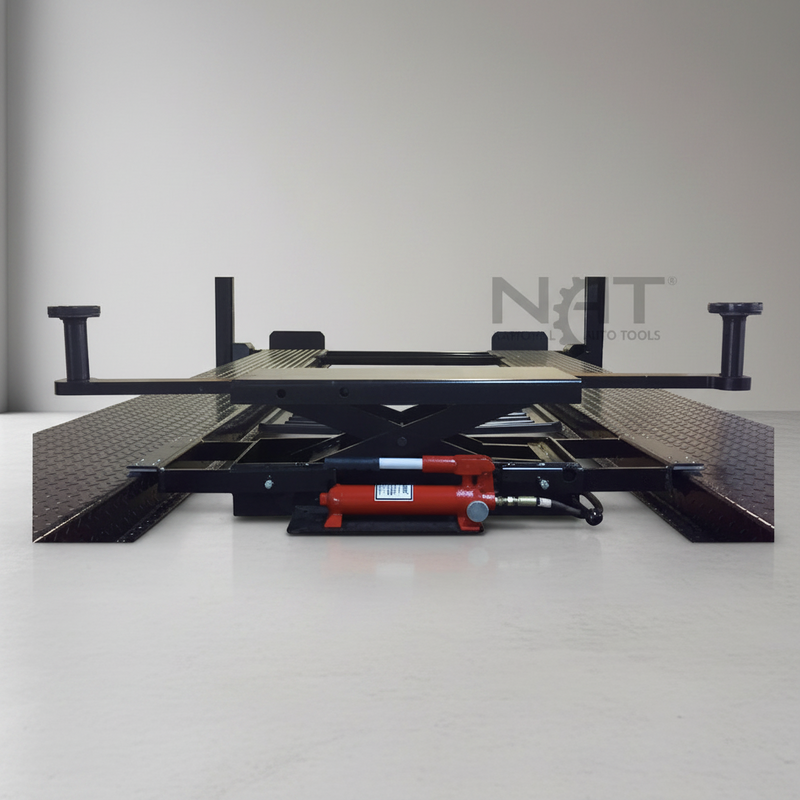

The Triumph SJ-35 is a 3,500 lb manual sliding bridge jack built specifically for Triumph four-post service-and-storage lifts, converting the open center of the lift into a wheels-free work station for brake service, suspension work, and wheel pulls without moving the vehicle to a second lift. It's compatible with the NSS-8, NSS-8XLT, USA8000, USA8000XLT, NSS-8 X1, and NSS-8SQ — confirm your lift model before ordering, as the SJ-35 does not fit other lifts. A manual hydraulic hand pump does the lifting with no shop air or electrical connection required.

The adjustable frame spans a gap width of 31 to 46 inches to fit between the runways, and the lifting pads extend from 39 to 63 inches to reach factory lift points across a range of vehicle widths. Collapsed, the pads sit at 4.75 inches tall — low enough to slide under vehicles already on the lift with minimal clearance — and the jack raises to 11 inches of pad height on its own, reaching 16.5 inches with extensions for vehicles that need more stroke to unload the suspension fully. The jack slides fore and aft along the runways to position under any axle or cross-member without removing the vehicle from the lift.

The SJ-35 is the right add-on for Triumph four-post owners who use their lift for more than storage and want to do wheel-off service work — brakes, rotors, hubs, and suspension — on the same platform without a separate two-post or floor jack setup.

Features

• Rated 3,500 lb lifting capacity for safe and reliable vehicle lifting
• Adjustable gap width from 31" to 46" to fit between lift runways and accommodate different wheelbases
• Extendable lifting pads adjust from 39" to 63" to reach factory-recommended lifting points
• Manual hydraulic hand pump operates without shop air or electrical power for maximum portability
• Low 4.75" collapsed height provides easy access under low-profile vehicles and simplifies storage
• Lifts up to 16.5" with extension adapters for added service versatility


Specifications

Warranty

The Triumph SJ-35 is backed by a 1-year parts-only warranty. If a covered component fails, Triumph provides phone-based troubleshooting and will ship a replacement part via standard ground service at no charge. Labor for diagnosis or installation is not included.

Documents

A downloadable manual isn't available for the SJ-35. For fitment or setup questions, contact support@carliftsupply.com or call 877-600-5227.
