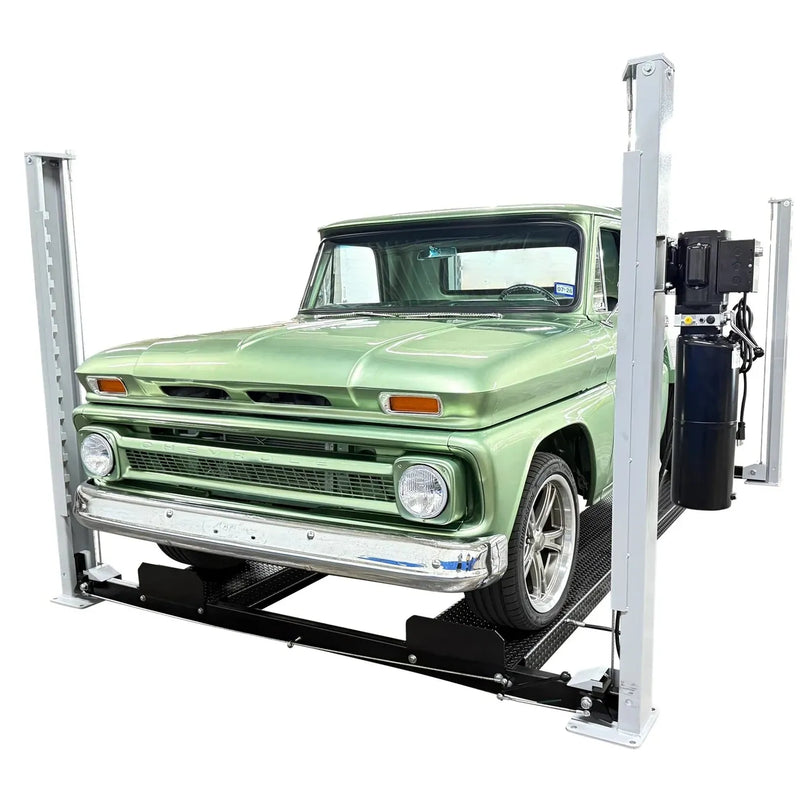

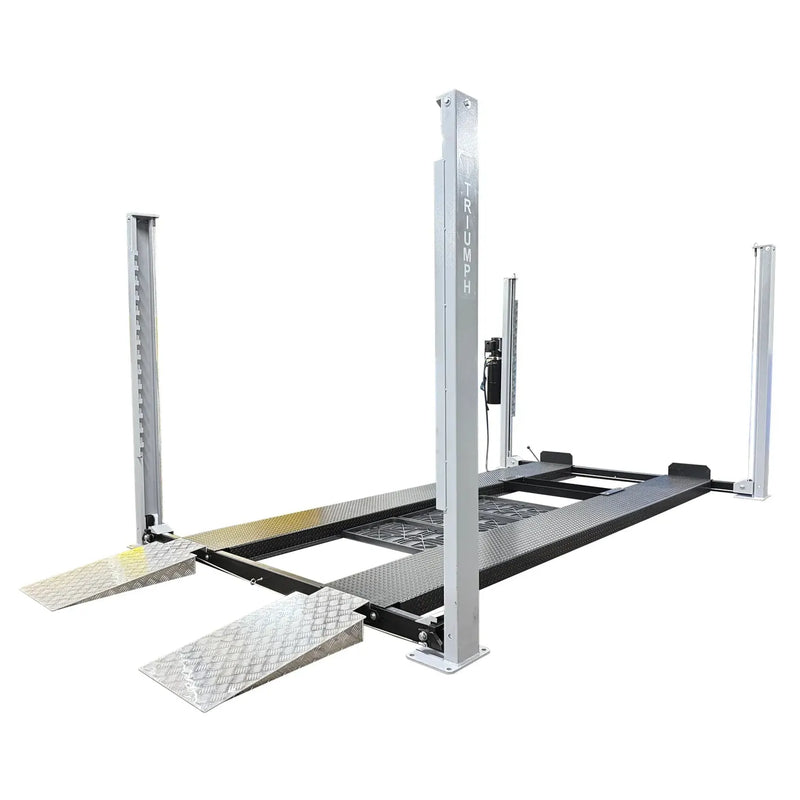

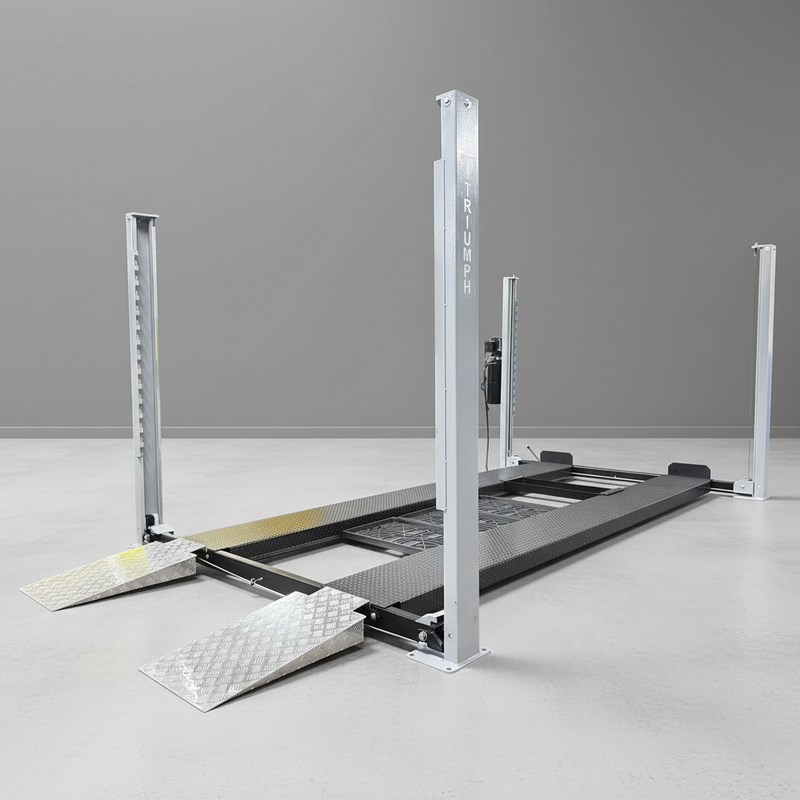

The Triumph USA8000 is an 8,000 lb four-post automotive lift built for vehicle storage and service in home garages, collector spaces, and small shops. Its two full-length diamond-plate runways create a second parking level while still allowing access underneath for maintenance work. The lift frame is Made in the USA and based on a design with more than 20 years of field use. Note: installation requires a minimum 4 inches of 3,500 PSI steel-reinforced concrete with no more than 2 degrees of slope, and the lift operates on standard 110V power.

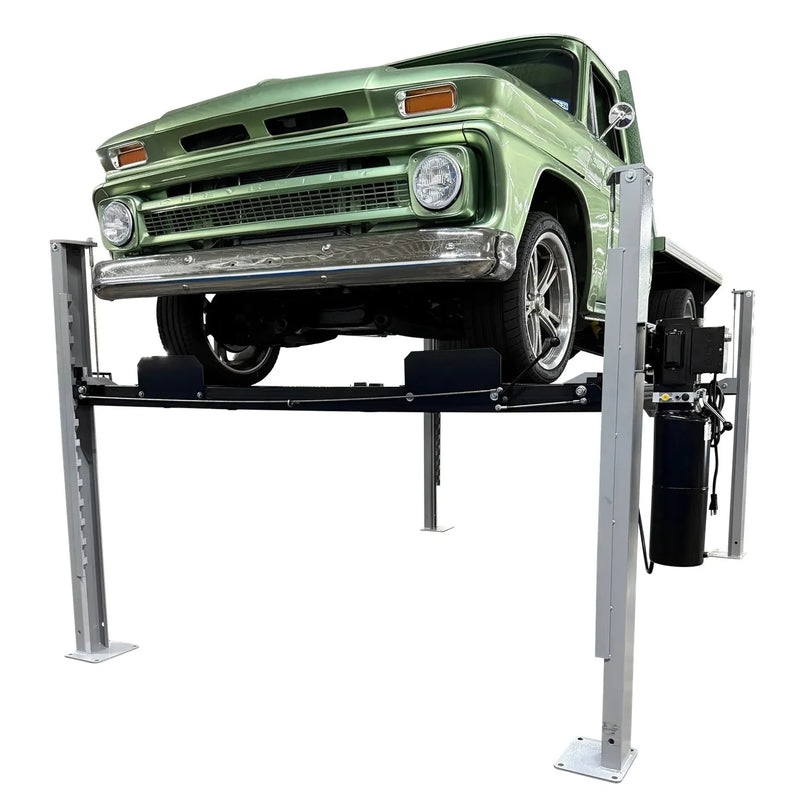

A single hydraulic power unit raises the vehicle through a cable-equalized system that keeps all four corners moving together. The 14-position automatic safety locking system supports the vehicle mechanically as it rises, while the single-point release lowers all locks together for controlled operation. With a maximum lift height of 73 inches and an approximate 40-second lifting cycle, the USA8000 provides working room under the vehicle or space to park another vehicle below.

Designed for car enthusiasts, home garages, and light-duty service environments, the USA8000 includes practical accessories for everyday use. The included caster kit allows the lift to be repositioned, while the jack tray supports bottle jacks or floor jacks for wheel and brake service. Three drip trays help protect vehicles parked below during stacked storage. The lift frame is made in the USA, while the power unit is not manufactured in the USA.

Features

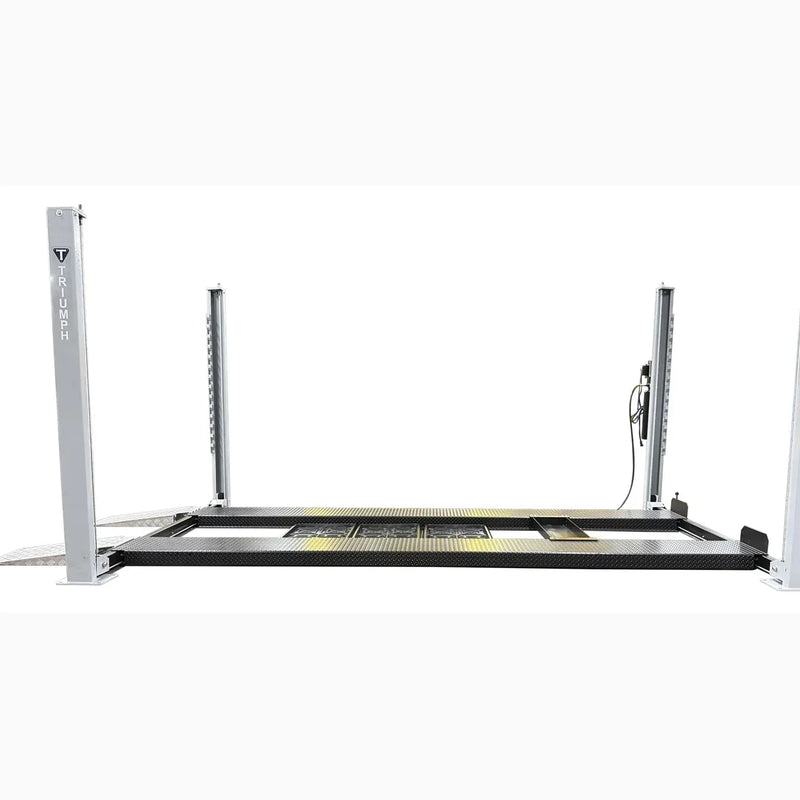

• 8,000 lb lifting capacity supported by two full-length diamond-plate runways for reliable vehicle storage and service

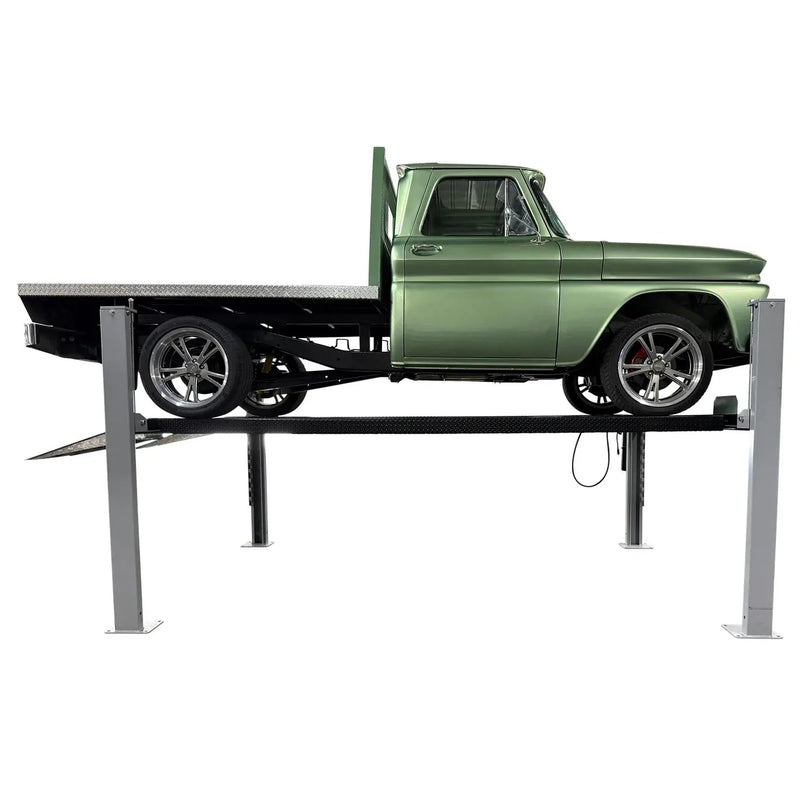

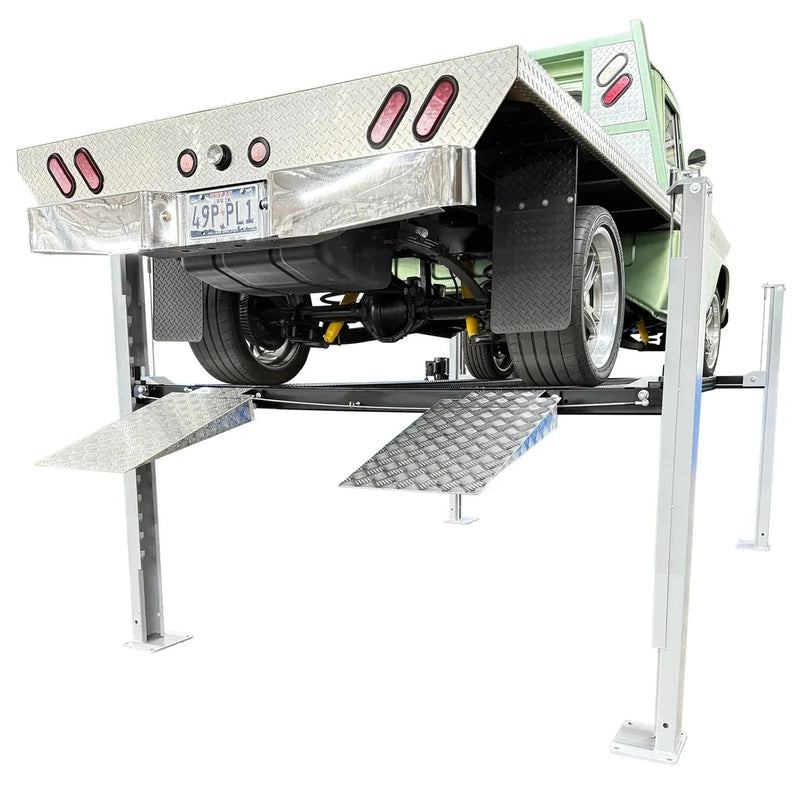

• Service and storage functionality — provides under-vehicle access for maintenance while allowing a second vehicle to be parked underneath

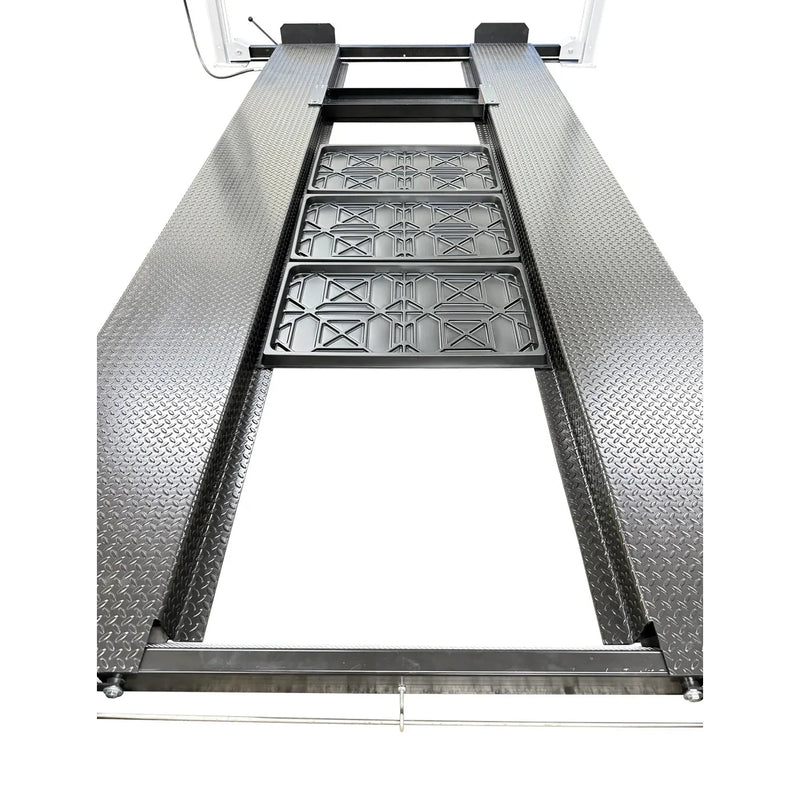

• Three drip trays included — position between the runways to capture fluids from the upper vehicle and help protect the vehicle below
• Integrated jack tray — accepts a bottle jack or floor jack to raise one end of the vehicle for wheels-free service
• Portable caster kit included — allows the lift to be moved around the garage or shop when needed
• 14-position automatic locking system — safety locks engage throughout the lifting range, with a single-point release that lowers all four columns together
• 110V power operation — runs on standard household-style power without requiring special wiring or 220V service
• Made-in-USA frame — built on a proven design with more than 20 years of field use; standard finish is gray and black

What's Included

The Triumph USA8000 comes as a complete package with accessories included:

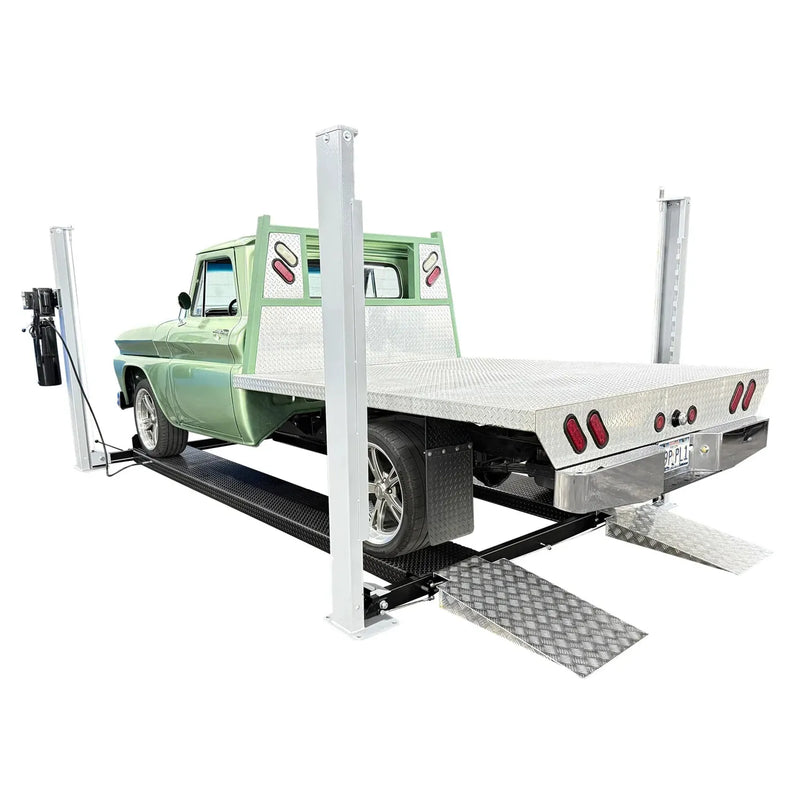

• Two diamond-plate drive-on approach ramps with wheel stops
• Three drip trays
• Jack tray compatible with bottle jacks and floor jacks
• Caster kit for rolling the lift
• Installation and operation manual

Specifications

Shipping & Delivery

The Triumph USA8000 ships via LTL common-carrier freight on a 48-foot semi-truck. Before ordering, please review the delivery requirements below:

• The customer is responsible for unloading the lift from the truck; the freight driver does not unload the equipment
• Lift-gate delivery is not available for automotive lifts
• The lift cannot be unloaded manually; unloading equipment such as a forklift, Bobcat, tractor, tow truck, or backhoe is required
• Customers are responsible for scheduling the delivery appointment directly with the freight carrier

If unloading equipment is not available at your location, the lift can be shipped to the carrier’s nearest freight terminal for pickup with a suitable trailer or moving vehicle.

For assistance selecting the best delivery option, contact support@carliftsupply.com or call 877-600-5227.

Warranty

The Triumph USA8000 is backed by a 1-year parts-only warranty (no labor coverage). If a covered component fails, customers can contact MGS for phone-based troubleshooting, and the replacement part will be shipped free of charge with ground shipping included.

Warranty Coverage

• 1-year warranty on covered parts and components
• Replacement parts and ground shipping included for approved warranty claims
• Labor costs for installation are not covered

Documents

Triumph USA8000 Installation & Operation Manual (PDF)
