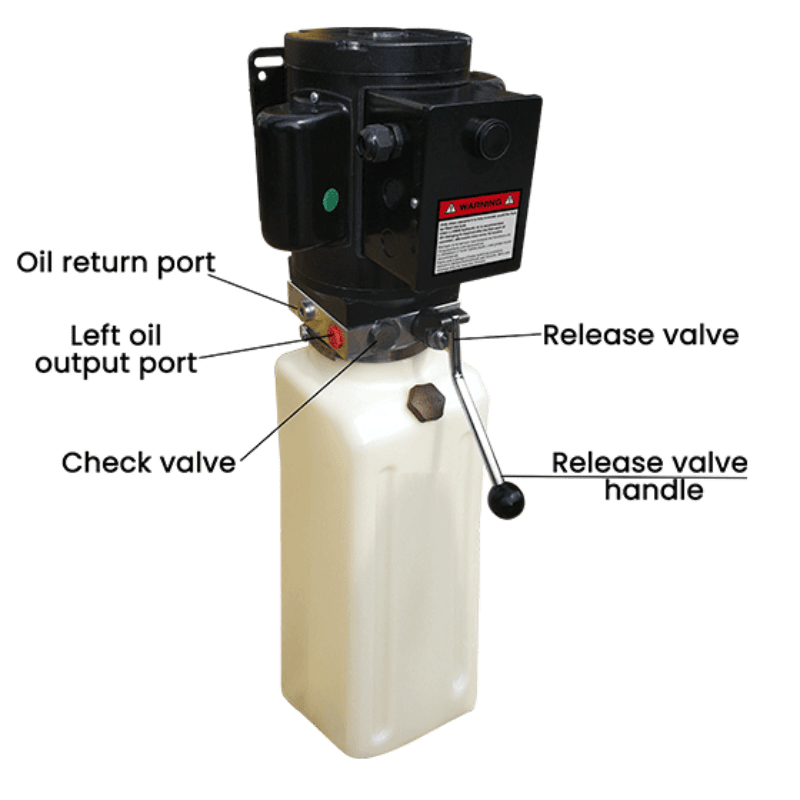

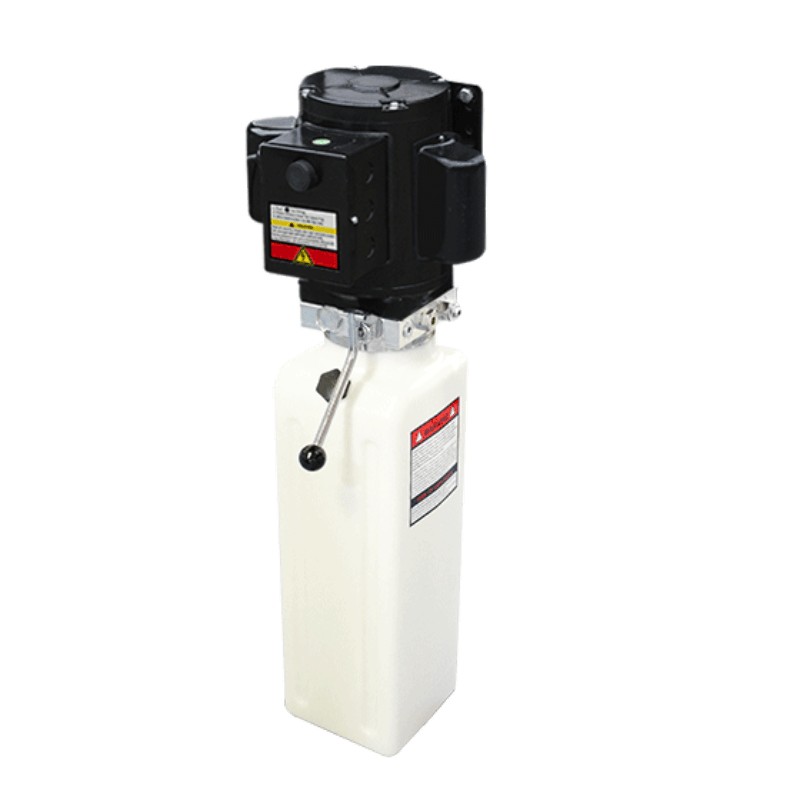

The AMGO 071109 Single Phase Manual Power Unit is a 110V hydraulic power system designed to run larger four-post lifts and storage solutions that require consistent, reliable lifting force without complex electrical setups. It’s commonly used in parking lifts and boat storage applications, where steady operation and simple maintenance are more important than advanced automation. Note: it requires a standard 110V/60Hz single-phase power supply and proper hydraulic hose configuration during installation.
What makes this unit practical is its balance between power and simplicity. It uses a high-pressure gear pump (0.8cc/r displacement, up to 25MPa max pressure) to deliver stable hydraulic output for heavier lift systems. The 11L high-density polyethylene oil tank provides enough reservoir capacity to support repeated lift cycles while maintaining consistent flow. A manual Detrol release valve gives the operator direct control over lowering, helping ensure predictable and safe descent when handling vehicles or stored loads.
Control and system protection are built into the design. The unit includes a 21MPa relief pressure setting that helps prevent hydraulic overload, along with an adjustable reflux speed throttle valve that smooths return flow for more controlled operation. The dual-side oil outlet ports simplify installation, allowing more flexible hose routing depending on shop layout or lift configuration. ETL certification confirms it meets recognized electrical and safety standards for shop use.
This power unit is compatible with AMGO models including 409-HP, 409-DP, 409-DPX, and 408HLX, making it a standardized solution across several four-post and storage lift systems.
It’s best suited for home garages, storage facilities, dealerships, and light commercial shops that need a dependable hydraulic power source for parking or storage lifts while keeping installation straightforward and service requirements low.
Features
-
Built for demanding applications, designed to power larger four-post parking lifts and boat storage lifts with confidence
-
110V single-phase operation for compatibility with standard household power supply
-
ETL certified for recognized safety and performance compliance
-

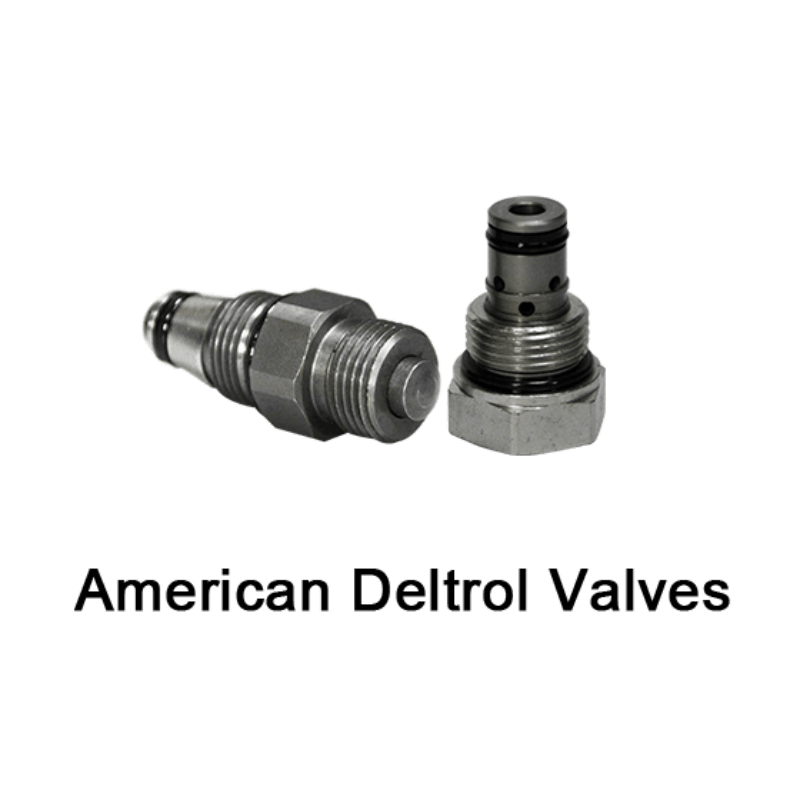

Manual Detrol release valve for simple, reliable lowering control
-
11L high-density polyethylene oil tank for stable hydraulic performance in larger systems
-
High-pressure gear pump (0.8cc/r) delivering up to 25 MPa maximum pressure
-

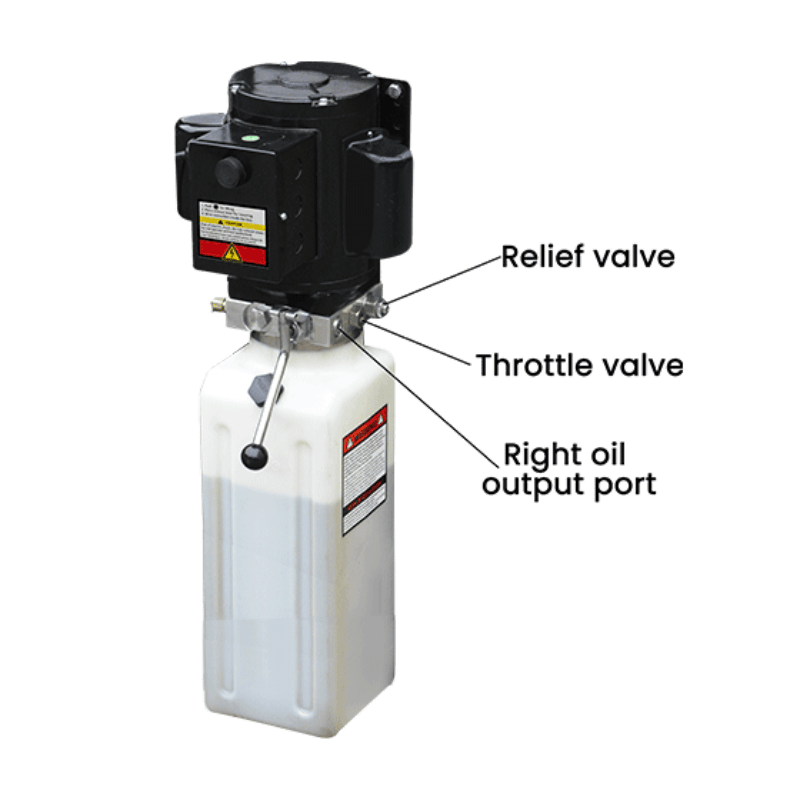

21 MPa relief pressure setting with plug-in high-pressure relief valve for system protection
-
Adjustable reflux speed via throttle valve for smoother, controlled return flow
-
Dual-side oil outlet ports for flexible installation and easier hose routing
-
Engineered for long service life with maintenance-friendly design
Specifications
| Model |
071109 |
| Part No. |
071109 |
| Voltage |
110V Single Phase |
| Frequency |
60Hz |
| Power |
1.0HP |
| Pressure |
21MPa |
| Maximum Pressure |
Up to 25MPa |
| Displacement |
0.8cc/r |
| Tank Capacity |
11L |
| Oil Outlet |
3/8SAE |
| L |
31 7/16" |
| L1 |
9 5/16" |
| L2 |
22 3/16" |
Performance & Control
The AMGO 071109 is engineered to provide reliable hydraulic power for larger lift systems without adding unnecessary complexity. Its high-pressure gear pump ensures steady, dependable output, while the manual Detrol release valve gives operators precise, predictable control during lowering. Together, these features deliver smooth, stable, and easy operation for everyday use.
For parking lifts and boat storage lifts, consistency is essential. This unit is designed to lift with confidence, lower with control, and maintain reliable performance over long-term use.
Designed for Larger 110V Lift Applications
The 071109 addresses the need for a 110V power unit capable of supporting larger lift systems. It combines standard-voltage convenience with a robust 11L reservoir and durable hydraulic construction. This makes it well-suited for applications requiring more power than a compact unit can provide, while still maintaining compatibility with standard 110V power.
The larger oil tank supports consistent hydraulic performance, while the dual-side oil outlet design simplifies installation and increases flexibility. In practice, this results in easier setup, dependable operation, and reduced maintenance concerns over time.
Why Choose the 071109
-
Built for larger four-post parking lifts and boat storage lifts
-
110V single-phase power for convenient installation
-
11L oil tank for stable and consistent hydraulic performance
-
Manual release valve for simple, controlled lowering
-
Durable construction for long service life
-
Dual-side oil outlets for flexible installation
Ideal Applications
The AMGO 071109 is ideal for homeowners, storage facilities, marina operators, and lift owners who need dependable hydraulic power for larger four-post parking lifts or boat storage systems. It is especially suitable where 110V power is preferred but higher-capacity hydraulic performance is still required.
Authorized Dealer - Full Warranty Included
