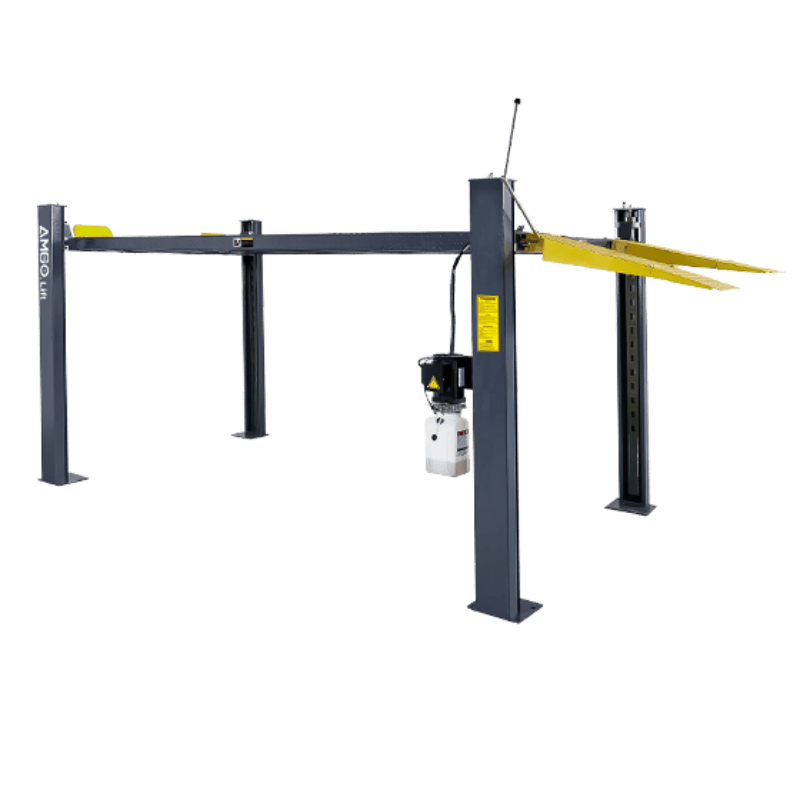

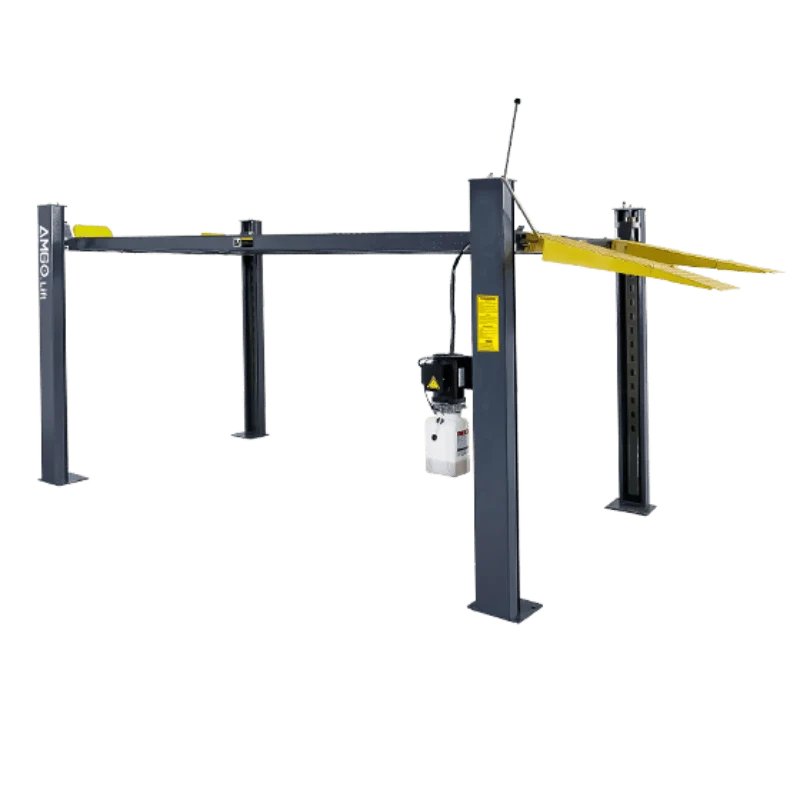

The AMGO 7000-lb four-post lift is built as a space-efficient storage and service solution for home garages and professional shops that need full vehicle lifting without sacrificing floor space. Its compact footprint and ability to support back-to-back installation make it especially effective in tighter bays where maximizing parking and working area is critical. A key installation note: it requires a properly reinforced concrete floor and standard 110V power for the ETL-certified power unit.

What sets this lift apart is how it manages safety and structure in a compact design. The system uses AMGO’s patented concealed safety lock mechanism, which keeps the locking components protected within the columns while still allowing a manual single-point release for controlled lowering. This improves both safety and ease of use without adding external complexity. The double-shaped column design enhances rigidity under load, while aero-standard lifting cables ensure consistent, synchronized movement across all four corners of the platform.

Functionally, the lift is designed for everyday usability. It includes non-slip platforms with foldable drive-in ramps, making it easier to load low-clearance vehicles without scraping. The power unit is ETL-certified and included as standard, and the system uses high-quality hydraulic cylinders built for long-term service reliability with minimal maintenance needs. One of its strongest advantages is flexibility in layout—the power column can be installed at any corner, allowing the lift to adapt to different shop configurations.

This model is ideal for home garage builders, small repair shops, and detail or storage-focused facilities that need dependable vehicle lifting in limited space. It also works well for shops looking to increase storage capacity without expanding their footprint, especially when paired in a back-to-back configuration for maximum efficiency.

Features

• 7,000 lb lifting capacity for general vehicle service applications
• ETL-certified AMGO power unit included as standard
• High-quality hydraulic cylinder designed and manufactured to strict standards
• Patented concealed safety lock control device with manual single-point lock release
• Aero-standard cables included as standard for durability and reliability
• Double-shaped columns for increased structural strength and stability
• Non-slip platforms with foldable drive-in ramps included for safer loading and unloading
• Back-to-back installation capability to optimize shop space utilization
• Power-side column can be installed at any corner for flexible shop layout

Specifications

Shipping Information

20' container can load 12 units.

40' HQ container can load 36 units.

Downloads

AMGO 407-P 7,000 lbs Parking Lift Manual
