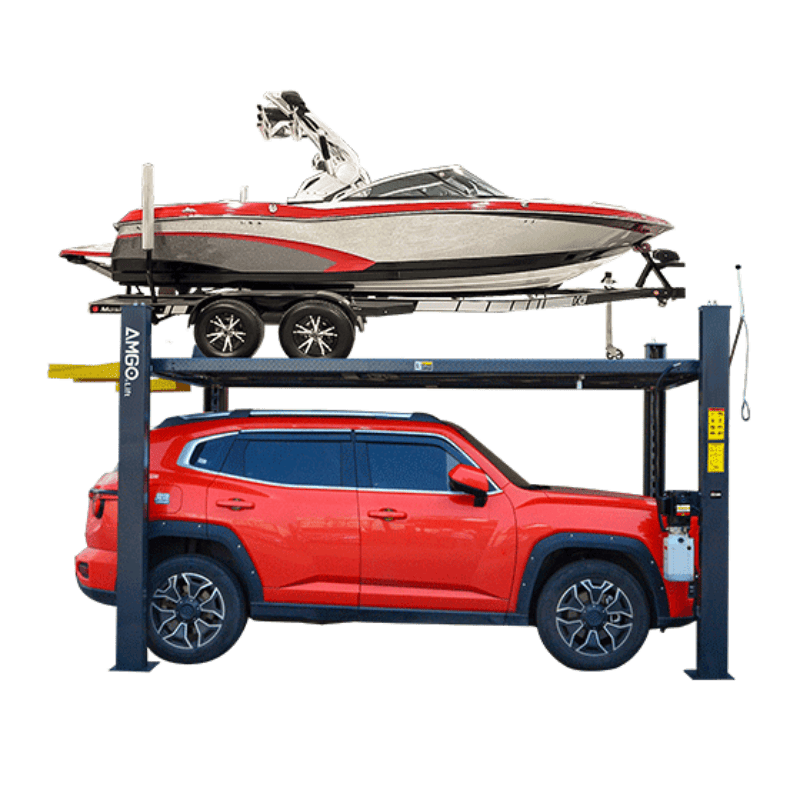

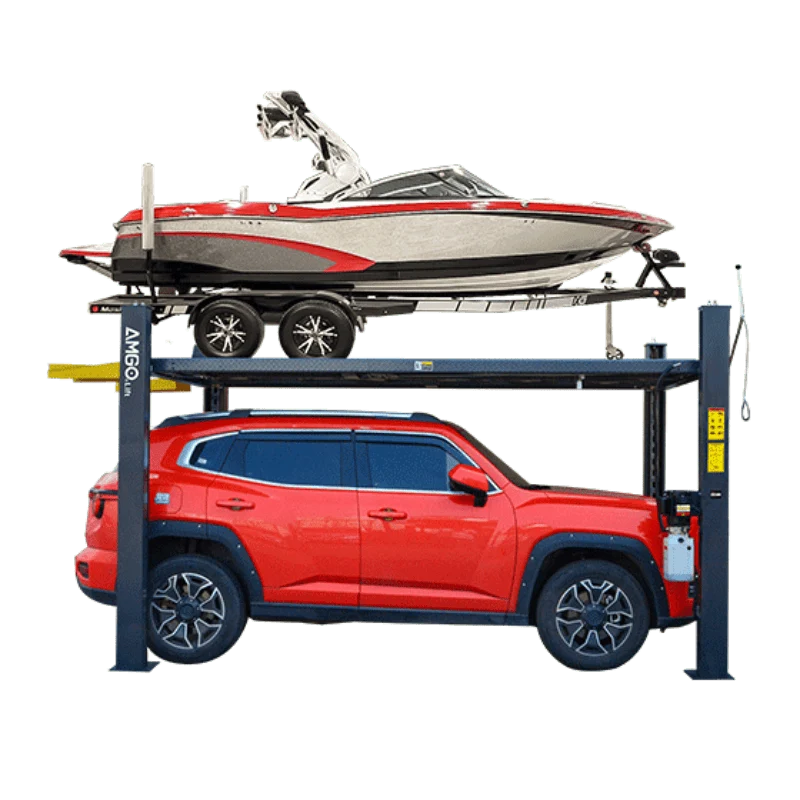

The AMGO 408-HPX Boat Storage Lift is an 8,000 lbs capacity four-post lift designed specifically for recreational boat storage and trailer-based parking. It’s built to simplify seasonal storage by giving users a stable, repeatable way to lift and store boats without complex positioning or constant adjustments. Note: installation requires a level reinforced concrete surface and sufficient ceiling height for full lifting range and safe overhead clearance.
What makes the 408-HPX practical is its focus on straightforward operation and adaptable fitment. The 111" wide drive-thru clearance allows easy entry for a variety of trailer configurations, reducing the need for precise alignment during loading. Once positioned, the lift uses two adjustable runway width settings, helping match different trailer widths for a more secure and centered fit.
Operation is designed to stay simple and controlled. The concealed single-point manual lock release system removes the need for an external air source while still allowing controlled engagement and release of the safety locks. This is paired with dual safety systems, including primary locking mechanisms and cable-slack protection, to keep the platform stable during long-term storage.
The non-skid diamond platform surface improves tire grip during loading and unloading, especially in wet or outdoor-adjacent environments where traction matters. For installation flexibility, the power unit can be mounted at any corner of the lift, making it easier to adapt to different garage layouts or marina storage configurations.
This model is well suited for marinas, boat storage facilities, RV and marine dealerships, and private boat owners who need a reliable, no-fuss storage solution. It’s built for users who want predictable performance and structural stability for seasonal or long-term boat parking without unnecessary complexity.
Features
-
True 8,000-lb capacity, engineered for recreational boat storage and capable of handling substantial boat-and-trailer combinations
-
Wide 111" drive-in clearance for compatibility with a variety of trailer setups
-
Dual-width runway settings for adjustable platform spacing and improved trailer fit
-

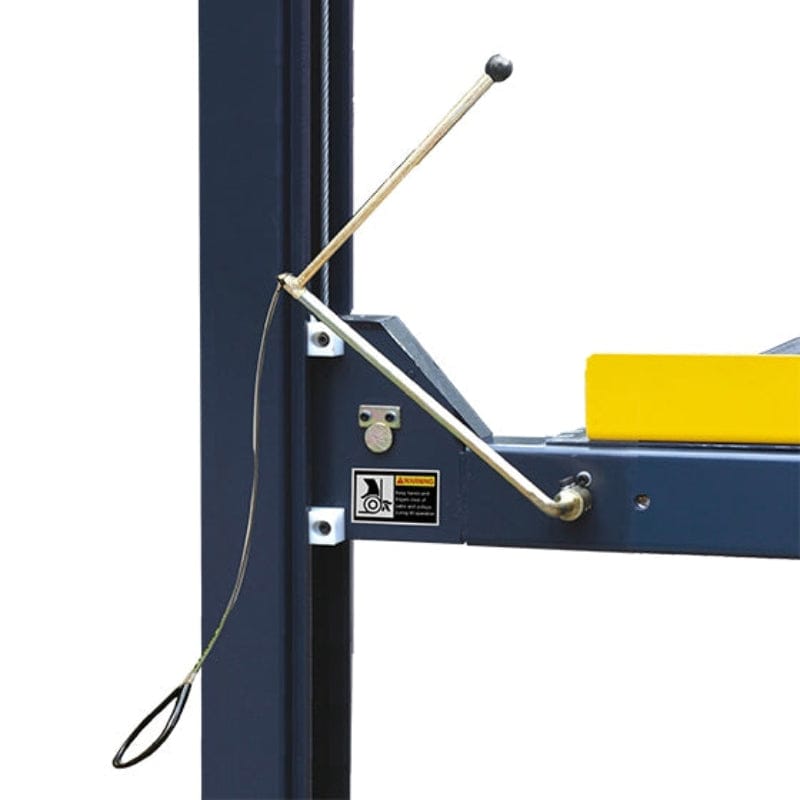

Single-point lock release using AMGO’s concealed lock-control system, requiring no air source
-
Dual safety system combining primary safety locks with cable-slack protection for added confidence during operation
-

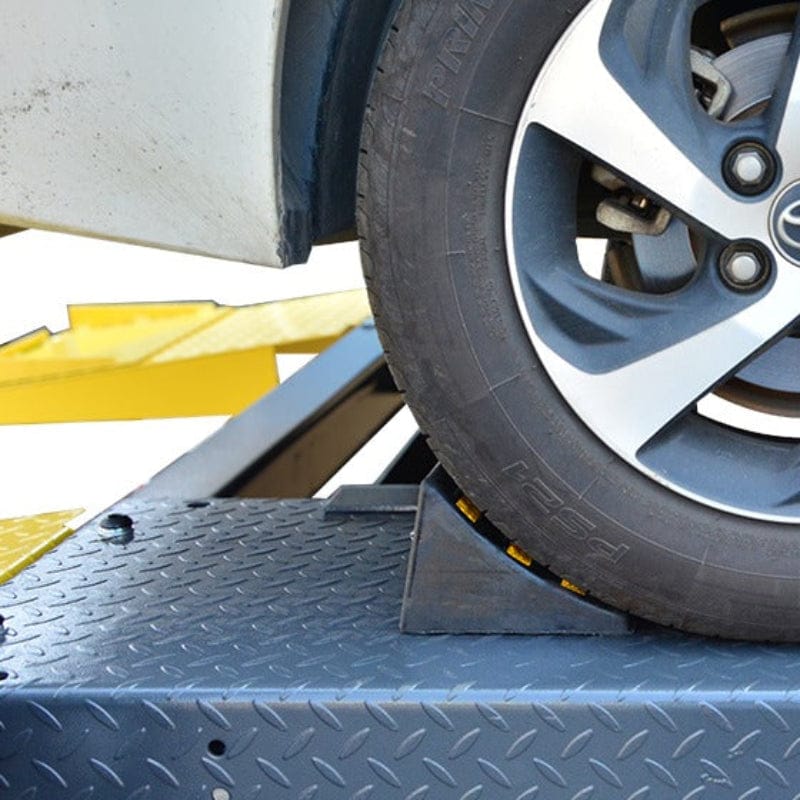

Non-skid diamond plate runways for improved traction during loading and unloading
-

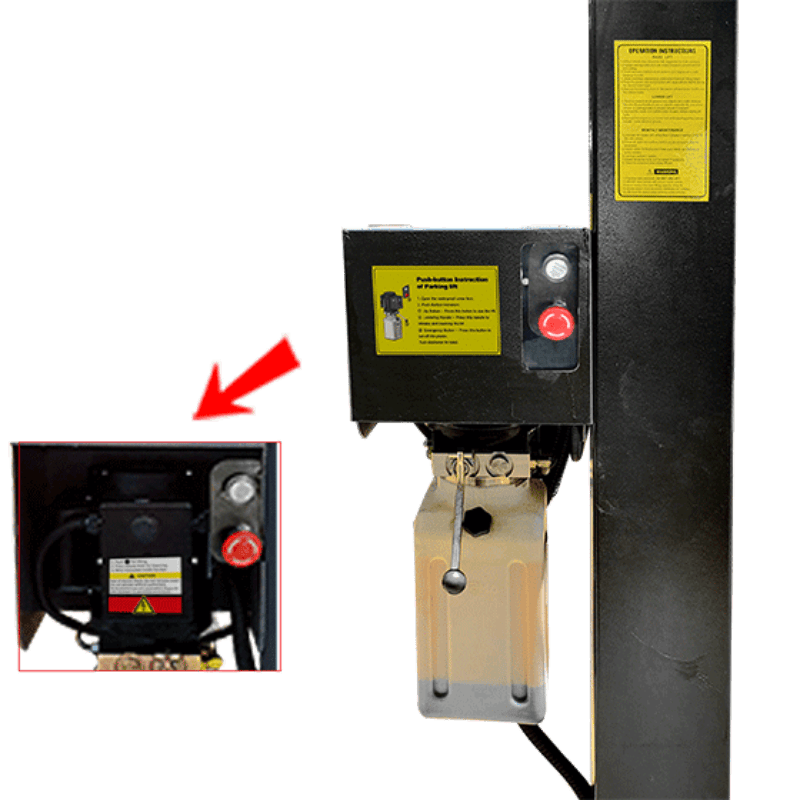

Flexible power unit mounting at any corner to accommodate different installation layouts
Specifications
-
Model: 408-HPX
-
Lift Type: Boat Storage Lift
-
Lifting Capacity: 8,000 lbs
-
Lifting Time: 46s
-
Overall Length (Inc. Ramps): 222 1/8"
-
Overall Length (Without Ramps): 188 9/16"
-
Overall Width: 131 7/8"
-
Width Between Posts: 122 3/16"
-
Max. Lifting Height: 87 11/16"
-
Max. Locking Height: 84 15/16"
-
Overall Height: 96 5/8"
-
Minimum Height: 5 11/16"
-
Max. Underneath Height: 82 15/16"
-
Max. Lock Underneath Runway: 80 3/16"
-
Drive-Thru Clearance: 111"
-
Width Between Runways: 46 1/2" – 66 3/8"
-
Outside Edge of Runways: 83 7/8" – 103 3/4"
-
Motor: 2.0HP, 220V / 60Hz
-
Gross Weight: 1,585 lbs
Why It Works So Well for Boat Storage
Boat trailers vary widely in width, stance, and loading behavior—some are wide and stable, others require tighter alignment and more precision during entry. The 408-HPX is designed to handle that variability with ease, offering adjustable width settings, foldable drive-in ramps, and generous clearance that makes loading feel controlled and predictable instead of difficult.
Once positioned, the lift raises smoothly to create significant usable space beneath the boat. This frees up valuable floor area, improves organization, and allows efficient storage without sacrificing workspace.

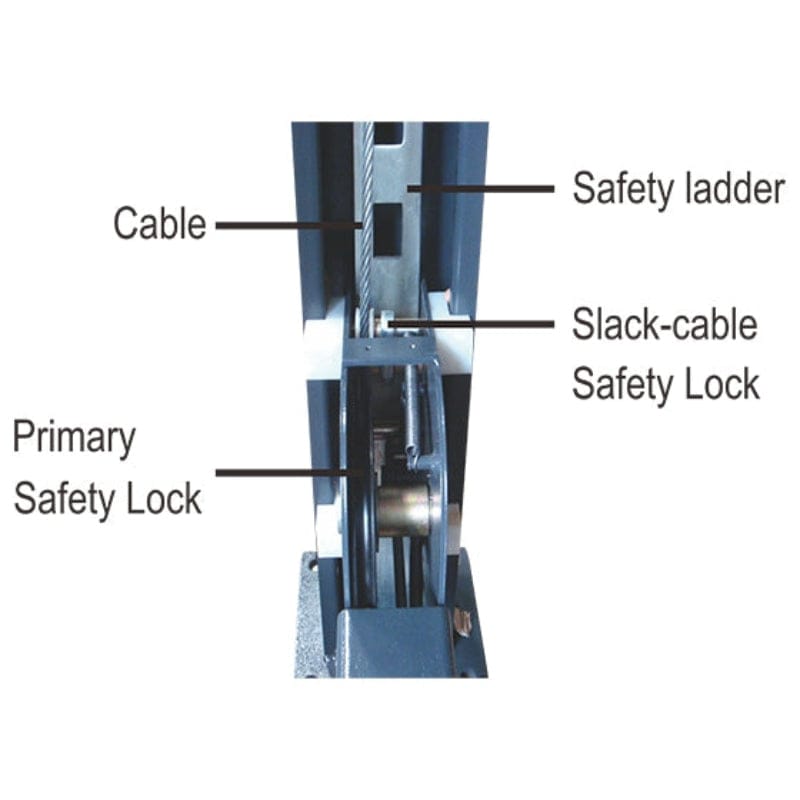

Safety & Locking System
Storage lifts must deliver confidence when fully raised. The 408-HPX uses AMGO’s concealed lock-control system with a manual single-point release, keeping operation simple while removing the need for an external air source. Dual safety systems provide additional protection during storage.

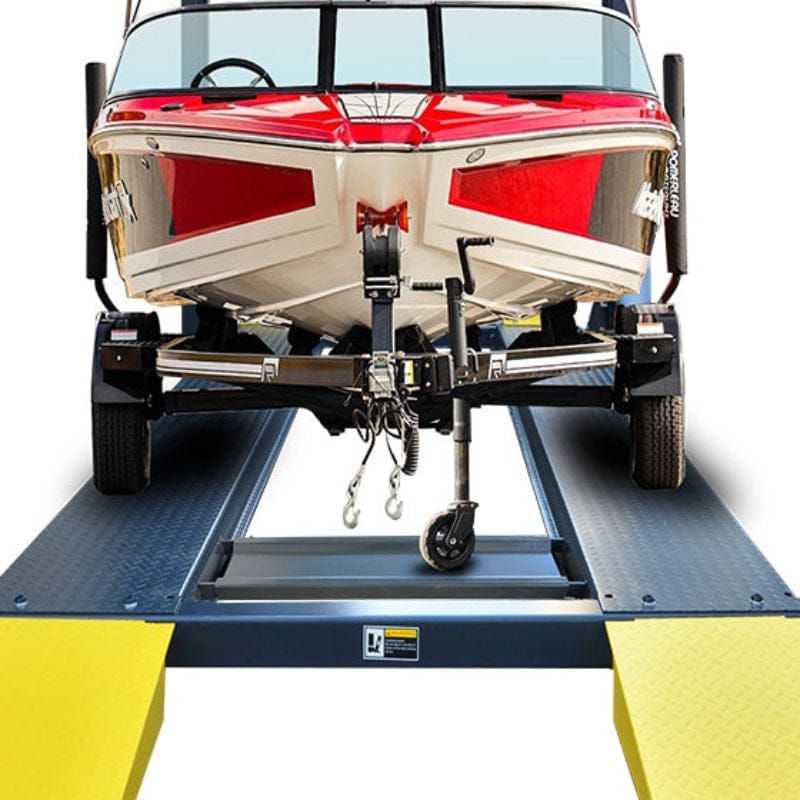

Loading, Fit & Trailer Compatibility
-
Drive-thru clearance: 111"
-
Width between runways: 46 1/2" – 66 3/8"
-
Outside edge of runways: 83 7/8" – 103 3/4"
-
Width between posts: 122 3/16"
-

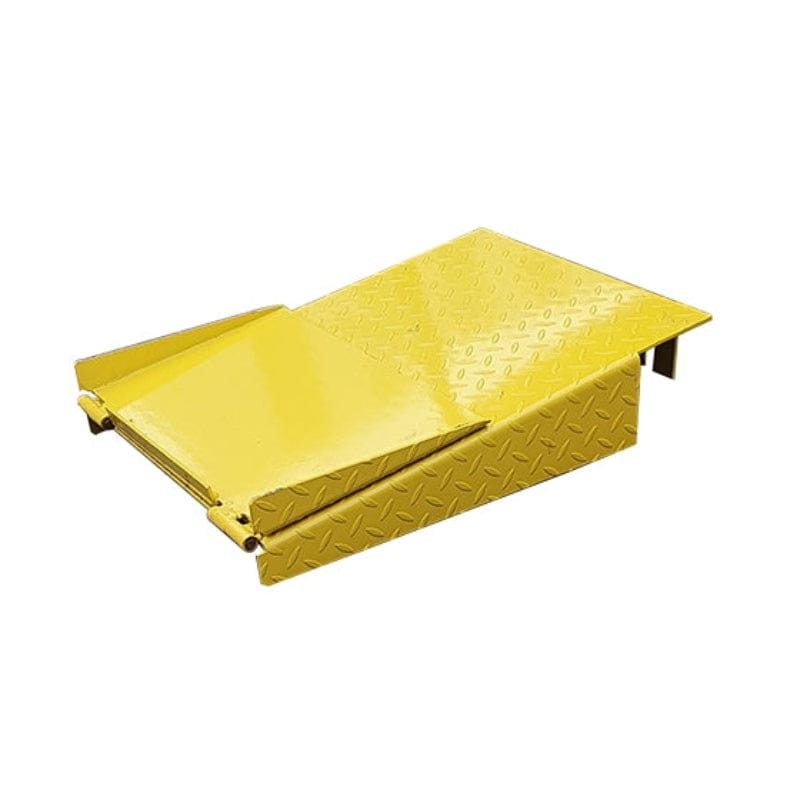

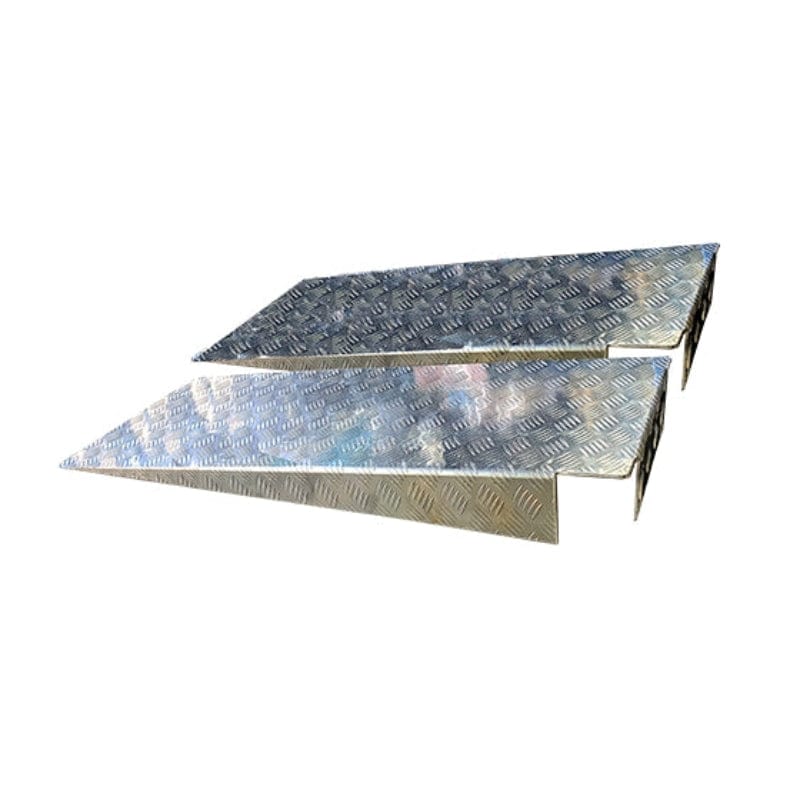

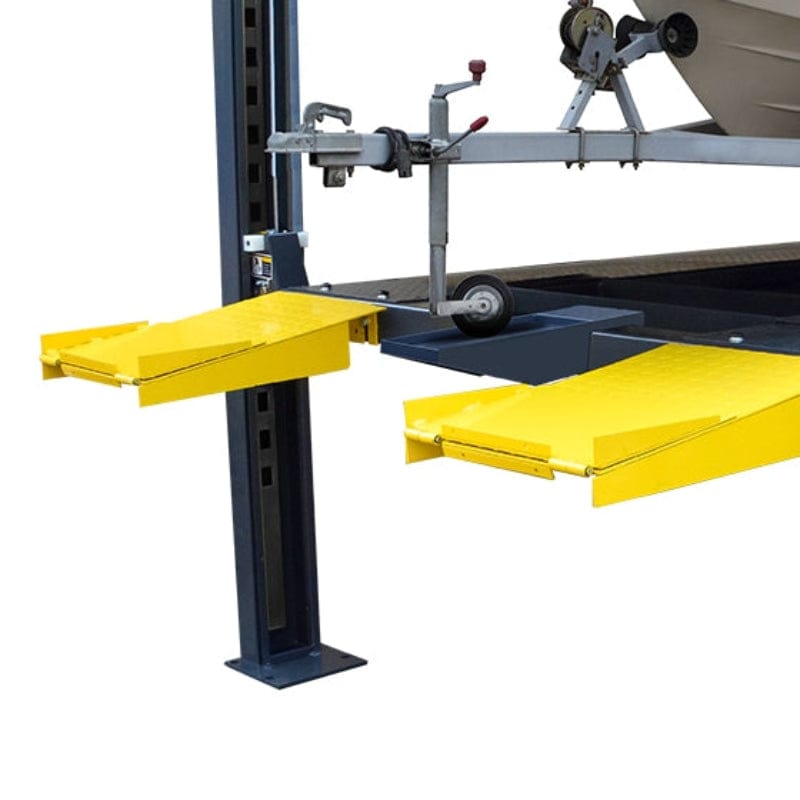

Standard foldable drive-in ramps included
Lifting Performance
-
Lifting capacity: 8,000 lbs
-
Lifting time: 46 seconds
-
Maximum lifting height: 87 11/16"
-
Maximum locking height: 84 15/16"
-
Minimum height: 5 11/16"
-
Maximum underneath height: 82 15/16"
-
Maximum lock underneath runway: 80 3/16"
Construction, Power & Installation Flexibility
-
Non-skid diamond platforms for improved traction during loading
-

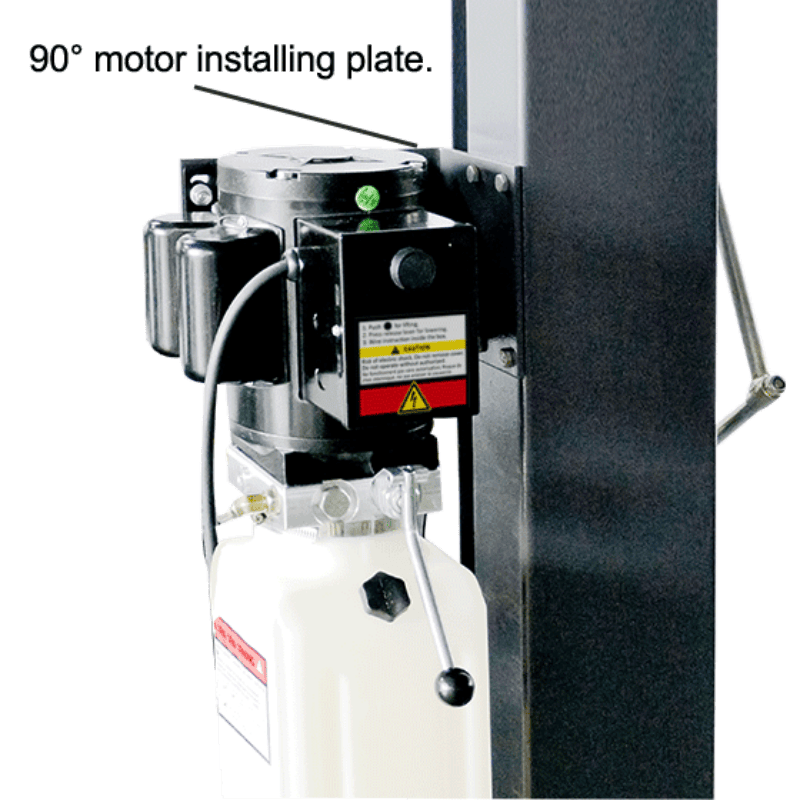

Flexible power unit mounting at any corner
-
ETL-certified power unit
-
Motor: 2.0HP, 220V / 60Hz
What’s Included
-
AMGO 408-HPX Boat Storage Lift
-
Standard foldable drive-in ramps
-
Integrated non-skid diamond platforms
-
Manual single-point lock release system
-
ETL-certified power unit
Authorized Dealer - Full Warranty Included
