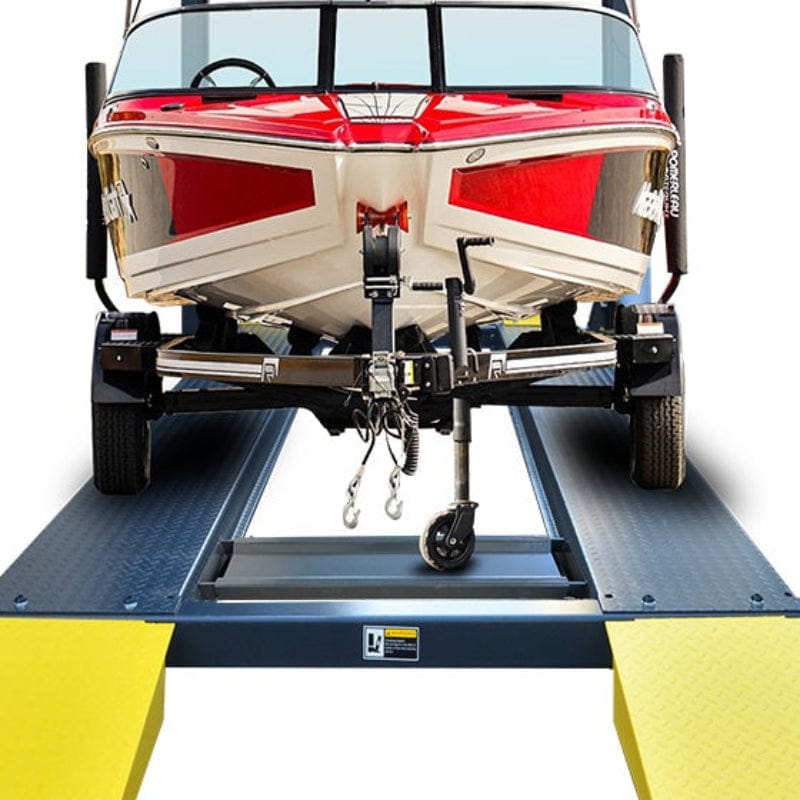

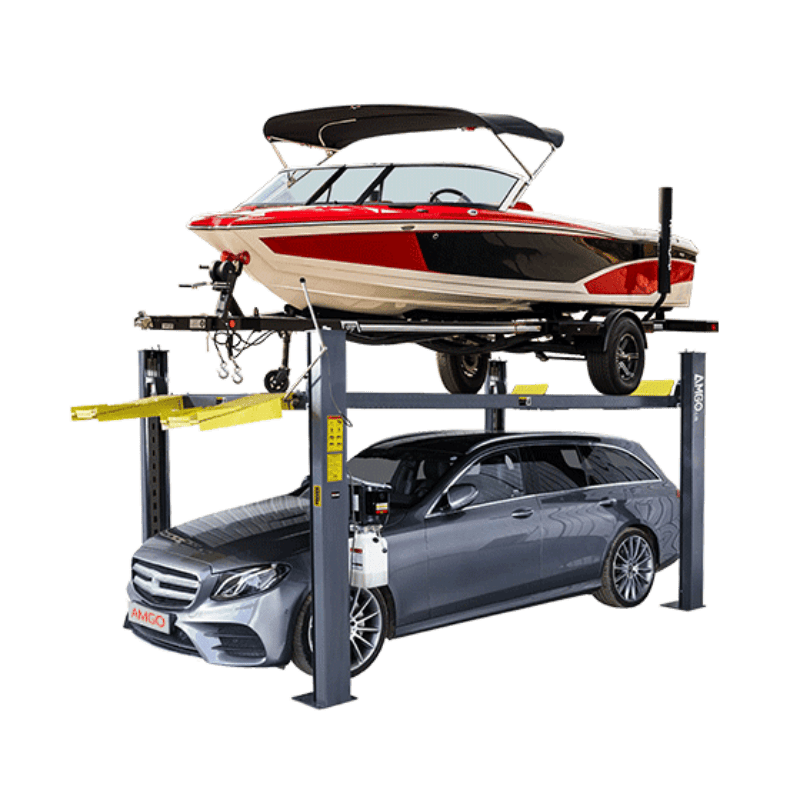

The AMGO 409-HPX Boat Storage Lift (extended-length model) is a 9,000 lbs capacity four-post lift designed for larger boats and heavier trailer combinations that need more room than standard storage lifts provide. It extends the proven 408-HPX platform with an additional 16 inches of length, giving extra support for longer hulls while maintaining stable, controlled lifting performance. Note: installation requires a reinforced, level concrete slab and sufficient ceiling clearance for full-height storage use.
What sets this model apart is its focus on accommodating size without compromising structure or control. The extended frame design provides more runway length, making it easier to position longer boats and trailers without overhang issues or constant repositioning. Despite the added size, the lift maintains a clean drive-in experience through foldable drive-in ramps, which help simplify loading and keep the workspace organized when the lift is in use.

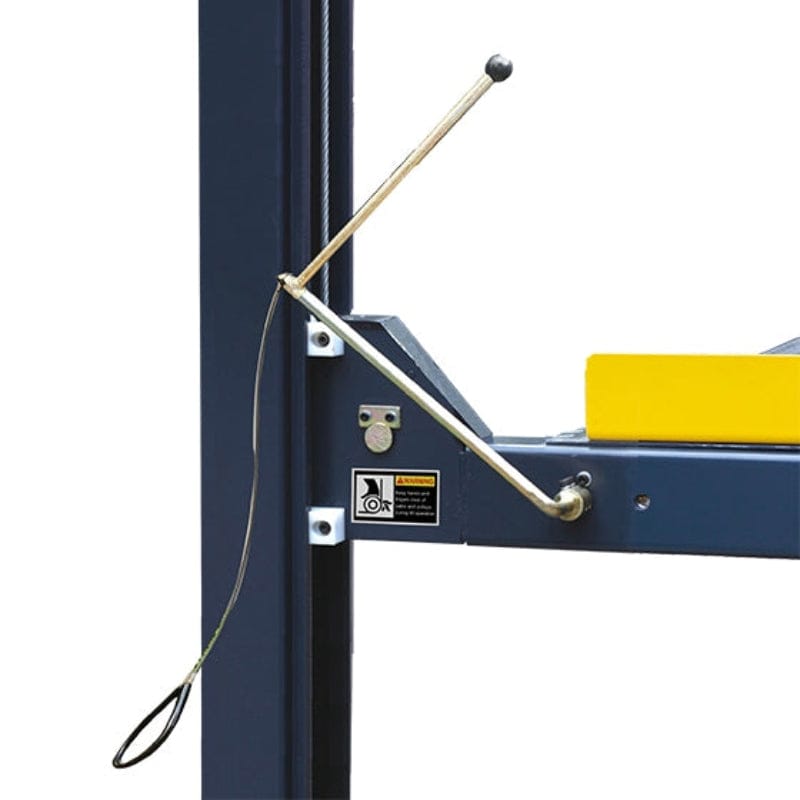

Safety and operation are built around controlled, predictable handling. The system includes AMGO’s concealed manual single-point lock release, allowing both sides to disengage together without requiring an air source. This is paired with dual safety systems, including primary locking mechanisms and cable-slack protection, which help stabilize the lift during long-term storage. The adjustable runway width settings further improve compatibility with different trailer configurations.
The non-skid diamond platform surface improves tire grip during loading, while the flexible power unit mounting design allows installation at any corner of the lift for easier layout planning in marinas, storage facilities, or private garages. The unit is powered by a 2.0HP ETL-certified 220V/60Hz system, ensuring consistent hydraulic performance.
This model is best suited for marinas, marine storage yards, boat dealerships, and private owners with larger vessels who need extended-length storage capability with dependable structural support and straightforward daily operation.
Features
-
True 9,000 lb capacity designed to safely support heavier boats and trailer combinations
-
Extended-length design, 16" longer than the 408-HPX, ideal for longer hulls and trailer setups
-
Proprietary concealed lock system with manual single-point release—no air source required
-

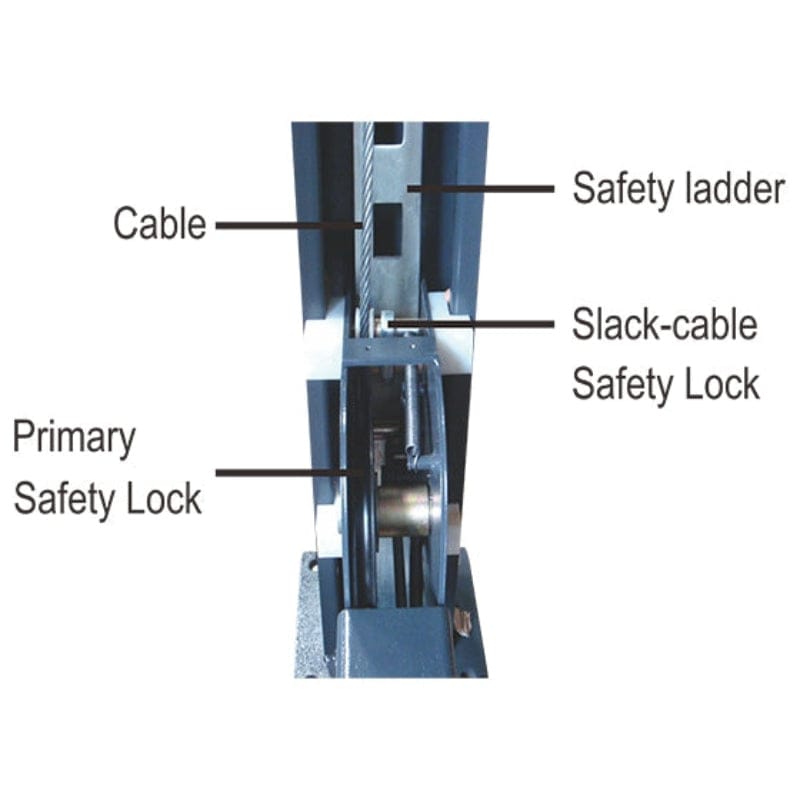

Dual safety mechanisms combining primary safety locks with cable-slack protection for added security
-

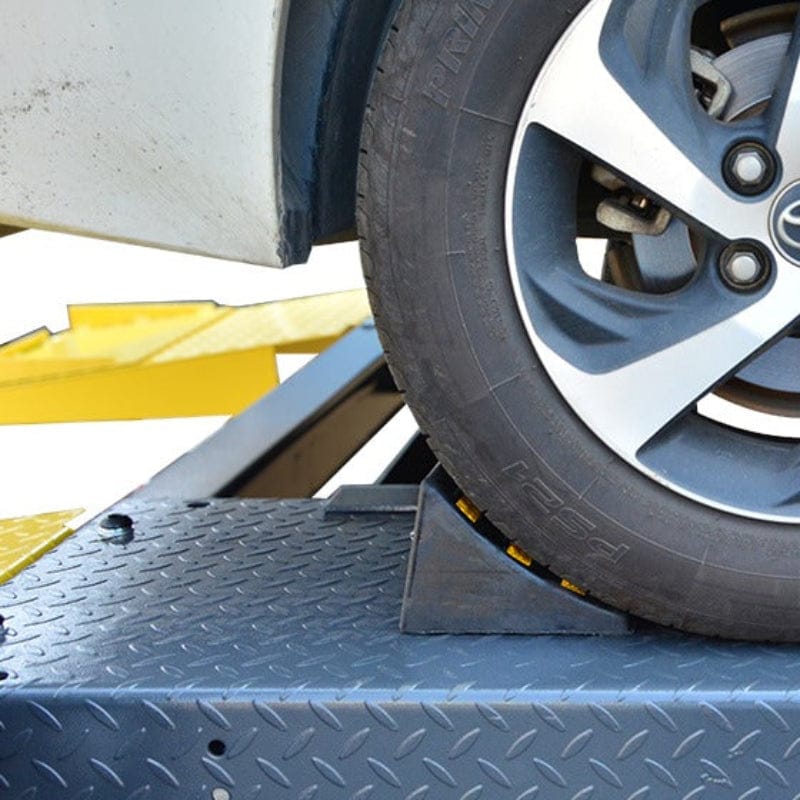

Integrated non-skid diamond platforms for improved traction and confident loading
-
Adjustable runway width with two settings to accommodate different trailer configurations
-

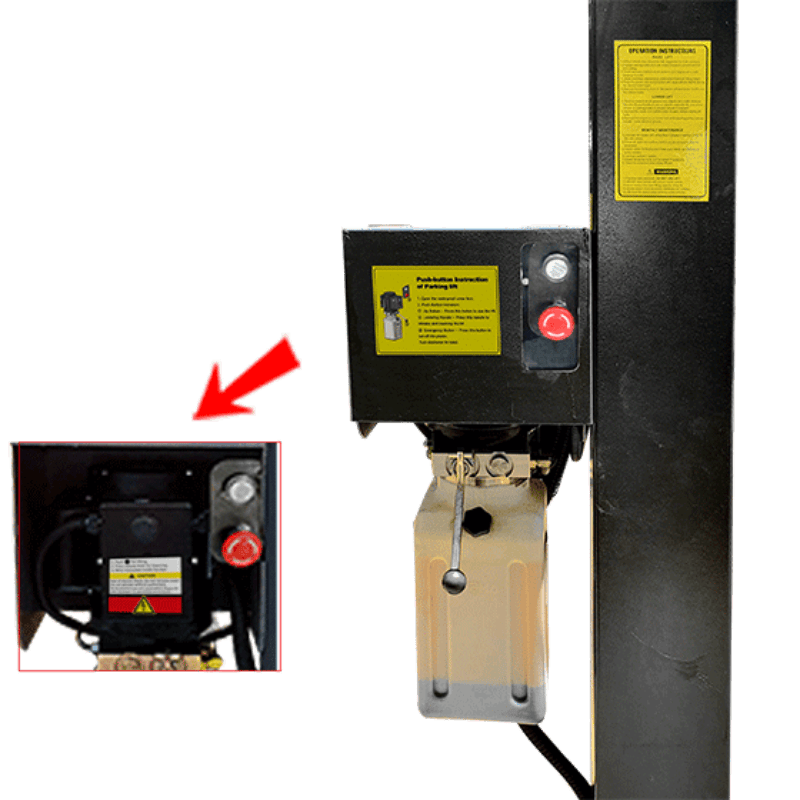

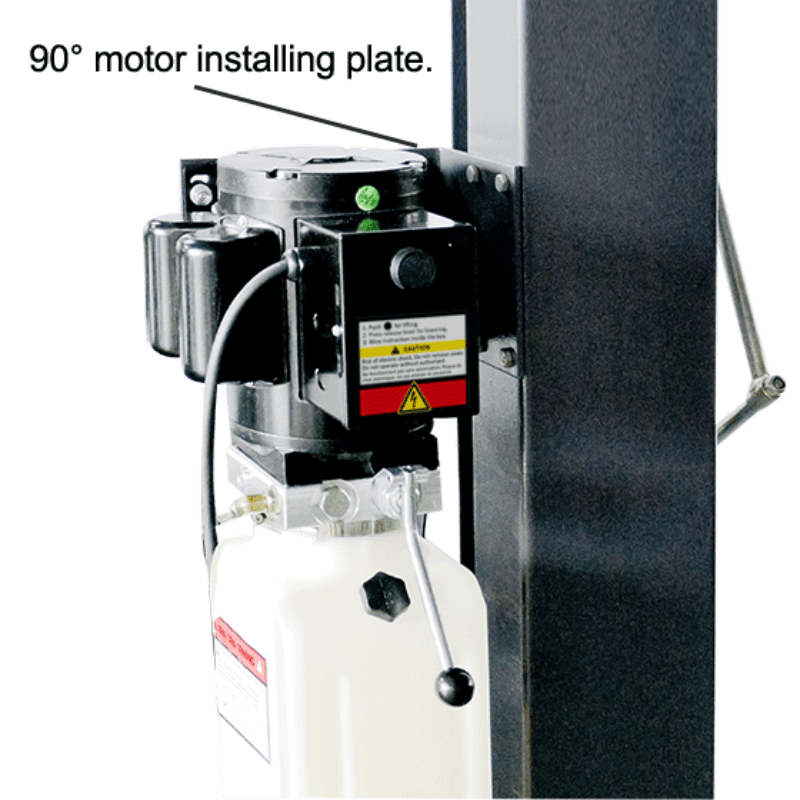

Flexible power unit mounting, allowing installation at any corner for layout convenience
-

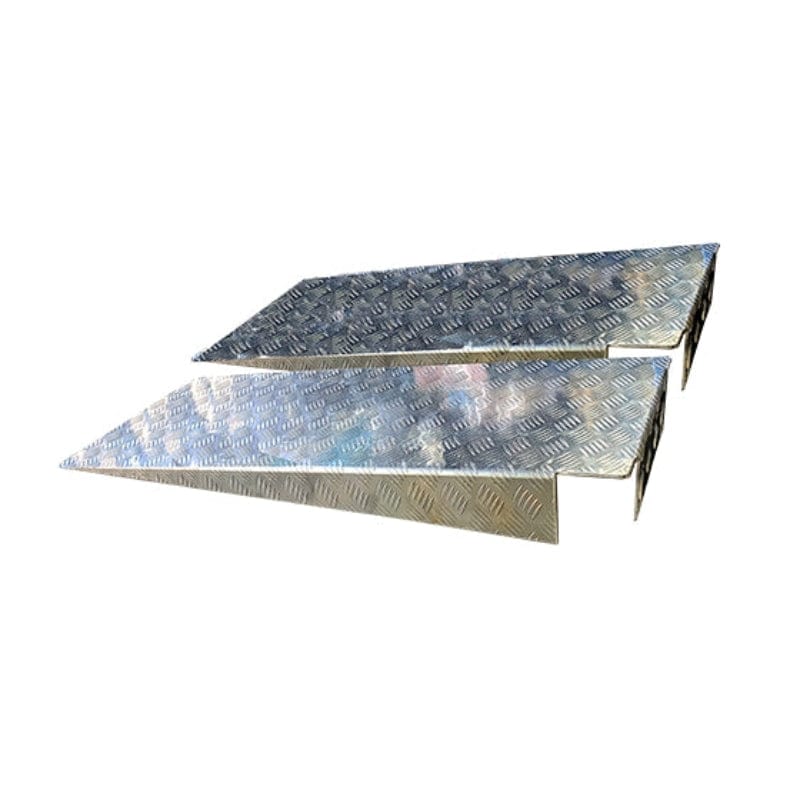

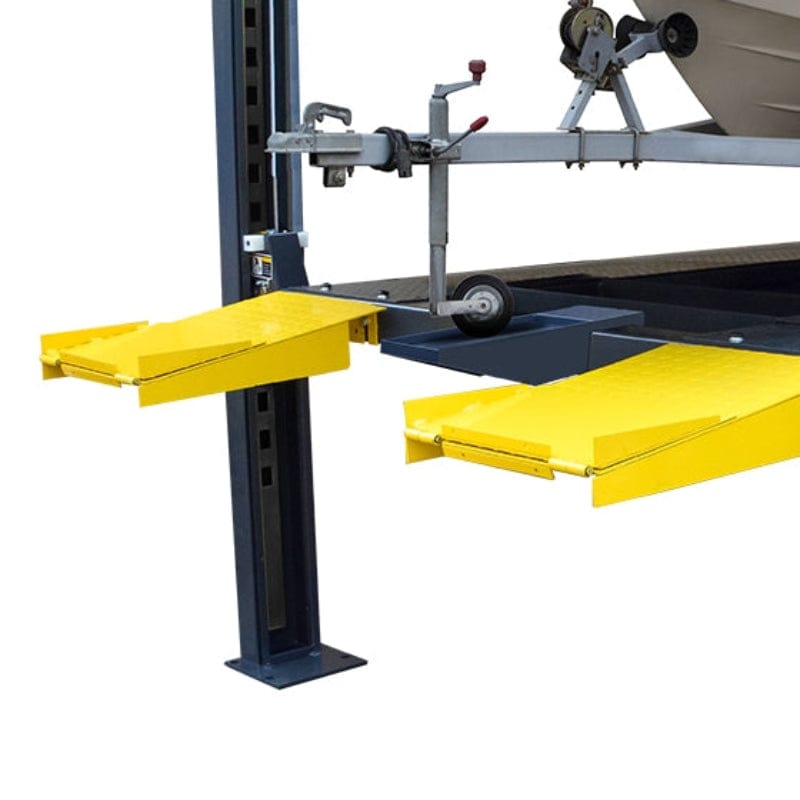

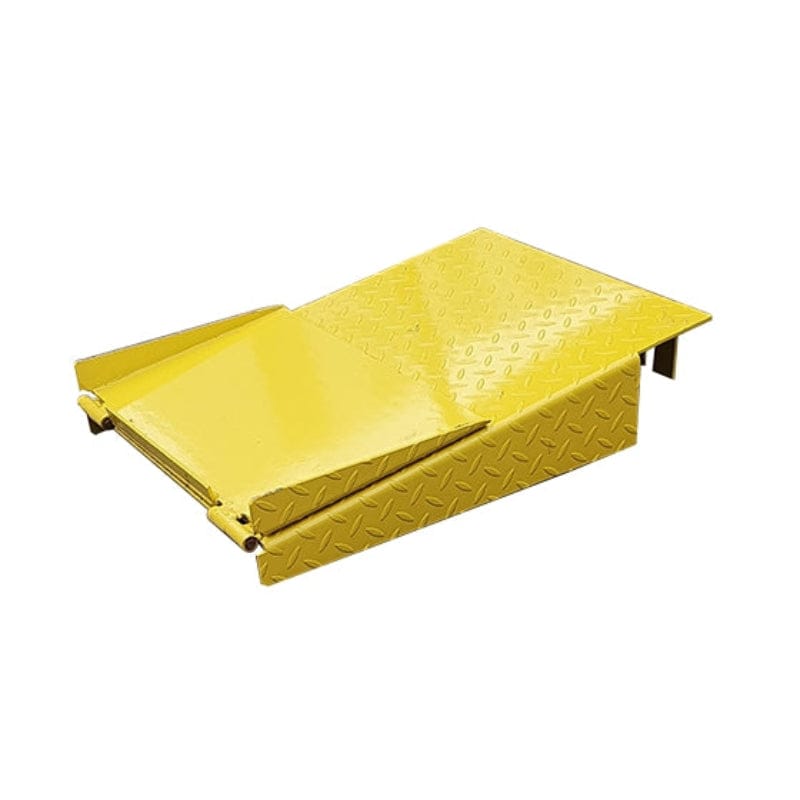

Foldable drive-in ramps included as standard for easier loading and compact storage
-
ETL-certified power unit with 2.0HP motor, 220V/60Hz for reliable lifting performance
Specifications
| Model |
409-HPX |
| Lifting Capacity |
9,000 lbs |
| Lifting Time |
57 seconds |
| Overall Length (Incl. Ramps) |
238 1/8" |
| Overall Length (Without Ramps) |
204 11/16" |
| Overall Width |
131 7/8" |
| Width Between Posts |
122 3/16" |
| Max Lifting Height |
88 1/16" |
| Max Locking Height |
85 5/16" |
| Overall Height |
96 5/8" |
| Minimum Height |
6 1/8" |
| Max Underneath Height |
82 9/16" |
| Drive-Thru Clearance |
111" |
| Width Between Runways |
46 1/2" – 64 15/16" |
| Outside Edge of Runways |
86 1/2" – 104 15/16" |
| Motor |
2.0HP, 220V / 60Hz (ETL Certified) |
| Gross Weight |
2,061 lbs |
Installation & Configuration
The 409-HPX is designed for maximum installation flexibility, allowing the power unit to be mounted at any corner to better suit garage, marina, or warehouse layouts. Adjustable runway widths and foldable drive-in ramps ensure compatibility with a wide range of boat trailers, from narrow frames to extended tandem-axle configurations.
Warranty
The AMGO 409-HPX is supported by the manufacturer’s warranty for added confidence and long-term reliability. For complete warranty terms, coverage details, and service information, please contact us directly.
Shipping & Notes
Authorized Dealer - Full Warranty Included
