AMGO LR10 Low Rise Lift

Authorized Dealer - Full Warranty Included

$2,699.00

$2,699.00 - $2,699.00

$2,699.00

$2,250.00

$2,250.00 - $2,250.00

$2,250.00

Product Highlights

Portable Design; Dual-Way Drive-In Ramps; Includes 1.5" & 2.75" Rubber Pads
Max Lifting Height: 24"

SKU LR10

Warehouse Pickup Location

Manning, SC 1931 Joe Rogers Jr Blvd, Manning, SC 29102 Directions ↗ Dallas, TX 4310 Adler Dr #200, Dallas, TX 75211 Directions ↗

*Subject to Availability - Call/Text Email to confirm (877-600-5527; support@carliftsupply.com)

Quantity

Need Help Choosing?

Get expert help and great deals on the right equipment for your garage or shop.

Call Us 877-600-5527

Ask a Question Get expert support

Mon–Fri 9am–6pm EST

Save on Sales Tax

We currently collect sales tax only on orders shipped to Wyoming, which can mean substantial upfront savings on high-ticket equipment.

Expert Equipment Guidance

Our team can help you compare models, capacities, power requirements, specifications, and installation considerations before you buy.

Nationwide Delivery

We ship professional automotive equipment throughout the U.S. through our manufacturer and distribution network.

Authorized Dealer & Warranty

Purchase with confidence from an authorized retailer. Eligible products include the applicable manufacturer’s warranty.

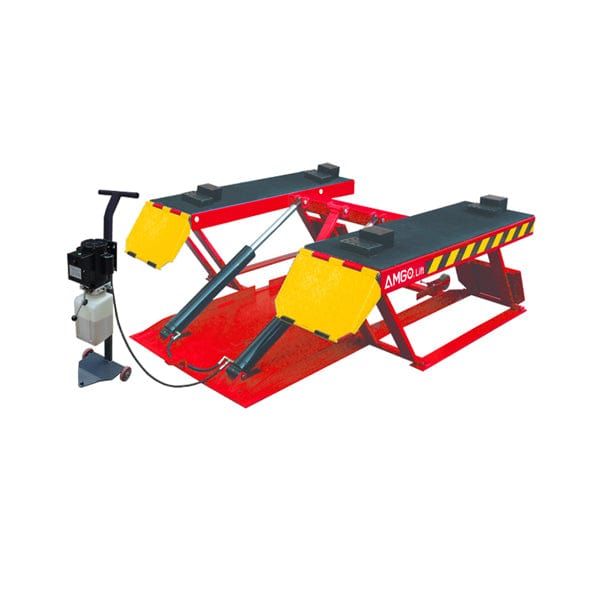

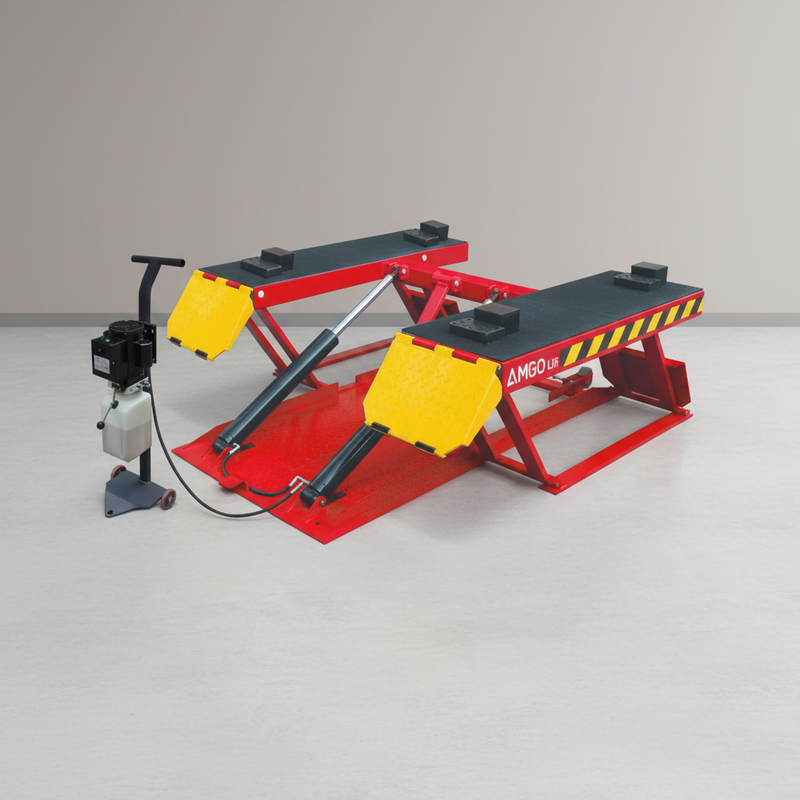

The AMGO portable low-rise lift is designed for shops that need fast, flexible lifting in spaces where ceiling height or permanent installations limit equipment options. With a lifting range from 4 1/8" to 23 5/8" in just 50 seconds, it provides a practical working height for tires, brake service, and light bodywork, making it a strong seasonal or secondary bay solution for busy service environments.

What makes this lift especially useful is its combination of speed and mobility. The portable design with an integrated power unit stand allows the entire system to be repositioned when needed, so shops can add a temporary service bay during peak demand or reconfigure floor space without permanent changes. Once positioned, the lift is ready for repeated daily use without complicated setup.

Safety and usability are built into the operation. The system features automatic multi-position safety locks that engage throughout the lifting cycle, helping secure the vehicle at different heights without manual adjustment. It also includes an automatic safety lock release, which simplifies lowering and improves workflow efficiency. Standard rubber pads are included to provide stable contact points across a variety of vehicle chassis, helping protect contact surfaces during lifting.

This model is a strong fit for tire shops, small repair centers, mobile service setups, and home garages that need a reliable low-rise lifting solution without committing to a full-size lift installation. It is especially useful for businesses that experience seasonal volume spikes and need an additional bay that can be deployed, used, and stored with minimal effort.

Features

Automatic multiple safety lock system for enhanced operational safety
Automatic safety lock release for smoother workflow
Portable unit designed for easy movement with integrated power unit stand
High-speed lifting range: 105–600 mm (4 1/8"–23 5/8") achieved in approximately 50 seconds
Standard rubber pads included for secure and stable vehicle support

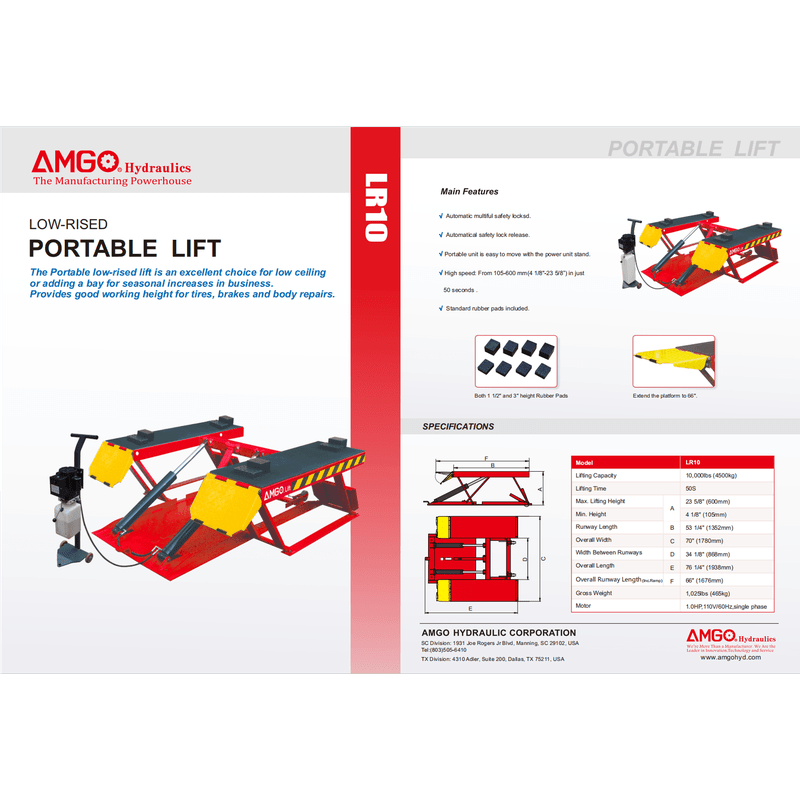

Specifications

Model	LR10
Lifting Capacity	10,000lbs
Lifting Time	50s
A1: Max. Lifting Height	23 5/8" (600mm)
A2: Minimum Height	4 1/8" (105mm)
B: Runway Length	53 1/4" (1352mm)
C: Overall Width	70" (1780mm)
D: Width Between Runways	34 1/8" (868mm)
E: Overall Length	76 1/4" (1938mm)
F: Overall Runway Length(Inc.Ramp)	66" (1676mm)
Gross Weight	1,025lbs (465kg)
Motor	1.0HP 110V/60Hz, single phase

Detailed Images

Shipping Information

Downloads

AMGO LR10 Low Rise Lift Manual
