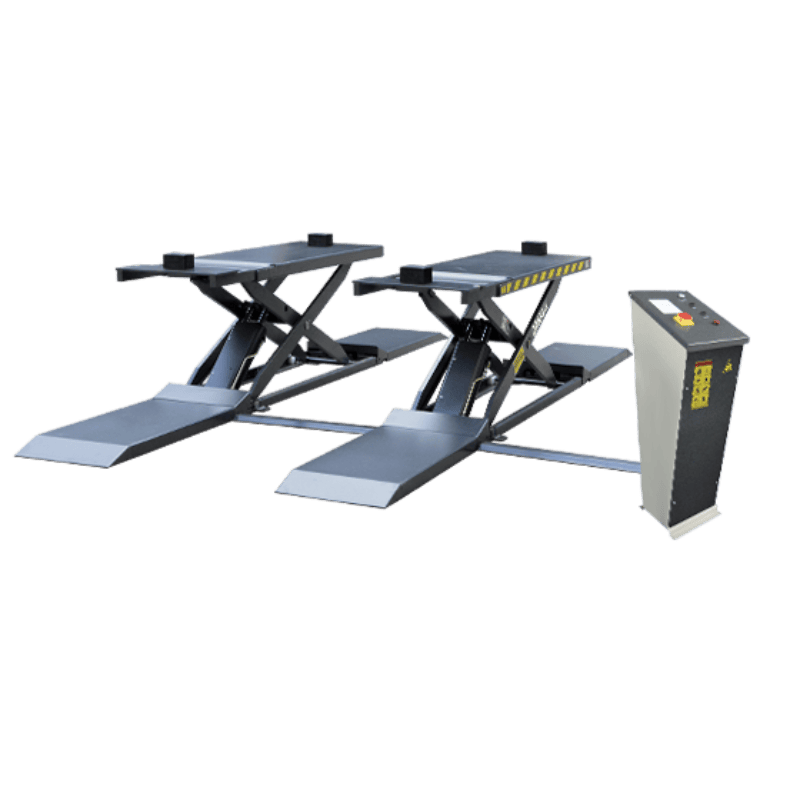

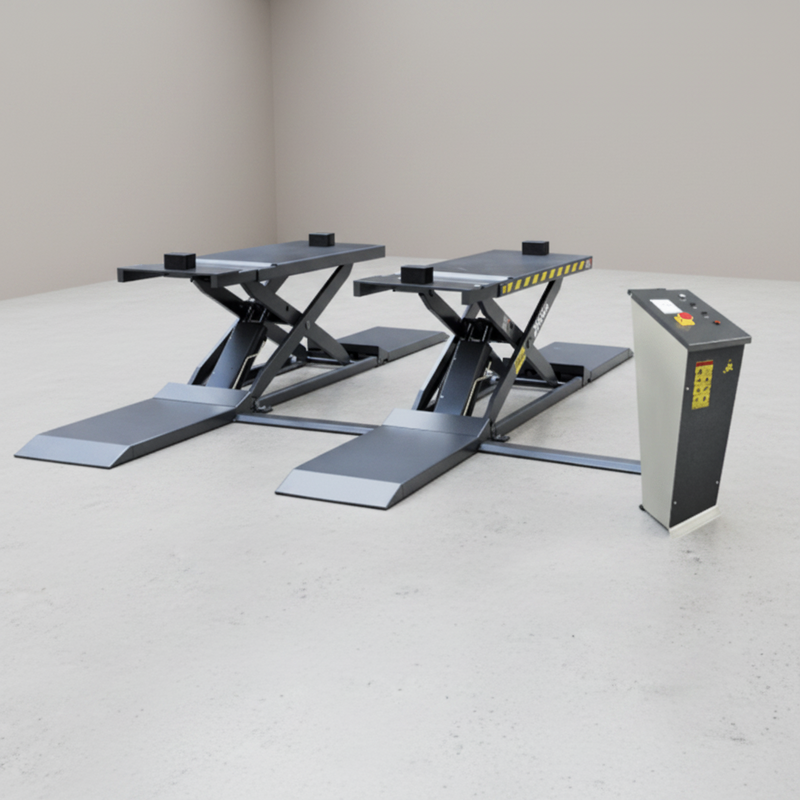

The AMGO MRL09 is a 9,000 lbs (4,000 kg) mid-rise scissor lift designed for fast, efficient service work on a wide range of passenger vehicles. Its standout feature is the two-stage runway design, which creates a low-profile entry point that makes it easier for low-clearance cars to drive on from either side. It’s built for shops that need speed and accessibility without committing to a full-height lift installation.

What makes the MRL09 practical in daily use is its focus on smooth, controlled operation with minimal setup complexity. The dual hydraulic synchronization system keeps both sides lifting evenly, while the hydraulic locking system adds stability once the vehicle is raised. The structure uses thickened steel scissor arms, giving it the rigidity needed for repeated daily cycles in busy service environments. A 24V safety control system supports safer, low-voltage operation during lifting and lowering.

Flexibility is another key advantage. The adjustable platform length allows it to accommodate different wheelbases, making it suitable for compact cars, sedans, and light SUVs. The two-stage drive-on ramps are specifically designed for ultra-low chassis vehicles, reducing the risk of scraping during entry. Installation can be configured as either flush mount or surface mount, depending on the shop layout and space constraints.

This lift is ideal for tire shops, quick-service centers, detailing shops, and general automotive service bays that prioritize fast turnaround work. With its mid-rise height, it provides enough clearance for brake jobs, tire service, and inspections while keeping workflow efficient and space requirements low.

Features

• 9,000 lbs (4,000 kg) lifting capacity for reliable mid-rise performance

• 24V safety low-voltage control system for safer operation

• Dual hydraulic synchronization with hydraulic locking system for stability and precision

• Reinforced thickened steel scissor arms for enhanced strength and durability

• Adjustable platform length to accommodate vehicles with different wheelbases

• Two-stage drive-on ramps designed for ultra-low chassis vehicles

• Flexible installation design supporting both flush mount and surface mount options

• Standard ETL-certified power unit for safety and compliance standards


Specfications

Detailed Images

Shipping Information

Downloads

AMGO MRL09 Mid-Rise Scissors Lift Manual
