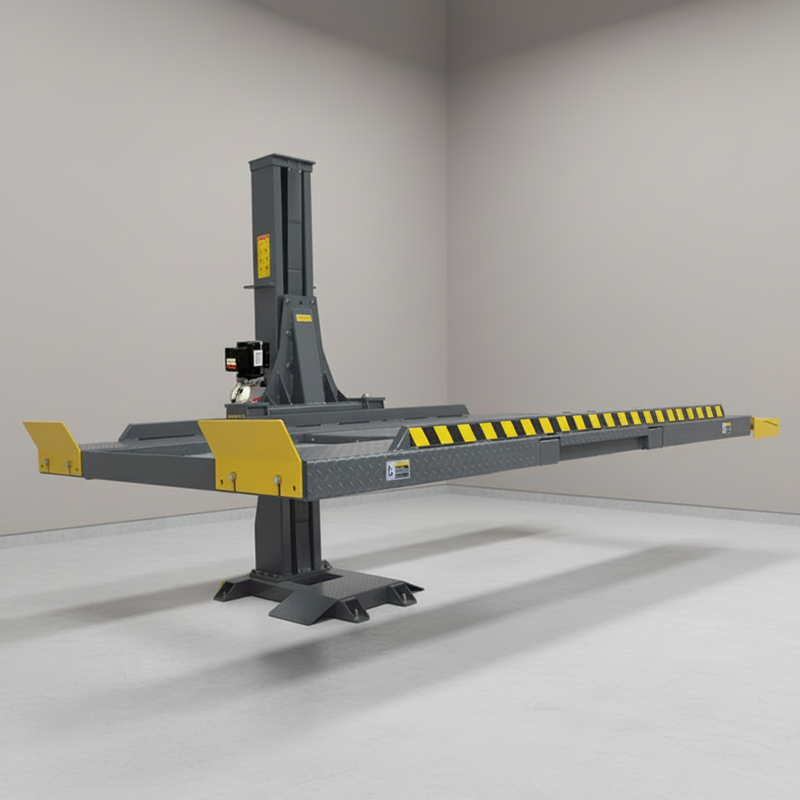

The AMGO SPL-7 provides 7,000 lbs of lifting capacity in a space-saving single-post parking lift designed to turn one garage bay into two parking spaces. Its reinforced construction supports passenger vehicles up to the rated capacity, while the single-column design allows installation in garages with ceilings as low as 110 inches. The ETL-certified AMGO power unit uses a 1.0 HP, 110V single-phase motor, so no air compressor is required.
The SPL-7 uses two safety devices with a single-point release lock, giving you one controlled release when lowering the platform. Interchangeable H-shaped non-slip platforms provide a stable surface for the vehicle, while the included foldable drive-on ramps and guide ramp make it easier to load the upper platform and access the parking space below. Rubber wheel chocks and storage wave panels are also included.
This lift is a practical choice for home garages, professional shops, and other spaces where maximizing parking capacity matters. Its compact single-post configuration leaves more usable floor area than a conventional multi-post parking lift, while the included ramps and accessories provide a ready-to-use parking setup.
Single-point release lock on the lift column.Base and carriage components — 4-unit rack, 49 5/8" x 41 5/16" x 57 15/16".Column, platforms, guide ramp, wave panels, and power unit — 2-unit bundle, 156 11/16" x 21 1/4" x 66 1/8".
Features
7,000-lb lifting capacity — Built to safely accommodate passenger vehicles up to the rated capacity.
Commercial-grade construction — Reinforced design provides reliable performance for both professional shops and home garages.
Space-saving single-post design — Fits ceilings as low as 110", maximizing available garage space.
Dual safety system — Includes two safety devices with a convenient single-point mechanical release and requires no air source.
Interchangeable H-shaped platforms — Non-slip platforms provide secure vehicle support and flexible setup.
Foldable drive-on ramps — Included for convenient vehicle loading and easy storage.
Guide ramp — Standard guide ramp makes it easier to drive into the lower parking space.
Storage wave panels — Included for convenient storage and organization.
Rubber wheel chocks — Help keep the vehicle securely positioned on the platform.
What's Included
Every SPL-7 comes ready for installation with:
Interchangeable H-shaped non-slip platforms
Foldable drive-on ramps
Guide ramp for drive-under access
Storage wave panels
Rubber wheel chocks
ETL-certified AMGO power unit
User manual and warranty card
Optional accessory: Aluminum alloy drive-in ramp (P/N 40815), sold separately.
Specifications
AMGO SPL-7 Specification
Details
Lifting Capacity
7,000 lbs
Lifting Time
84 seconds
Overall Height (A)
109 7/16"
Maximum Lifting Height (B)
74"
Maximum Lock Height to Top of Runway
70 3/16"
Maximum Height Under Runway (C)
69 5/16"
Maximum Lock Height Under Runway
65 1/2"
Minimum Height (D)
6 1/8"
Overall Width (E)
111"
Width Between Runways (F)
42 3/8"
Overall Length (G)
192 1/8"
Drive-Thru Clearance (H)
79 1/4"
Gross Weight
3,241 lbs
Motor
1.0 HP, 110V / 60Hz
Warranty
AMGO backs the SPL-7 with a 5-3-2 warranty:
5 Years: Steel structural components
3 Years: Hydraulic parts
2 Years: Power unit, electrical components, and other parts
Each lift includes a user manual with installation, maintenance, and troubleshooting information, plus an official warranty card.
FAQ
Does the SPL-7 require special electrical service?
No. The lift uses a 1.0 HP, 110V/60Hz single-phase motor, allowing it to operate from standard 110V shop power.
Does it require an air compressor?
No. The dual safety system uses a mechanical single-point release lock, so no air line or compressor is required.
What ceiling height is required?
The SPL-7 has an overall height of 109 7/16", allowing installation under a 110" ceiling. Be sure to account for additional clearance based on the height of the vehicle being parked on the upper platform.
How much clearance is available for the lower vehicle?
The lift provides 79 1/4" of drive-through clearance and up to 69 5/16" of clearance beneath the runway, with 65 1/2" available at the locked position.
