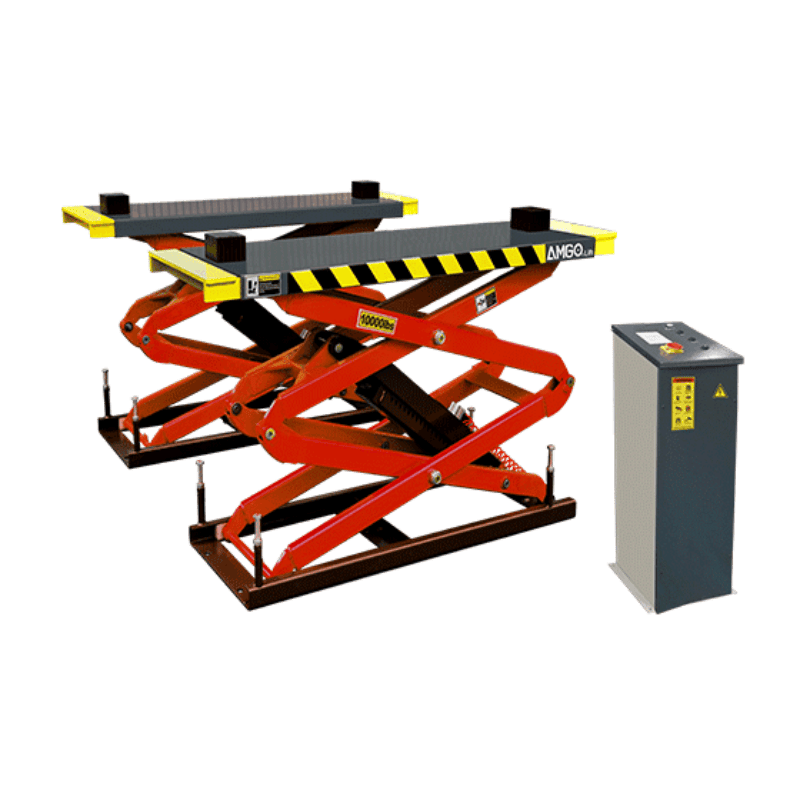

The AMGO XL-10F Flush Mount Full Rise Scissor Lift is a 10,000 lbs capacity in-ground style scissor lift built for professional service bays that need full lifting height without sacrificing open floor space. It’s designed to handle a wide range of vehicles—from passenger cars to pickup trucks and light-duty commercial units—while keeping the shop layout clean and fully usable when the lift is lowered. Note: installation requires recessed floor preparation for flush mounting and a properly reinforced concrete foundation.

What makes the XL-10F stand out is its combination of full-rise capability and space efficiency. The flush-mount installation allows the platform to sit level with the floor when not in use, eliminating obstructions in the bay and making it easier for technicians, tools, and vehicles to move freely. When activated, the lift provides full-rise working height, giving technicians comfortable access for inspections, suspension work, tire service, and general repairs.

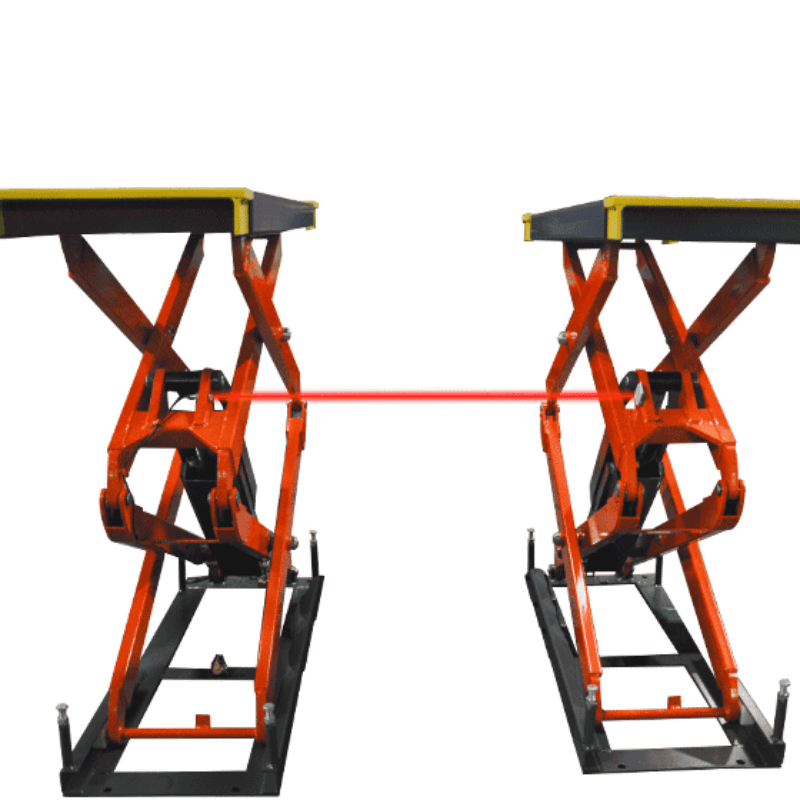

The system is built for consistent alignment and smooth operation under load. Dual extendable platforms allow it to accommodate a wide range of wheelbases, making it flexible enough for mixed vehicle environments. A photocell synchronization system ensures both platforms rise evenly, maintaining balance throughout the lift cycle and reducing stress on the structure.

Safety and durability are central to the design. The XL-10F includes an automatic safety stop system along with a mechanical locking mechanism, providing controlled operation at every stage of lifting. Its heavy-duty reinforced structure is engineered for repeated daily use in demanding shop environments where reliability matters more than anything else.

This model is best suited for professional repair shops, dealerships, inspection centers, and high-volume service facilities that want full lifting performance while maintaining an uncluttered, efficient workspace.

Features

• 10,000 lb capacity, designed for lifting passenger cars, trucks, and light-duty commercial vehicles with confidence

• Flush-mount design installs level with the floor, creating a clean and unobstructed workspace when not in use

• Full-rise lifting performance provides excellent vehicle access for maintenance and service work

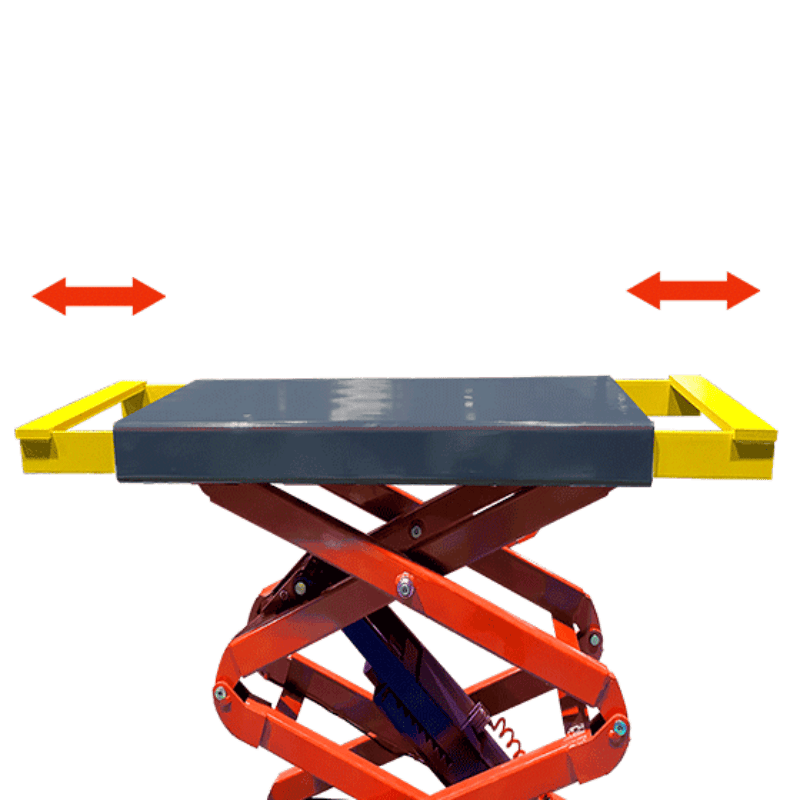

• Dual extendable platforms accommodate a wide range of vehicle wheelbases for greater versatility

• Heavy-duty reinforced construction ensures long-lasting durability and dependable operation

• Precision synchronization system with photocell device for accurate and balanced platform movement

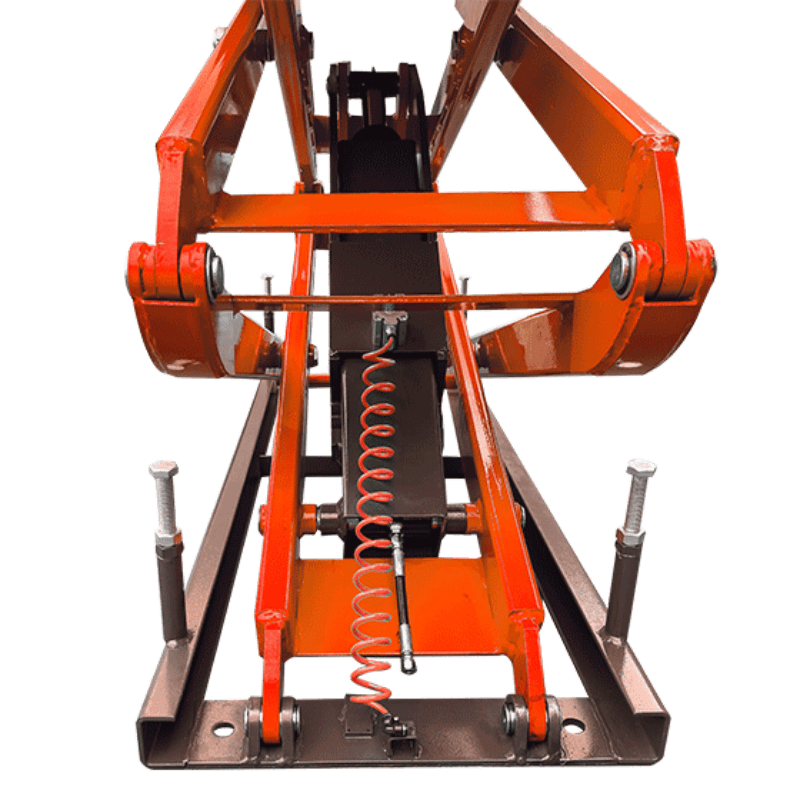

• Enhanced safety features including automatic safety stop and mechanical locking system for reliable protection during operation


Specifications

• Model: XL-10F
• Lifting Capacity: 10,000 lbs
• Lifting Time: 49 seconds
• Max. Lifting Height: 75"
• Max. Lock Height: 72 5/8"
• Minimum Height: 13 3/4"
• Runway Length: 65 1/8" – 80 5/16"
• Overall Width: 74 13/16"
• Width Between Runways: 31 1/2"
• Motor: 2.0HP
• Gross Weight: 1,903 lbs
