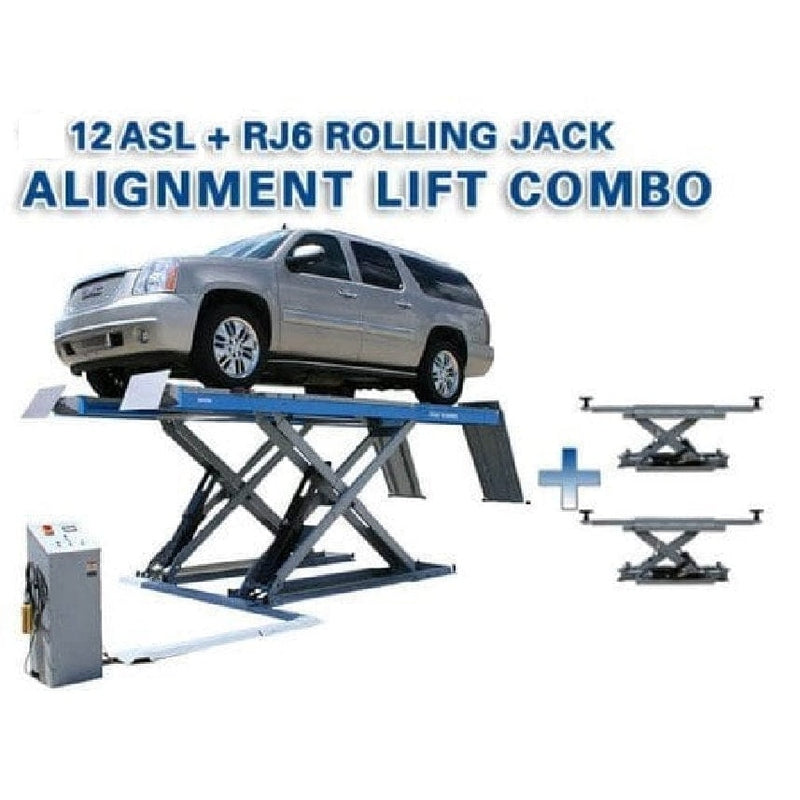

Atlas 12ASL Alignment Scissor Lift and RJ-6 Rolling Jack Combo

The Atlas 12ASL and RJ-6 is a 12,000 lb scissor alignment lift bundled with a 6,000 lb air/hydraulic rolling jack — everything needed to perform full wheel alignments and suspension work on a single integrated platform. The 12ASL includes built-in slip plates, alignment turntables, and turntable covers as standard, and the RJ-6 rolling jack rides the 12ASL's welded internal runway rails, giving the technician a mobile lift point under the vehicle without moving it off the alignment rack. The 12ASL installs surface-mounted or flush-mounted, runs on 220V single-phase power with a 30-amp breaker, and requires an external compressed air supply for both the lift's air-actuated lock release and the RJ-6's air/hydraulic operation (70–105 PSI delivered pressure). Delivery requires access for a 53-foot truck.

The 12ASL's separate self-contained control panel positions independently for operator clearance, with push-button raising and lowering and an air-actuated lock that engages and disengages automatically during travel. 19 locking positions cover the full height range, a safety lowering limit switch stops descent at 10 inches above the floor requiring a deliberate second input to complete, and an emergency manual pump provides lowering capability if power is lost. 72-inch approach ramps handle low-clearance vehicles, and the open center design gives clear undercarriage access across the full platform width. The RJ-6 adds a scissor-mechanism level lift with multiple safety lock positions, double screw-up adapters, and a 4-piece truck adapter set — compact enough to maneuver between the runways and low-profile enough to slide under vehicles already on the rack. Backed by a 2-year structural and 1-year hydraulic parts warranty on the lift, and a 1-year parts warranty on the rolling jack.

The 12ASL/RJ-6 bundle is the right fit for dedicated alignment shops that want a complete rack-and-jack setup without sourcing components separately, full-service independent facilities adding alignment capability to an existing service menu, and high-volume shops where the rolling jack's runway integration keeps suspension and alignment work on one lift from start to finish.

12ASL Scissor Alignment Lift

• 12,000 lb lifting capacity
• Commercial-grade scissor alignment lift

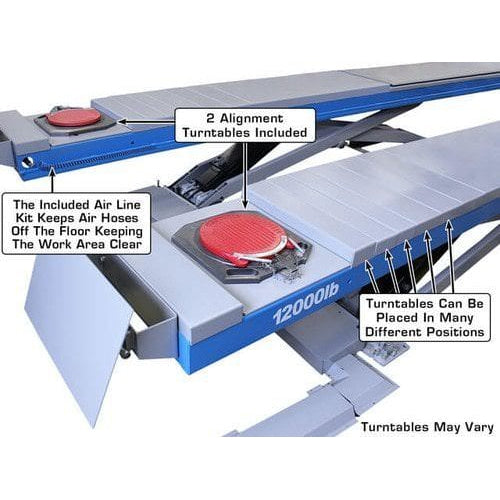

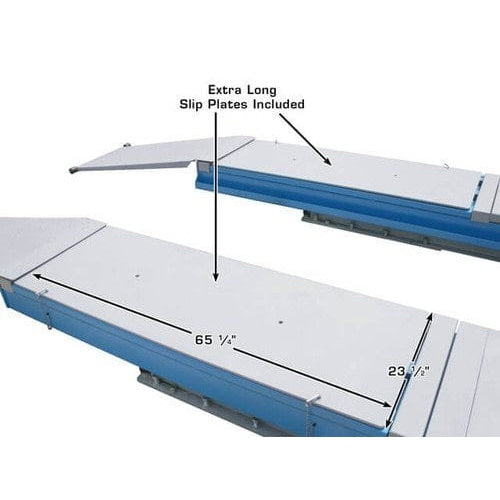

• Built-in slip plates and alignment turntables included

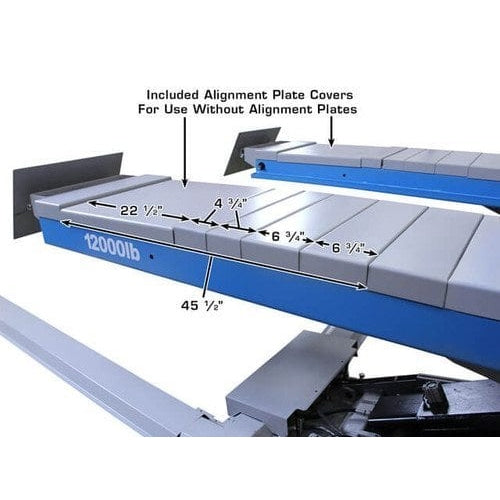

• Turntable covers included

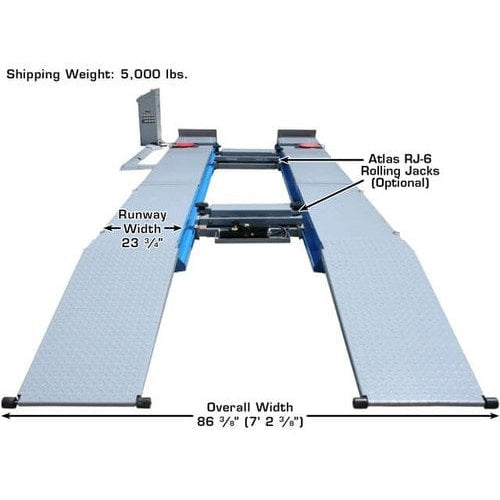

• Open center design for easy undercarriage access

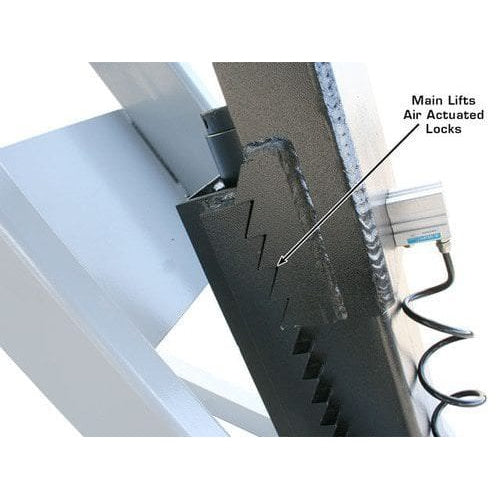

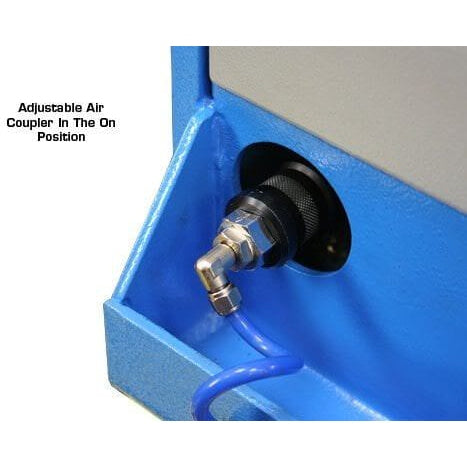

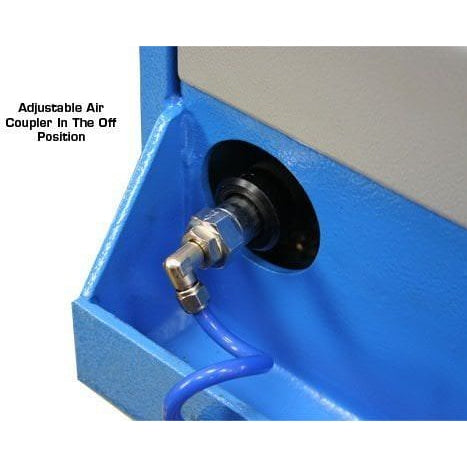

• Air-operated single-point lock release (external air supply required)

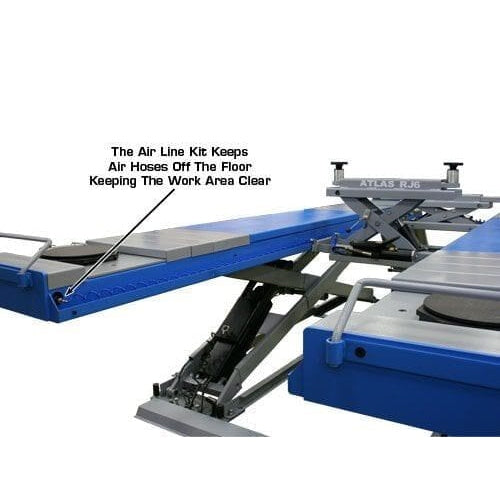

• Airline kit included

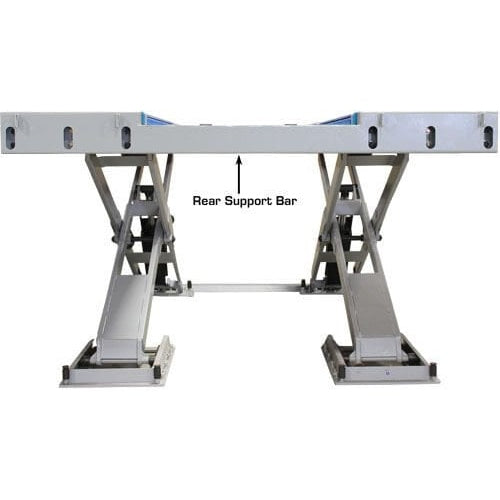

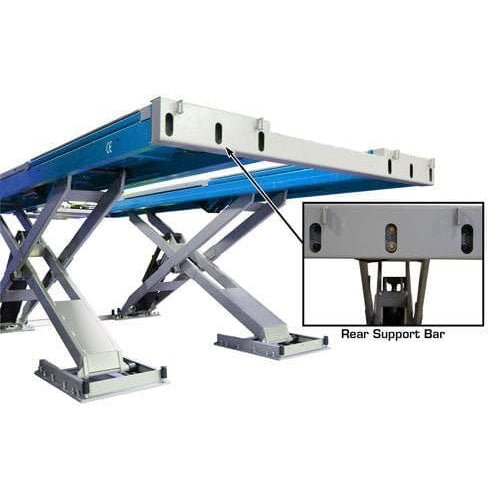

• Rear cross beam included for added stability
• Extra-long 72" ramps standard
• Precise platform leveling accuracy

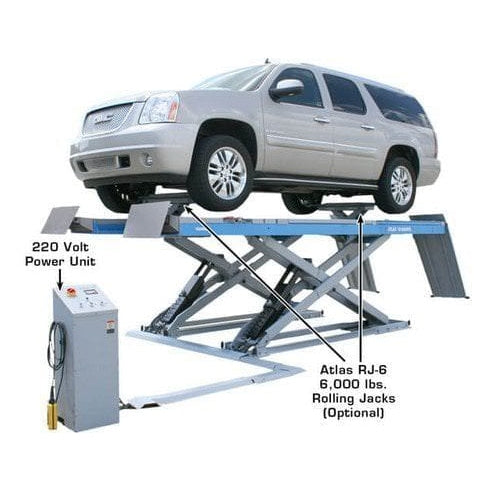

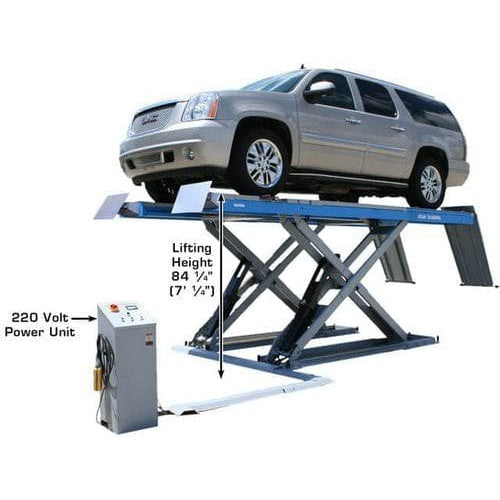

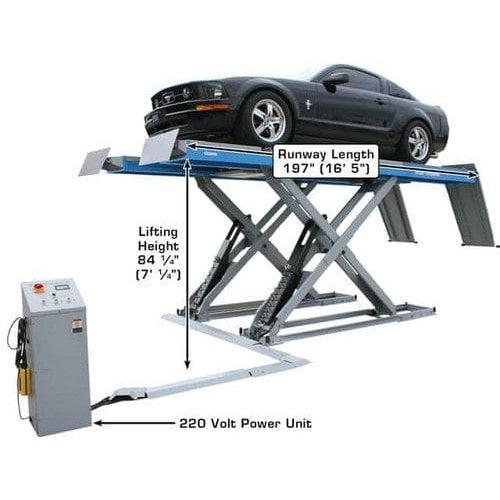

• Separate self-contained control panel
• Emergency manual pump for safe lowering

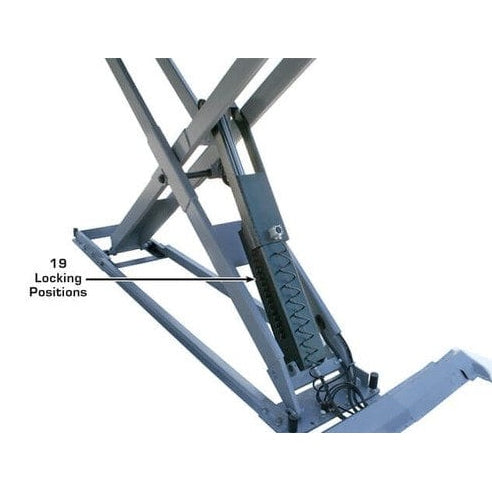

• 19 locking positions
• CE certified
• Surface mount or flush mount installation options

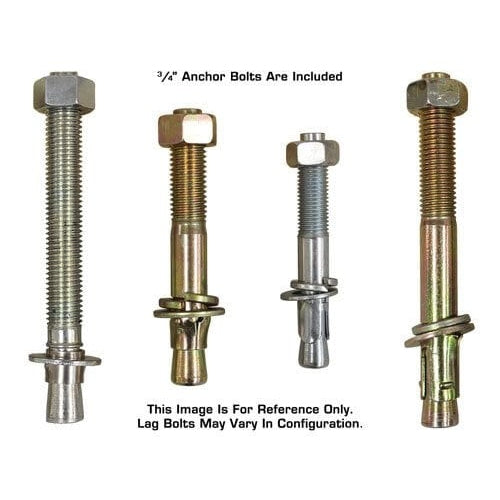

• Mounting hardware included
• 220V / 1-phase electric operation (requires a 30-amp breaker)

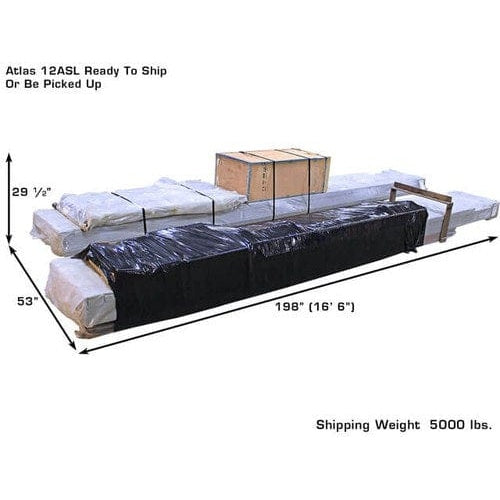

• Shipping weight: 5,000 lbs
• 2-year structural / 1-year hydraulic parts-only warranty

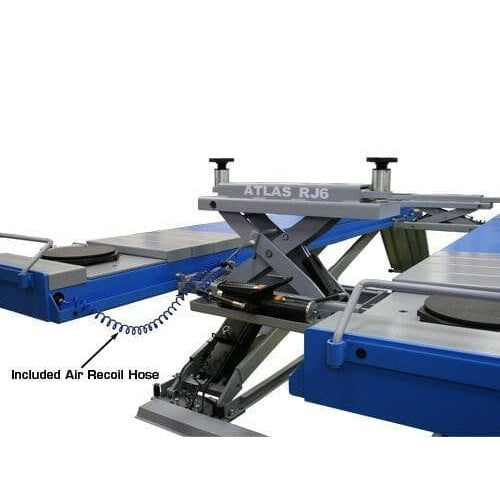

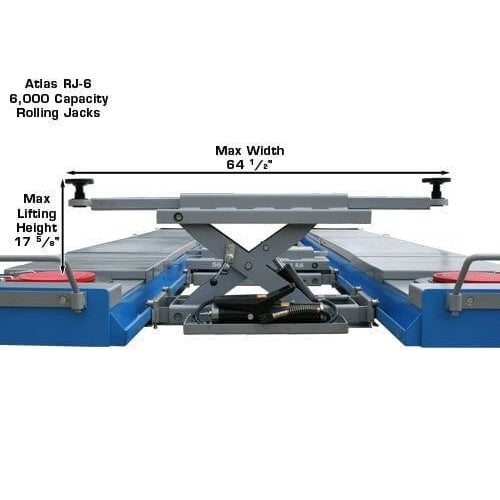

RJ-6 Rolling Jack

• 6,000 lb lifting capacity
• Air/hydraulic operation (external air supply required)
• Multiple safety lock positions

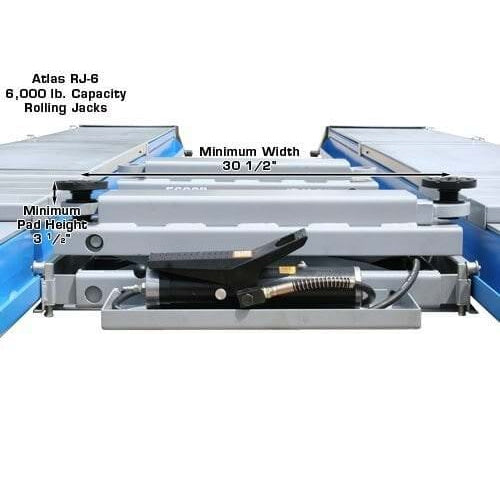

• Compact, low-profile design for easy maneuverability
• Smooth-rolling action for effortless positioning

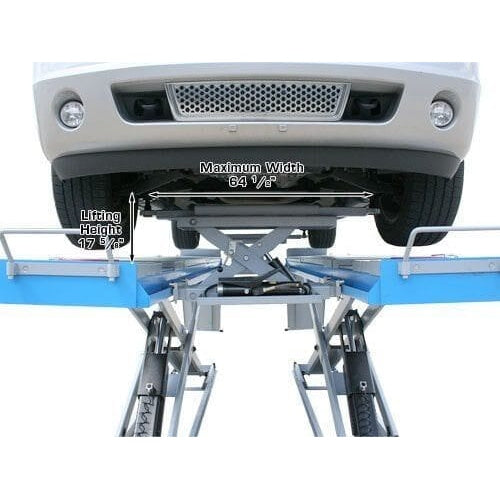

• Scissor mechanism delivers stable, level lifting
• Durable powder-coat finish
• Double screw-up adapters included

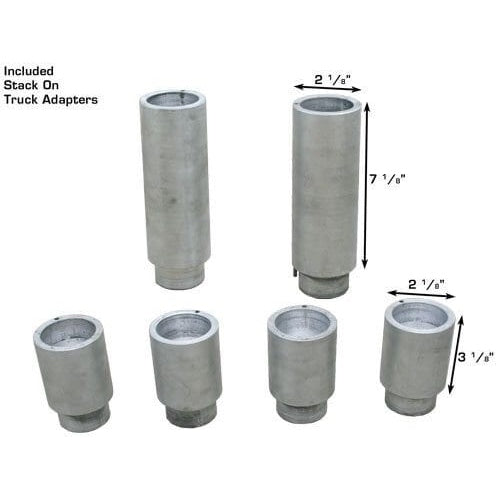

• 4-piece truck adapter set included
• 1-year parts-only warranty

Specifications

Documents

Atlas® 12ASL-N Manual
