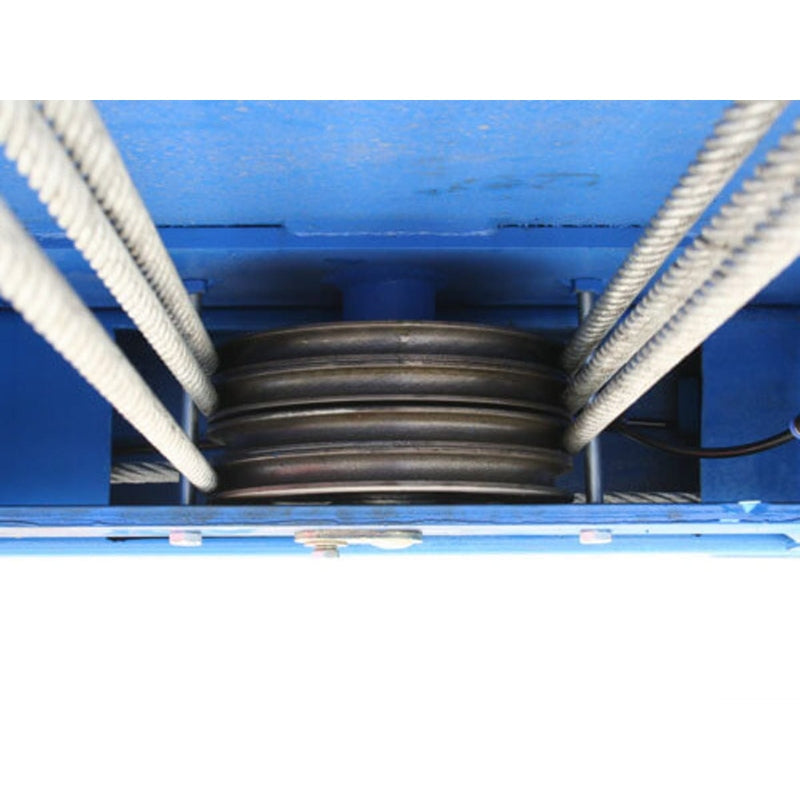

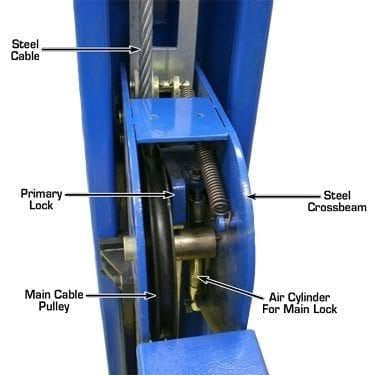

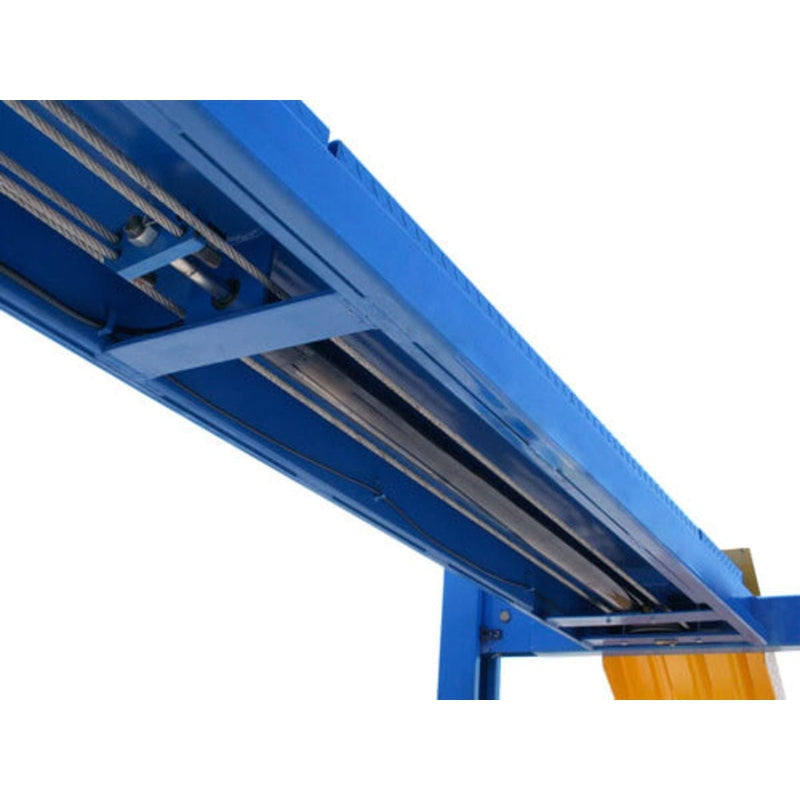

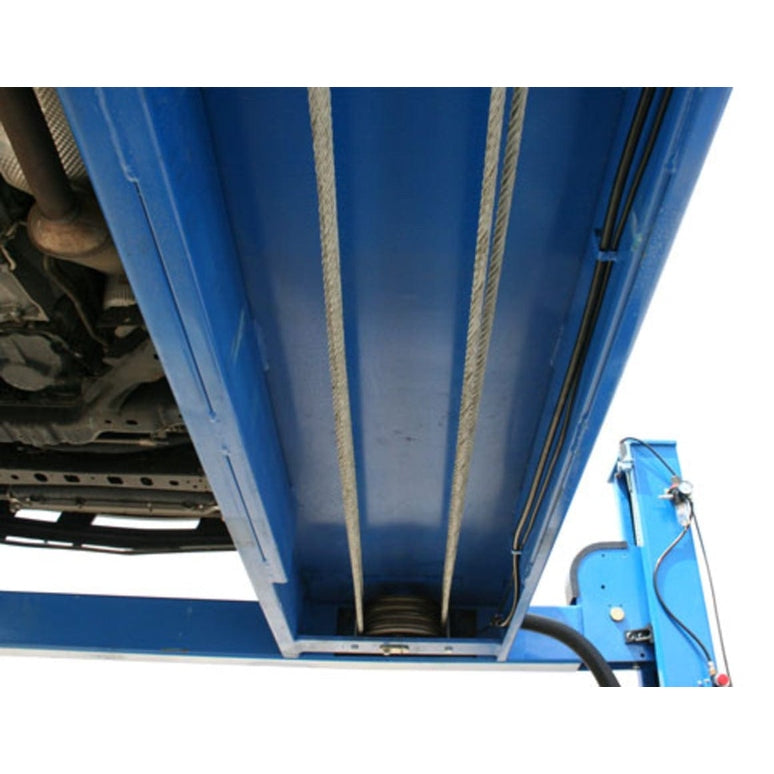

The Atlas 412 Package combines a 12,000 lb. capacity four-post lift with two Atlas RJ6 rolling bridge jacks, creating a versatile setup for everything from vehicle storage to full-service maintenance. What sets this package apart is its cable-driven lifting system with an oversized hydraulic cylinder mounted beneath the runways, a design that helps maintain lift levelness while keeping hydraulic components out of the way. Unlike many lifts in this price range that still rely on exposed cylinder and chain systems, the Atlas 412 offers a cleaner design with fewer obstructions around the vehicle. Note: requires 220V single-phase power, a 30-amp breaker, and an external air supply for both the lock release system and bridge jacks.
The lift features an extra-tall, extra-wide, and extra-long platform design, making it suitable for a broad range of vehicles. Diamond-plated runways provide durable traction, while the air-operated single-point lock release and double-lock safety system simplify operation and enhance safety. The included RJ6 rolling bridge jacks add another level of functionality by allowing you to raise the vehicle from the runways so the wheels hang free. This makes brake, suspension, and tire service significantly easier without needing a separate lift. Each jack features a 6,000 lb. lifting capacity, multiple safety lock positions, smooth rolling movement, and a low-profile design that fits easily between the runways.
This package is a strong choice for professional repair shops, tire service centers, fleet maintenance facilities, and serious home garage owners who want the convenience of a four-post lift without sacrificing service capabilities. With the included bridge jacks, the Atlas 412 can handle both vehicle storage and routine maintenance in a single workstation.
Features
412
- 12,000 lb. lifting capacity for heavy-duty commercial applications.
- Commercial-grade construction designed for durability and reliable performance.
- Extra-tall, extra-wide, and extra-long design accommodates a wide range of vehicles.
- Diamond-plated runways provide enhanced traction and stability.

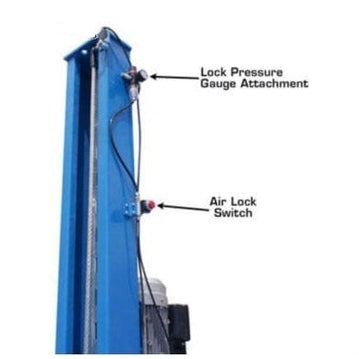

- Air-operated single-point lock release system for convenient operation (external air supply required).

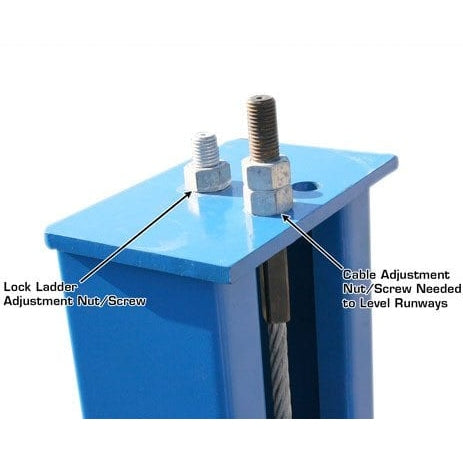

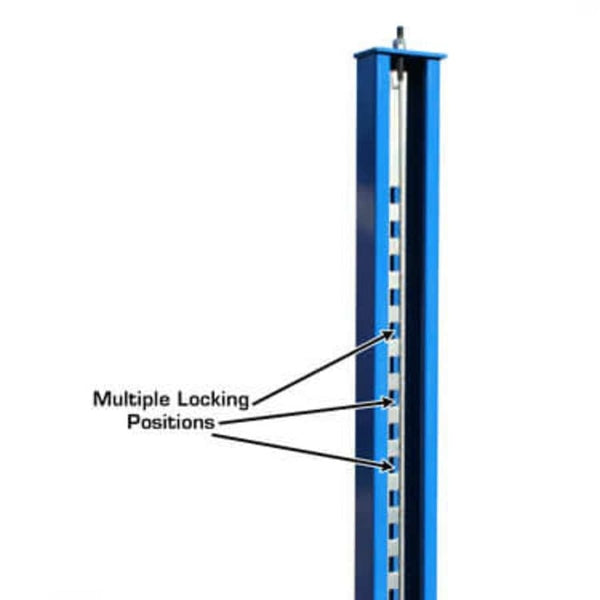

- Lock ladder design with a double-lock safety system for increased security.
- Durable powder-coated finish helps resist wear, corrosion, and daily use.

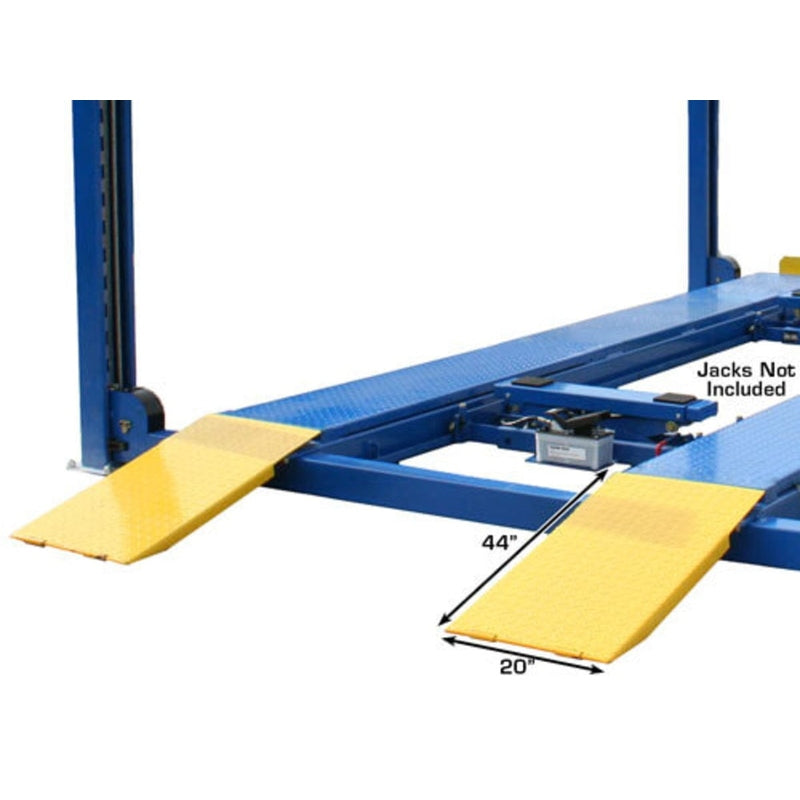

- Steel approach ramps included for easy vehicle loading.
- Optional drive-off ramps available separately.
- Optional runway extensions available separately.

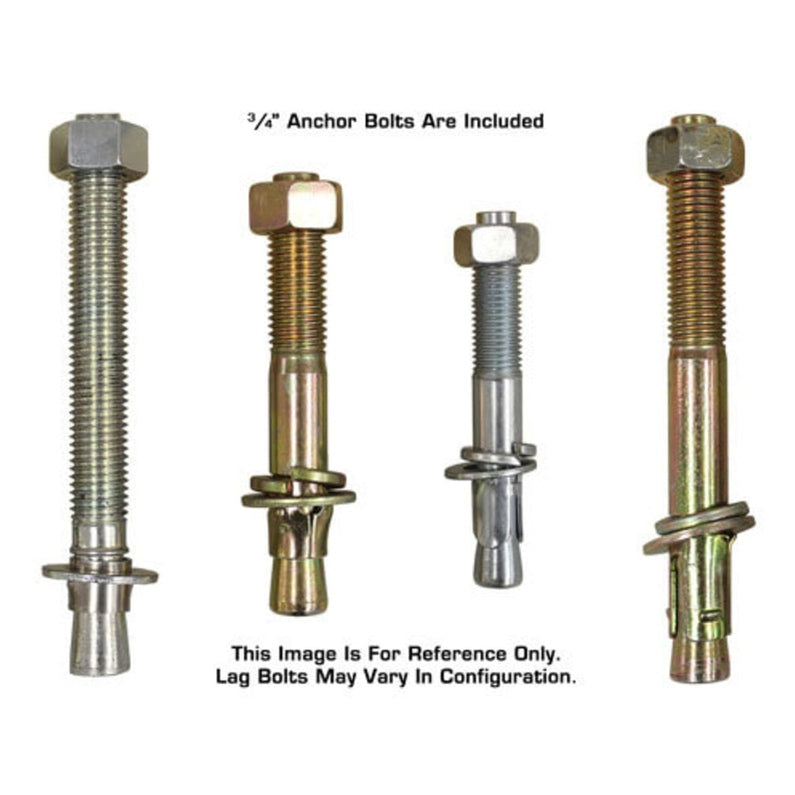

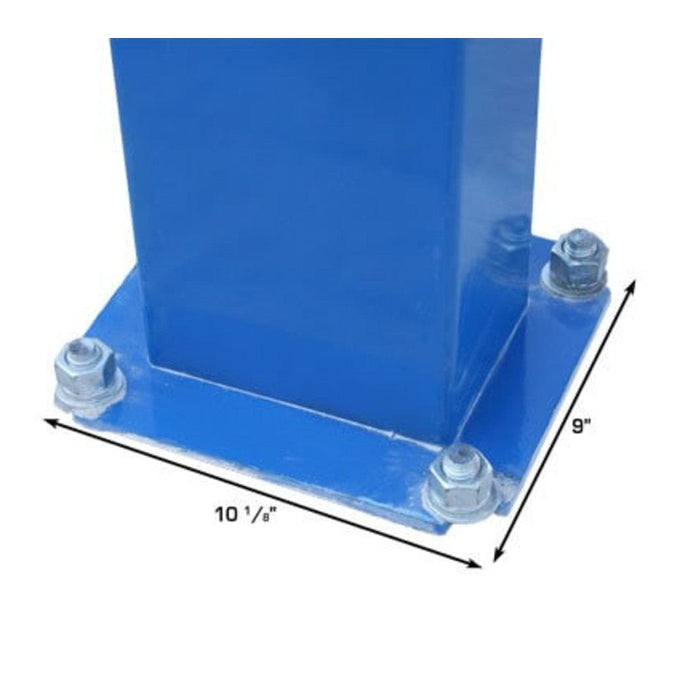

- Mounting hardware included for installation.
- Operates on 220V single-phase power and requires a 30-amp breaker.

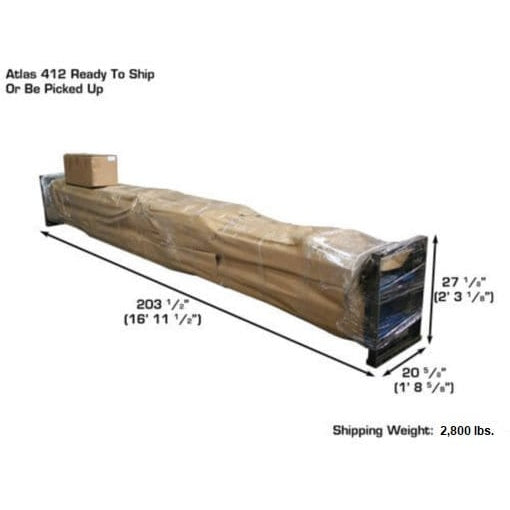

- Shipping weight: 2,800 lbs.
- Backed by a 5-year structural warranty and a 2-year hydraulic parts warranty.

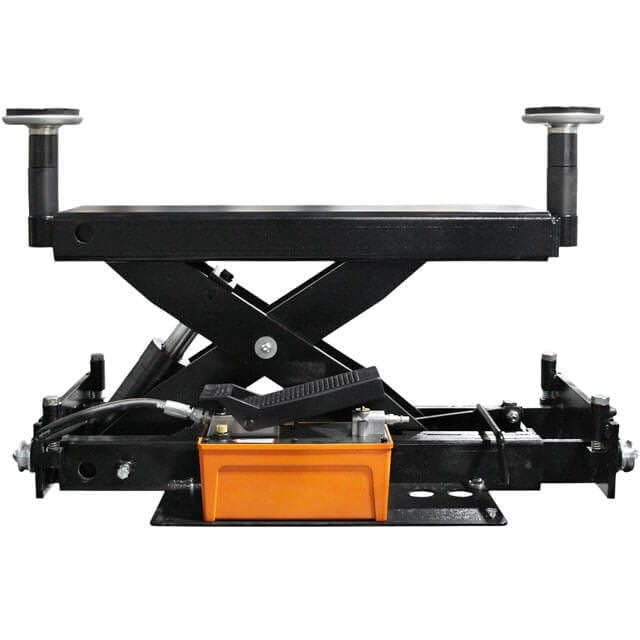

RJ6
- 6,000 lb. lifting capacity suitable for a wide range of vehicles.
- Air/hydraulic operation system (external air supply required) for reliable performance.

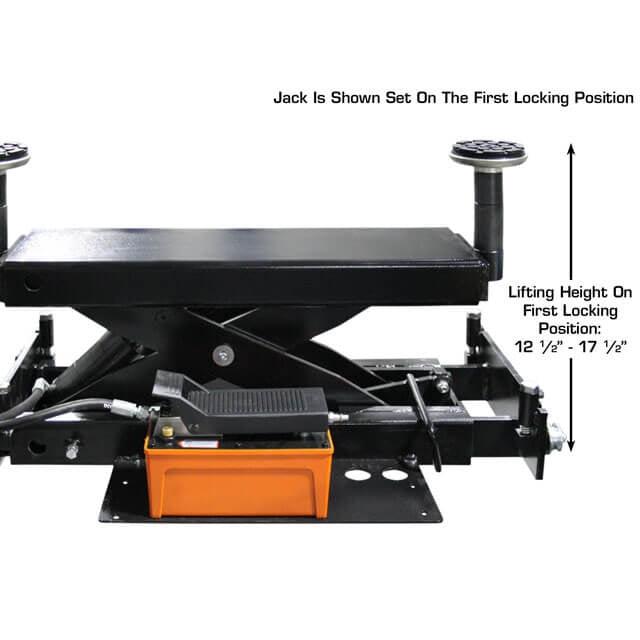

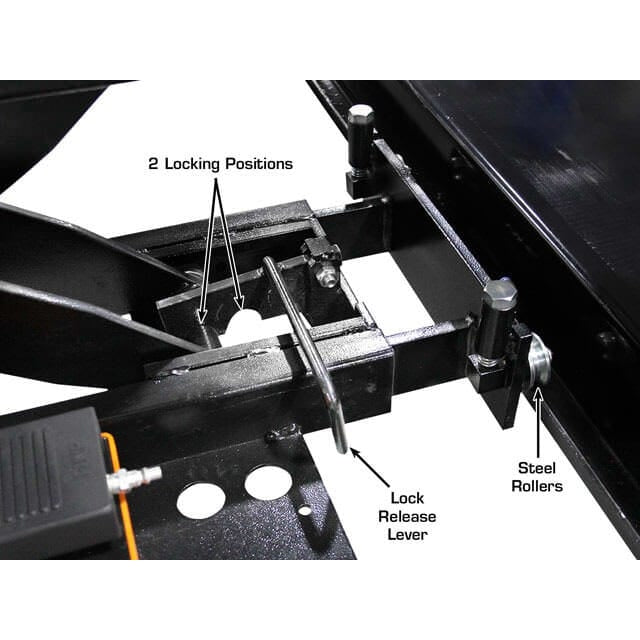

- Multiple safety lock positions for enhanced operational security.
- Compact, low-profile design ideal for space-limited workshops.

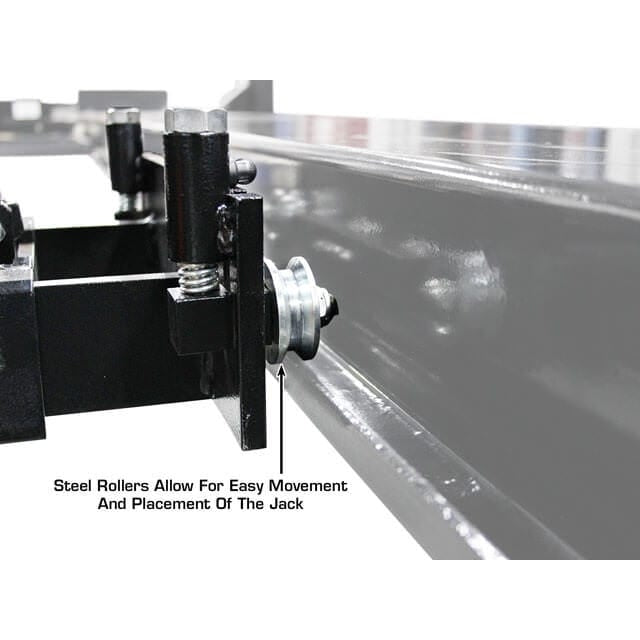

- Smooth rolling action ensures easy positioning and maneuverability.
- Scissor-style mechanism provides stable, level lifting.
- Durable powder-coated finish for long-lasting protection against wear and corrosion.
- Includes a 4-piece truck adapter set for added versatility.
- Backed by a 1-year parts-only warranty.
Specifications
AtlasĀ® ATTD-412 Specifications
| Capacity |
12,000 lb. |

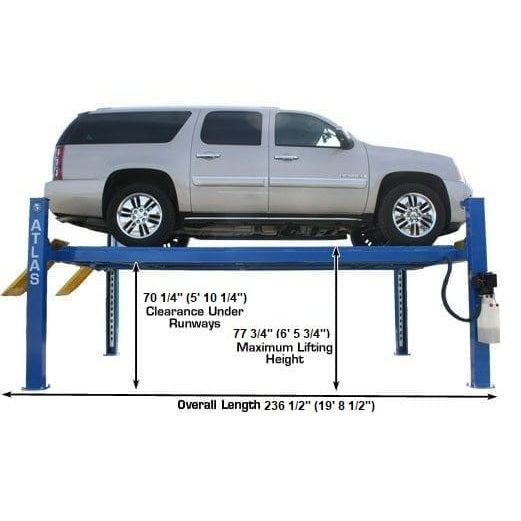

| Lifting Height |
77 3/4" (6' 5 3/4") |

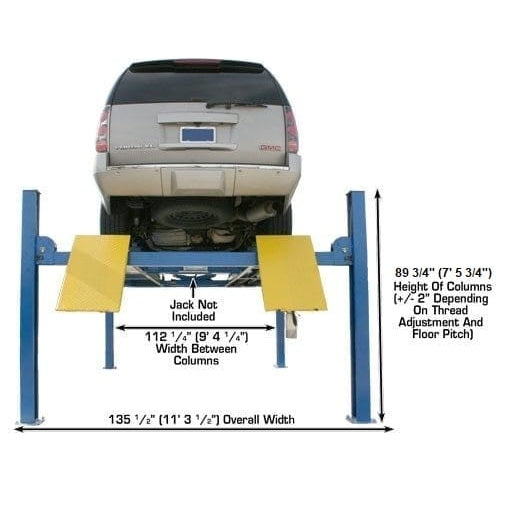

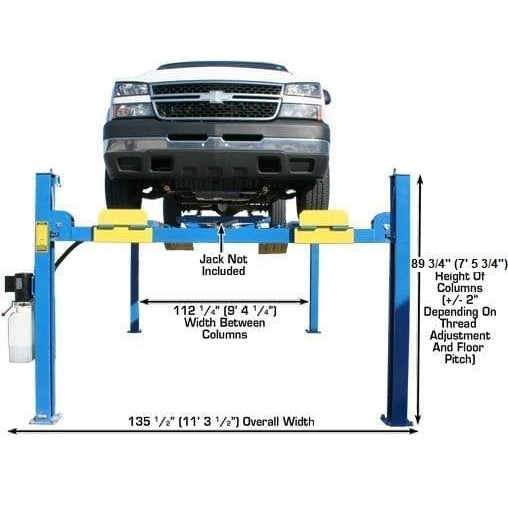

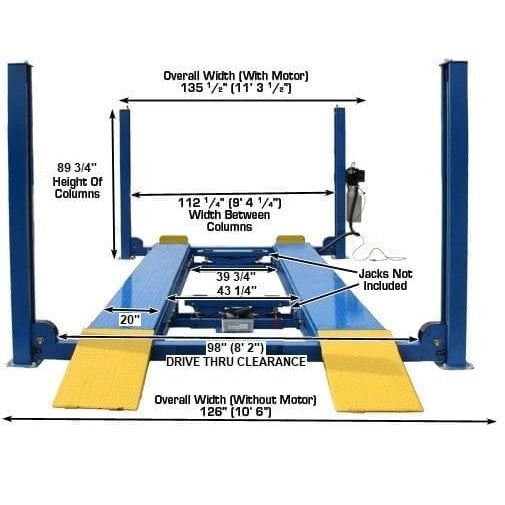

| Overall Width Of Columns (Without Motor) |
126 1/4" (10' 6 1/4") |
| Overall Width Of Columns (With Motor) |
135 1/4" (11' 3 1/4") |

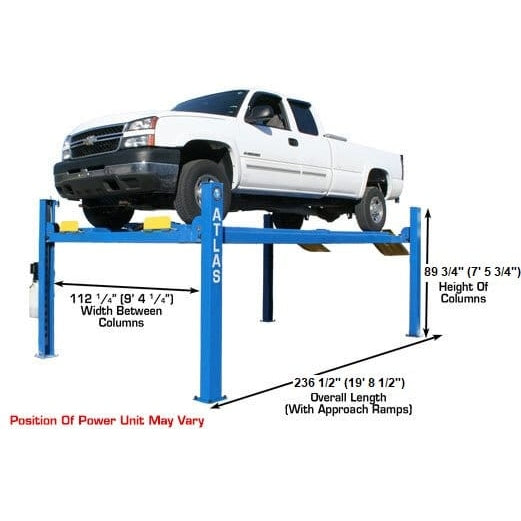

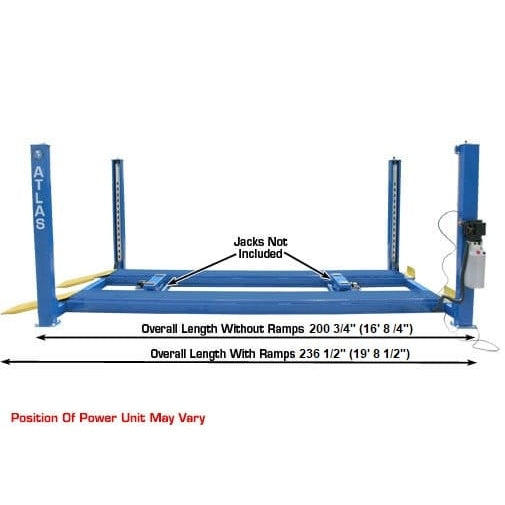

| Overall Length With Approach Ramp |
236 1/2" (19' 8 1/2") |
| Length Between Columns |
183 1/4" (15' 3 1/4") |
| Runway Length |
194 1/2" (16' 2 1/2") |
| Runway Width |
20" |
| Thickness Of Runway |
7 1/2" |
| Width Between Runways |
43 1/4" (w/ Rail 39 3/4") |
| Outside Runway To Outside Runway |
83 1/4" (6' 11 1/4") |
| Clearance Under Runways |
70 1/4" (5' 10 1/4") |
| Clearance Between Columns |
112 5/8" (9' 4 5/8") |
| Height Of Columns |
89 3/4" (7' 5 3/4") |
| Maximum Wheel Base |
185" (15' 5") |
| Drive Thru |
98" (8' 2") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
2,800 LBS. |
Requires a minimum of 6" of concrete with a 3000 psi. rating
AtlasĀ® RJ6 Specifications
| Maximum Capacity |
6,000 lb. |
| Maximum Width |
55" (4' 7") |
| Minimum Width |

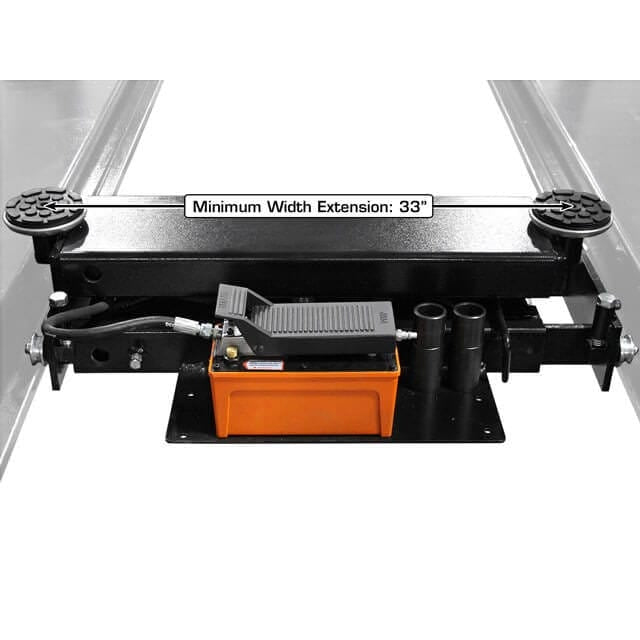

35" (2' 11") |
| Distance Between Runway Capability |
32"-52" |

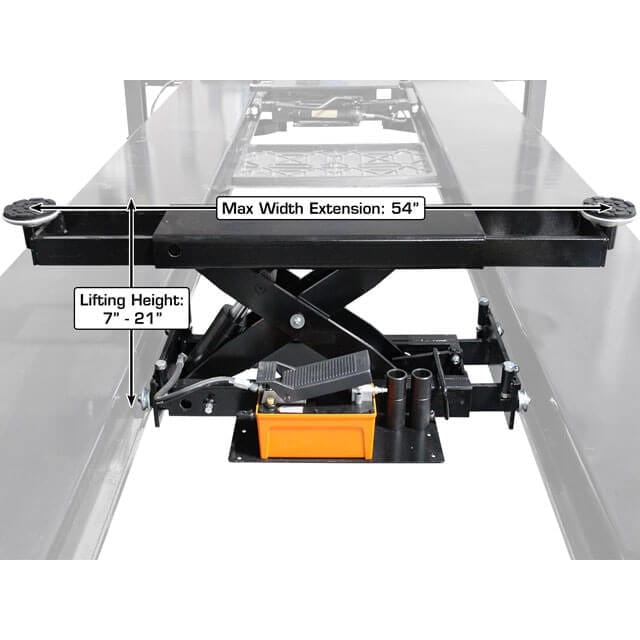

| Maximum Lifting Height (With Adapters) |

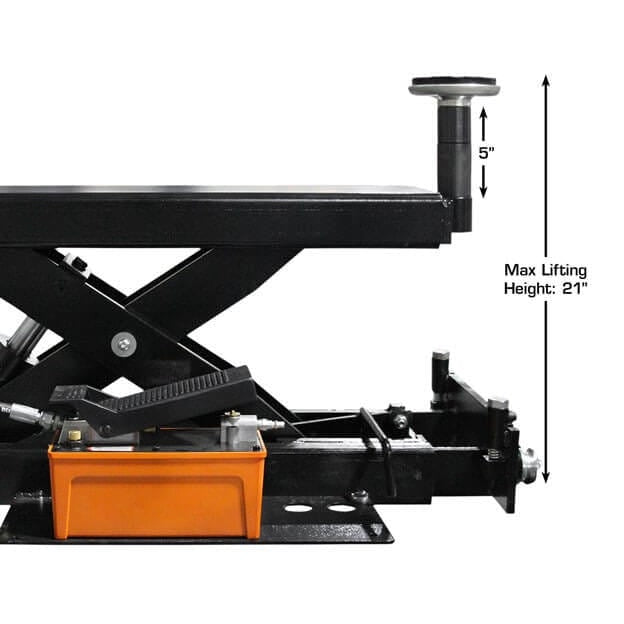

21" (1' 9") |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
350 lbs. |

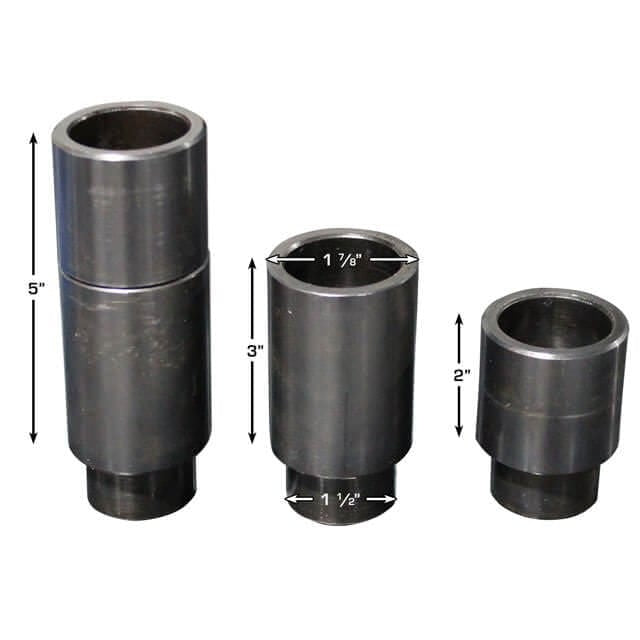

| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
Documents
AtlasĀ® ATTD-412 Manual
