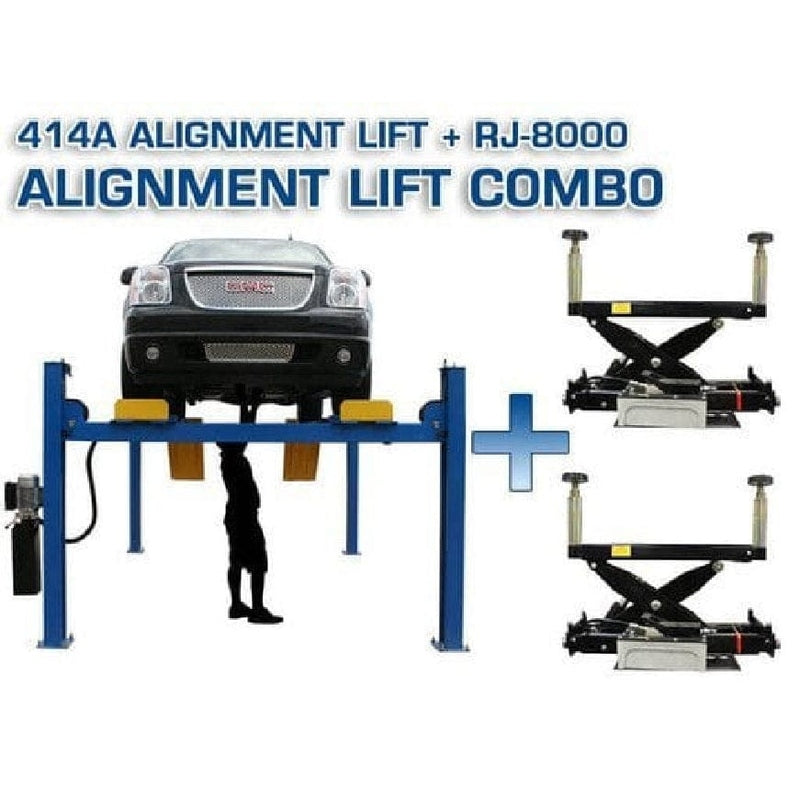

The Atlas 414A and RJ8 bundles a 14,000 lb four-post alignment lift with two 8,000 lb rolling bridge jacks — the lift handles alignment work and general service, and the two RJ8s ride the between-runway tracks to unload wheels for tire, brake, and suspension work without pulling the vehicle off the rack. The 414A includes built-in slip plates and alignment turntables that adjust to multiple wheelbase positions, plus metal cover plates that replace the turntables when the lift is used for standard service rather than alignment — making it a dual-purpose rack rather than a dedicated alignment-only platform. It runs on 220V single-phase power with a 30-amp breaker and requires an external air supply for the air-operated single-point lock release. Delivery requires access for a 53-foot truck.

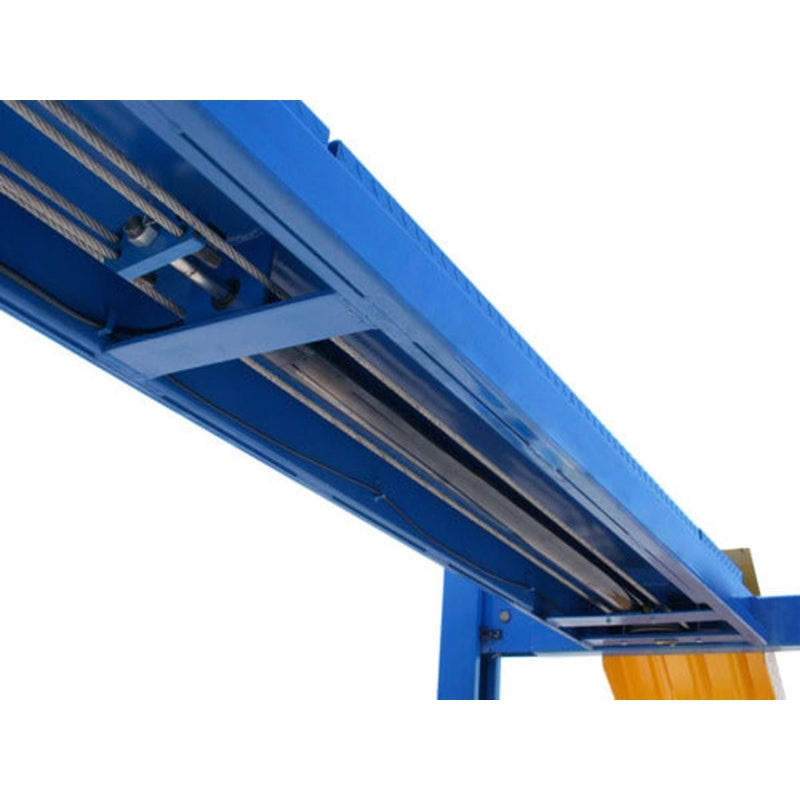

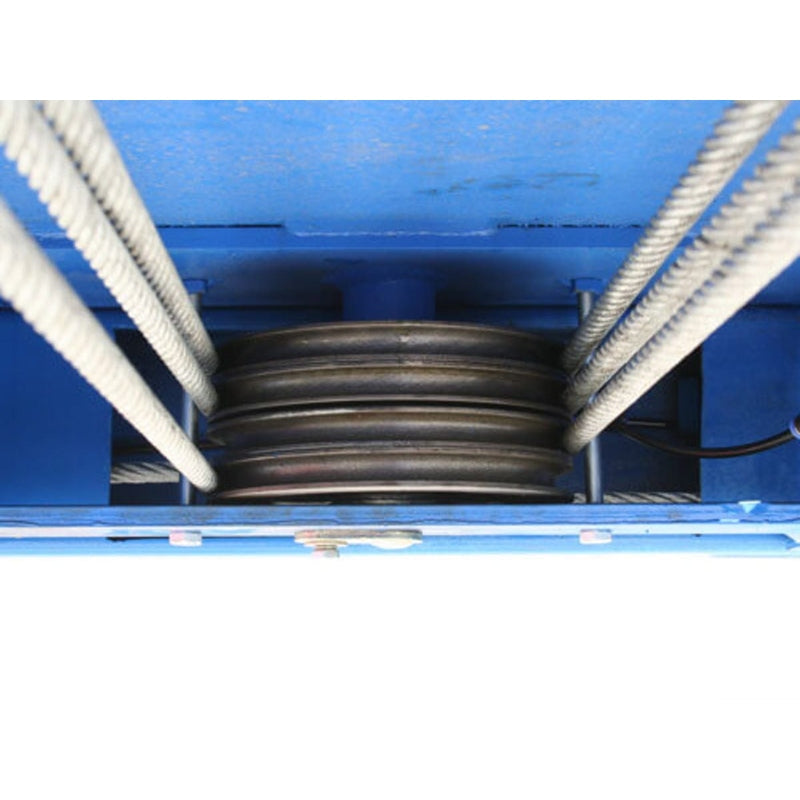

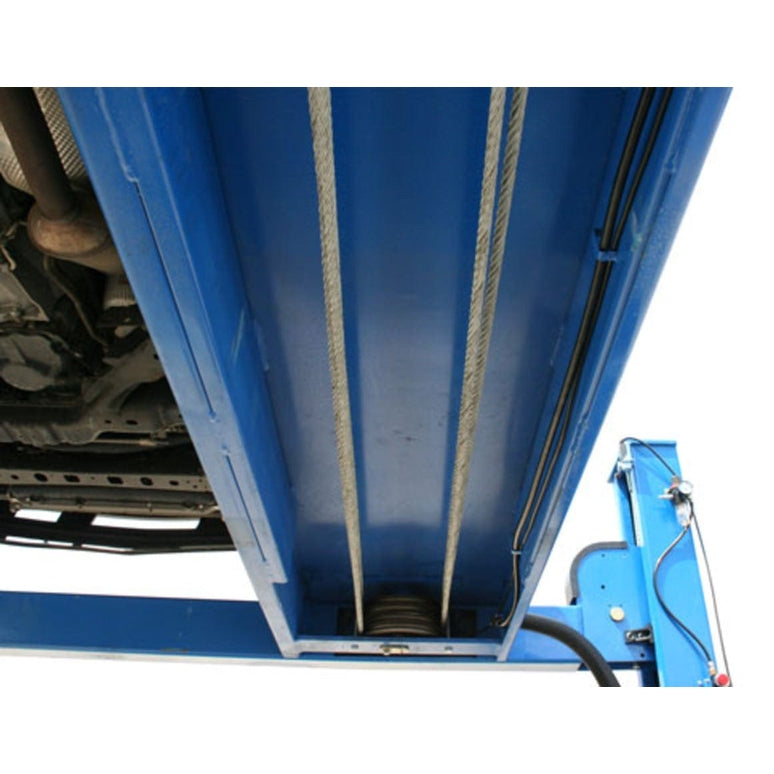

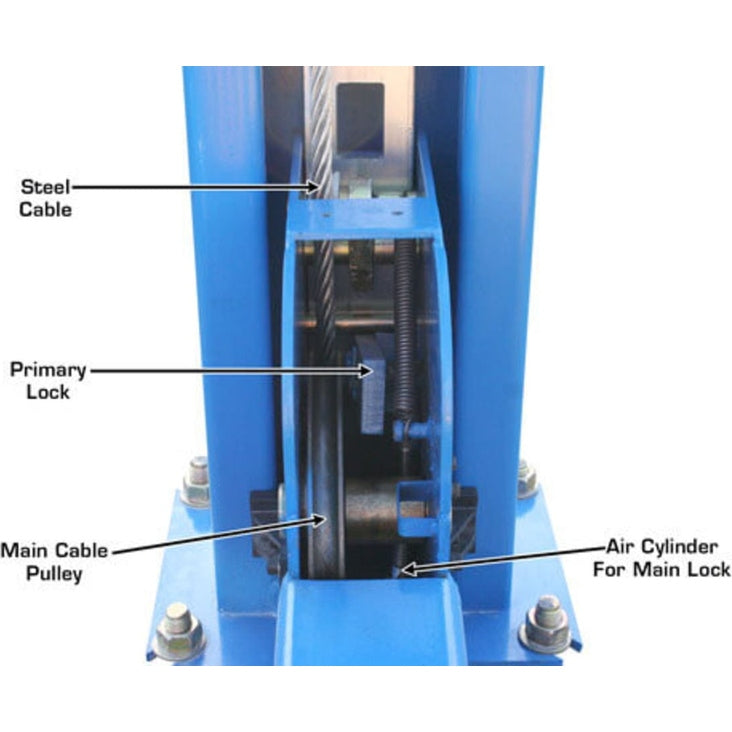

The 414A's high-strength cable system with an under-runway oversized hydraulic cylinder keeps the lifting mechanism clear of the vehicle path — eliminating the door damage risk that comes with exposed between-runway cylinders on chain-lift competitors. The lock ladder design with double lock safety system provides redundant hold at working height, and steel approach ramps are included for vehicle loading. The two RJ8 rolling bridge jacks are air/hydraulic operated (external air supply required, 8,000 lb capacity each) with a scissor mechanism for level lifting, multiple safety lock positions, a 4-piece truck adapter set, and a low-profile compact frame that maneuvers between the runways and slides under vehicles already on the rack. The 414A carries a 5-year structural and 2-year hydraulic parts warranty; the RJ8s carry a 1-year parts warranty.
This bundle suits alignment shops and full-service facilities that want a complete four-post alignment and service platform without sourcing the rolling jacks separately, and high-volume shops where having two jacks on the rack simultaneously — one at each axle — reduces repositioning time on brake and suspension jobs.
Features

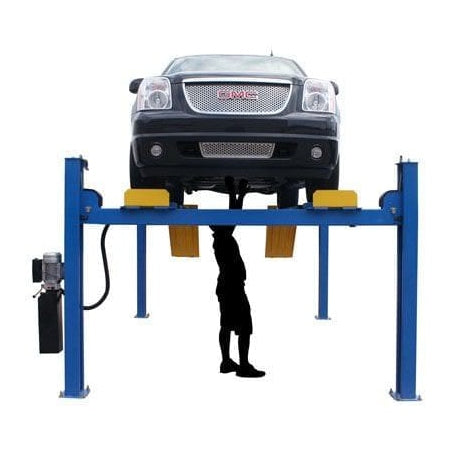

414A Four-Post Alignment Lift
- 14,000 lb lifting capacity
- Heavy-duty, commercial-grade construction
- Extra tall, extra wide, and extra long platform for maximum versatility

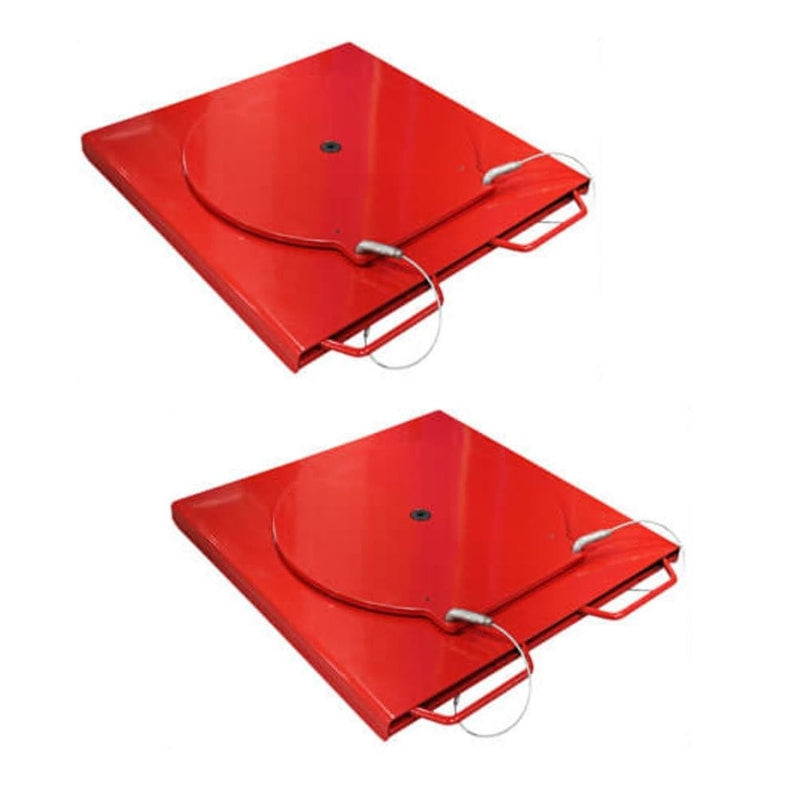

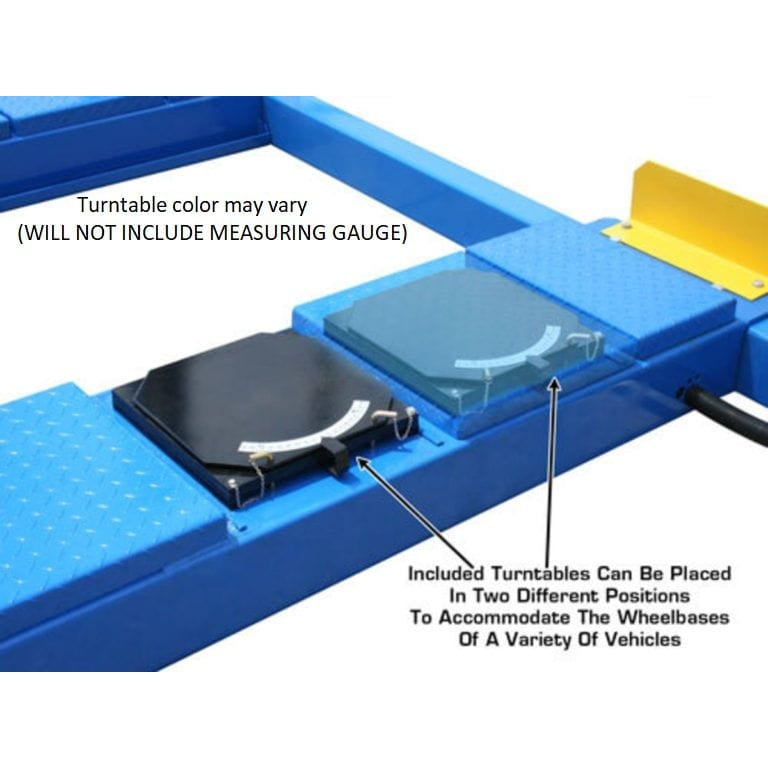

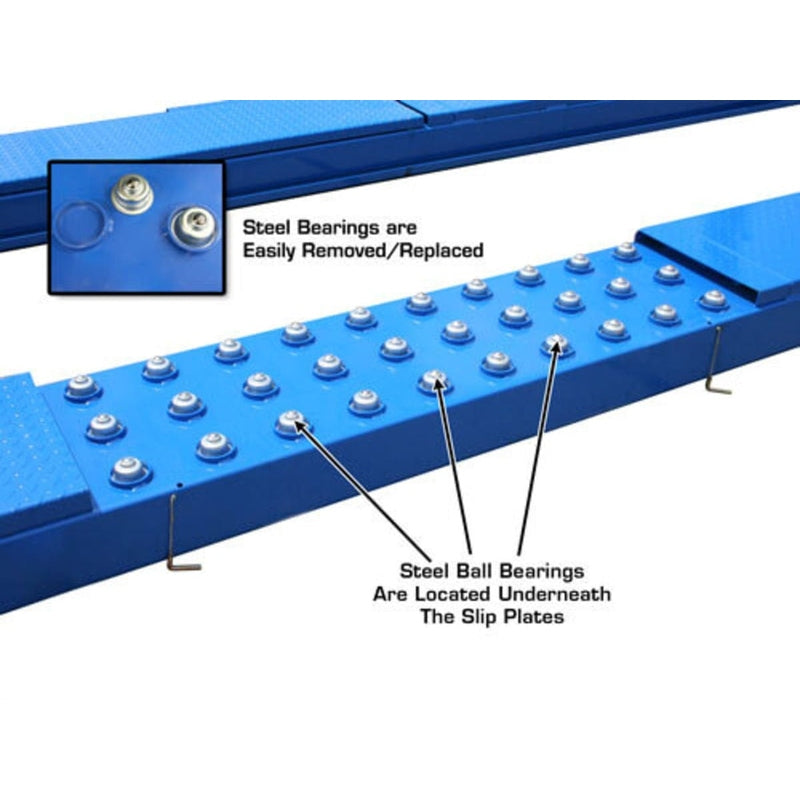

- Built-in slip plates and alignment turntables included

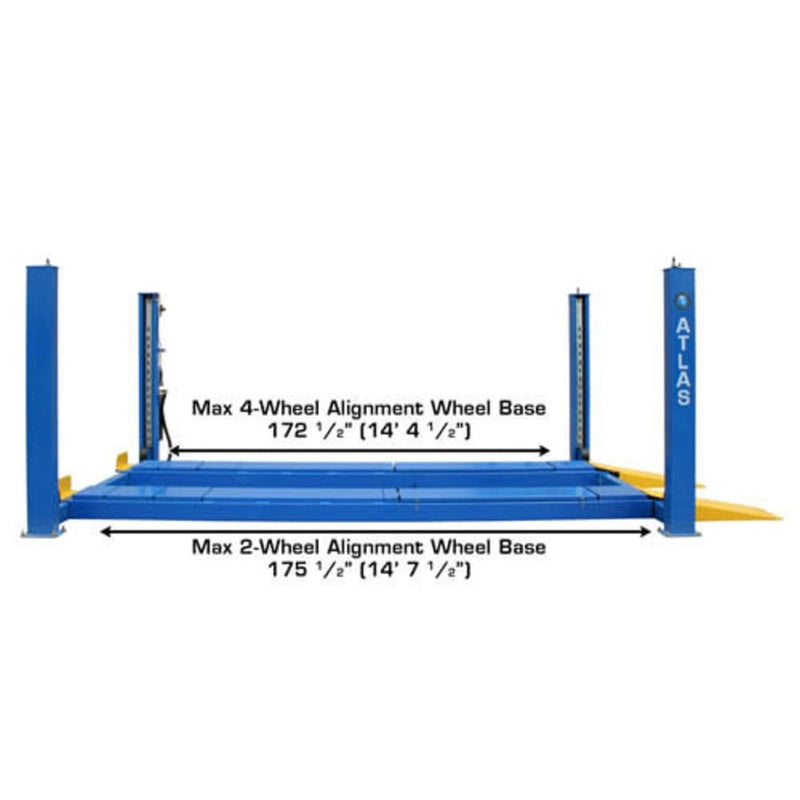

- Multiple turntable placement positions for flexible alignment setups

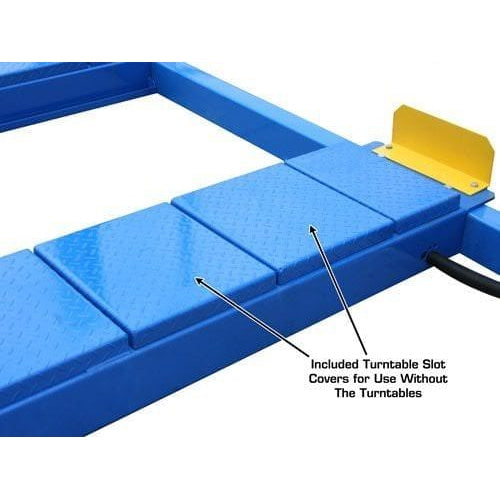

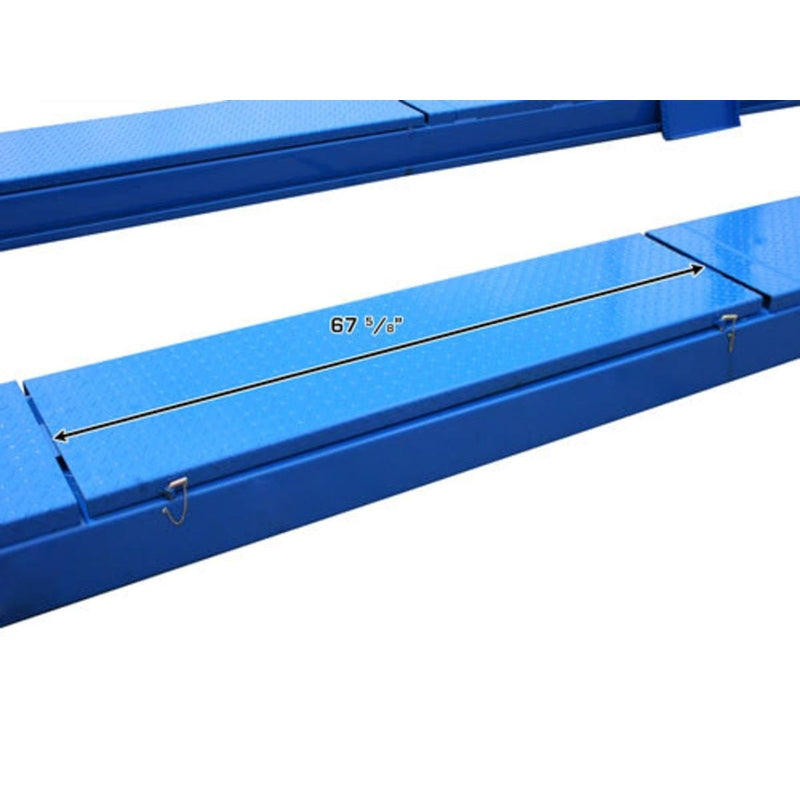

- Runway covers included for use when turntables are removed

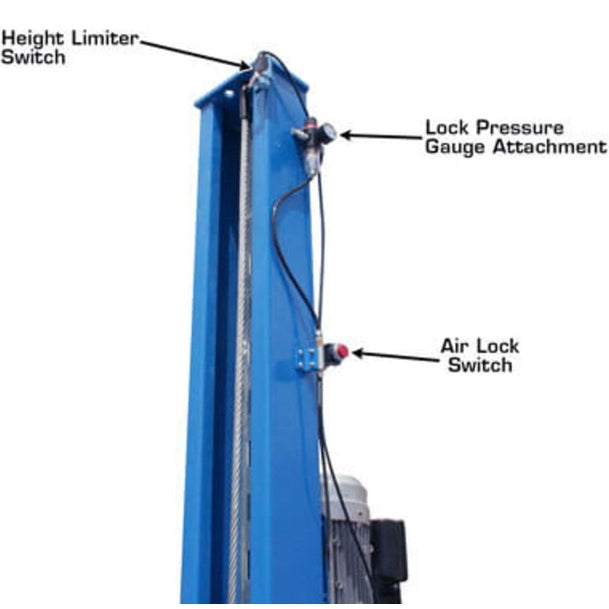

- Air-operated single-point lock release (external air supply required)

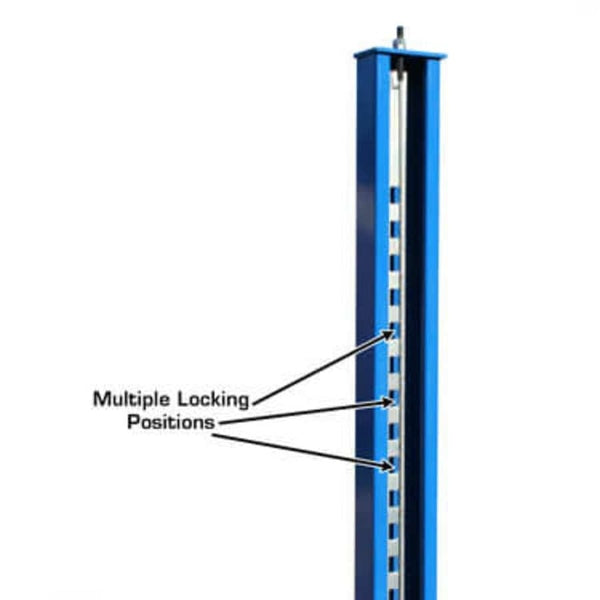

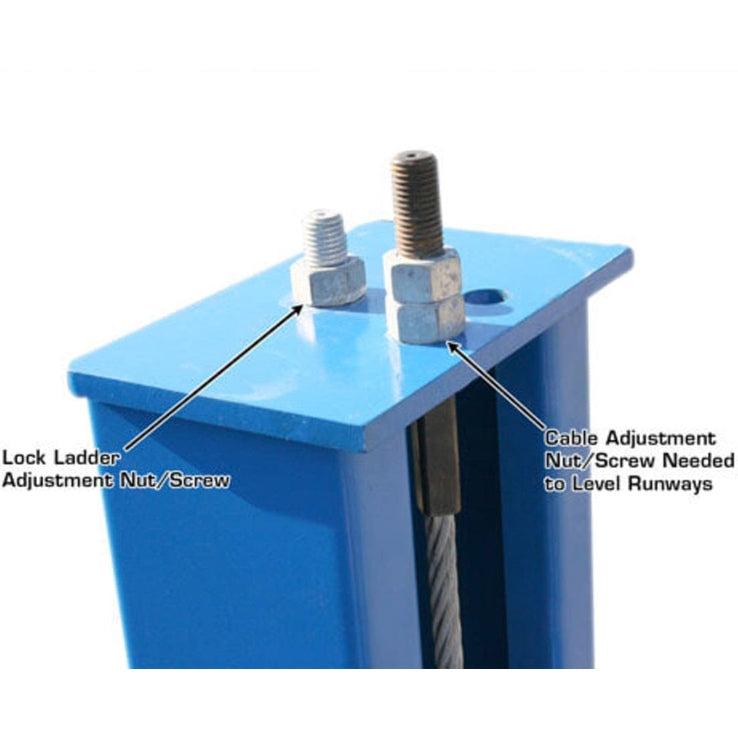

- Lock ladder design with double lock safety system for secure holds
- Durable powder-coat finish

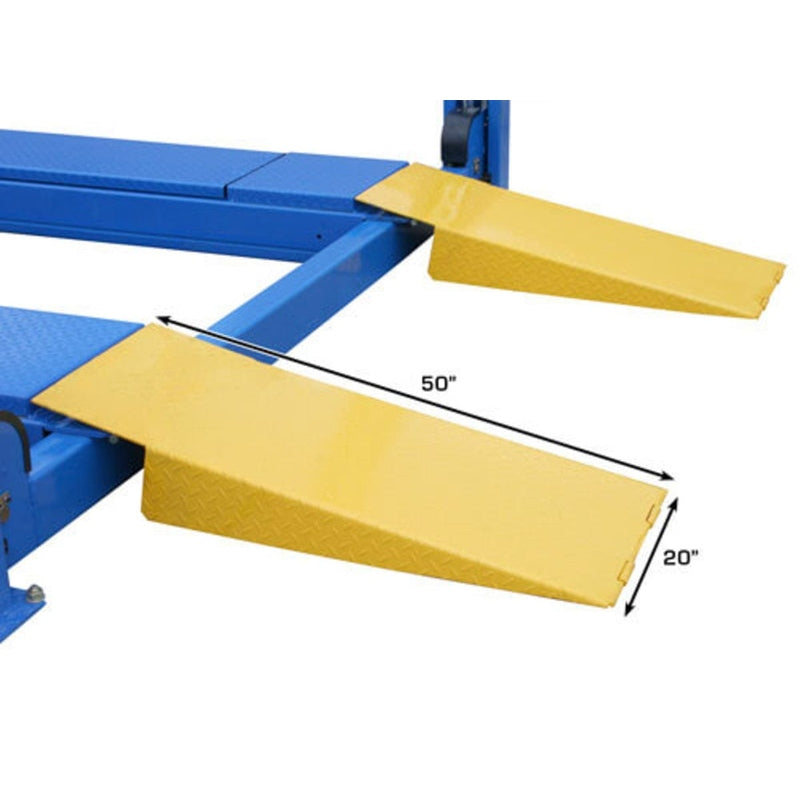

- Steel approach ramps included
- Additional drive-off ramps available (sold separately)
- Runway extensions available (sold separately)

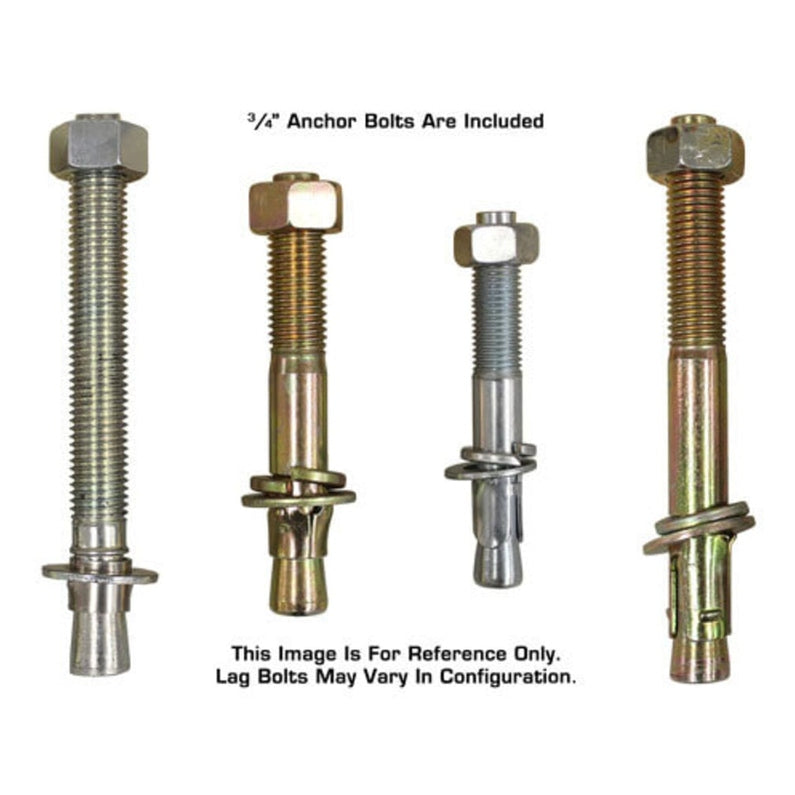

- Mounting hardware included
- 220V / 1-phase electric operation (requires a 30-amp breaker)

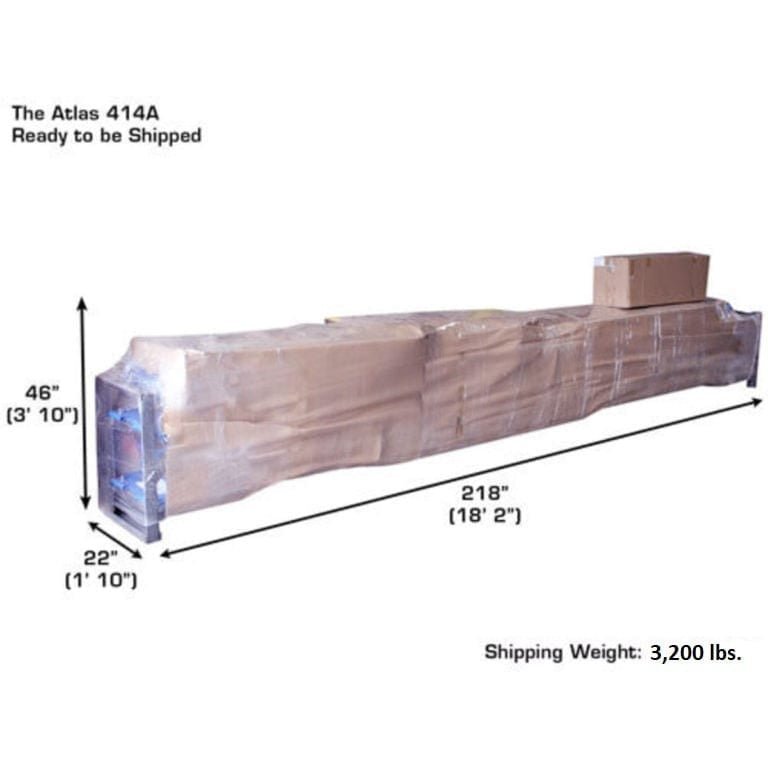

- Shipping weight: 3,200 lbs
- 5-year structural / 2-year hydraulic parts-only warranty

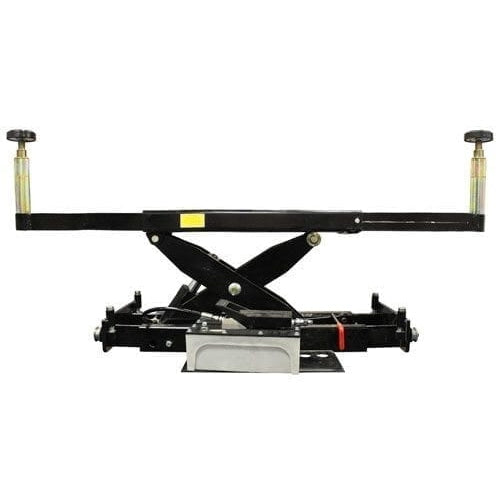

RJ8 Rolling Jack
- 8,000 lb lifting capacity

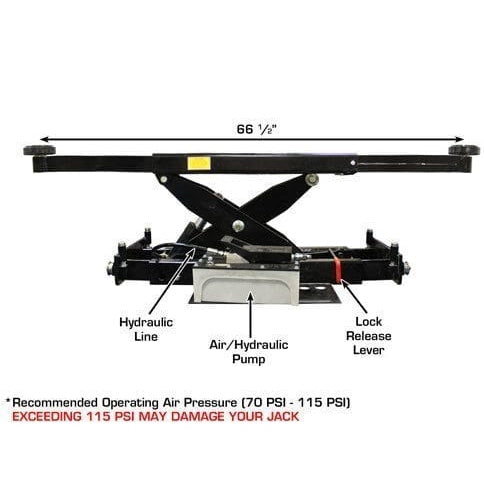

- Air/hydraulic operation (external air supply required)

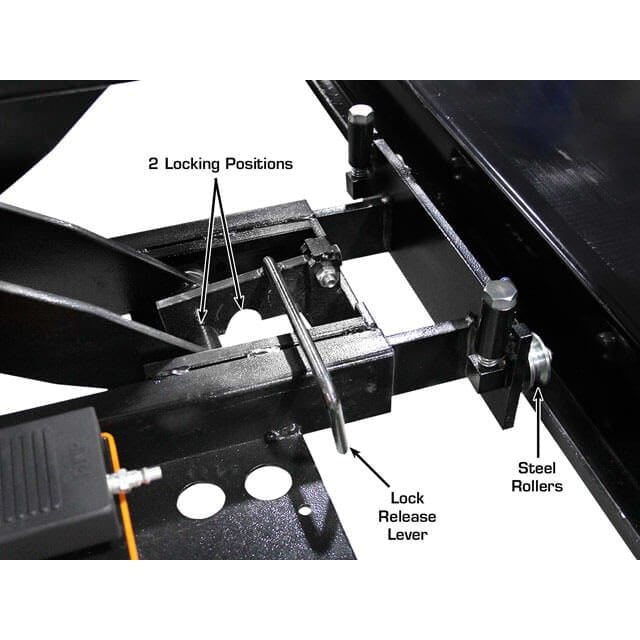

- Multiple safety lock positions
- Compact, low-profile design for easy maneuverability

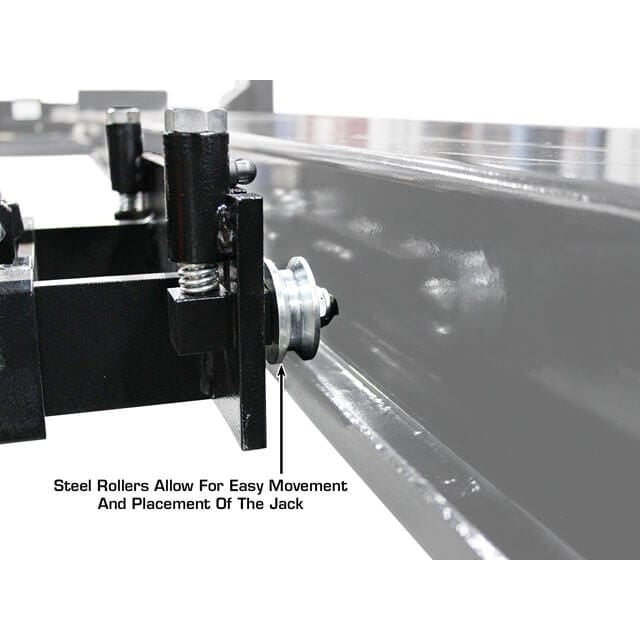

- Smooth-rolling action for effortless positioning
- Scissor mechanism delivers stable, level lifting
- Durable powder-coat finish
- 4-piece truck adapter set included
- 1-year parts-only warranty
Specifications
Atlas® ATTD-414A Specifications
| Capacity |
14,000 lb. |
| Lifting Height |
80" (6' 8") |

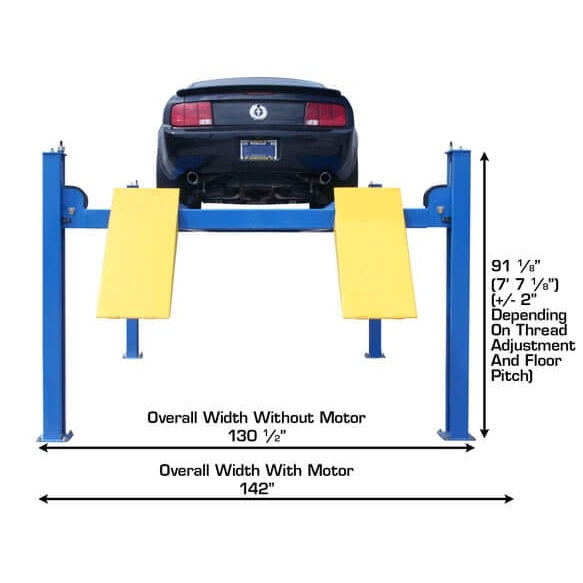

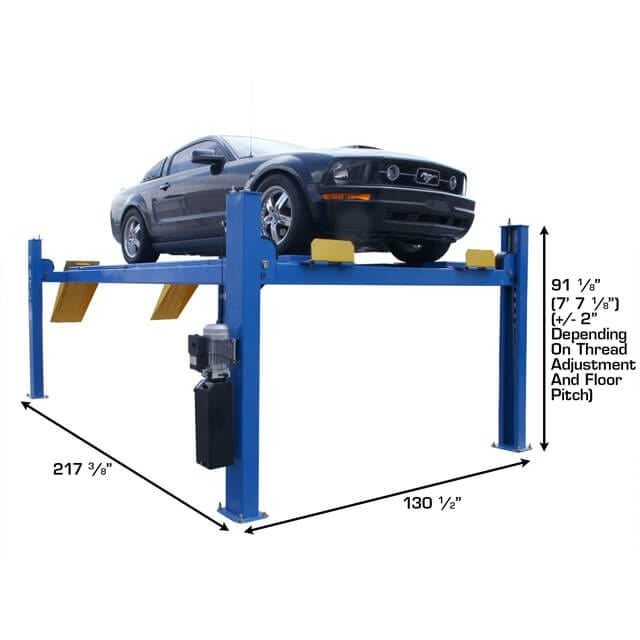

| Overall Width Of Columns (Without Motor) |
130 7/8" (10' 10 7/8") |
| Overall Width Of Columns (With Motor) |
138 7/8" (11' 6 7/8") |

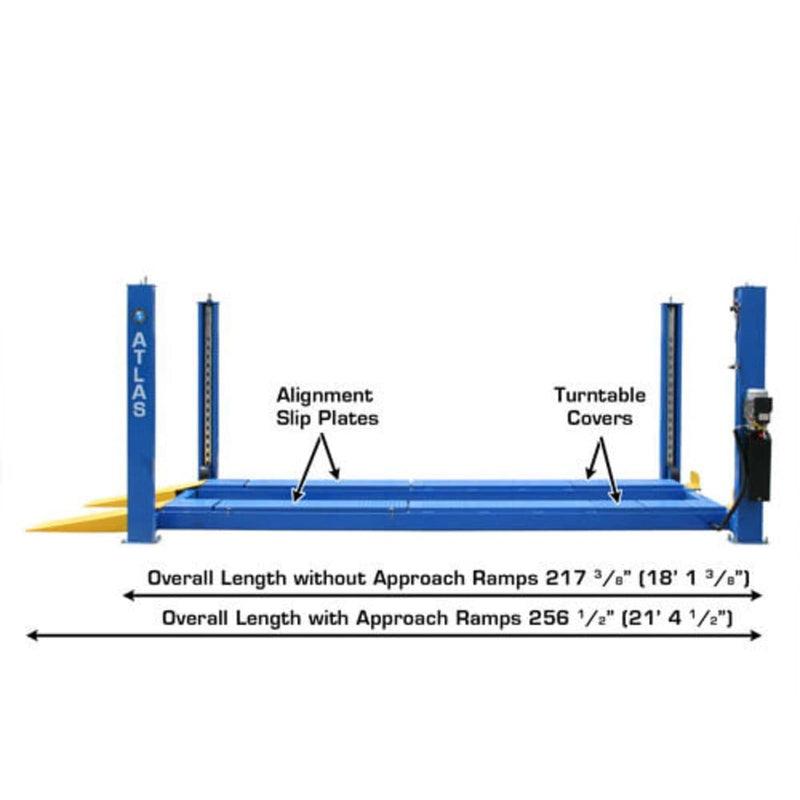

| Overall Length With Approach Ramp |
255" (21' 3") |
| Length Between Columns |
197 1/4" (16' 5 1/4") |
| Runway Length |
208 5/8" (17' 4 5/8") |
| Runway Width |
20" |
| Thickness Of Runway |
8 3/4" |

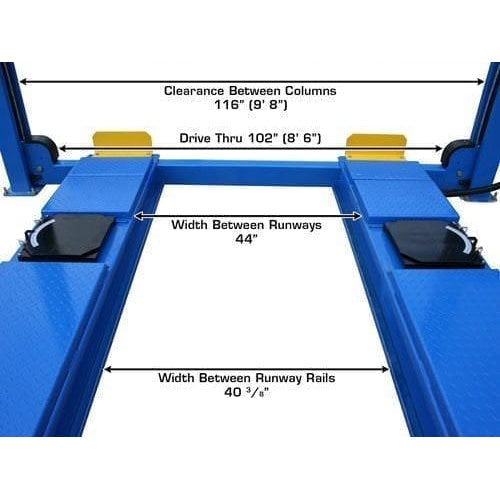

| Width Between Runways |
46 7/8" (w/ Rail 44 3/8") |
| Outside Runway To Outside Runway |
86 7/8" (7' 2 7/8") |

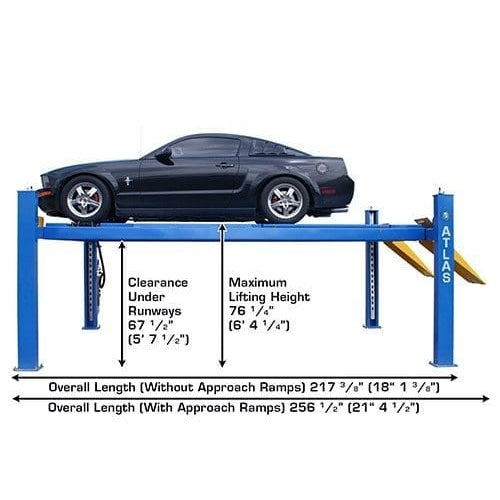

| Clearance Under Runways |
71 1/4" (5' 11 1/4") |

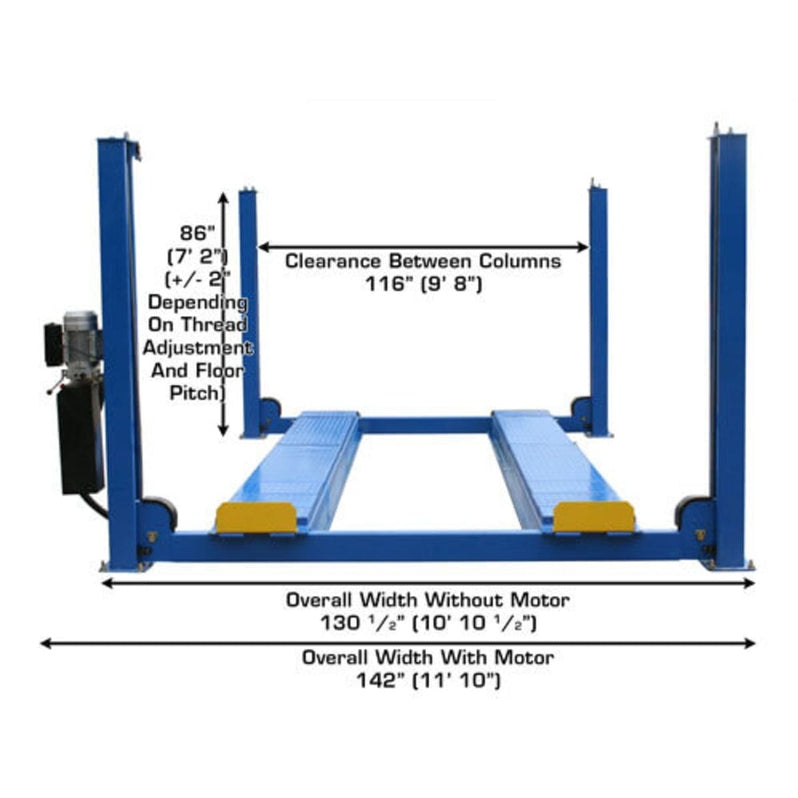

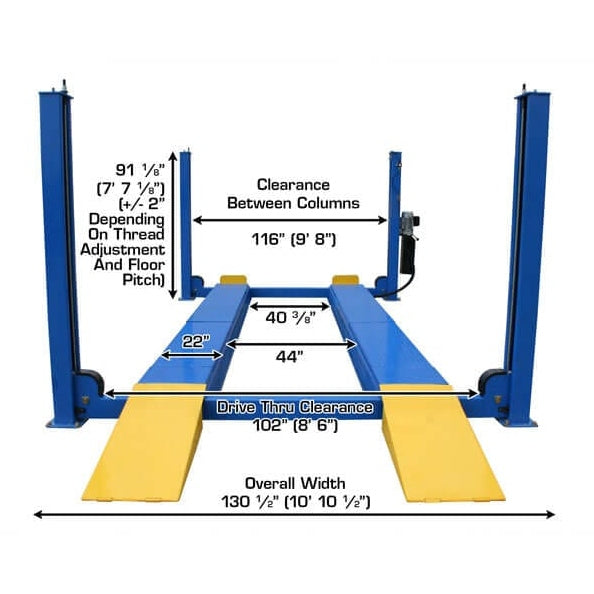

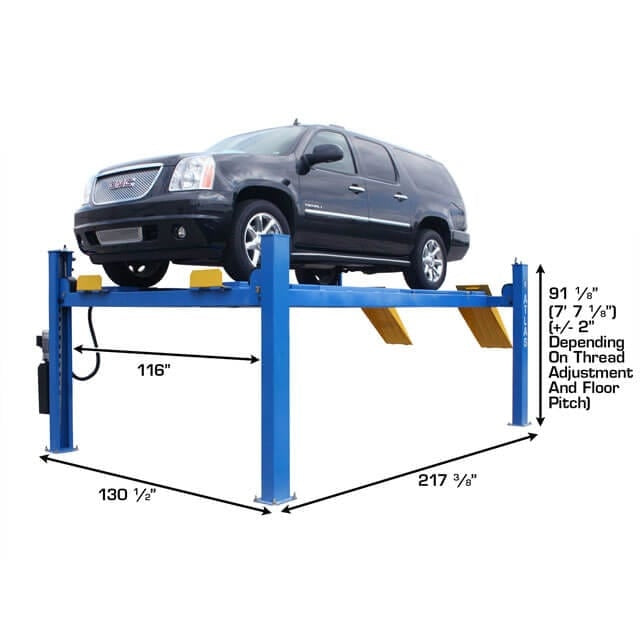

| Clearance Between Columns |
116" (9' 8") |
| Height Of Columns |
91 1/8" (7' 7 1/8") |
| Maximum Wheel Base |
197" (16' 5") |
| Drive Thru |
102 1/8" (8' 6 1/8") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |

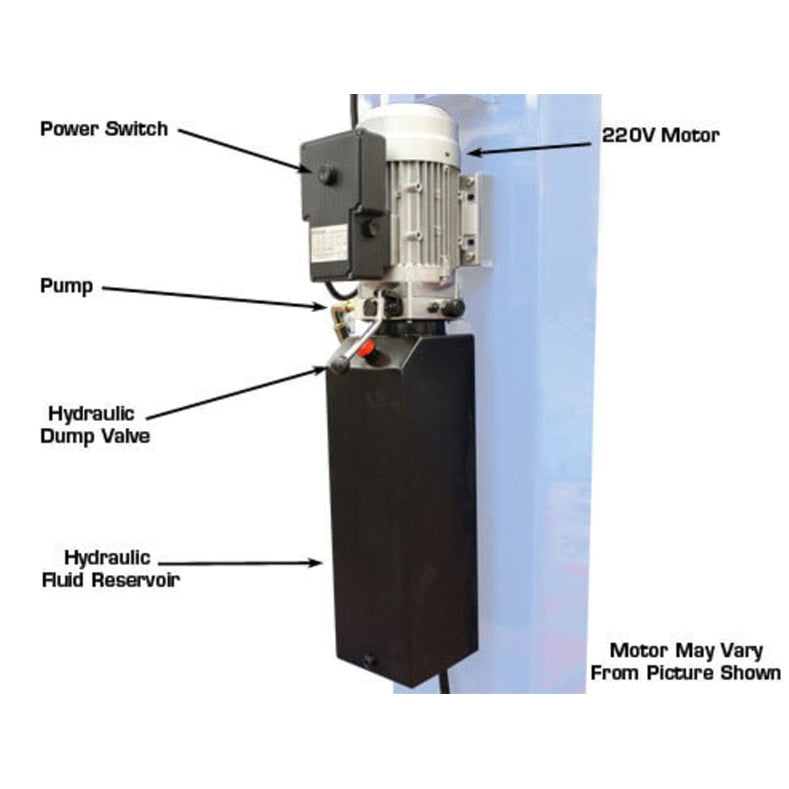

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight |
3,200 LBS. |
Requires a minimum of 6" of concrete with a 3000 psi. rating

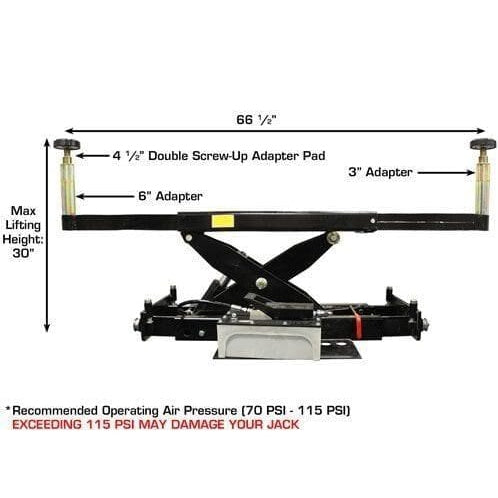

Atlas® RJ8000 Specifications
| Maximum Capacity |
8,000 lb. |

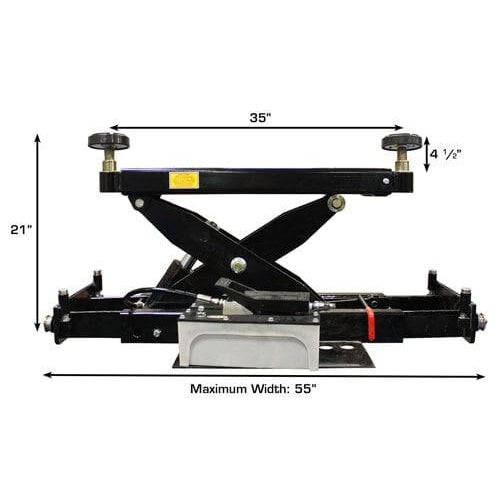

| Maximum Width |
66 1/2" (5' 6 1/2") |
| Minimum Width |
40" (3' 4") |
| Distance Between Runway Capability |
34 1/2"-55" |

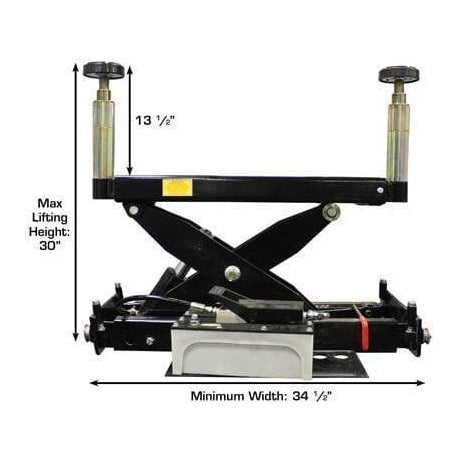

| Maximum Lifting Height (With Adapters) |
30" |

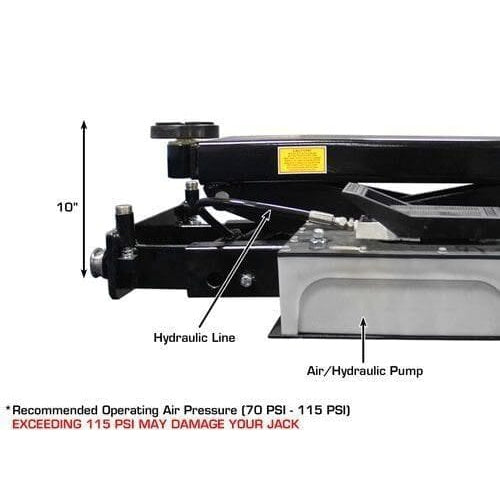

| Air Requirement |
70-115 PSI |
| Shipping Weight |
390 lbs. |

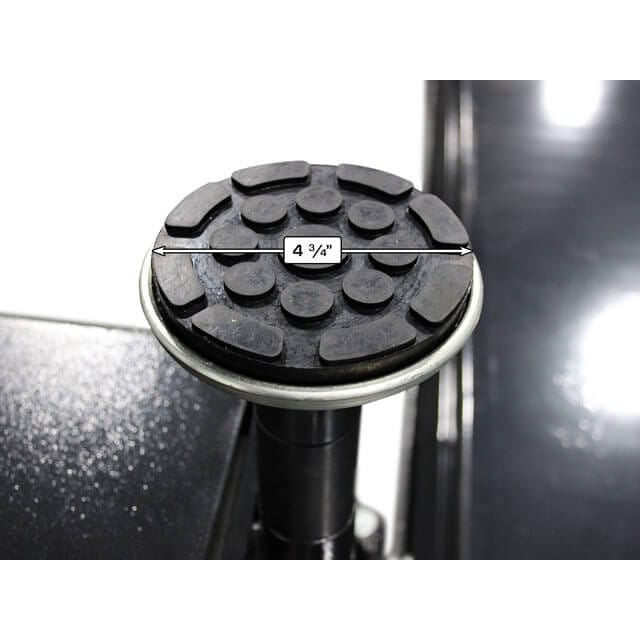

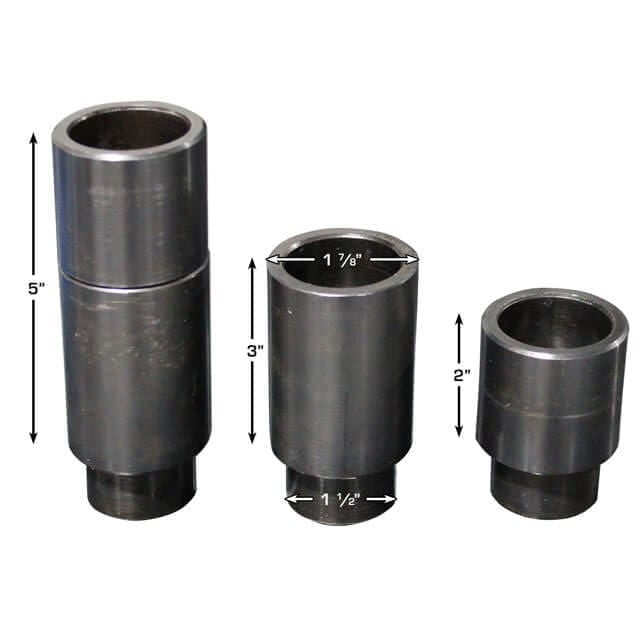

| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
