Atlas 700 Series E-Z Assist Arm

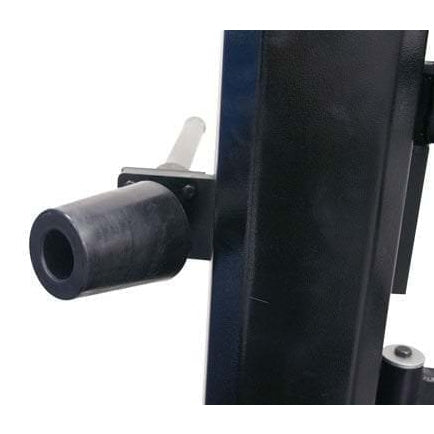

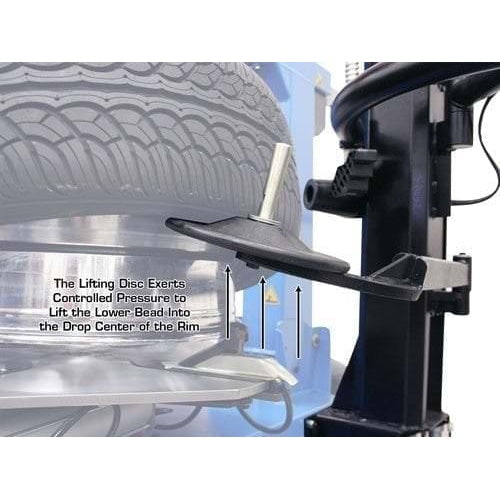

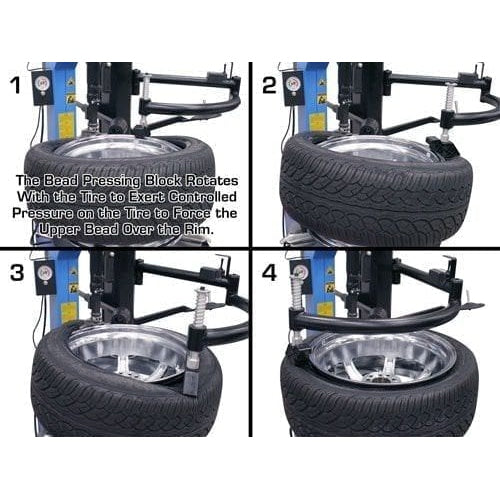

The Atlas E-Z Arm is a pneumatic assist arm accessory designed for the Atlas 755 Tilt-Back Tire Changer and compatible 700 series tilt-back models, adding the tooling needed to handle stiff sidewall, low-profile, and run-flat tires that a standard tilt-back changer struggles with. It mounts on the right side of the machine and combines three tools in one assembly: a pressing/pulling disk, a pressing block arm, and a roller arm — the combination that controls bead and sidewall movement during both mounting and demounting without improvised leverage. Each component swings out of the working area when not in use, so the machine operates normally on standard tires without removing the attachment. Delivery requires access for a 53-foot truck.

The E-Z Arm is the direct upgrade path for Atlas 755 owners already handling an increasing share of run-flat and low-profile fitments who want to avoid the separate machine purchase that a dedicated assist-arm changer would require.

Features

• Compatible with Atlas 700 series tilt-back tire changers
• Designed for stiff sidewall, low-profile, and run-flat tires

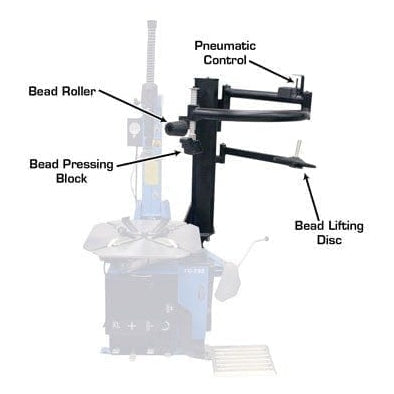

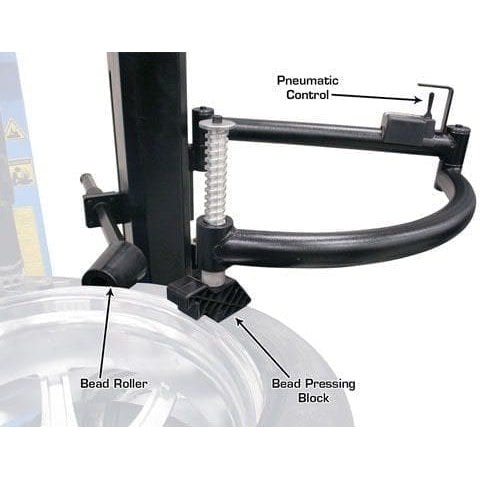

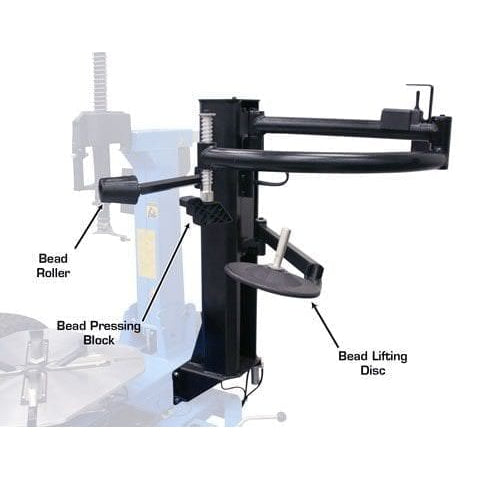

• Combines a pressing/pulling disk, pressing block arm, and roller arm in one system
• Shipping weight: 169 lbs

Specifications
