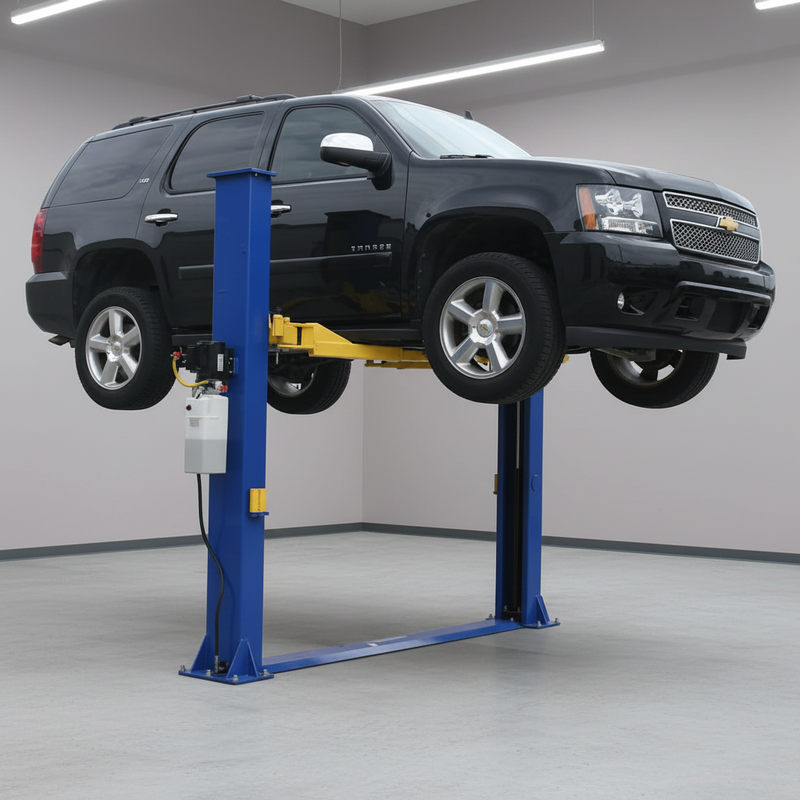

Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift

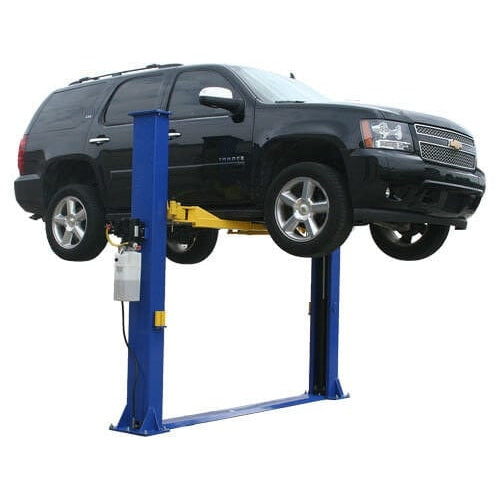

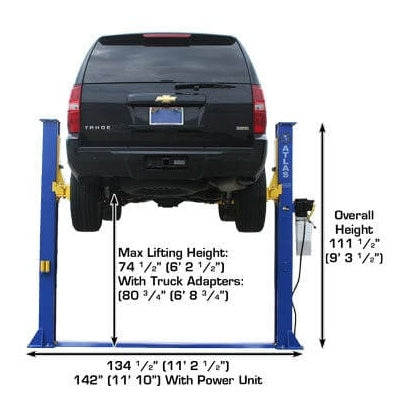

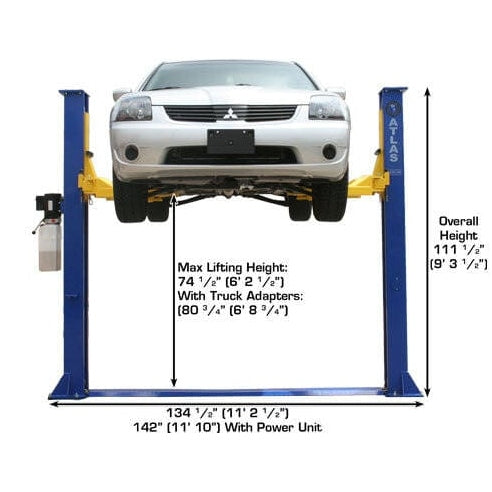

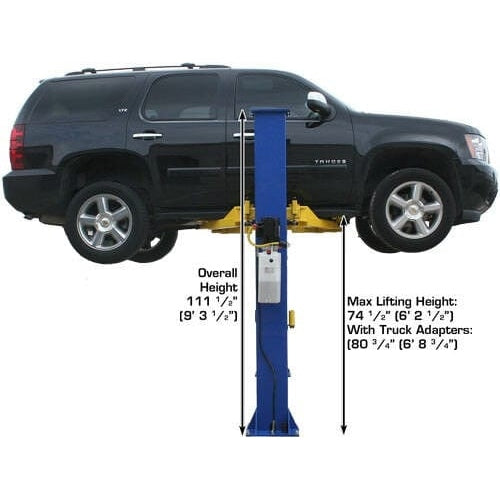

The Atlas 9KBPX is a 9,000 lb baseplate two-post lift engineered specifically for low-ceiling installations — at 111 inches (9 feet 3 inches) of total column height, it fits garages with ceilings as low as 9 feet 6 inches, where standard two-post lifts with 12-foot columns simply won't clear. The open-top, baseplate design keeps the column height down without sacrificing capacity, making it the practical choice for home garages and smaller commercial shops that have ruled out a two-post lift based on ceiling height alone. Note: the 9KBPX is sized for cars, SUVs, and light-duty trucks — not recommended for diesel dually or other large trucks. Delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

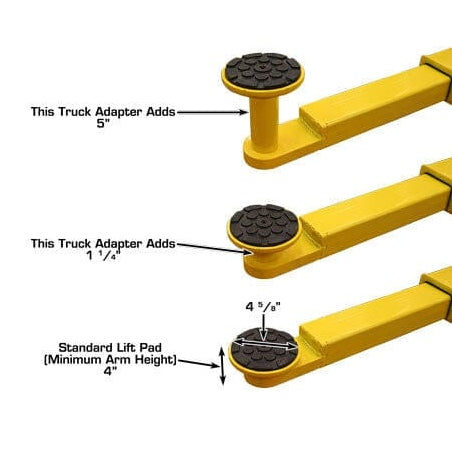

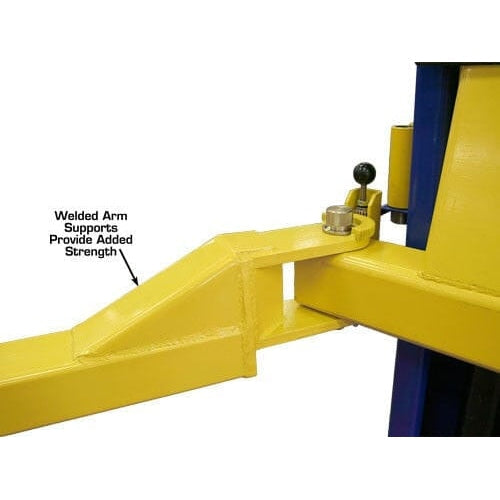

The lifting system runs on dual hydraulic chain-drive cylinders with symmetric arms and automatic arm restraints that hold the arms in position during vehicle loading. The standout safety feature is the spring-loaded Secondary Lock System (SLS) — a secondary catch that automatically engages if the chain goes slack or breaks, independent of the primary lock system. Dual-point lock release requires deliberate action on both sides before the lift descends. An 8-piece truck adapter set is included for vehicles requiring extended pad height.

The 9KBPX is the right fit for home garage owners who've measured their ceiling and come up short for a standard two-post, small independent shops in older buildings with limited overhead clearance, and anyone who needs reliable two-post lifting capacity in a space that dictates a compact column profile.

Features

• 9,000 lb lifting capacity

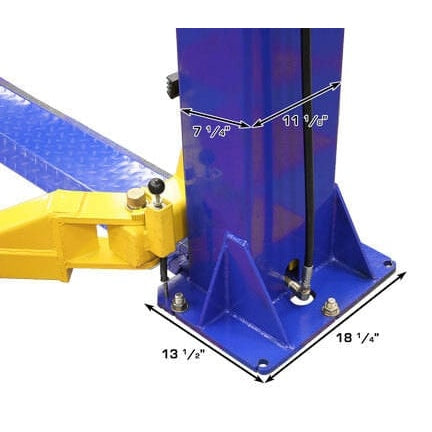

• Baseplate, open-top style lift

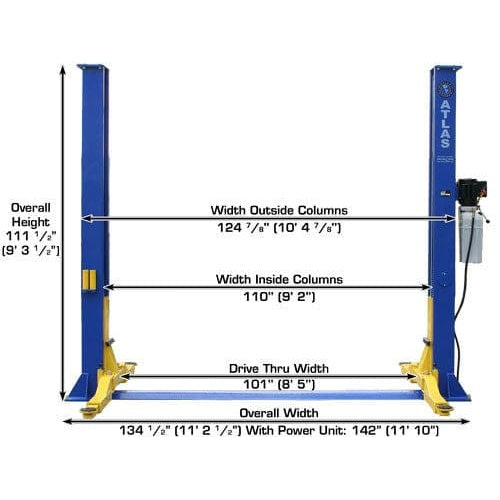

• Designed for low-ceiling clearance — fits in spaces as low as 9'3"

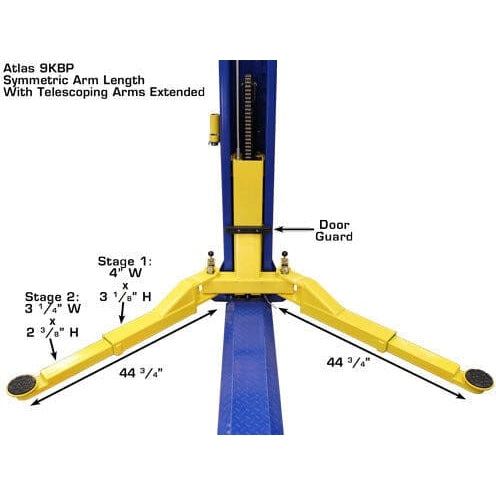

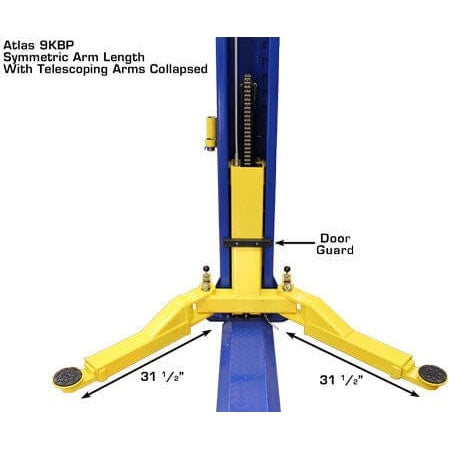

• Symmetric arms for balanced, flexible vehicle positioning

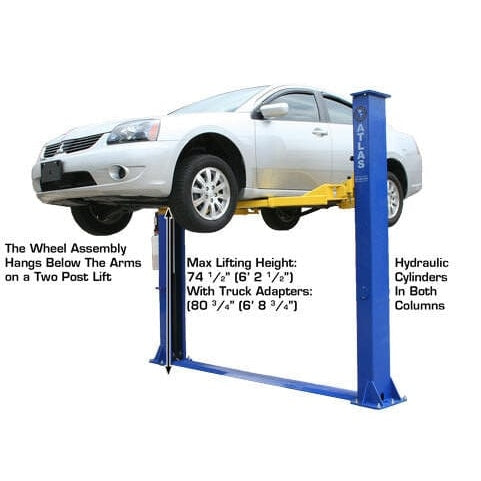

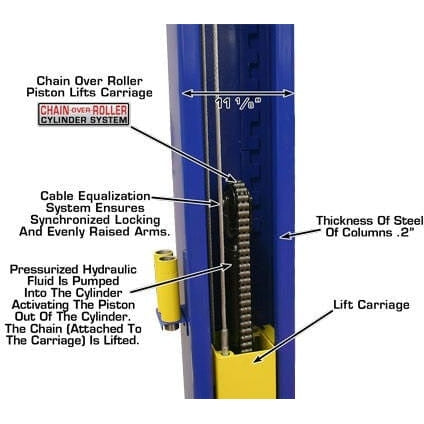

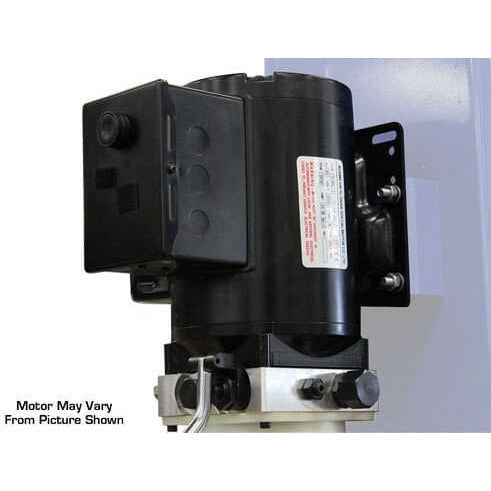

• Dual hydraulic chain-drive cylinders for smooth, reliable lifting
• Secondary lock system (SLS) for added safety

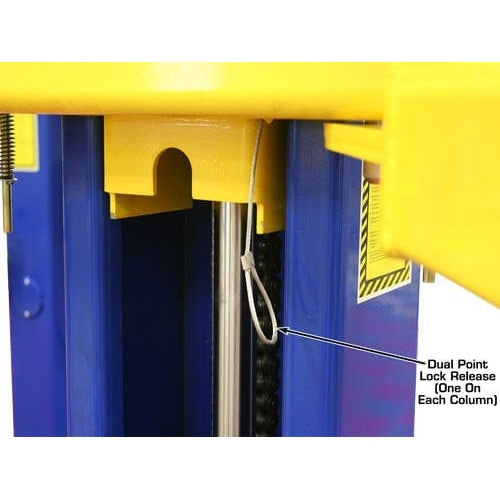

• Dual-point lock release

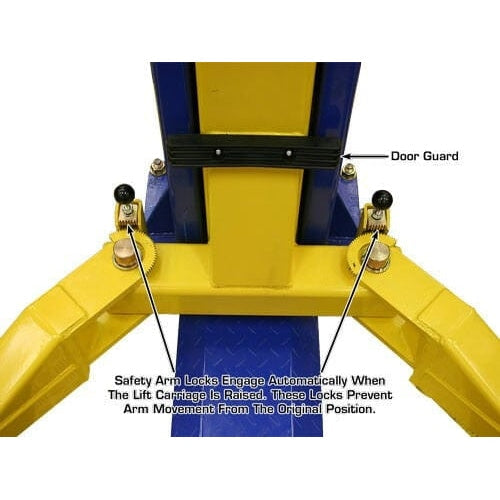

• Automatic arm restraints

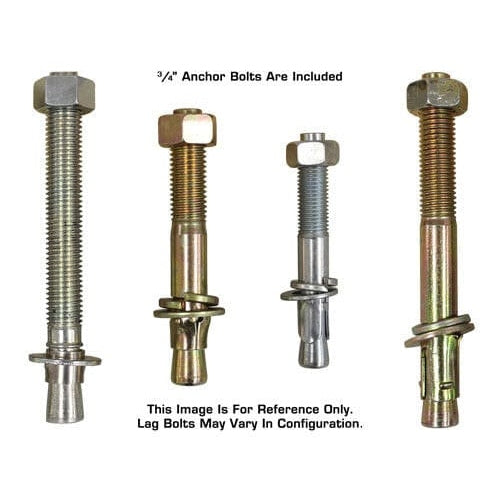

• Mounting hardware included

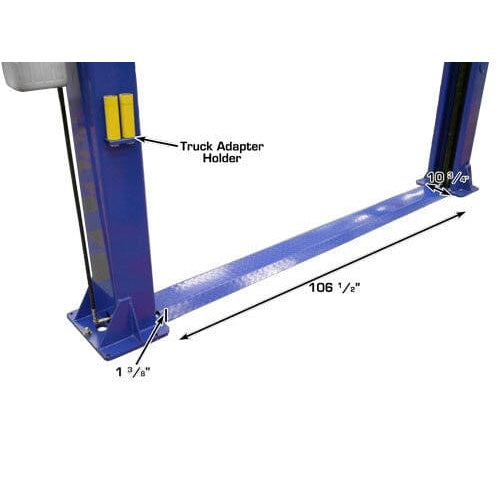

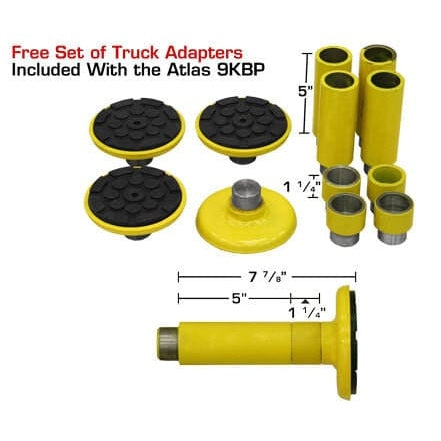

• Free 8-piece truck adapter set included

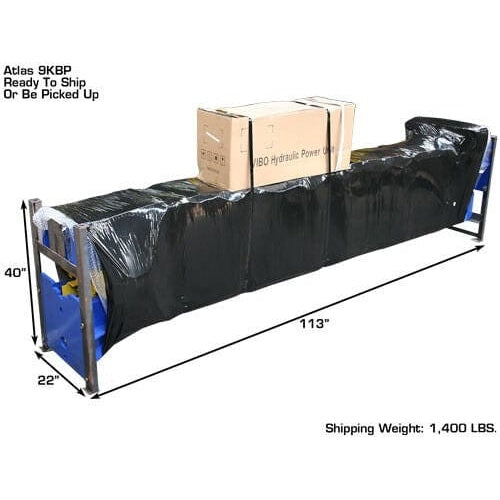

• Shipping weight: 1,400 lbs
• 2-year structural / 1-year hydraulic parts-only warranty

Specifications

Documents

Atlas 9KBPX Manual

Atlas 9KBPX Cylinder Bleeding Procedure (Do this immediately after installation)
