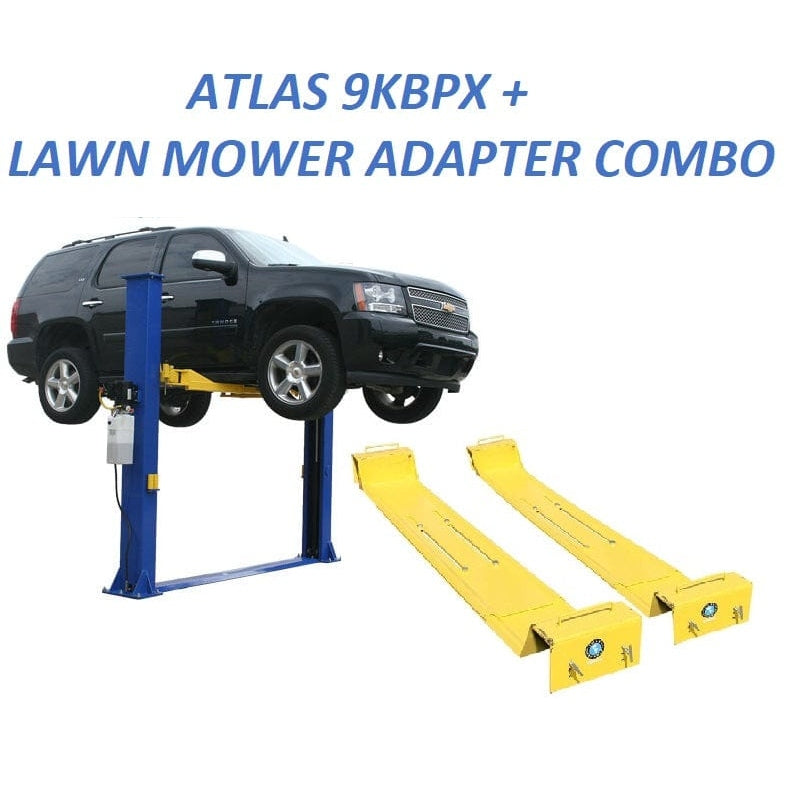

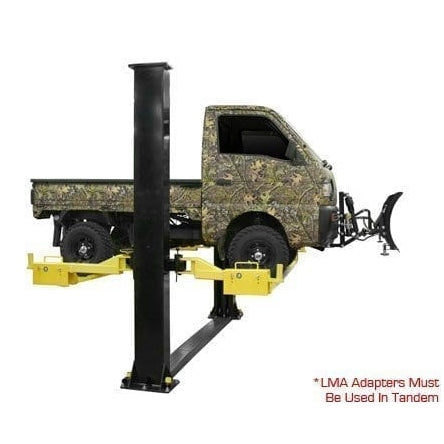

The Atlas 9KBPX and LMA bundles a 9,000 lb low-ceiling two-post lift with the Atlas Lawn Mower Adapter — extending the lift's usefulness beyond cars and light trucks to ATVs, UTVs, and riding lawnmowers. The 9KBPX fits garages with ceilings as low as 9 feet 6 inches thanks to its 111.5-inch (9 feet 3.5 inches) column height, and the LMA converts the swing arms to support the narrower, shorter wheelbases of powersports and outdoor power equipment that standard arm pads can't safely contact. Note: the 9KBPX is not recommended for diesel dually or other large trucks; LMA capacity varies by lift position and vehicle weight distribution — capacity is higher when the plates are positioned closer to the columns, and leveling blocks may be required depending on the vehicle. Delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty on the lift.
The 9KBPX runs on dual hydraulic chain-drive cylinders with symmetric arms, automatic arm restraints, and a spring-loaded Secondary Lock System (SLS) that automatically engages if the chain goes slack or breaks — a secondary catch independent of the primary lock. Dual-point lock release requires deliberate action on both sides before descent. An 8-piece truck adapter set is included for vehicles needing extended pad height. The LMA includes 4 plates and all mounting hardware and adjusts along the length of the lift arms to accommodate different wheelbases across a range of ATV, UTV, and mower sizes — though compatibility is not guaranteed with all vehicles and leveling blocks may be needed for proper balance.
This bundle is purpose-built for home garage owners who work on the full range of what's in their garage — cars, trucks, ATVs, and lawn equipment — and want a single lift that handles all of it within a low-ceiling space, and for small shops and powersports dealers that service both vehicles and outdoor power equipment on the same floor.
Features
9KBPX Two-Post Lift
- 9,000 lb lifting capacity

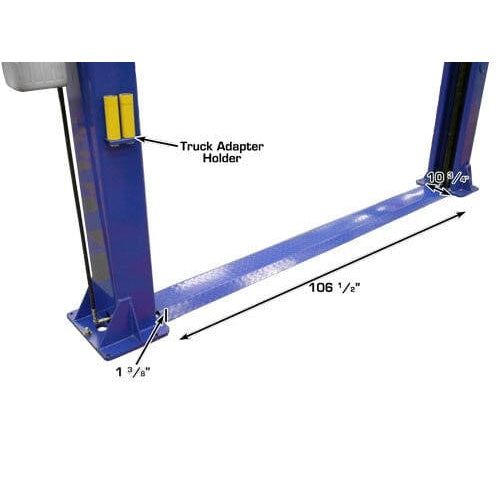

- Baseplate, open-top style lift
- Designed for low-ceiling clearance — fits in spaces with as little as 9'3½" column height

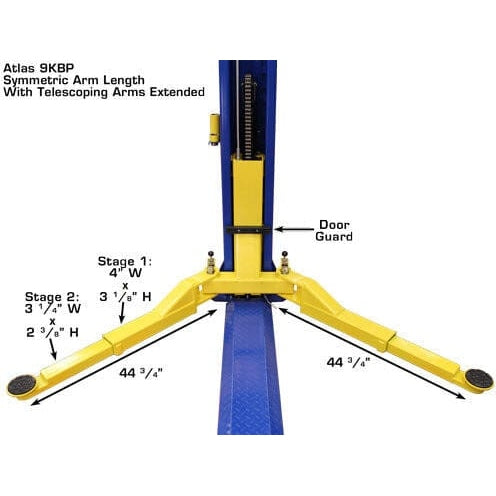

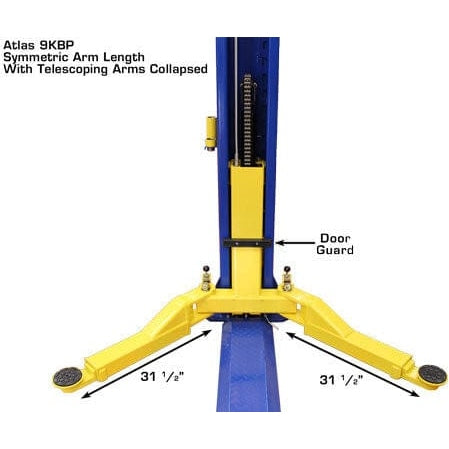

- Symmetric arms for balanced, flexible vehicle positioning

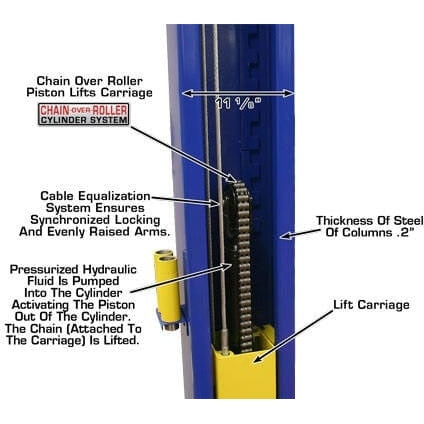

- Dual hydraulic chain-drive cylinders for smooth, reliable lifting
- Secondary lock system (SLS) for added safety

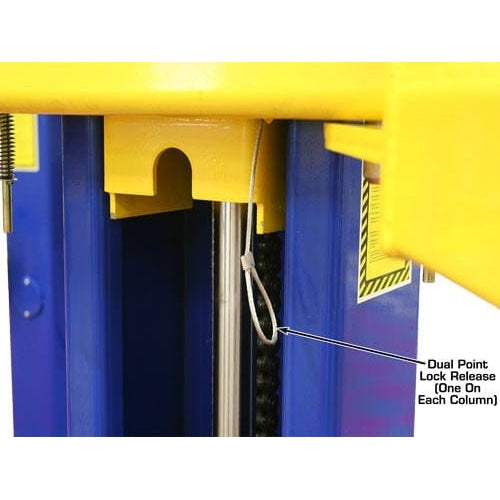

- Dual-point lock release

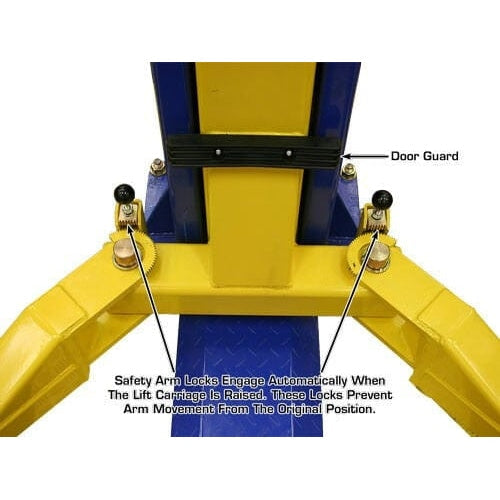

- Automatic arm restraints

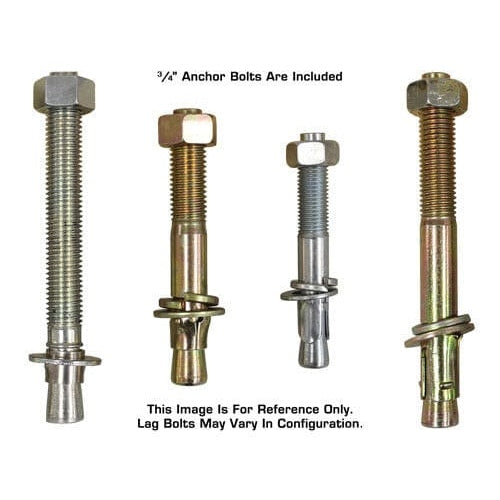

- Mounting hardware included

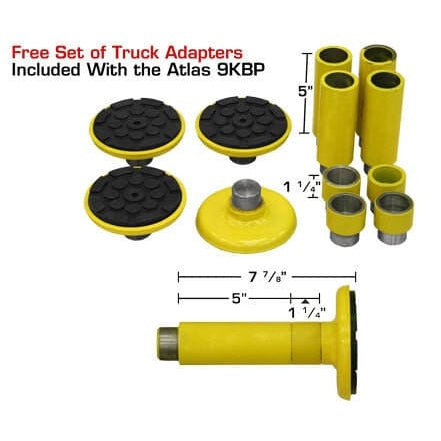

- Free 8-piece truck adapter set included
- Shipping weight: 1,400 lbs
- 2-year structural / 1-year hydraulic parts-only warranty

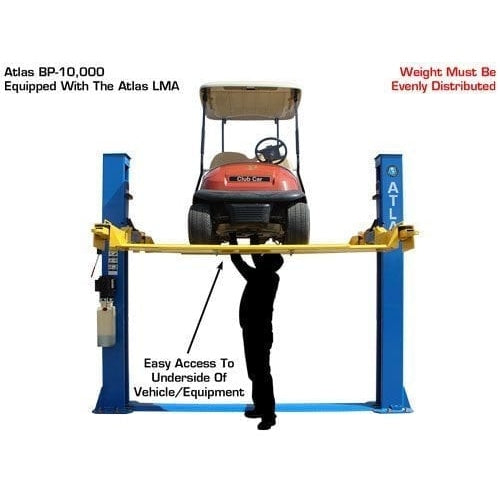

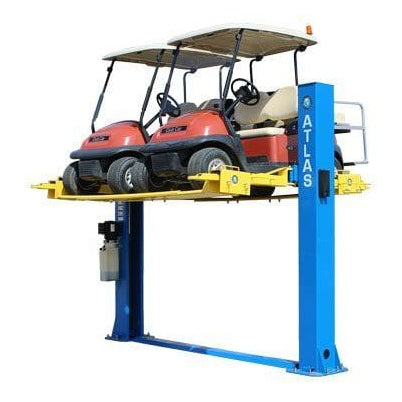

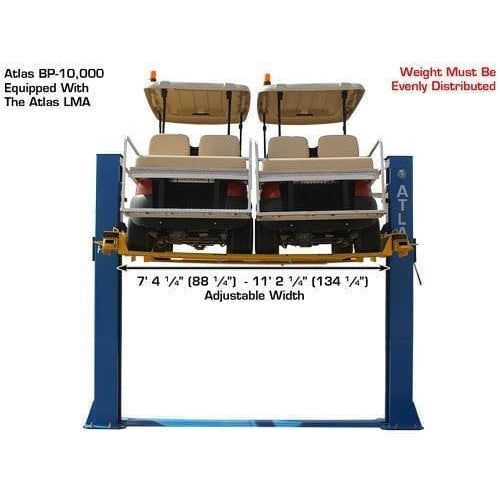

LMA Lawnmower Adapter
- Compatible with most 2-post lifts for lifting lawnmowers and small equipment
- Includes 4 plates and all necessary hardware

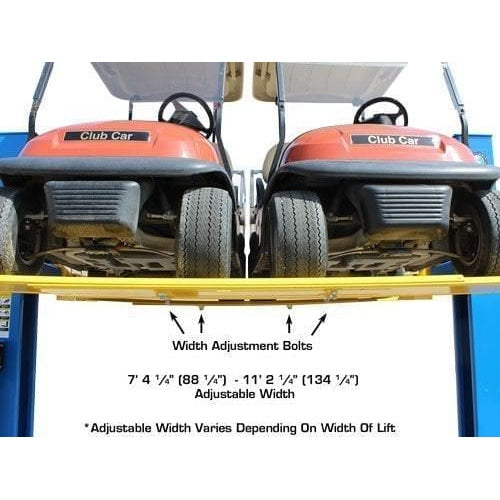

- Adjustable design fits a variety of sizes and lift brands (may not be compatible with all lifts)
- Supports up to 5,000 lb capacity (varies by lift and wheelbase)

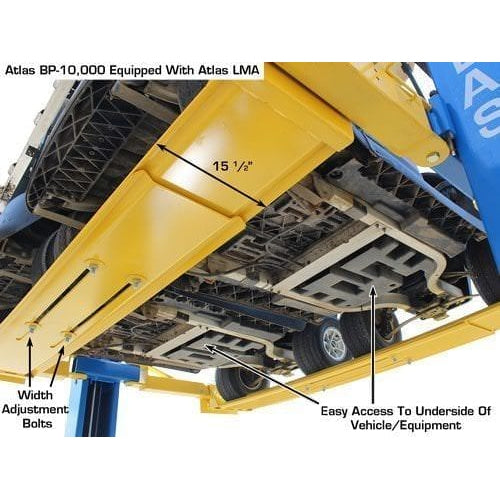

- Positionable along the length of the lift arms (leveling blocks may be required)
Specifications
Atlas® XH-9KBPX
| Capacity |
9,000 LB. |

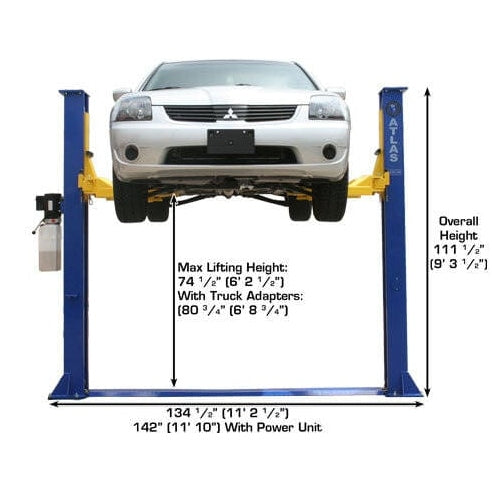

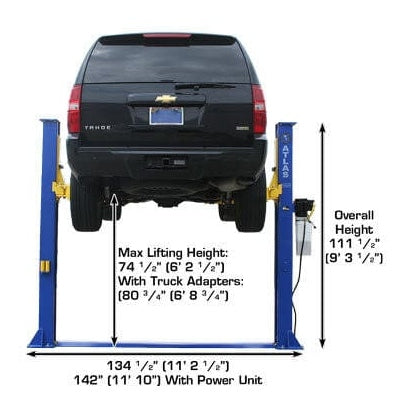

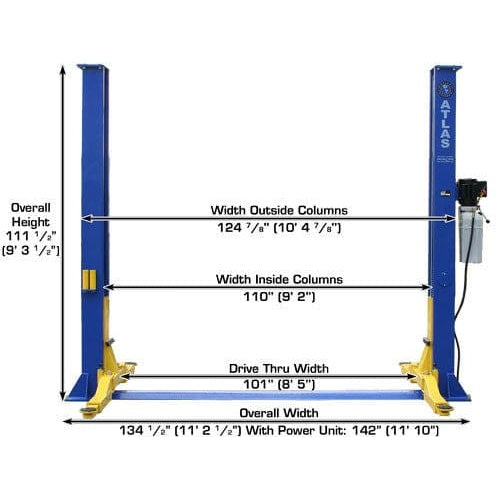

| Overall Height |
111 1/2" (9’ 3 1/2") |
| Overall Floor Width |
134 1/2" (11’ 2 1/2") |
| Outside Column to Outside Column |
124 7/8" (10’ 4 7/8") |

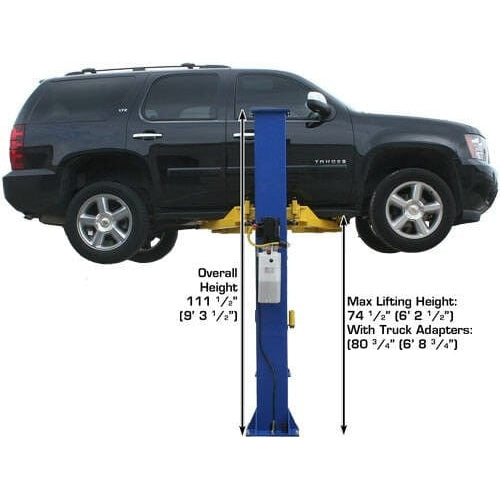

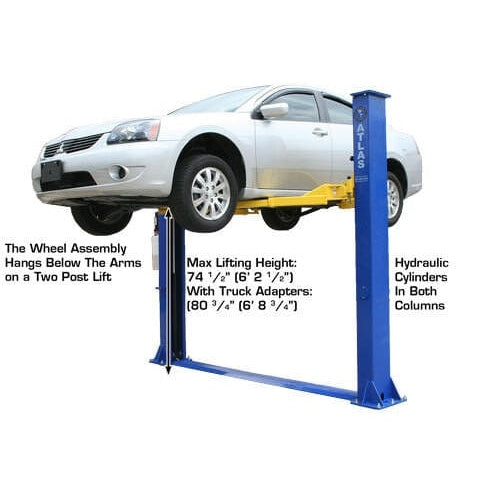

| Maximum Lift Height (Without Adapters) |
74 1/2" |
| Maximum Lift Height (With Adapters) |
81" |
| Minimum Arm Height |
4" |
| Inside Column |
110” (9’ 2”) |
| Drive Thru |
101” (8’ 5”) |

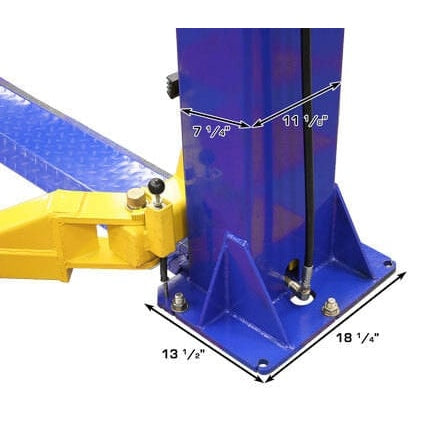

| Column Size |
7 1/4" x 11" |
| Column Thickness of Steel |
5mm |
|
| Base Of Lift |
14 1/4" x 18 1/4" |

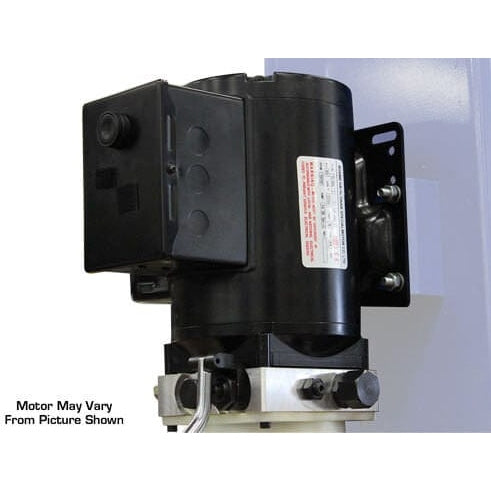

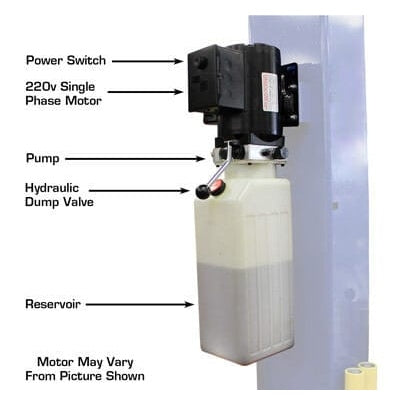

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

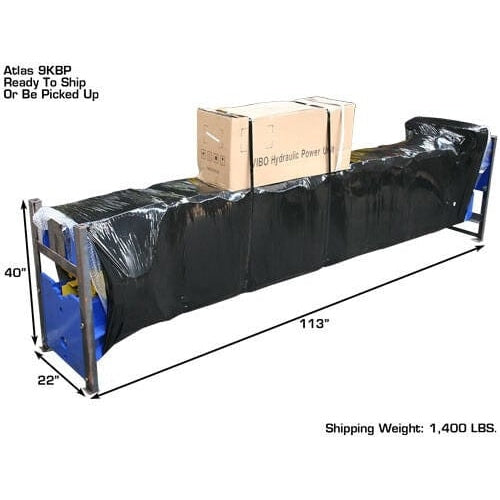

| Shipping Weight |
1,400 LBS. |

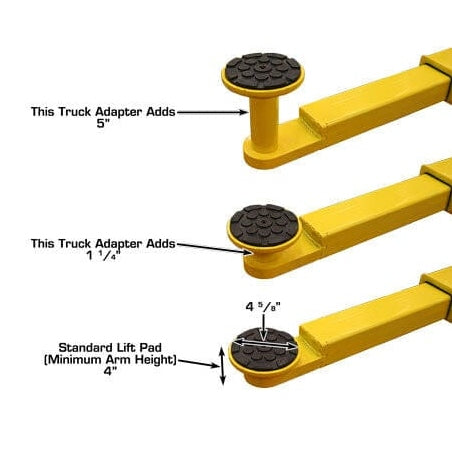

| Adapter Heights |
4 Each 1.5”, 5” |
| Arm Hole/Adapter Peg Size |
1.5” |
Requires a minimum of 4" of concrete with a 3000 psi. rating

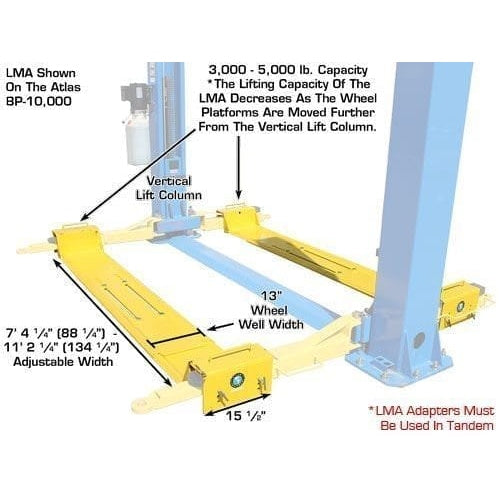

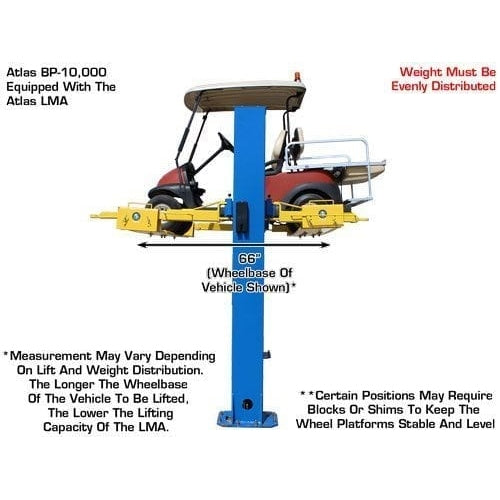

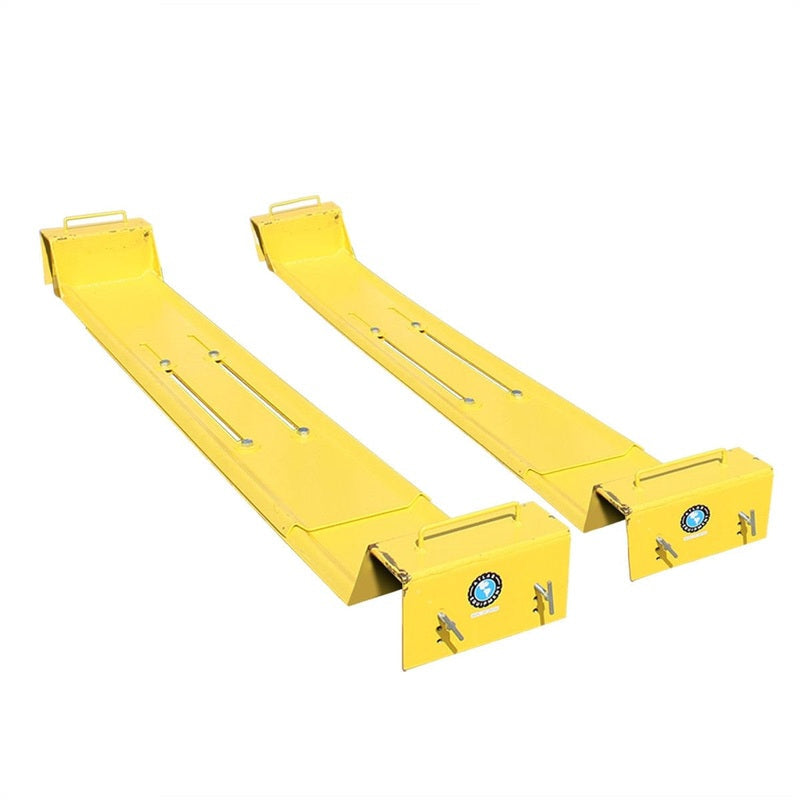

Atlas® Lawn Mower Adapter (LMA)
| Capacity |
Up To 5,000 lbs. * |
| Adjusts In Width |
8' 11" |
| Wheel Base |
32" to 90" ** |
| Wheel Well Width |
12" |
| Thickness Of Steel |
1/4" (2 Gauge) |

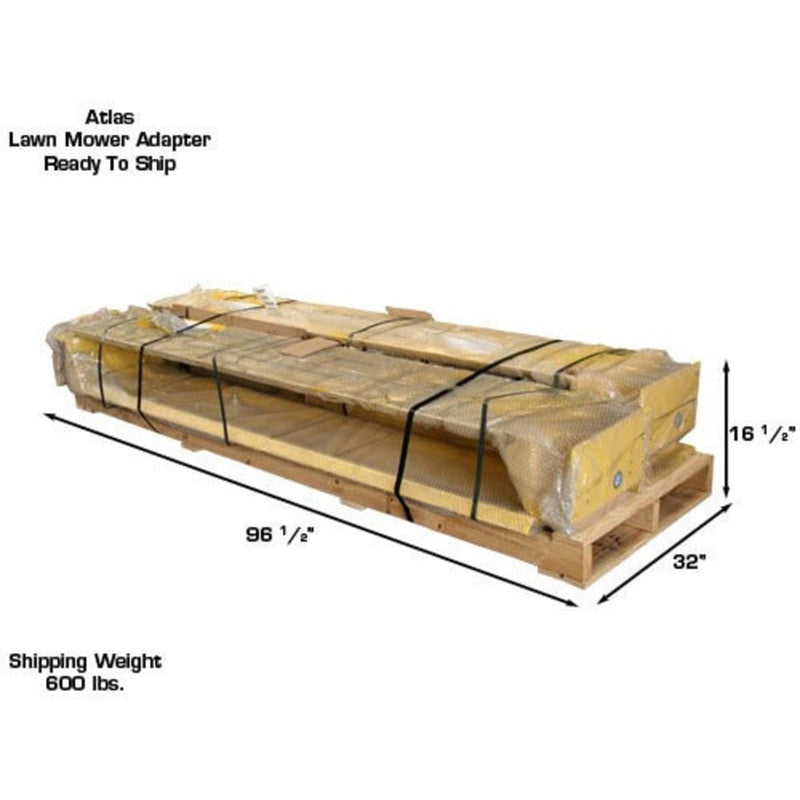

| Shipping Weight |
600 lbs. |
| LMA Consists Of Two Wheel Platforms. Lift not included. |
| * May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA. |
| ** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level. |
Documents
Atlas® 9KBPX Manual
Atlas® 9KBPX Cylinder Bleeding Procedure (Do this immediately after installation)
