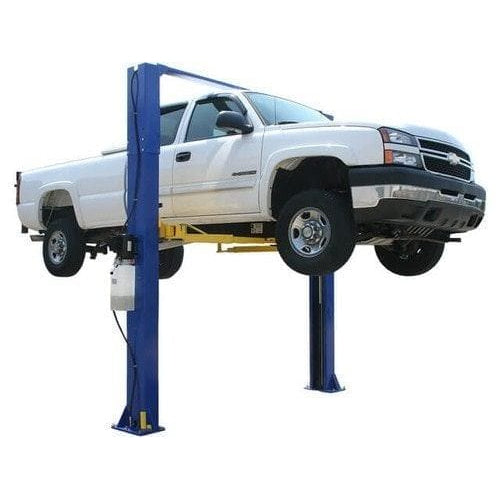

Atlas 9KOHX 9,000 lb Overhead 2-Post Lift

The Atlas 9KOHX is a 9,000 lb overhead clear-floor two-post lift with a column height adjustable to either 138 inches (11 feet 6 inches) or 142 inches (11 feet 10 inches) — two settings that cover the range of standard garage and small shop ceiling heights without requiring a custom installation. The clear-floor design keeps the base plates out of the working area, and dual hydraulic chain-drive cylinders handle the lifting on a spring-loaded Secondary Lock System (SLS) that automatically engages if the chain goes slack or breaks. Dual-point lock release requires deliberate action on both sides before descent. Delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty.

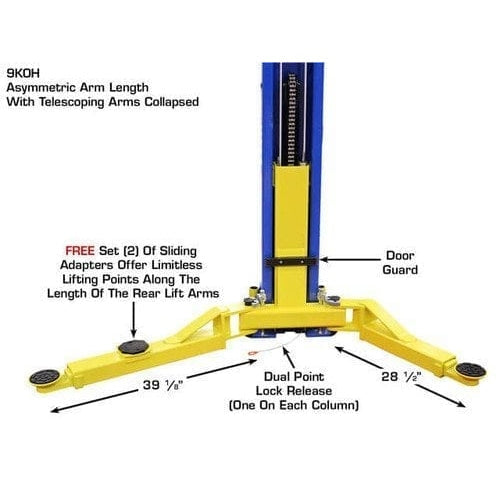

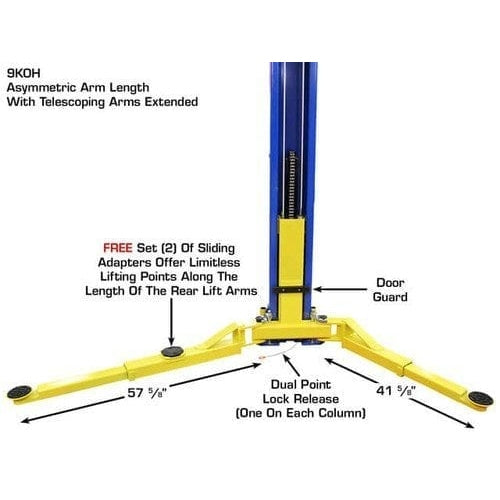

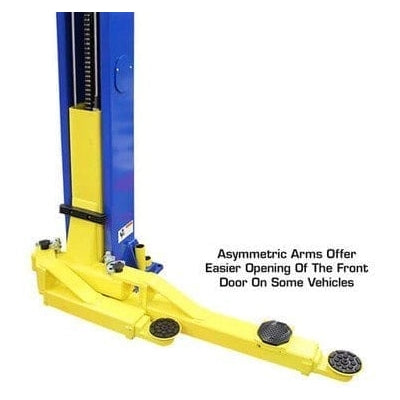

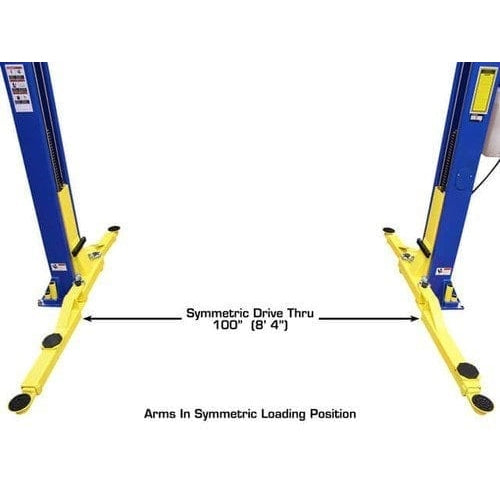

The arm configuration is the practical differentiator on the 9KOHX. The asymmetric/symmetric arms adjust between two positions — symmetric for centered lifting on trucks and SUVs, asymmetric for positioning the door opening away from the column on passenger cars. The asymmetric setting also delivers an extremely low lift pad position on the EZ-metric arm configuration, reaching under small cars with low pickup points that fixed-geometry arms can't access cleanly. Automatic arm restraints hold the arms in position during vehicle loading, and rubber guards on the carriages protect vehicle door sills during contact. Both an 8-piece truck adapter set and a set of sliding arm adapters are included in the box.

The 9KOHX is a strong fit for home garage owners who want clear-floor two-post capacity with the flexibility to work on everything from compact cars to light trucks, and for small independent shops that need an adjustable-height column to fit an existing space without ceiling modification.

Features

• 9,000 lb lifting capacity
• Overhead, open-floor design for unobstructed floor access

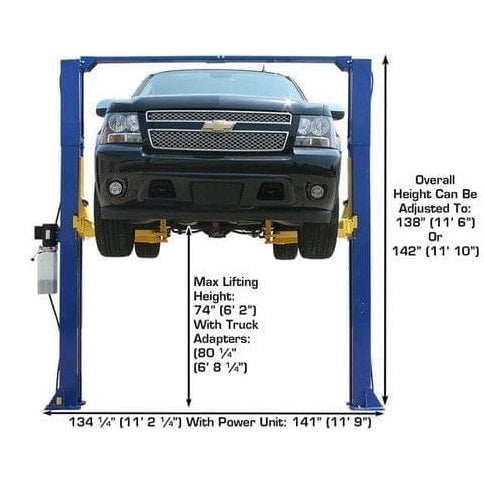

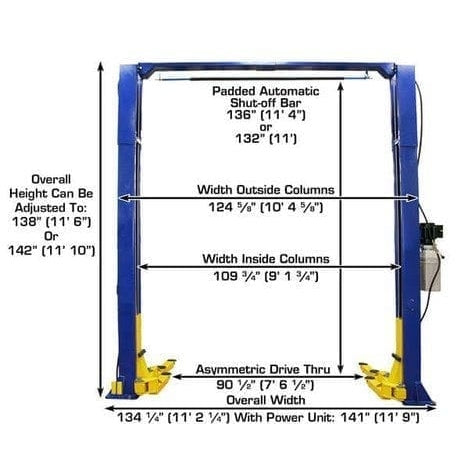

• Overall height: 138" (11'6") or 142" (11'10")
• Asymmetric/symmetric arms for flexible vehicle positioning

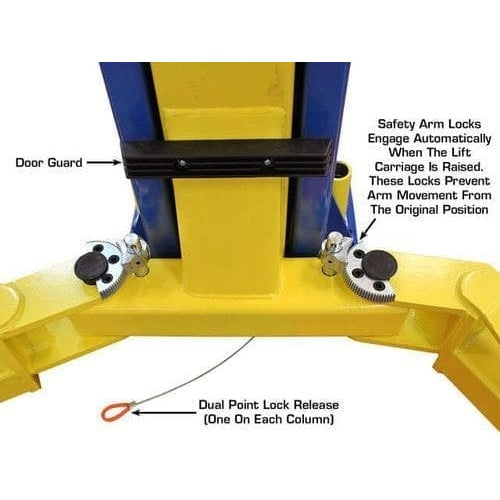

• Automatic arm restraints
• Dual-point lock release
• Rubber guards on carriages for vehicle protection

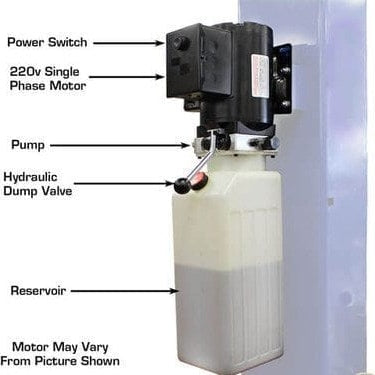

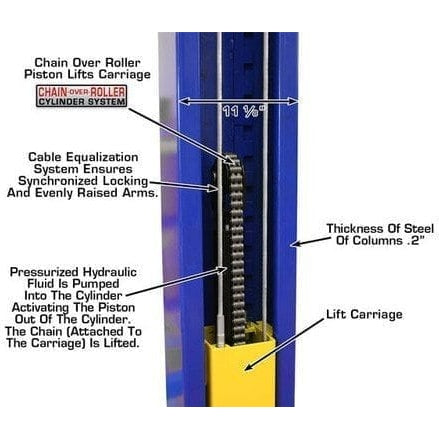

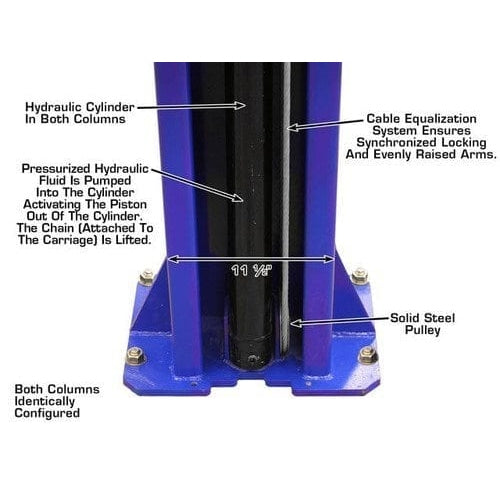

• Dual hydraulic chain-drive cylinders for smooth, reliable lifting
• Secondary lock system for added safety

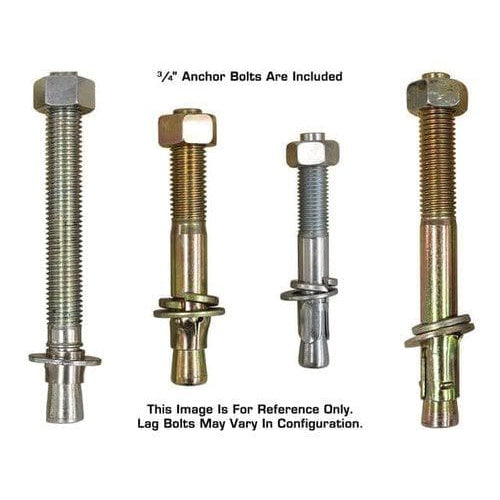

• Mounting hardware included

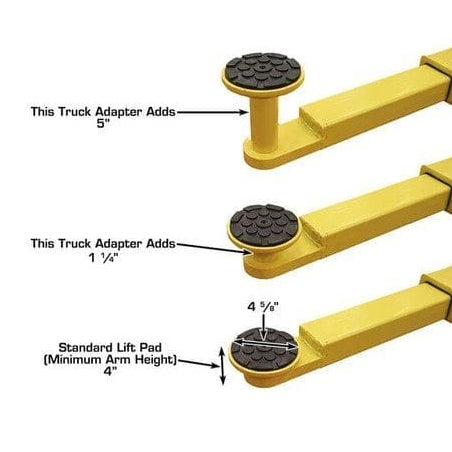

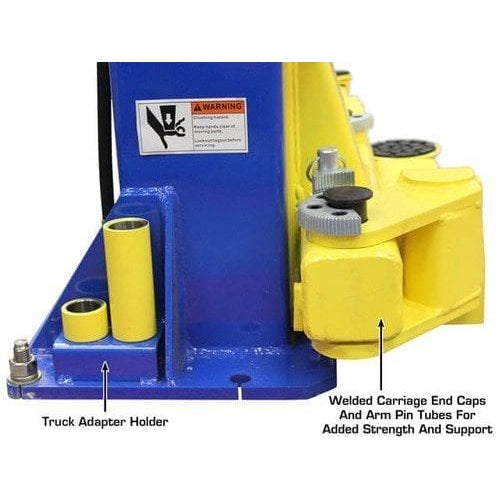

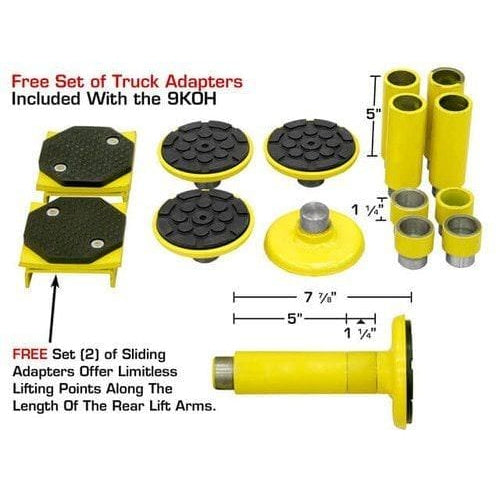

• Free 8-piece truck adapter set included
• Free set of sliding arm adapters included

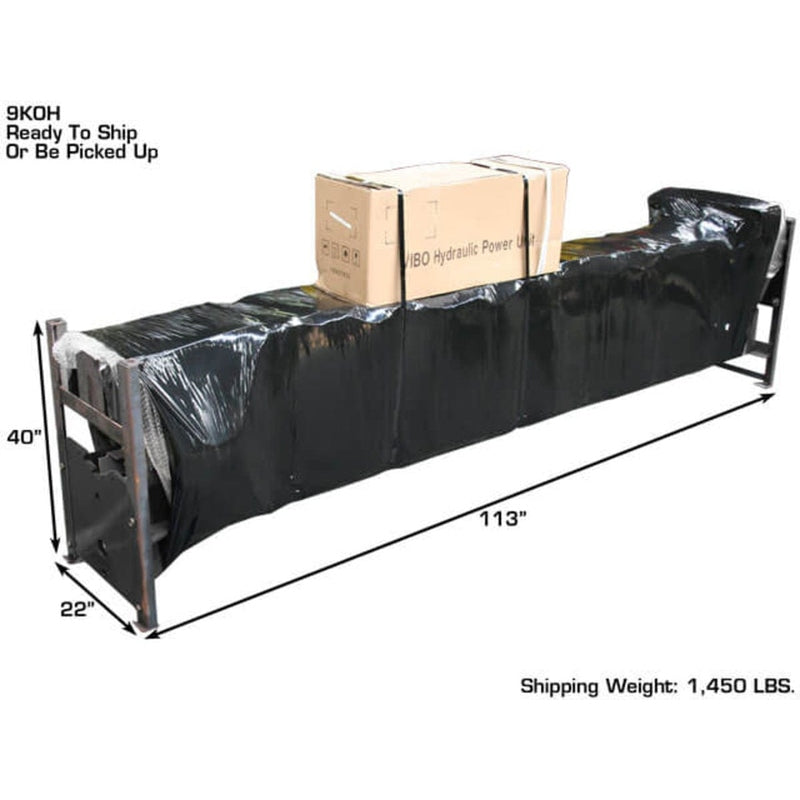

• Shipping weight: 1,450 lbs
• 2-year structural / 1-year hydraulic parts-only warranty

Specifications

Documents

Atlas 9KOHX Manual

Atlas 9KOHX Cylinder Bleeding Procedure(Do this immediately after installation)
