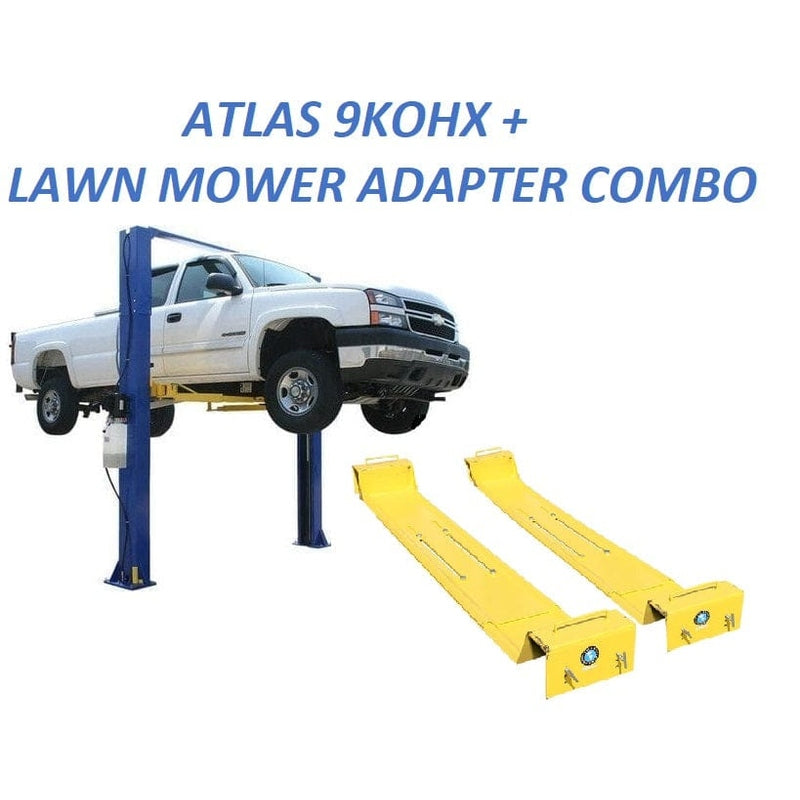

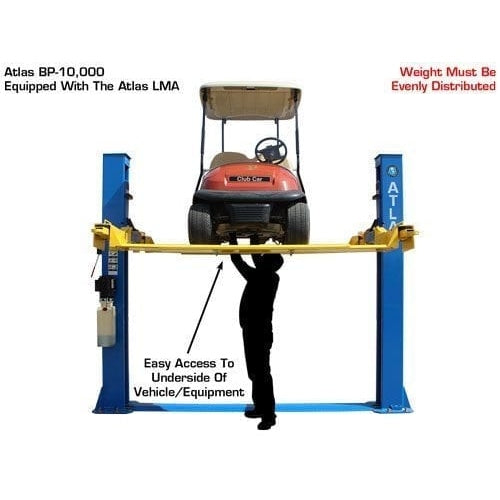

The Atlas 9KOHX and LMA bundles a 9,000 lb overhead clear-floor two-post lift with the Atlas Lawn Mower Adapter, extending the lift's range from cars and light trucks to ATVs, UTVs, and riding lawnmowers. The 9KOHX column height adjusts to either 138 inches (11 feet 6 inches) or 142 inches (11 feet 10 inches) to fit standard garage ceiling heights, and the LMA converts the swing arms to support the narrower wheelbases of powersports and outdoor power equipment that standard arm pads can't safely reach. Note: LMA capacity varies by plate position and vehicle weight distribution — higher when the plates are positioned closer to the columns — and leveling blocks may be required. The LMA is not guaranteed compatible with all vehicles or lift configurations. Delivery requires access for a 53-foot truck. Backed by a 2-year structural and 1-year hydraulic parts warranty on the lift.

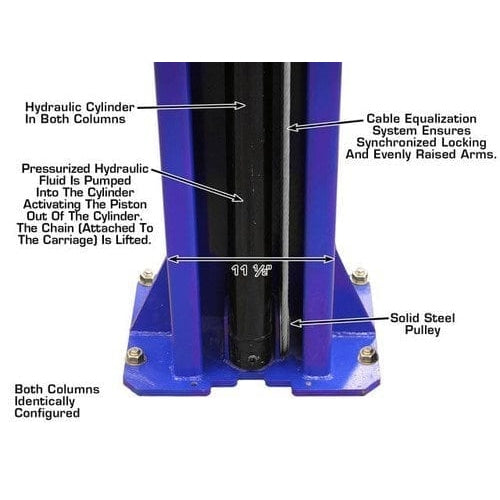

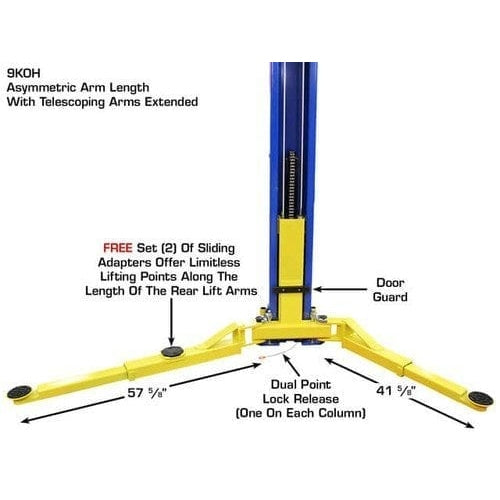

The 9KOHX runs on dual hydraulic chain-drive cylinders with a spring-loaded Secondary Lock System (SLS) that automatically engages if the chain goes slack or breaks, and dual-point lock release that requires deliberate action on both sides before descent. The asymmetric/symmetric arms switch between positions to accommodate passenger cars, SUVs, and light trucks — the asymmetric setting delivers an extremely low lift pad position on the EZ-metric configuration for small cars with low pickup points. Automatic arm restraints hold the arms during loading, rubber guards on the carriages protect door sills, and both an 8-piece truck adapter set and sliding arm adapters are included. The LMA includes 4 plates and all mounting hardware and adjusts along the arm length for different wheelbases.
This bundle suits home garage owners who service their full fleet — cars, ATVs, and lawn equipment — on a single lift in a standard-ceiling garage, and small shops and rural operations that maintain both vehicles and outdoor power equipment and want one piece of equipment handling all of it.
Features
9KOHX Two-Post Lift
- 9,000 lb lifting capacity
- Overhead, open-floor design for unobstructed floor access
- Overall height: 138" (11'6") or 142" (11'10")

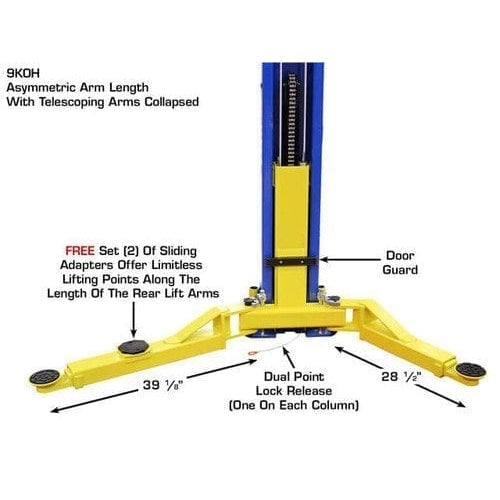

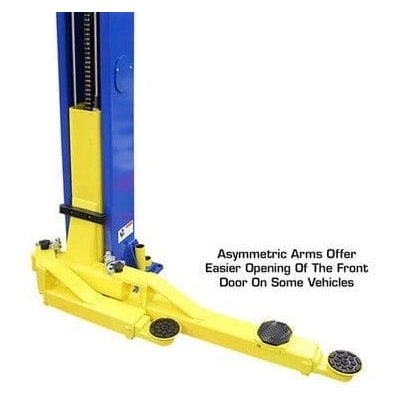

- Asymmetric/symmetric arms for flexible vehicle positioning
- Automatic arm restraints

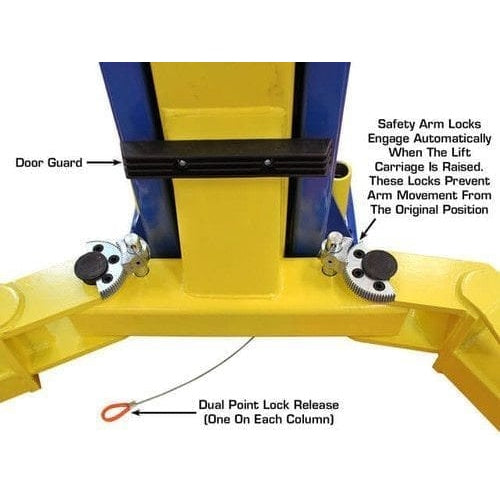

- Dual-point lock release

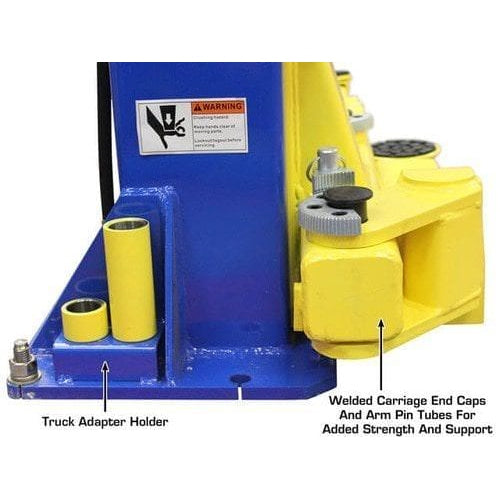

- Rubber guards on carriages for vehicle protection

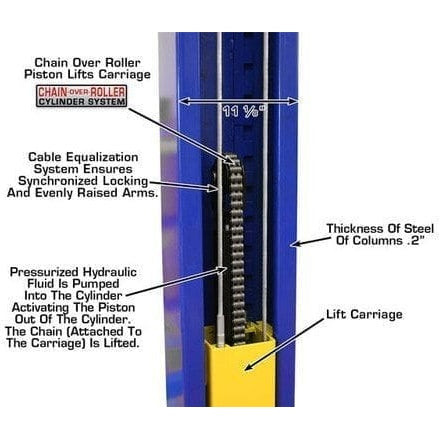

- Dual hydraulic chain-drive cylinders for smooth, reliable lifting
- Secondary lock system for added safety

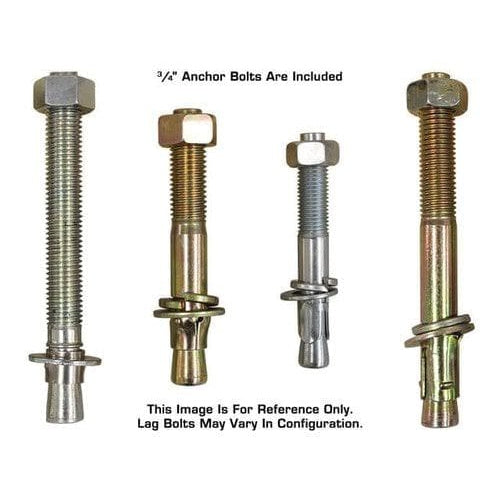

- Mounting hardware included

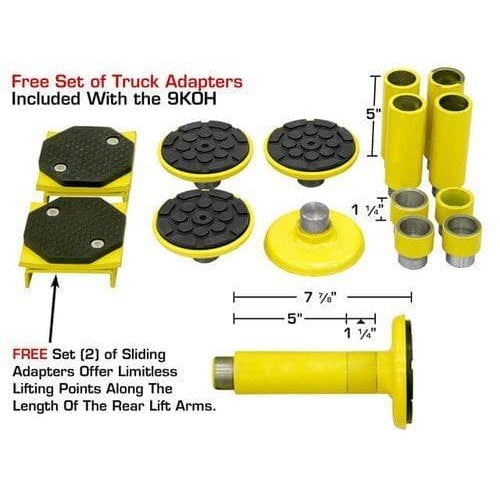

- Free 8-piece truck adapter set included
- Free set of sliding arm adapters included
- Shipping weight: 1,450 lbs
- 2-year structural / 1-year hydraulic parts-only warranty

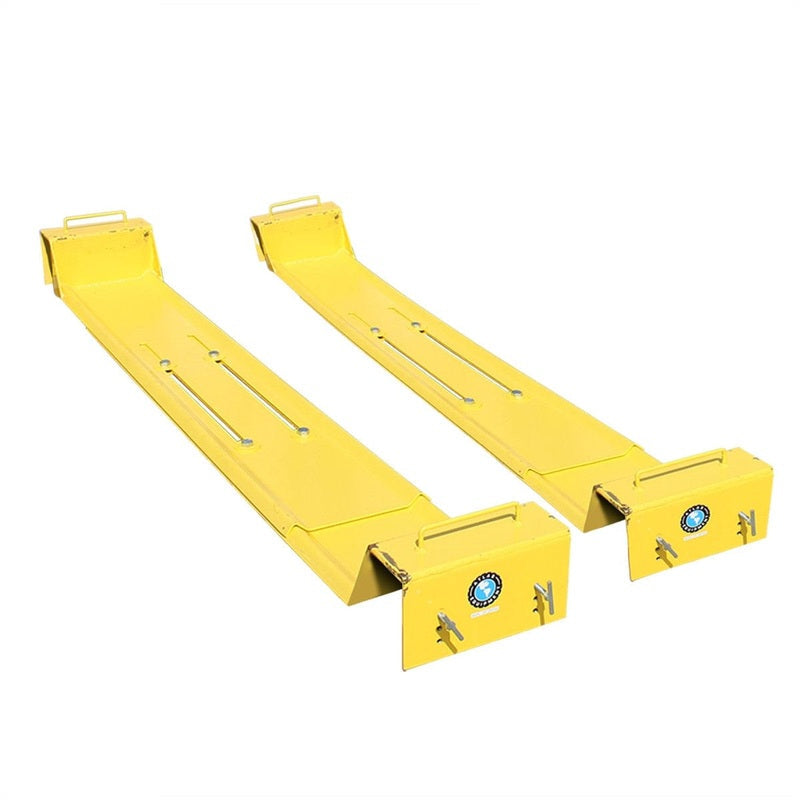

LMA Lawnmower Adapter

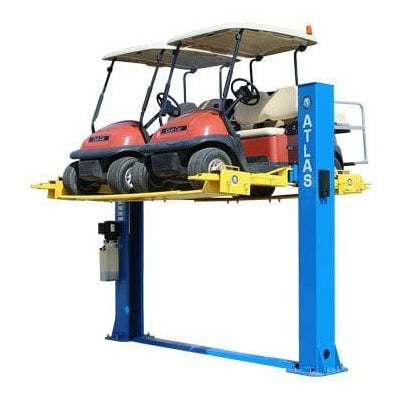

- Compatible with most 2-post lifts for lifting lawnmowers and small equipment
- Includes 4 plates and all necessary hardware
- Adjustable design fits a variety of sizes and lift brands (may not be compatible with all lifts)
- Supports up to 5,000 lb capacity (varies by lift and wheelbase)

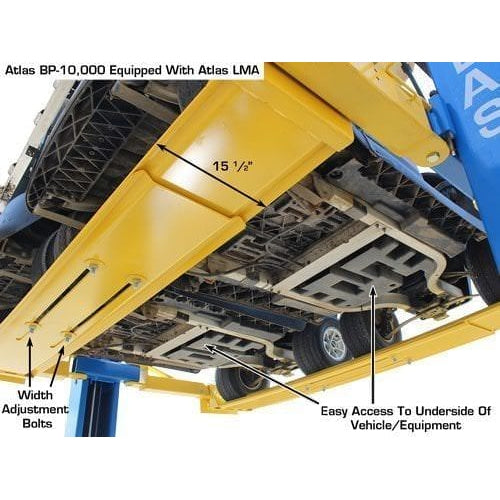

- Positionable along the length of the lift arms (leveling blocks may be required)
Specifications

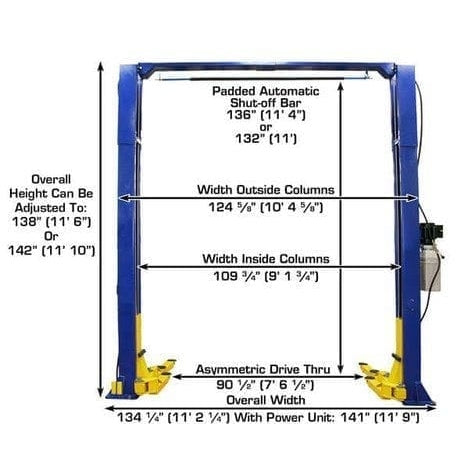

Atlas® 9KOHX
| Capacity |
9,000 LB. |

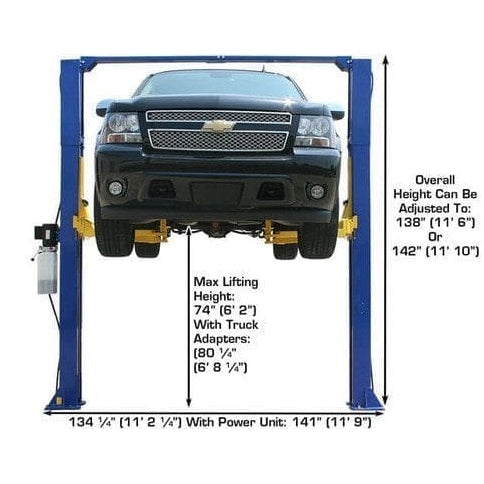

| Overall Height |
138" (11’ 6") or 142” (11’ 10”) |
| Overall Floor Width |
134 1/2" (11’ 2 1/2") |
| Outside Column to Outside Column |
124 7/8" (10’ 4 7/8") |

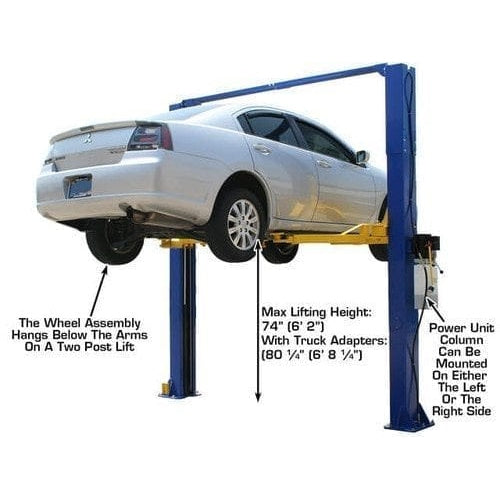

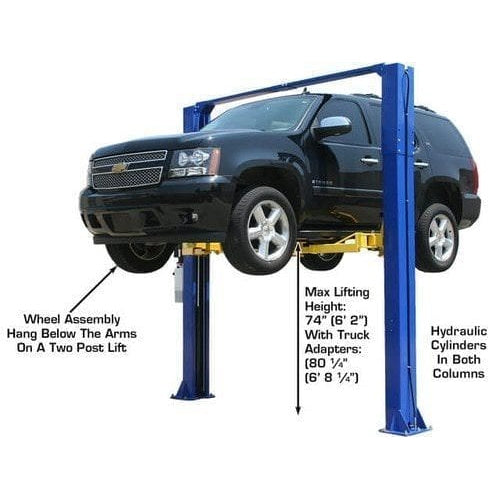

| Maximum Lift Height (Without Adapters) |
74 1/2" |
| Maximum Lift Height (With Adapters) |
81" |
| Minimum Arm Height |
4" |
| Inside Column |
110” (9’ 2”) |

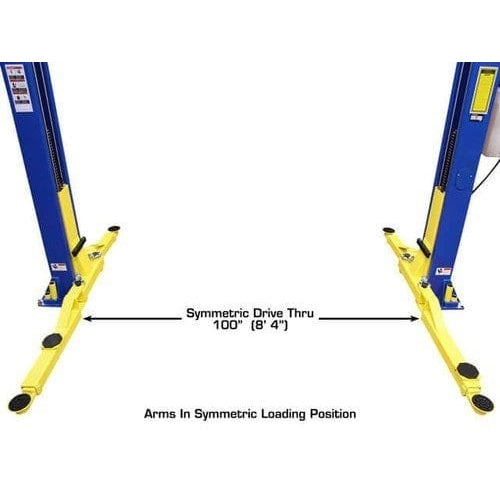

| Drive Thru |
100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric |

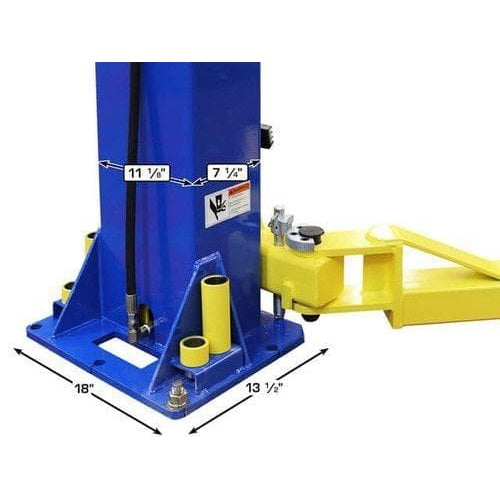

| Column Size |
7 1/4" x 11" |
| Column Thickness of Steel |
5mm |
|
| Base Of Lift |
14 1/4" x 18" |

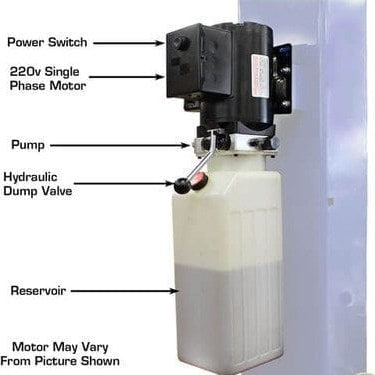

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

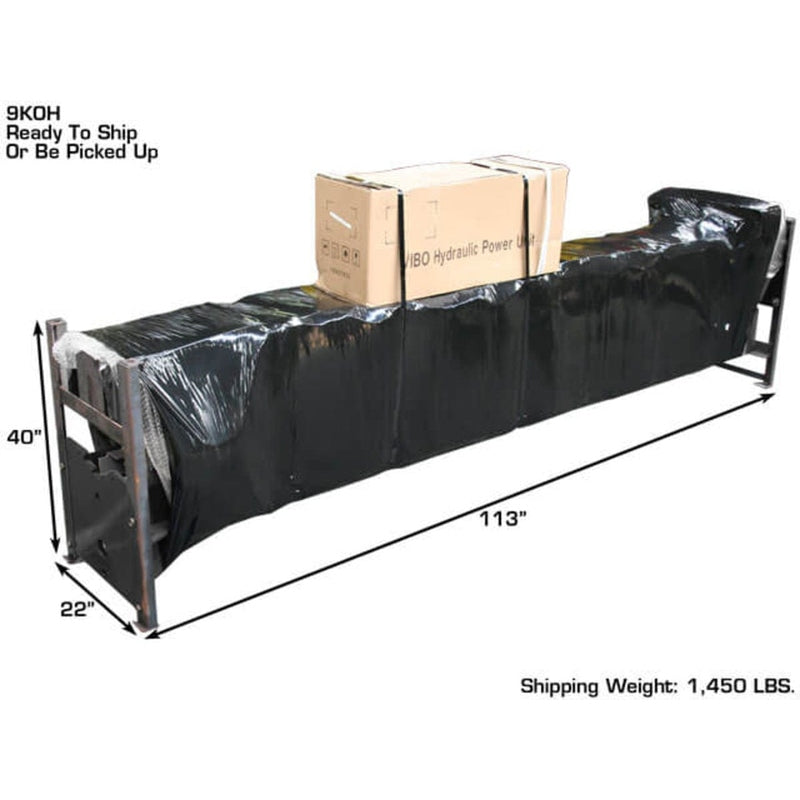

| Shipping Weight |
1,450 LBS. |

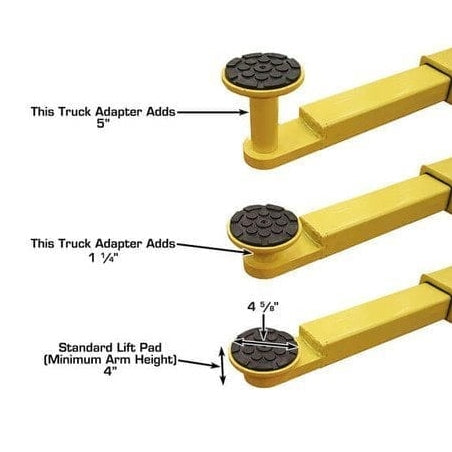

| Adapter Heights |
4 Each 1.5”, 5” |
| Arm Hole/Adapter Peg Size |
1.5” |
Requires a minimum of 4" of concrete with a 3000 psi. rating

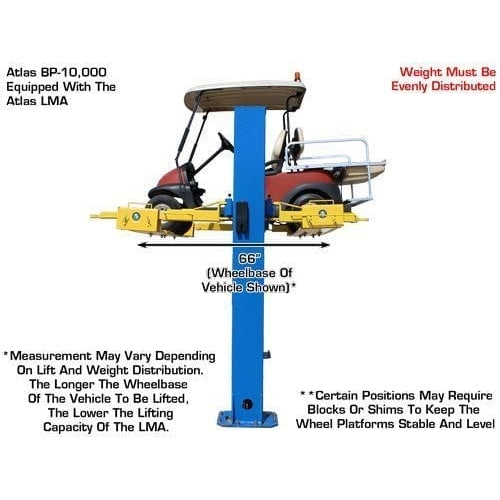

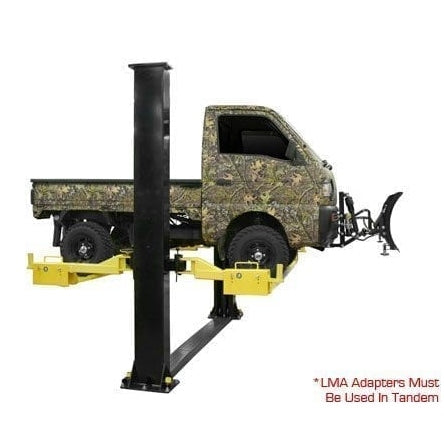

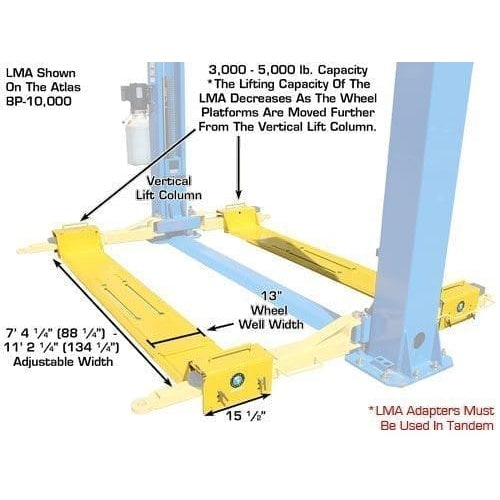

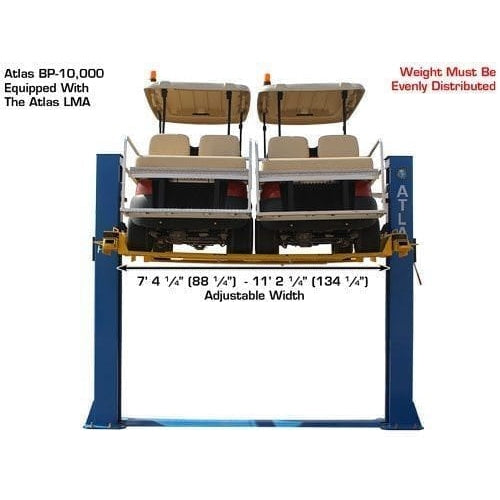

Atlas® Lawn Mower Adapter (LMA)
| Capacity |
Up To 5,000 lbs. * |

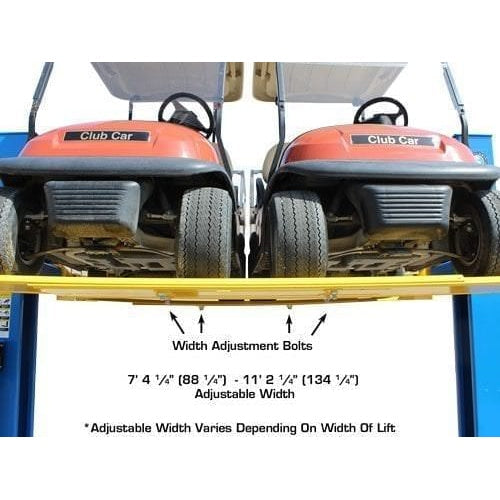

| Adjusts In Width |
8' 11" |
| Wheel Base |
32" to 90" ** |

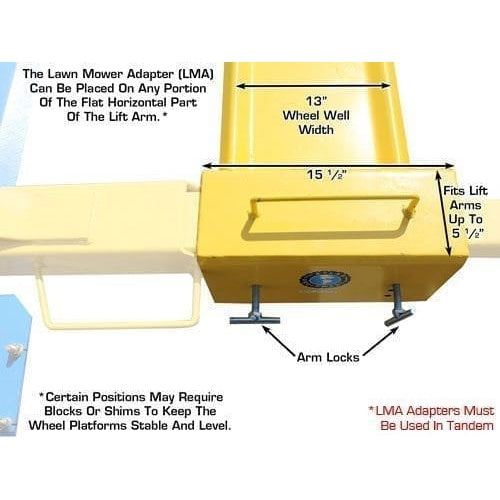

| Wheel Well Width |
12" |
| Thickness Of Steel |
1/4" (2 Gauge) |

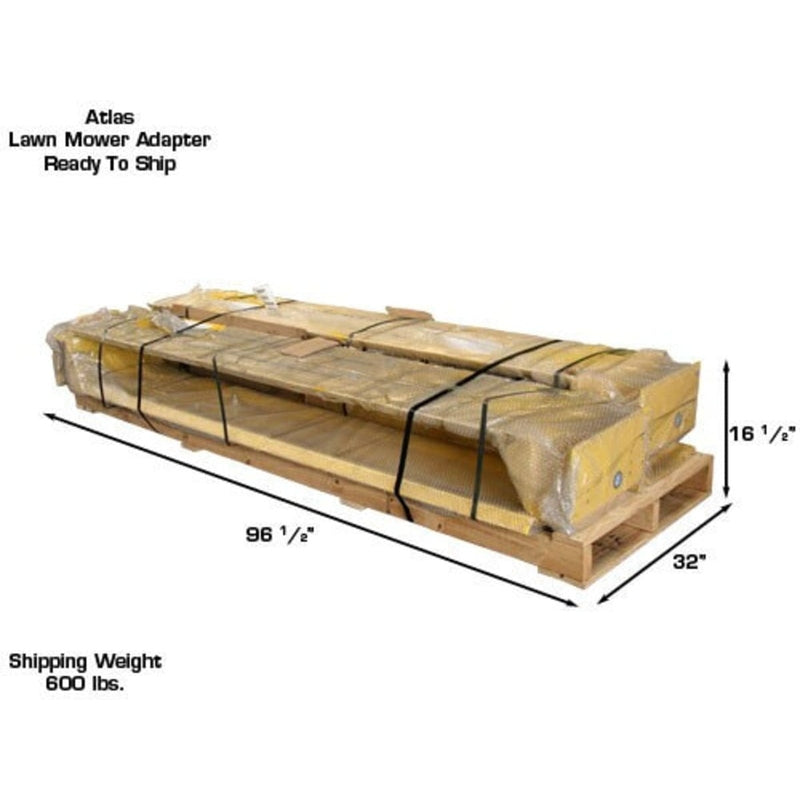

| Shipping Weight |
600 lbs. |
| LMA Consists Of Two Wheel Platforms. Lift not included. |
| * May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA. |
| ** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level. |
Documents
Atlas® 9KOHX Manual
Atlas® 9KOHX Cylinder Bleeding Procedure
(Do this immediately after installation)
