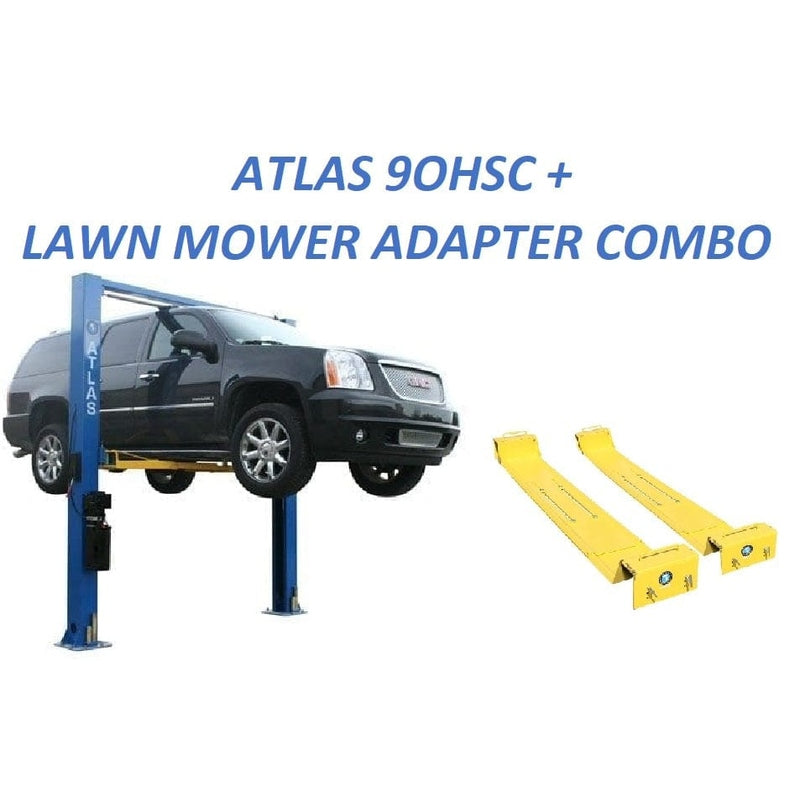

Atlas 9OHSC 2-Post Lift + Lawn Mower Adapter Combo

The Atlas 9OHSC and LMA bundles a 9,000 lb overhead clear-floor two-post lift with the Atlas Lawn Mower Adapter, covering everything from compact cars and full-size trucks to ATVs, UTVs, and riding lawnmowers on a single lift. The 9OHSC is built around single-piece 142-inch (11 feet 10 inches) formed columns with extra-long carriages — a construction approach that delivers more column and arm rigidity than multi-piece welded columns at the same price point. Note: the single-piece columns require a minimum 12-foot ceiling to stand upright during installation. The LMA capacity varies by plate position and vehicle weight distribution, is higher when plates are closer to the columns, and leveling blocks may be required — compatibility is not guaranteed with all vehicles. Delivery requires access for a 53-foot truck. Backed by a 5-year structural and 2-year hydraulic parts warranty on the lift — a notably stronger warranty than the 2-year structural coverage on the economy 9KOHX.

The 9OHSC runs on dual hydraulic chain-drive cylinders with single-point lock release and automatic arm restraints that hold the arms in position during vehicle loading. 3-stage front arms and 2-stage rear arms extend the reach range to accommodate wheelbases from compact cars through full-size SUVs and trucks, and rubber guards on the carriages protect door sills during contact. A 12-piece truck adapter set is included — four more pieces than the economy models — covering a wider range of truck and van lifting configurations. The LMA includes 4 plates and all mounting hardware and adjusts along the arm length for different wheelbases.

This bundle is the right fit for home garage owners and small shop operators who want a step up in build quality and warranty coverage from the entry-level Atlas two-post lineup, and for anyone maintaining a mixed fleet of passenger vehicles, light trucks, and outdoor power equipment who wants one lift handling the full range without separate equipment.

Features

9OHSC Two-Post Lift

• 9,000 lb lifting capacity
• Overhead, open-floor lift design for unobstructed floor access

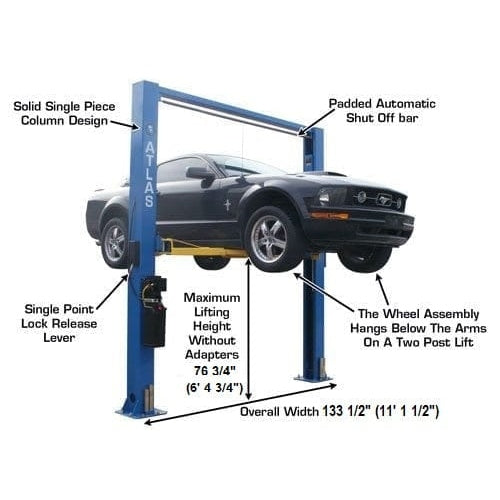

• Single-piece column design for added rigidity and strength

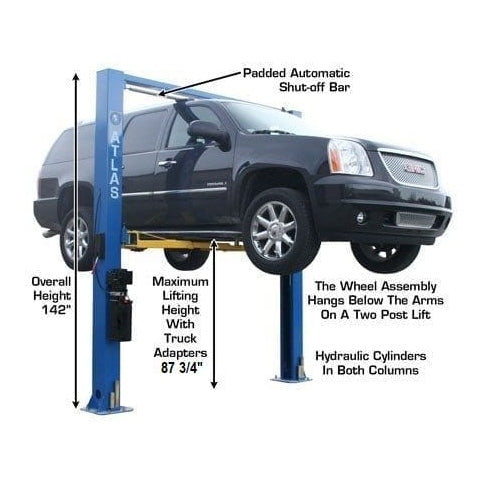

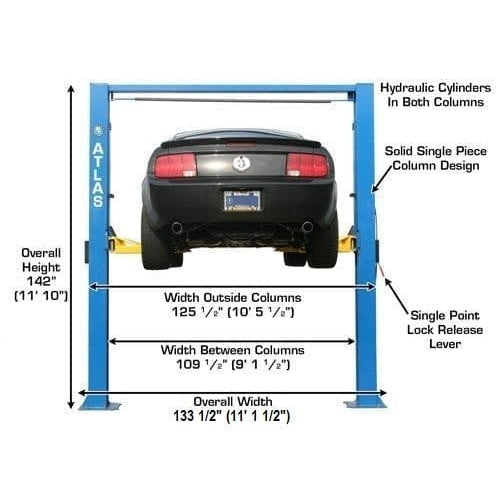

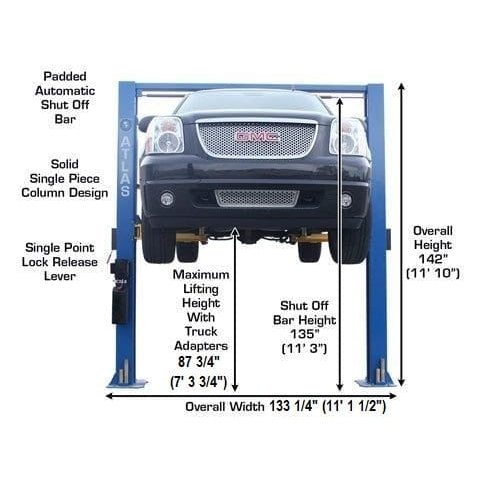

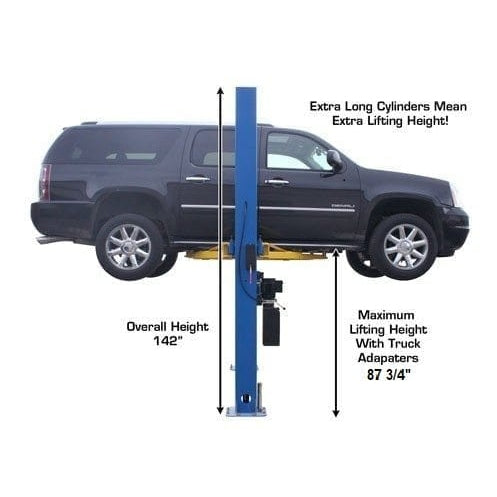

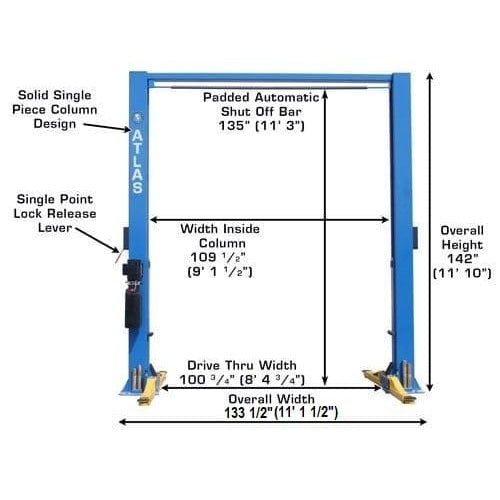

• Overall height: 142" (11'10")

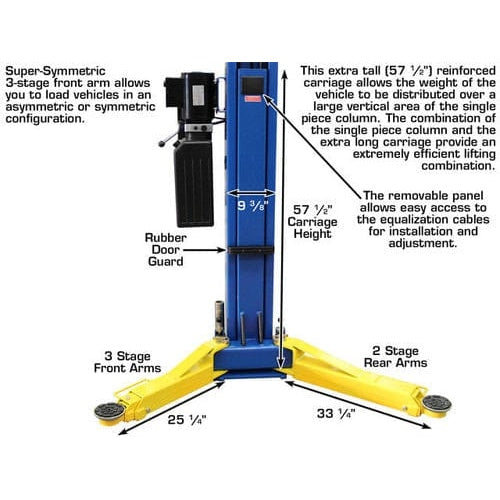

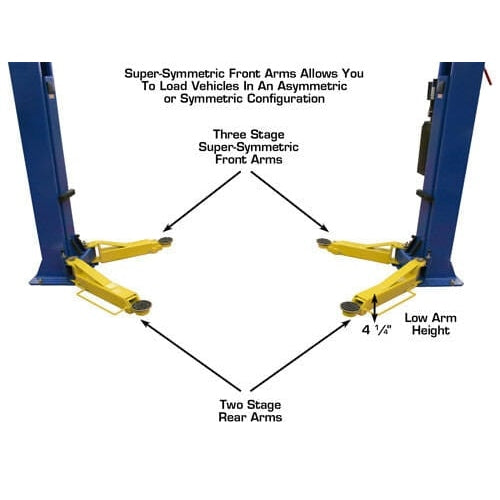

• 3-stage front arms and 2-stage rear arms for versatile vehicle positioning

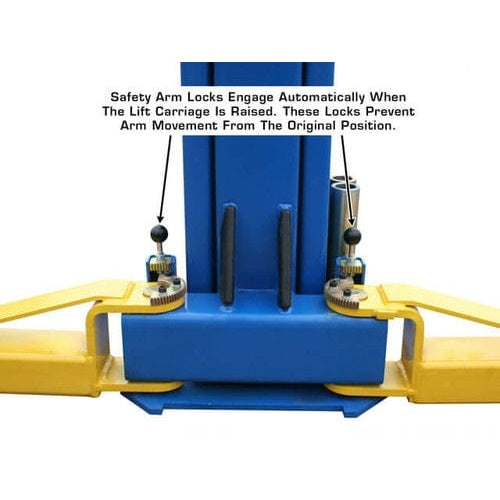

• Automatic arm restraints

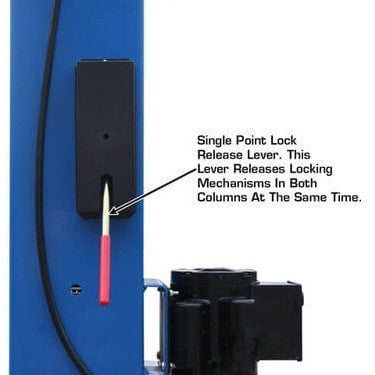

• Single-point lock release

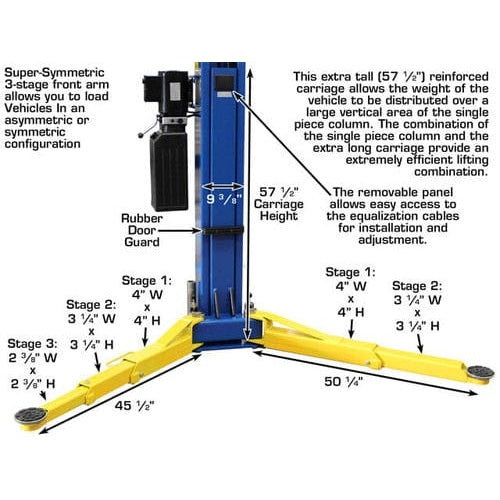

• Rubber guards on carriages for vehicle protection

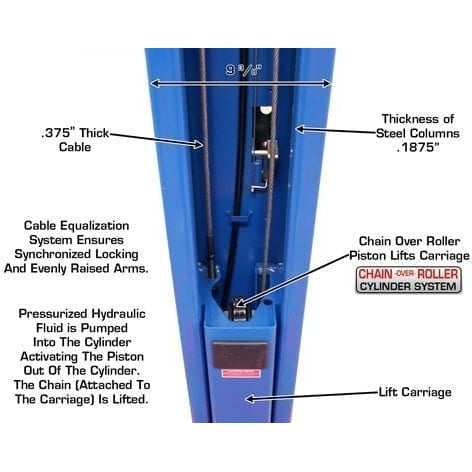

• Dual hydraulic chain-drive cylinders for smooth, reliable lifting

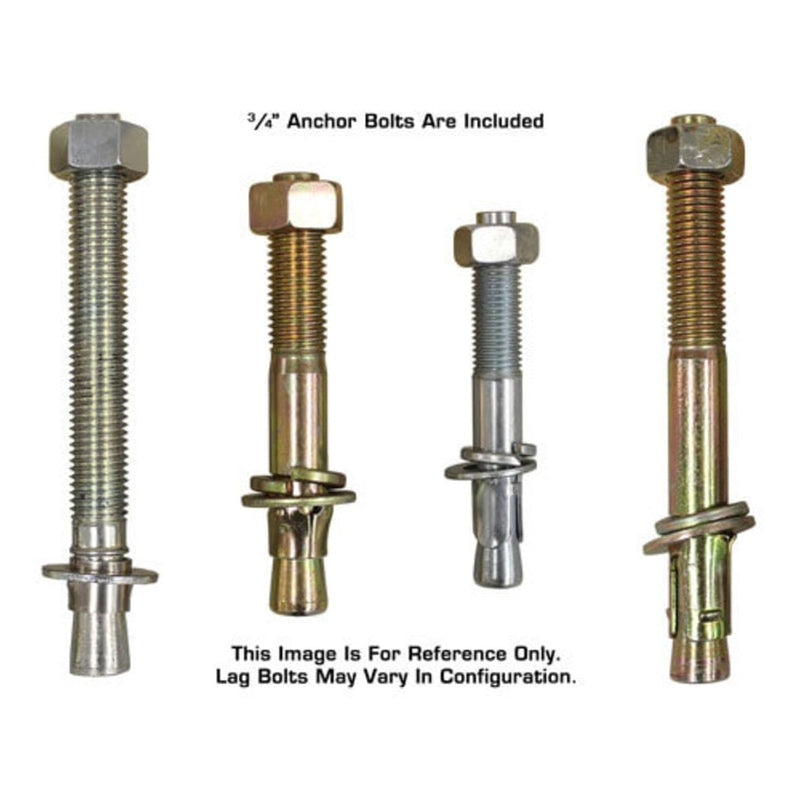

• Mounting hardware included

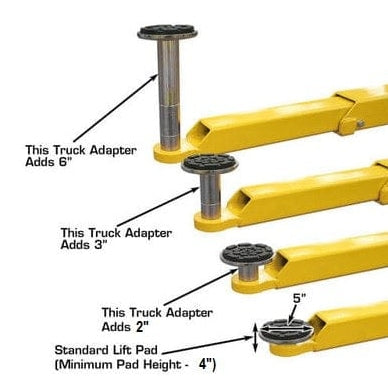

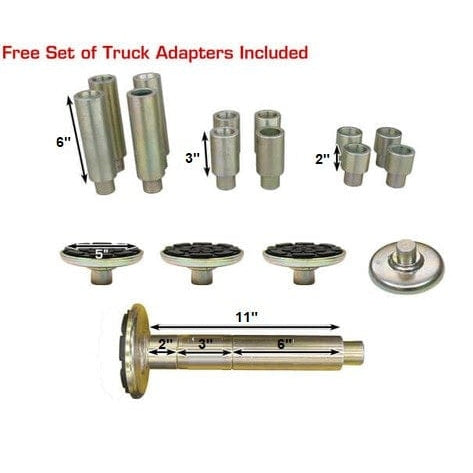

• Free 12-piece truck adapter set included
• Shipping weight: 1,430 lbs
• 5-year structural / 2-year hydraulic parts-only warranty

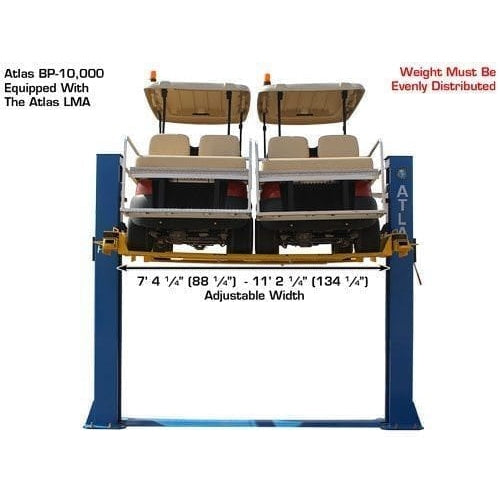

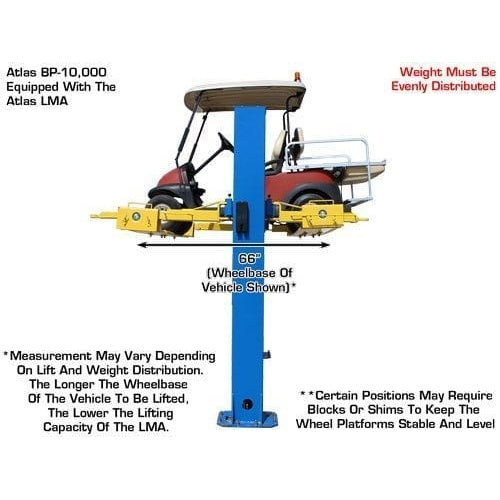

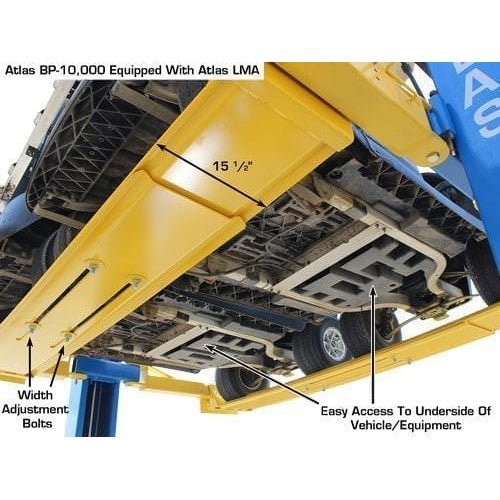

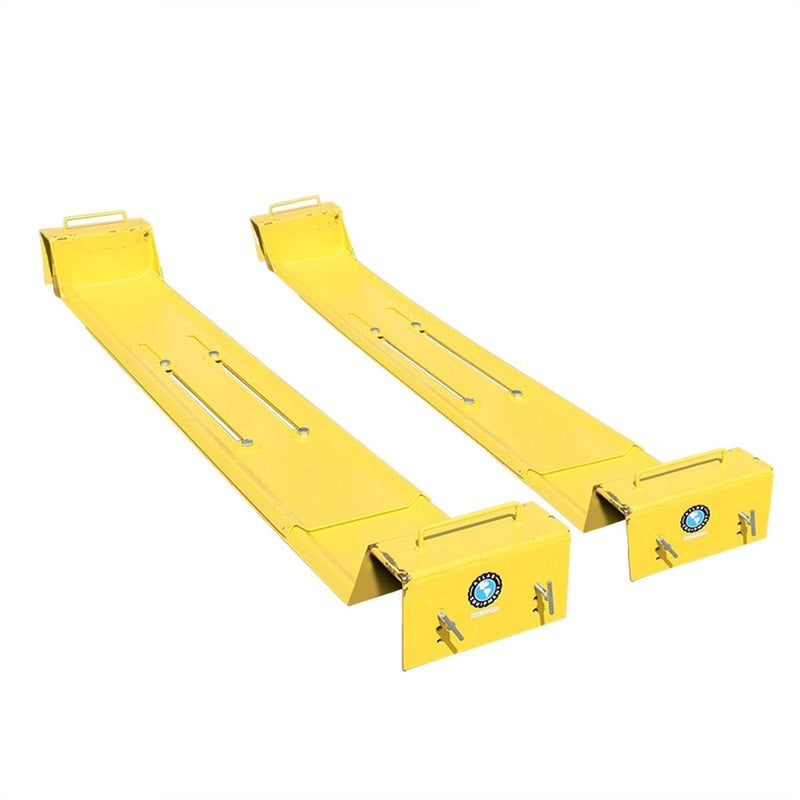

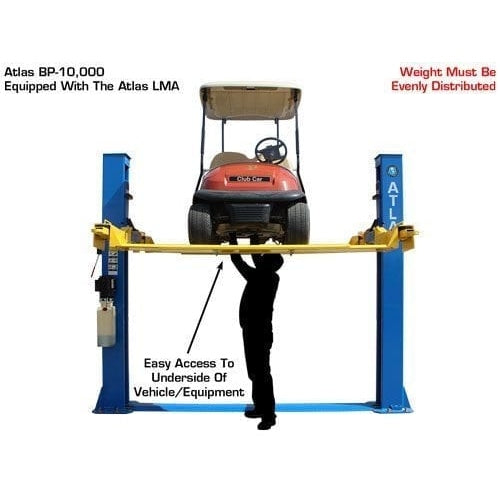

LMA Lawnmower Adapter

• Compatible with most 2-post lifts for lifting lawnmowers and small equipment
• Includes 4 plates and all necessary hardware
• Adjustable design fits a variety of sizes and lift brands (may not be compatible with all lifts)

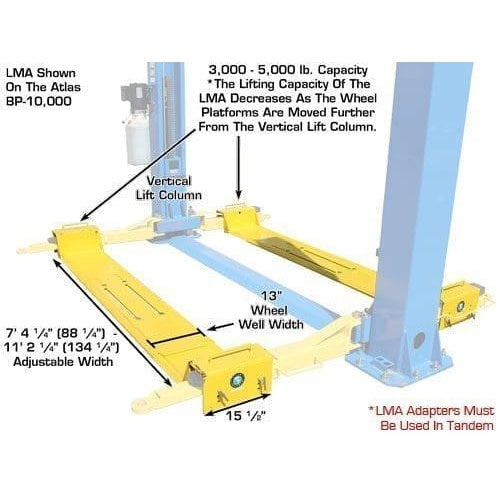

• Supports up to 5,000 lb capacity (varies by lift and wheelbase)

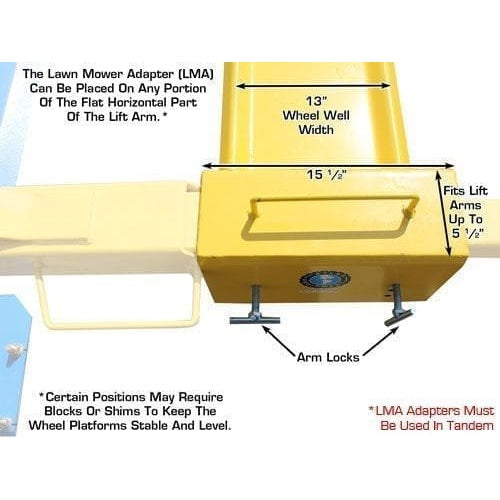

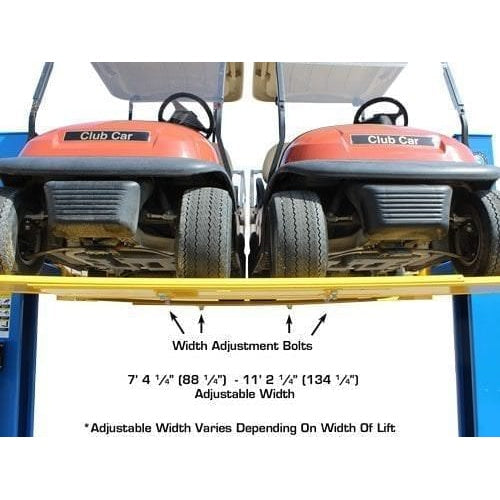

• Positionable along the length of the lift arms (leveling blocks may be required)

Specifications

Atlas® ATTD-9OHSC-SS

Requires a minimum of 4" of concrete with a 3000 psi. rating

Atlas® Lawn Mower Adapter (LMA)

Documents

Atlas® ATTD-9OHSC-SS Manual

Atlas® 9OHSC-SS Cylinder Bleeding Procedure
(Do this immediately after installation)
