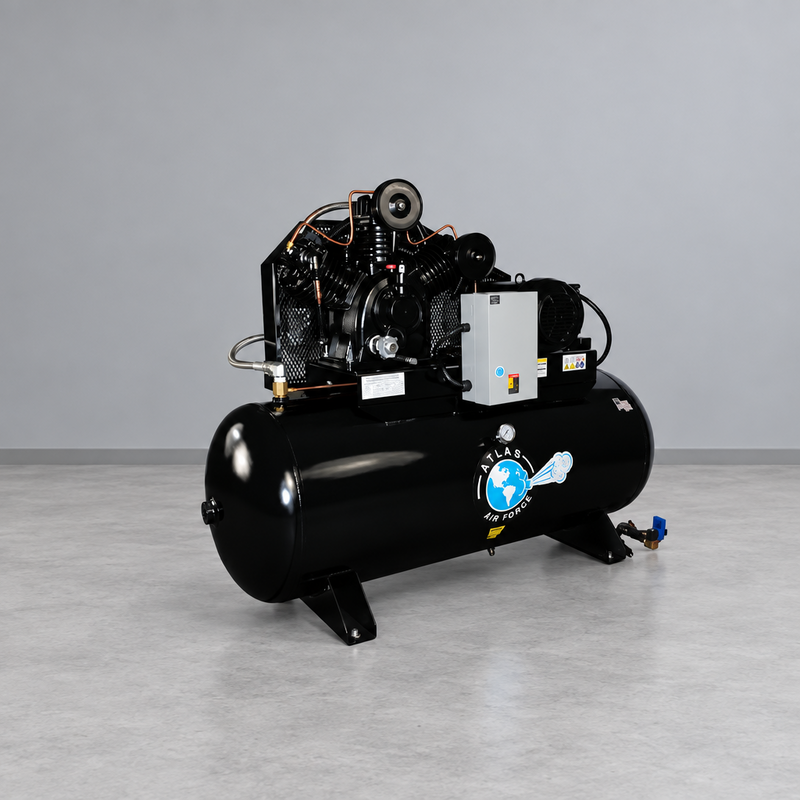

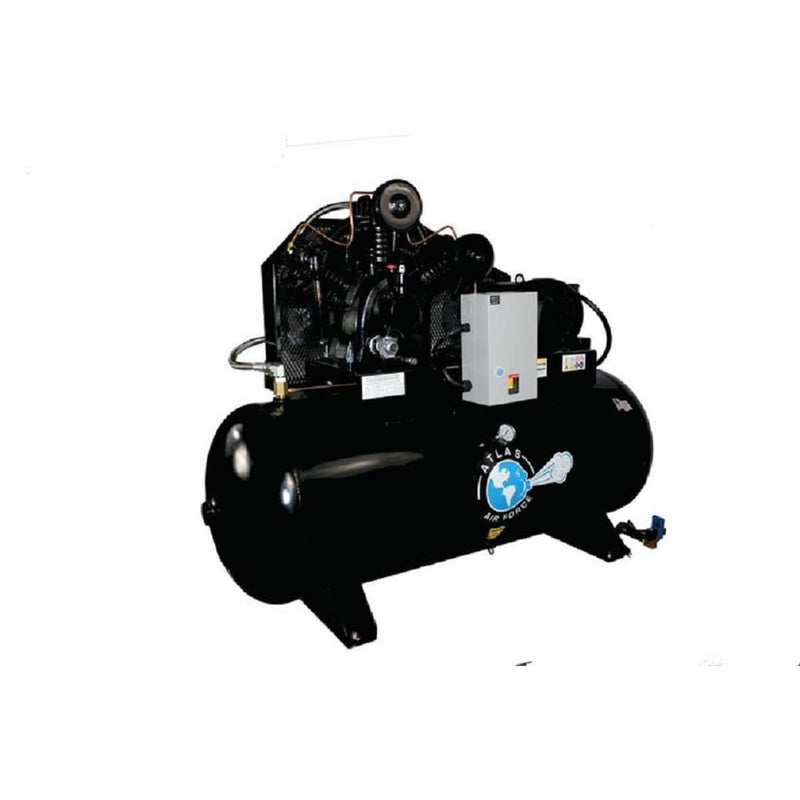

The Atlas Air Force AF10-1PH is a 10 HP, two-stage air compressor designed for automotive and body shops with high, sustained compressed-air demand. Its three-cylinder pump runs at 1,750 RPM and delivers 37 CFM at 90 PSI and 35 CFM at 175 PSI, supplying a USA-made 120-gallon horizontal tank. The compressor operates on 220V single-phase power and has a 145–175 PSI pressure cycle. Its horizontal configuration measures 72" long × 32" wide × 52" tall, so plan space for the unit and access for service.

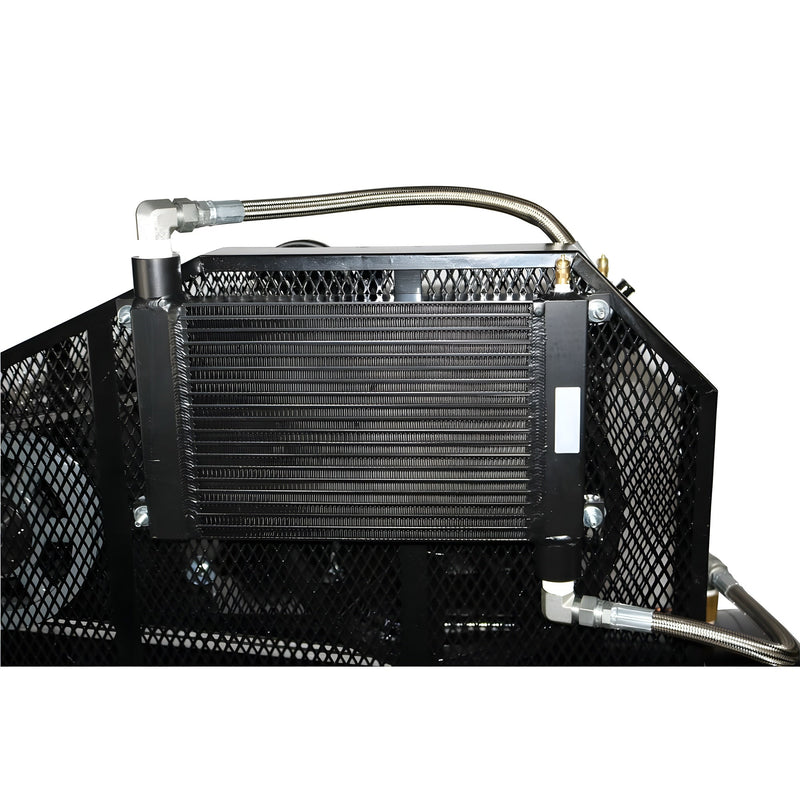

The factory-installed Plus Package includes an air-cooled aftercooler, automatic low-oil shut-off, and automatic tank drain. The aftercooler lowers compressed-air temperature before it enters the tank, helping moisture condense where it can be drained instead of traveling downstream into air tools and finishes. The low-oil monitor shuts the compressor down if oil drops too low, protecting the pump, while the programmable tank drain reduces the need for daily manual blow-downs. A magnetic starter manages electrical input to the motor, and an included continuous-run option supports steady-demand operation. A finned tank inlet tube also helps limit water accumulation inside the tank.
With its large air reserve and high output, the AF10-1PH suits multi-bay repair shops, fleet maintenance operations, and body shops running several air-powered tools or equipment throughout the workday. It is a potential step up for shops that have outgrown smaller compressors and need more stored air and faster recovery during demanding tasks.

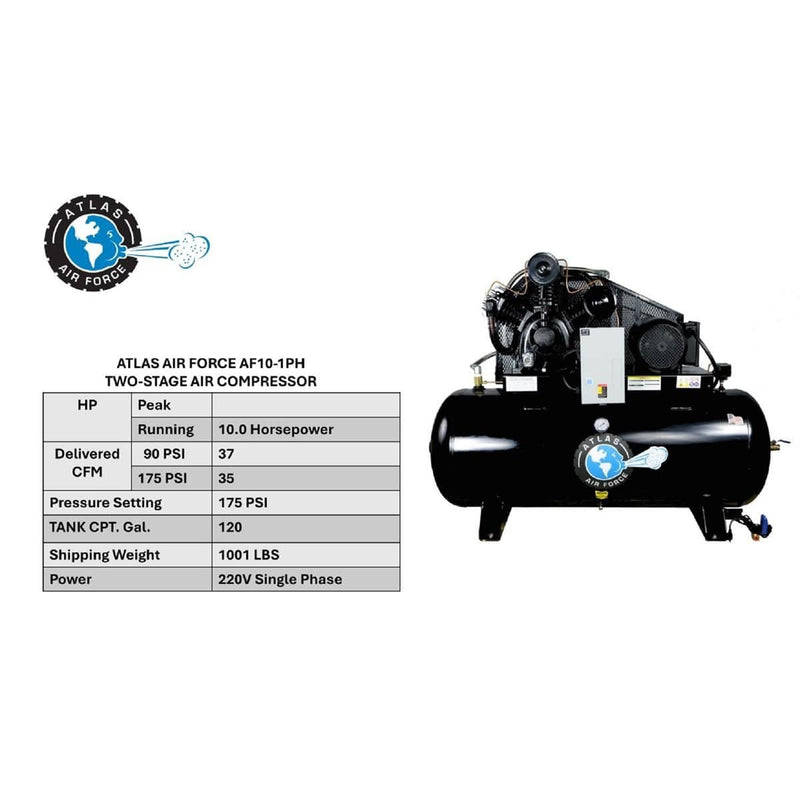

Specifications
| Atlas Air Force AF10-1PH Specifications |
| Motor (Running) |
10 HP |
| Motor Speed |
1,750 RPM |
| Pump |
3-Cylinder, 2-Stage |
| Delivered CFM @ 90 PSI |
37 |
| Delivered CFM @ 175 PSI |
35 |
| Pressure Setting |
145–175 PSI |
| Tank Capacity |
120 Gallons (Horizontal, USA-made) |

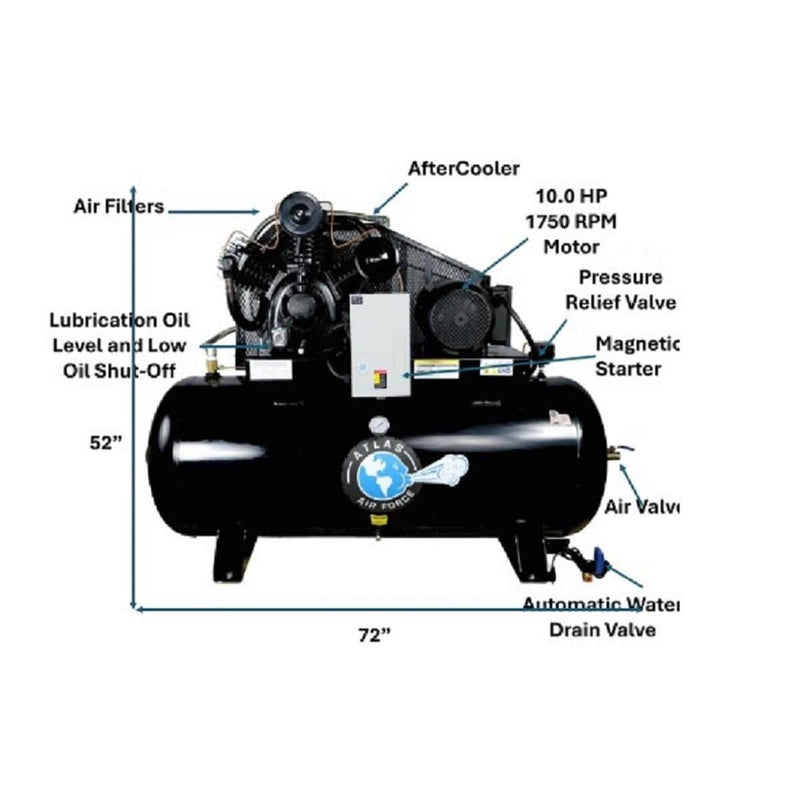

| Overall Dimensions |
L 72" × W 32" × H 52" |
| Air Outlet Size |
3/4" NPT |
| Electrical |
220V, 1-Phase, 60-amp breaker; 6-gauge wire recommended (70 ft max from breaker) |
| Shipping Weight |
1,000 lbs |
Warranty
1-year, parts-only warranty from Atlas.
FAQ
What’s included in the Plus Package?
Three factory-installed features:
-
Air-cooled aftercooler: Cools compressed air to help reduce moisture in the air lines.
-

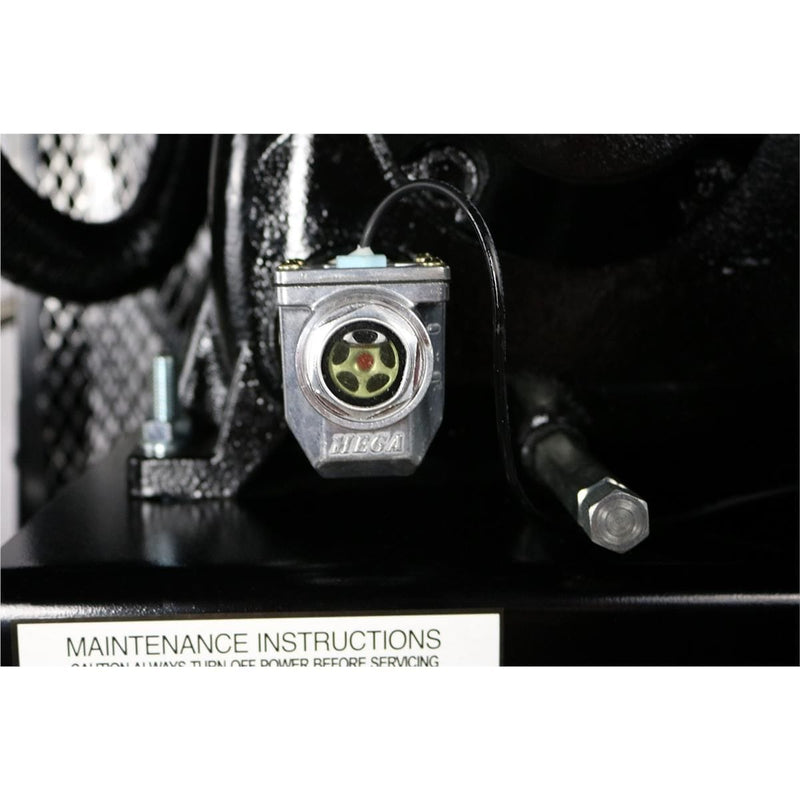

Automatic low-oil shut-off: Protects the pump by stopping the unit if oil levels become too low.
-

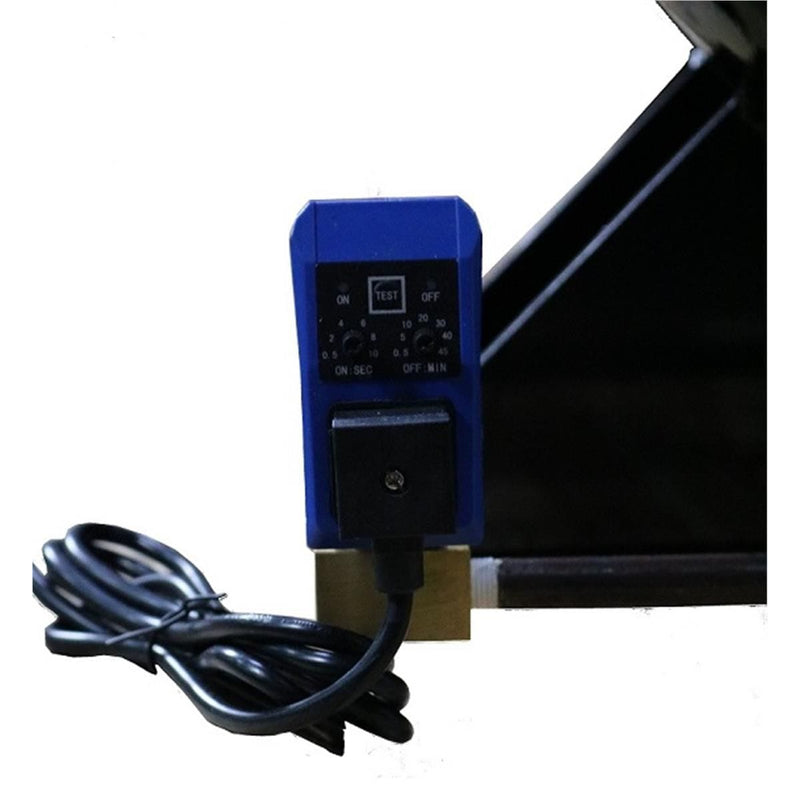

Automatic tank drain: Removes condensate on a programmable schedule, reducing the need for manual draining.
Is the 120-gallon tank made in the USA?
Yes. The AF9P’s 120-gallon horizontal steel tank is made in the USA.
How much air does it deliver?
The AF9P is rated at 37 CFM at 90 PSI and 35 CFM at 175 PSI. Compare these figures with the combined air demand of the tools you plan to run, using their required operating pressures.
What electrical service does it need?
The unit requires 220V single-phase power and a 60A breaker. 6-gauge wire is recommended for runs up to 70 ft from the breaker; longer runs may require a larger conductor. Have a qualified electrician confirm wire sizing and circuit requirements for your installation.
What’s the warranty?
Atlas provides a 1-year, parts-only warranty.
Documents
Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
