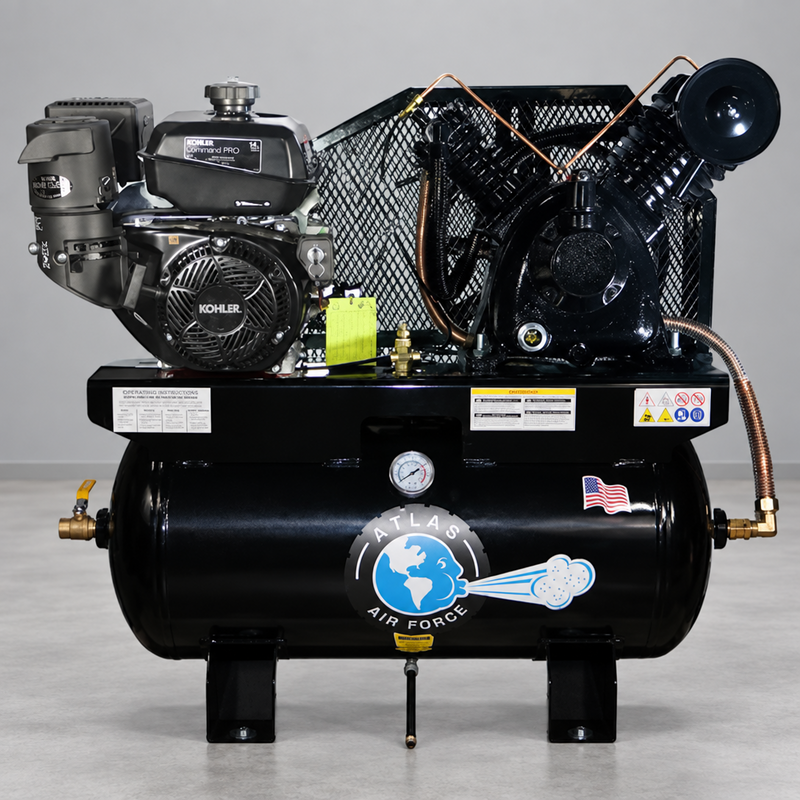

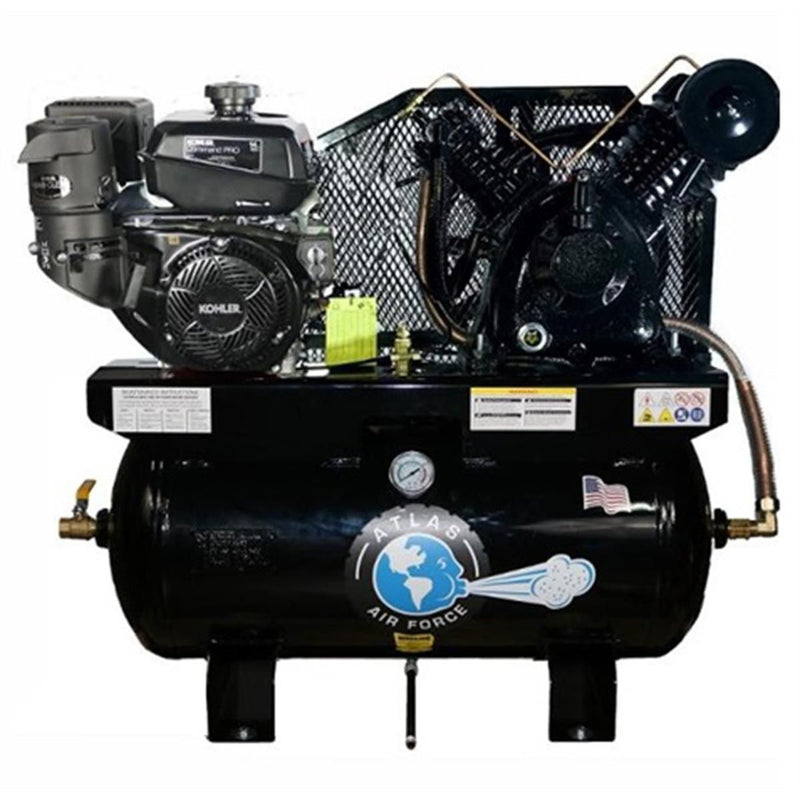

The Atlas Air Force AF14G is a gas-powered, two-stage air compressor combining a 14 HP Kohler CH440 electric-start engine, a 2-cylinder pump, and a 30-gallon horizontal steel tank made in the USA. It delivers 25 CFM at 90 PSI and 19 CFM at 175 PSI, with a working pressure range of 145–175 PSI. Because it runs on gasoline rather than requiring a 240V electrical connection, it can supply compressed air on service trucks, at jobsites, and in work areas without access to shop power.

A pneumatic throttle control adjusts engine speed in response to air demand, reducing the need to run at full throttle between tool uses. Head unloaders relieve pressure on the engine during restart, helping the electric-start system turn the engine over more easily. The engine’s charging system replenishes the starter battery while the compressor operates. For mobile installations, vibro-isolation pads help dampen vibration when the unit is mounted on a truck bed or trailer. The tank’s finned inlet tube also helps limit condensate buildup during operation, while the 3/4-inch NPT outlet accommodates high-flow air connections.

The AF14G is suited to mobile mechanics, field-service crews, and jobsite operators who need substantial airflow away from a fixed compressor or dedicated electrical supply. Its output can support demanding pneumatic tools, including large impact wrenches used for stubborn lug nuts during roadside or on-site service. The horizontal tank and gas engine make it a practical option for service vehicles and trailers equipped to carry a 30-gallon compressor.

Features

• Kohler CH440 14 HP electric-start engine — 4-cycle, air-cooled, single-cylinder engine meeting EPA/CARB emissions requirements
• 2-cylinder, 2-stage pump — Delivers up to 175 PSI working pressure
• 30-gallon horizontal steel tank, made in the USA, with a finned tank-inlet tube designed to help reduce moisture accumulation
• Air delivery: 25 CFM at 90 PSI and 19 CFM at 175 PSI
• 3/4" NPT air outlet for high-flow tool connections
• Pneumatic throttle control — Adjusts engine speed based on air demand
• Head unloaders — Reduce load during engine startup
• Heavy-duty metal belt guard — Covers the drive belt and pump pulley
• Engine charging system — Helps keep the electric-start battery charged during operation
• Vibration-isolation pads included to help reduce vibration when mounted on a service-truck bed or trailer

Specifications

Warranty

The AF14G includes a 1-year parts-only warranty from Atlas Automotive Equipment. Labor and freight on warranty parts are not covered. Confirm current registration requirements with the supplier when the unit ships.

FAQ

How much air does the AF14G deliver?

The AF14G delivers 25 CFM at 90 PSI and 19 CFM at 175 PSI. It is designed for high-demand pneumatic applications, but check your specific tool’s airflow requirements before use.

Is the AF14G suitable for service-truck use?

Yes. The gasoline engine allows operation without shop power, and the unit includes pneumatic throttle control to adjust engine speed with air demand. Included vibration-isolation pads help reduce vibration transferred to a truck bed or trailer.

What size is the air outlet?

The AF14G has a 3/4" NPT air outlet for connection to compatible air lines and tools.

What engine does it use?

The AF14G is powered by a Kohler CH440 14 HP 4-cycle, air-cooled, single-cylinder gasoline engine. It features electric start, head unloaders to reduce load during startup, a charging system and EPA/CARB emissions compliance.

How much does it weigh, and what are its dimensions?

The listed shipping weight is 627 lbs. Overall dimensions are 46" L × 19" W × 37" H. Confirm truck-bed capacity, mounting requirements and tie-down points before installation.

What is the warranty?

The AF14G includes a 1-year parts-only warranty from Atlas Automotive Equipment. Labor and freight on warranty parts are not covered.

Documents

Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
