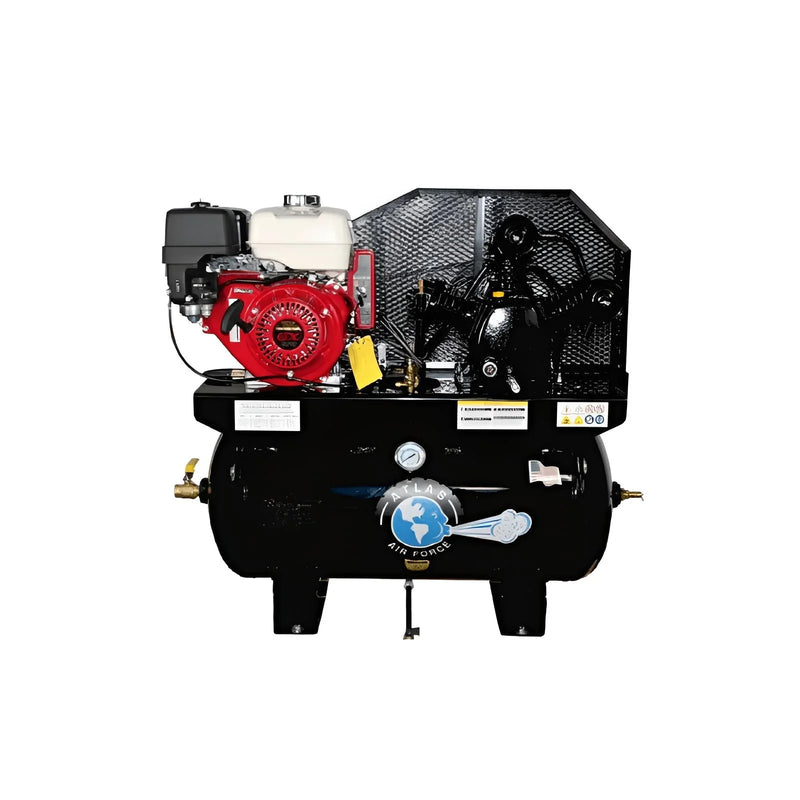

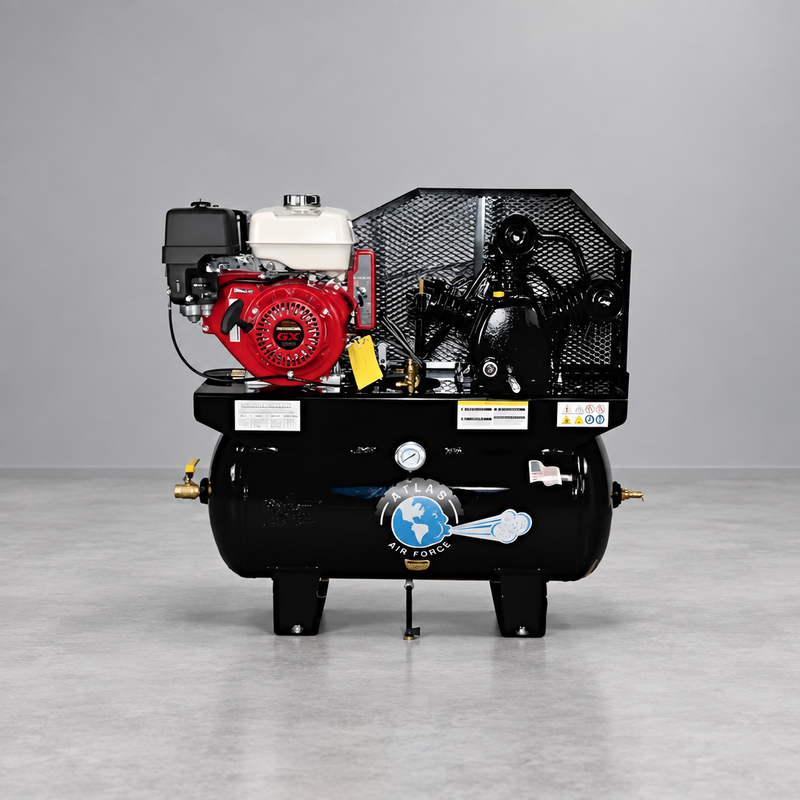

The Atlas Air Force AF9G is a gas-powered 9 HP two-stage air compressor designed for mobile service trucks and field mechanics who need compressed air without dependable electrical power. Its Honda GX270 electric-start engine drives a three-cylinder, two-stage pump connected to a 30-gallon USA-made horizontal steel tank. The compressor operates at 145–175 PSI and delivers 18 CFM at 90 PSI and 14.5 CFM at 175 PSI, providing the output needed for demanding pneumatic work, including large impact wrenches used on BUDD wheel lug nuts. The Honda engine is EPA/CARB compliant for operation in California and other CARB-regulated states.

The AF9G combines several features specifically suited to mobile operation. Pneumatic throttle control and head unloaders help manage compressor loading and provide unloaded starts as air demand changes. An integrated charging system helps keep the service-truck battery maintained while the compressor runs. The finned tank-inlet tube helps reduce moisture accumulation inside the tank, while the heavy-duty metal belt guard covers the belt-drive components. Included vibration-isolation pads help stabilize the unit on truck beds and uneven surfaces, and the 3/4" NPT outlet provides the connection point for the air system.

The AF9G is suited to mobile mechanics, roadside service operators, field-service technicians, and truck-based maintenance crews that need substantial compressed-air capacity away from a permanent shop. Its gas-powered configuration eliminates the need for shore power, while the 30-gallon tank provides stored air for demanding tools. The combination of electric starting, battery charging, and load-management controls makes it well suited to service vehicles where the compressor needs to function as part of a self-contained mobile setup.

Features

• Honda GX270 9 HP electric-start engine — 4-cycle, air-cooled, single-cylinder gasoline engine designed for mobile use
• EPA/CARB-compliant — Meets emissions requirements for California and other CARB-regulated states
• 3-cylinder, 2-stage pump — Belt-driven reciprocating design for consistent air delivery at higher pressures
• 30-gallon horizontal steel tank, made in the USA
• 145–175 PSI pressure range with 18 CFM at 90 PSI / 14.5 CFM at 175 PSI
• Pneumatic throttle control and head unloaders — Help provide unloaded starts and manage operation under changing air demand
• Charging system — Helps maintain the service-truck battery while the compressor is running
• Vibration-isolation pads — Included for stable operation on truck beds and uneven surfaces
• Finned tank-inlet tube — Helps reduce moisture accumulation inside the tank
• Heavy-duty metal belt guard — Protects the belt drive and operator
• 3/4" NPT air outlet

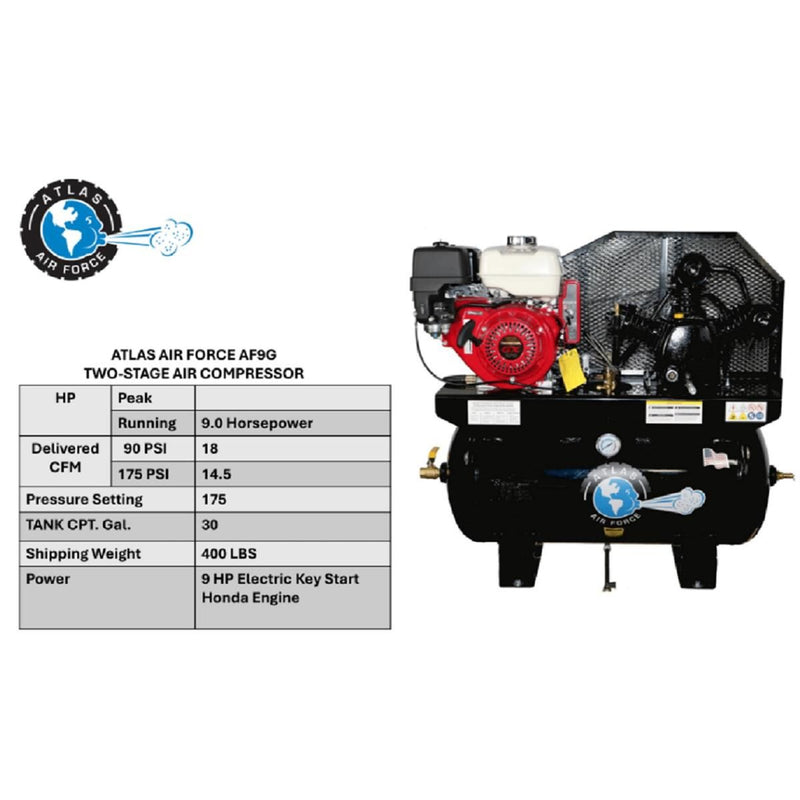

Specifications

Warranty

The Atlas Air Force AF9G includes a 1-year parts-only warranty from Atlas Automotive Equipment.

FAQ

Will the AF9G run a 1-inch impact wrench?

The AF9G delivers 18 CFM at 90 PSI and 14.5 CFM at 175 PSI, providing the airflow range needed for many large pneumatic impact applications, including the BUDD wheel-lug-nut work identified by the supplier. Check your specific tool’s CFM requirement before use.

Does it have electric or recoil start?

The AF9G uses a Honda GX270 electric-start engine. Its integrated charging system helps maintain the start battery while the compressor is running.

Is it compliant for use in California?

Yes. The engine is EPA/CARB emissions compliant.

What size is the air outlet?

The compressor has a 3/4" NPT air outlet.

How large is the tank?

The AF9G has a 30-gallon horizontal steel tank made in the USA.

Documents

Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
