The Atlas APEX9 and RJ6 bundles an ALI Certified 9,000 lb four-post lift with two 6,000 lb air/hydraulic rolling bridge jacks — the lift for vehicle storage and service, and the two jacks for unloading wheels on the rack for tire, brake, and suspension work. The APEX9 is built extra long, extra wide, and extra tall to handle the full size range from compact cars through diesel dually pickups — wide enough for dually rear tracks, long enough for extended wheelbase vehicles, and tall enough to park a full-size truck both on and below the runways simultaneously. It runs on 110V power with a 30-amp breaker, ships at approximately 2,975 lbs — one of the heaviest portable hobbyist four-post lifts available — and delivery requires access for a 53-foot truck. Note: the RJ6 rolling jacks are not ALI Certified; only the APEX9 lift carries ALI Certification. Backed by a 5-year structural and 2-year hydraulic parts warranty on the lift and a 1-year parts warranty on the jacks.

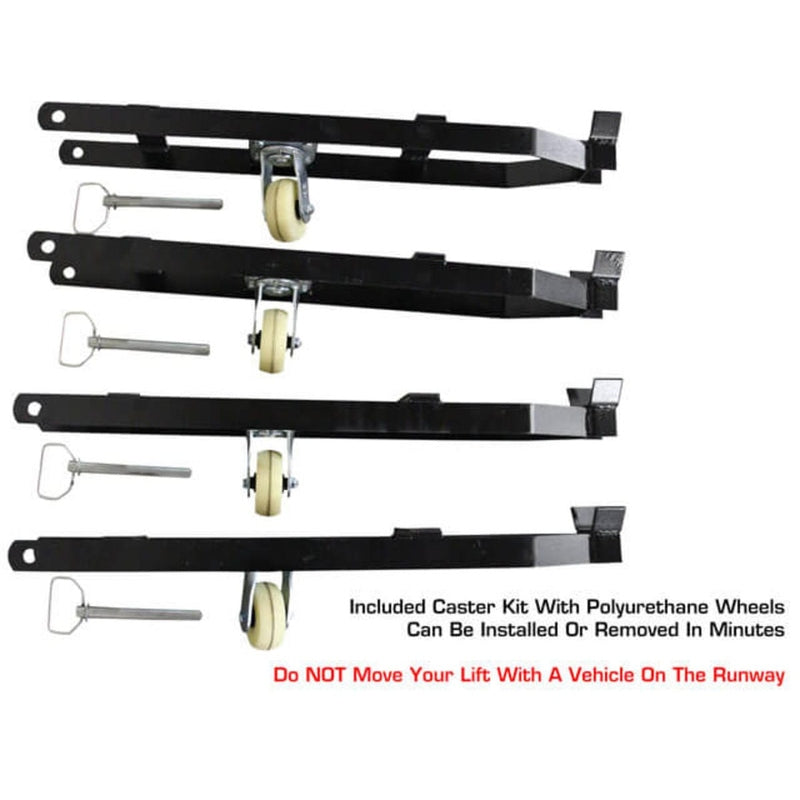

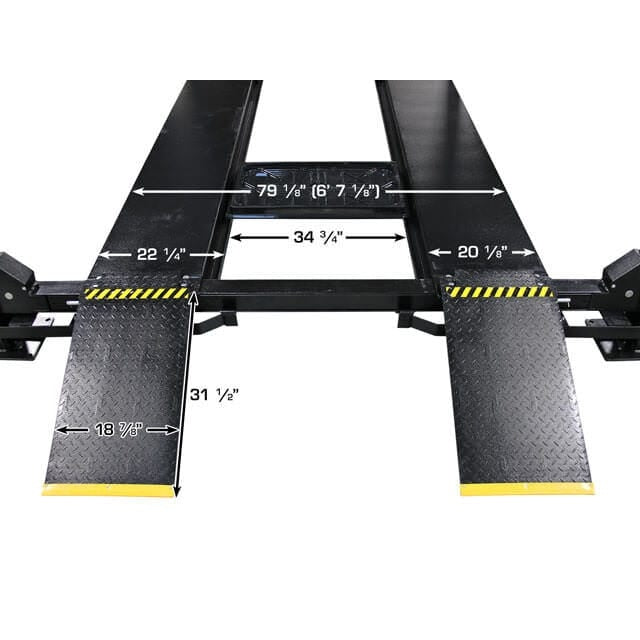

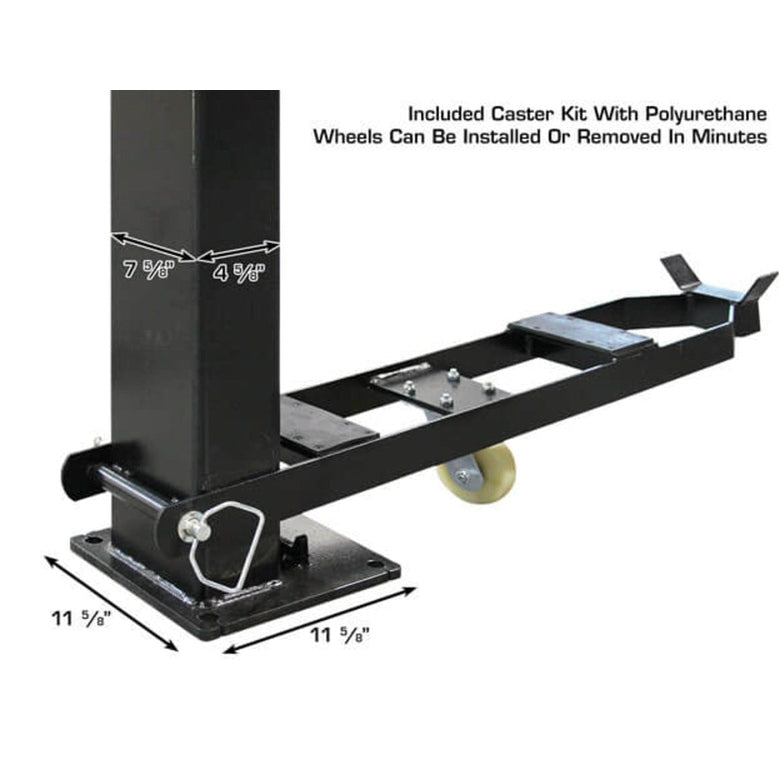

The APEX9's diamond-plated runways provide traction during loading, and the caster kit with polyurethane wheels installs or removes in minutes for repositioning between bays or to an outdoor surface — anchor bolts are optional and sold separately for permanent installation. Single-point lock release, lock ladder design, and a double lock safety system provide redundant hold at working height. Included accessories cover the practical details: steel approach ramps, steel jack tray, four plastic drip trays, and two wheel chocks. The two RJ6 rolling bridge jacks are air/hydraulic operated (external air supply required) with a scissor mechanism for level lifting, multiple safety lock positions, smooth-rolling casters, and a 4-piece truck adapter set included with each jack.
This bundle suits automotive service centers and serious home garage owners that need ALI Certified four-post capacity sized for the full vehicle range — including trucks and duallys that smaller four-post lifts can't accommodate — with the rolling jack setup already matched and ready to work.
Features
APEX9 Four-Post Lift
- ALI certified
- 9,000 lb lifting capacity
- Free-standing, portable design for flexible shop placement
- Heavy-duty, extra tall, extra wide, and extra long platform
- Durable powder-coat finish with diamond plate runways

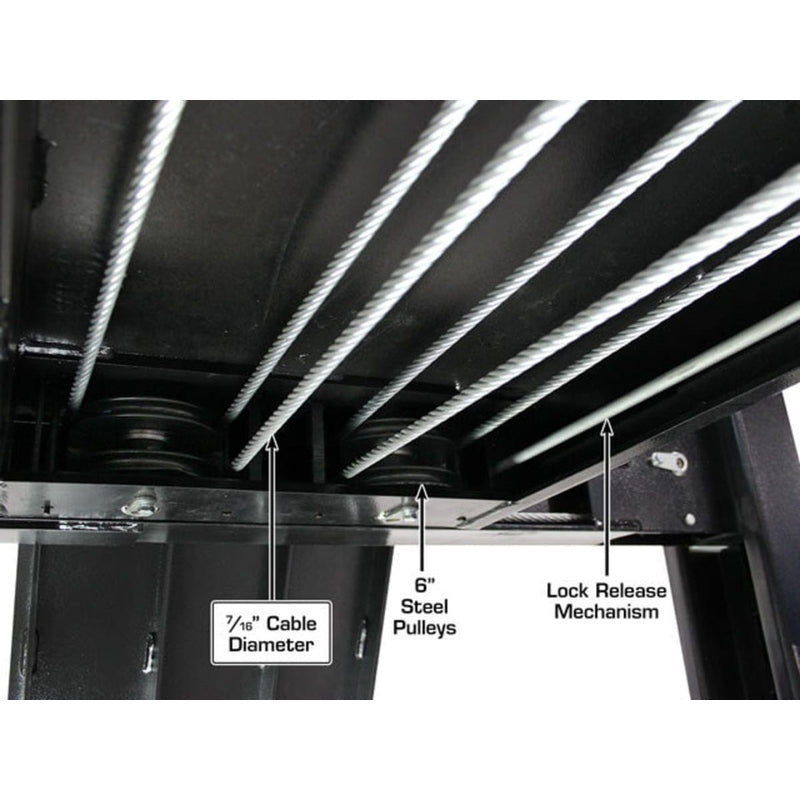

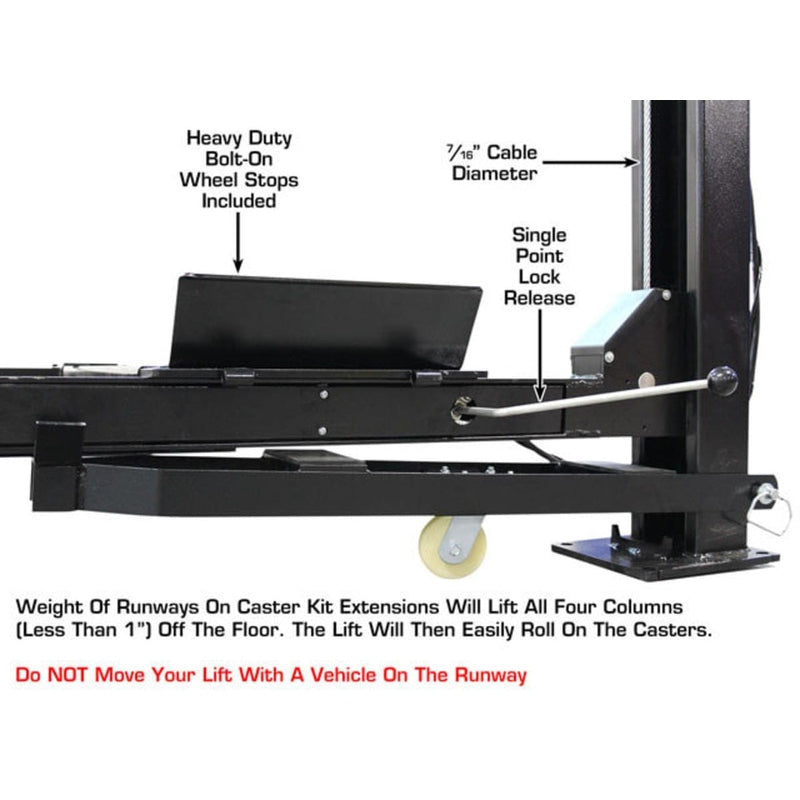

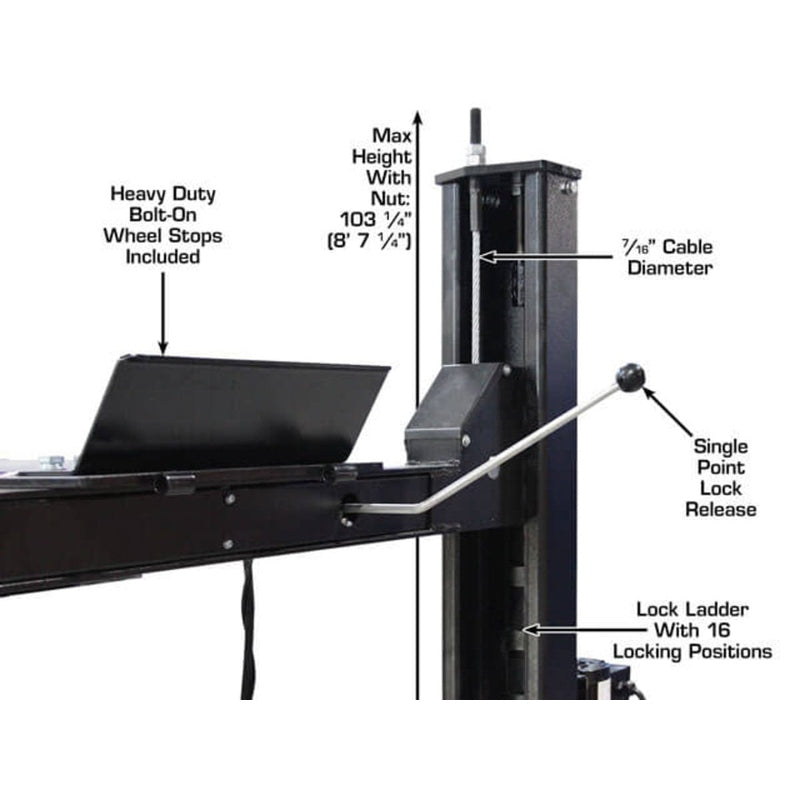

- Single-point lock release with lock ladder design and double lock safety system
- Steel approach ramps included
- Steel jack tray included
- Four plastic drip trays included

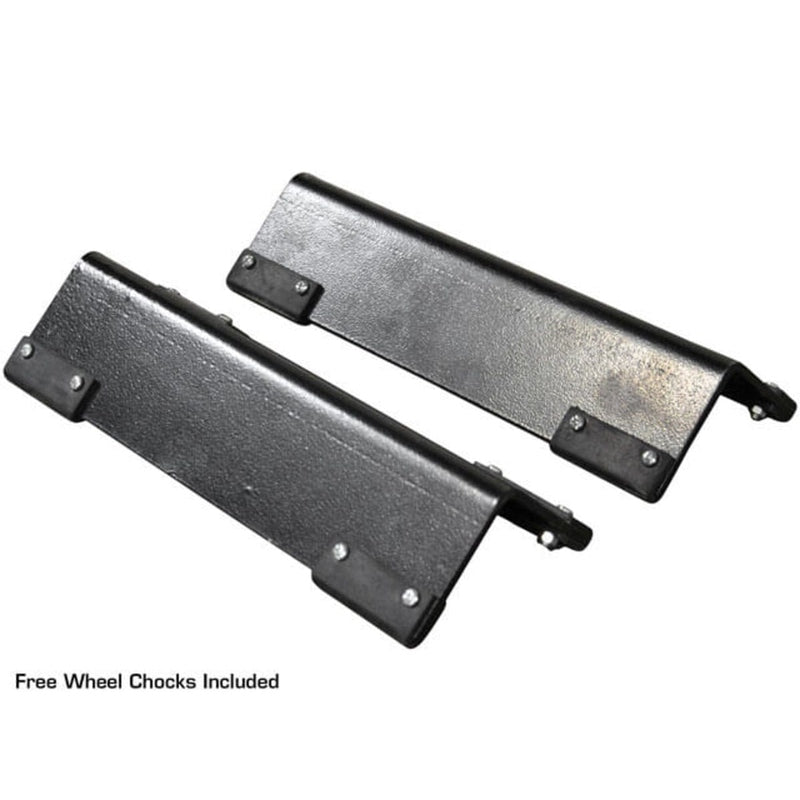

- Two wheel chocks included
- Caster kit with polyurethane wheels available
- Anchor bolts optional (sold separately)
- Ideal for both vehicle storage and active service work

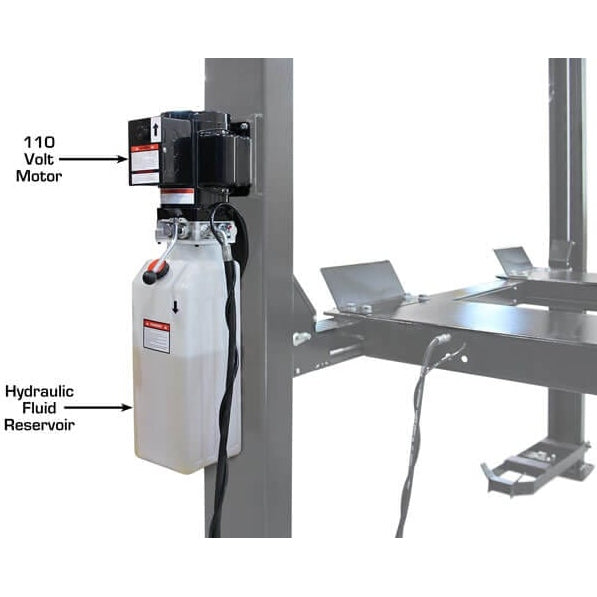

- 110V electric operation (requires a 30-amp breaker)
- Shipping weight: 2,975 lbs
- 5-year structural / 2-year hydraulic parts-only warranty

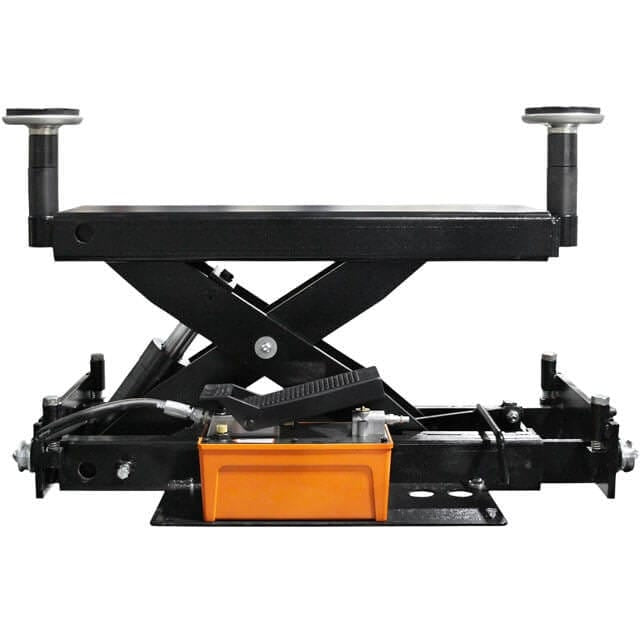

RJ6 Rolling Jack
- 6,000 lb lifting capacity
- Air/hydraulic operation (external air supply required)

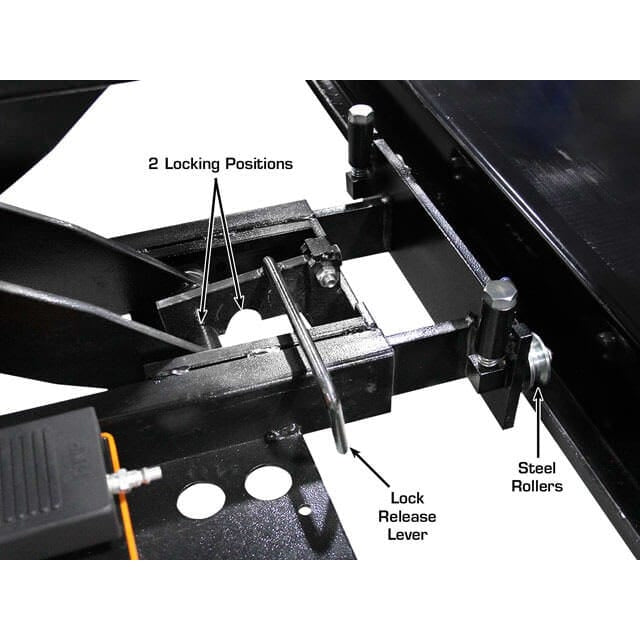

- Multiple safety lock positions
- Compact, low-profile design for easy maneuverability

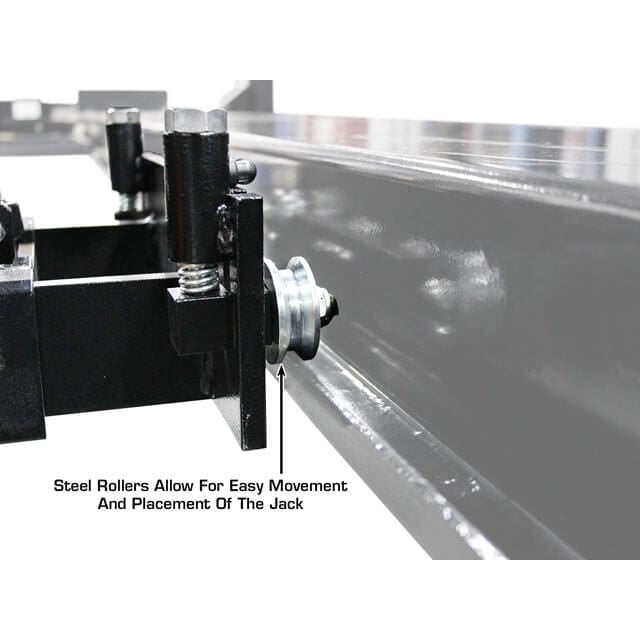

- Smooth-rolling action for effortless positioning
- Scissor mechanism delivers stable, level lifting
- Durable powder-coat finish

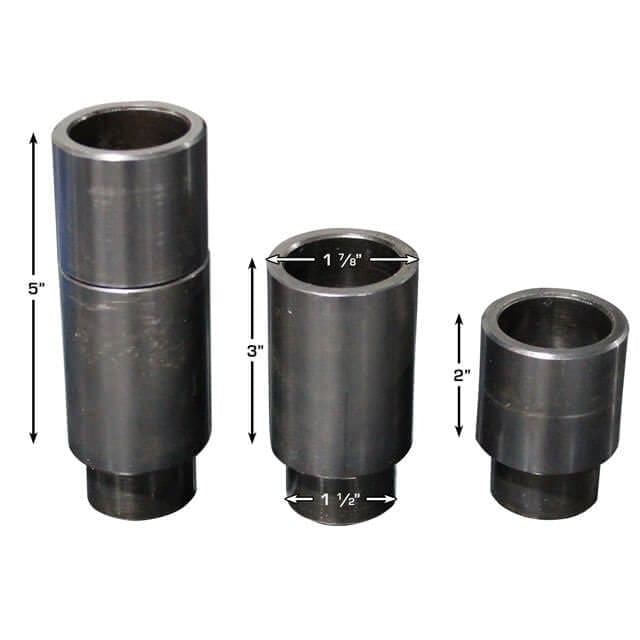

- 4-piece truck adapter set included
- 1-year parts-only warranty
Specifications
Atlas® Apex 9
| Capacity |
9,000 lb. |
| Lifting Height To Top of Runway |
86" (7' 2") |

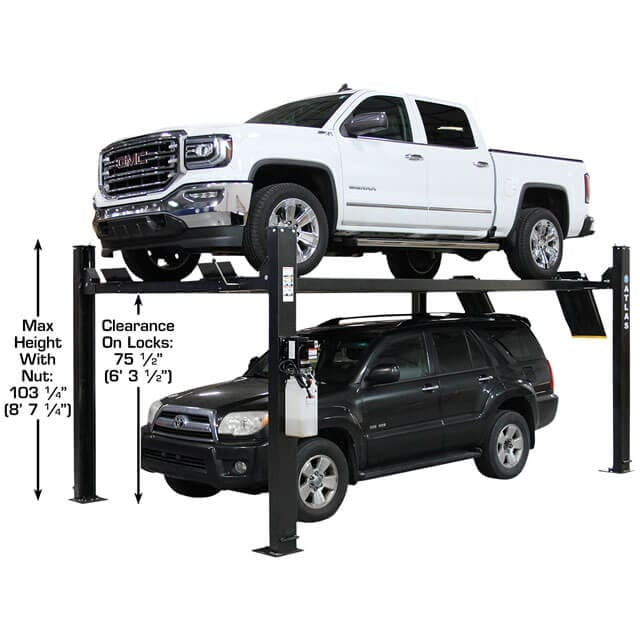

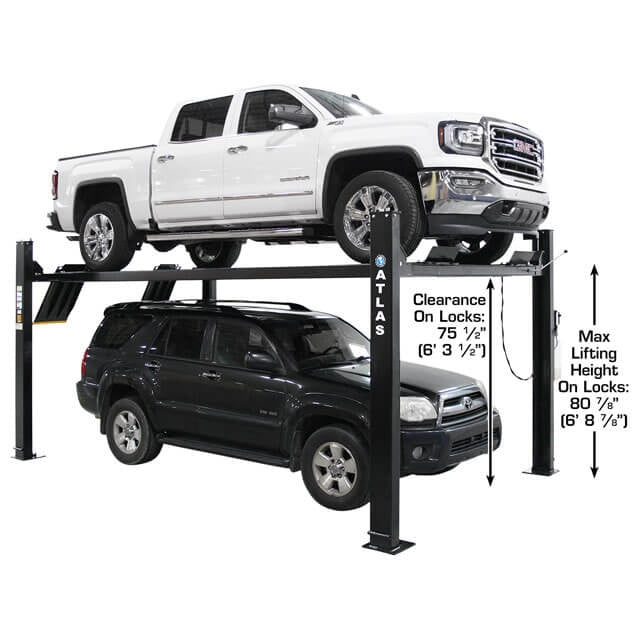

| Clearance Under Runways |
81 1/4" (6' 9 1/4") |
| Height of Columns |
99" (8' 3") |
| Overall Width (Without Motor or Casters) |
121 7/8" (10' 1 7/8") |
| Overall Width (With Motor) |
133 7/8" (11' 1 7/8") |
| Overall Length without Approach Ramps (Including Lock Release Bar) |
204" (17") |
| Overall Length with Approach Ramps |
227 1/2" (18' 11 1/2") |
| Approach Ramps |
31 1/2" |

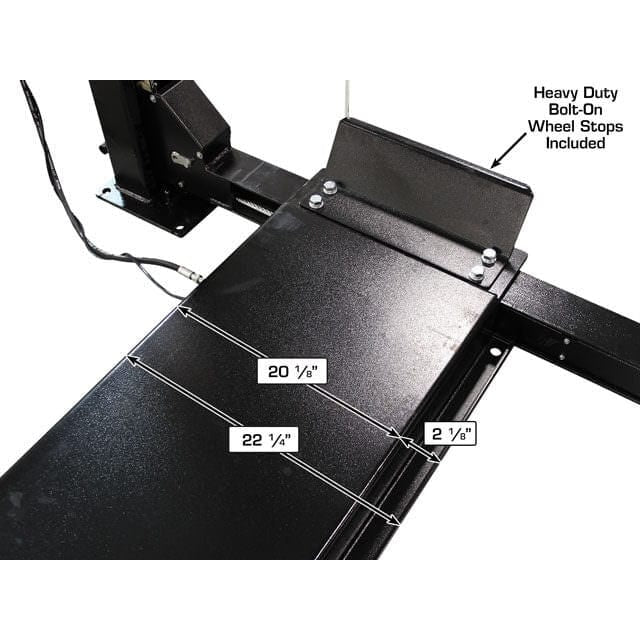

| Runway Width |
20 1/8" |
| Runway Rail Width |
2" |
| Runway Length |
196 1/2" (16' 4 1/2") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
38 7/8" (3' 2 7/8") |
| Width Between Runway Rails |
34 3/4" (2' 10 3/4") |
| Outside Runway to Outside Runway |
79" (6' 7") |

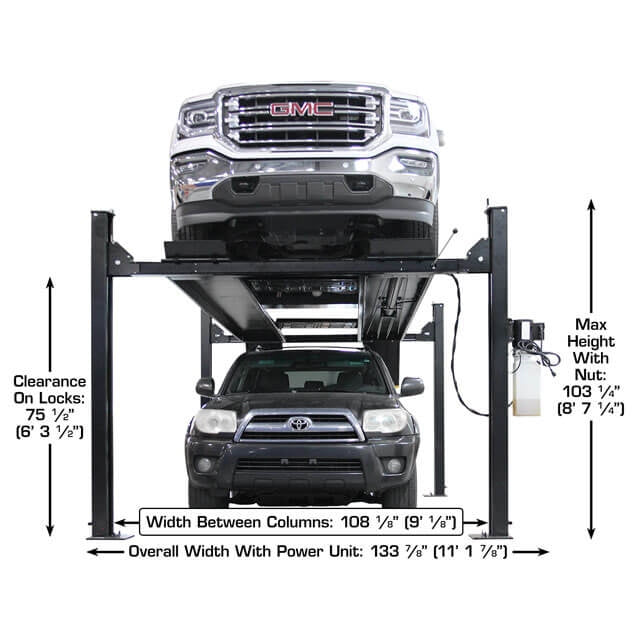

| Clearance Between Columns |
108 1/8" (9' 1/8") |

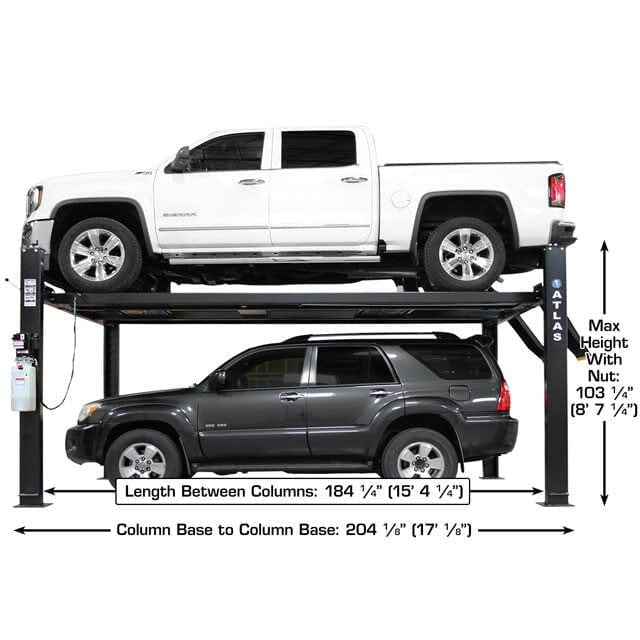

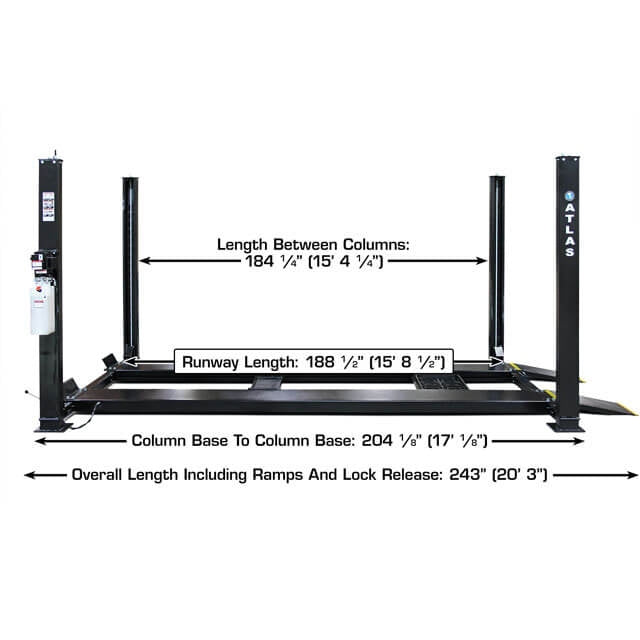

| Length Between Columns |
184 1/4" (15' 4 1/4") |
| Maximum Wheel Base |
184" (15' 4") |

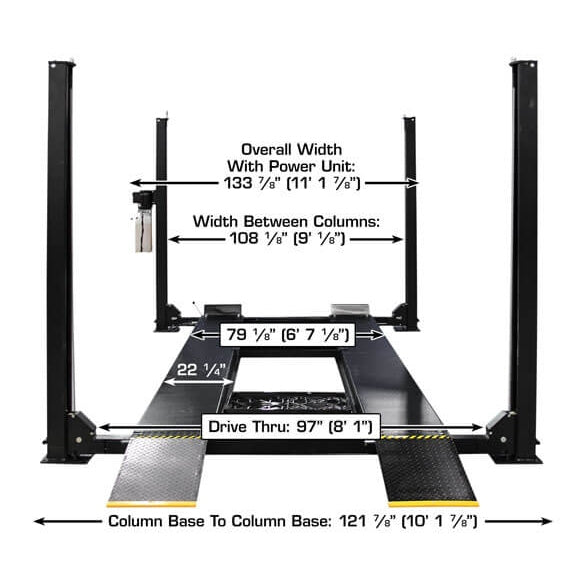

| Drive Thru (Outside of tire to outside of tire) |
98 5/8" (8' 2 5/8") |
| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |

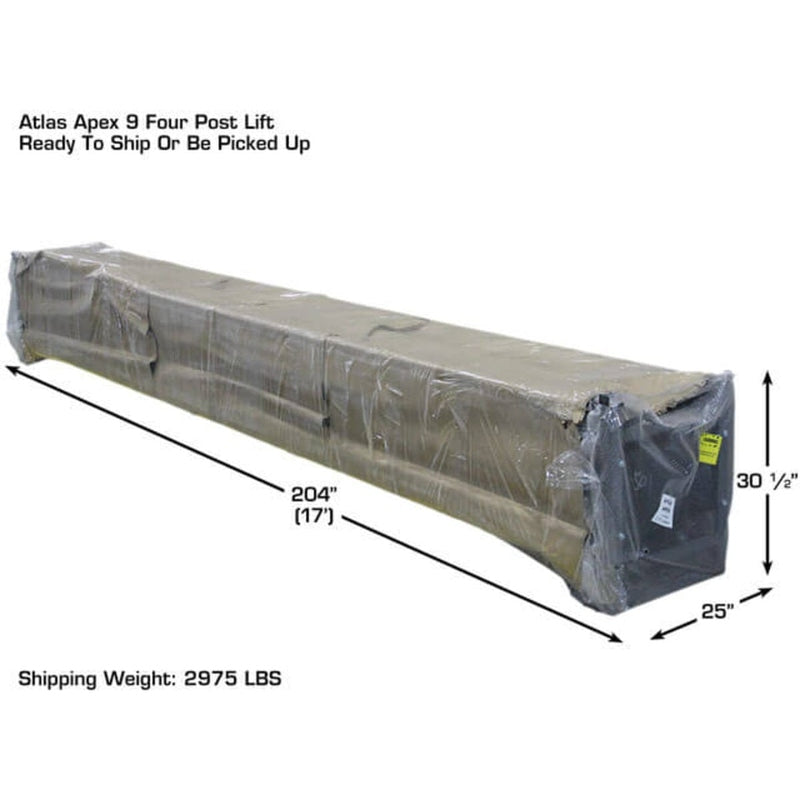

| Shipping Weight |
2,975 lb. |
Atlas® RJ6
| Maximum Capacity |
6,000 lb. |

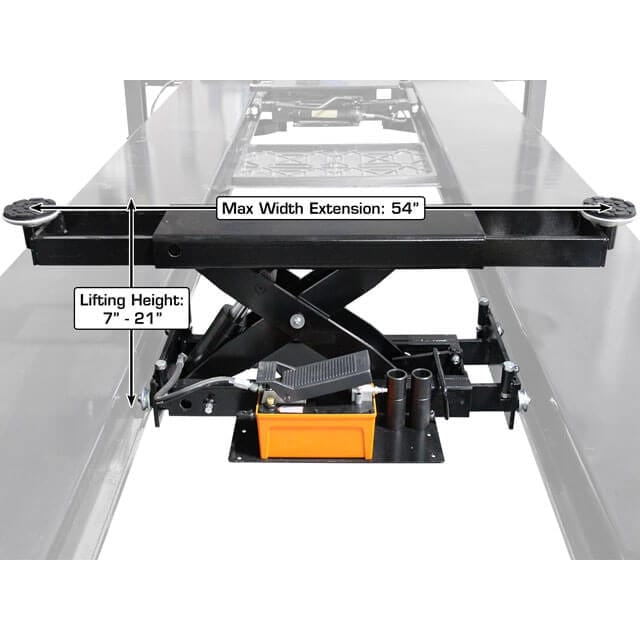

| Maximum Width |
55" (4' 7") |

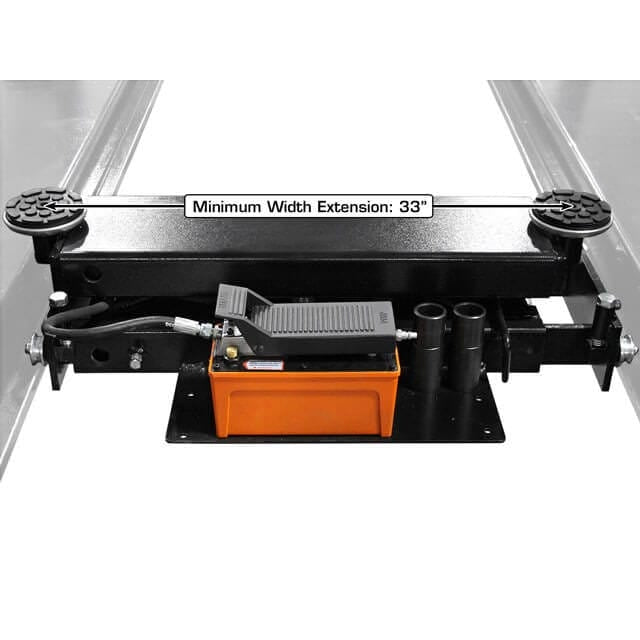

| Minimum Width |
35" (2' 11") |
| Distance Between Runway Capability |
32"-52" |

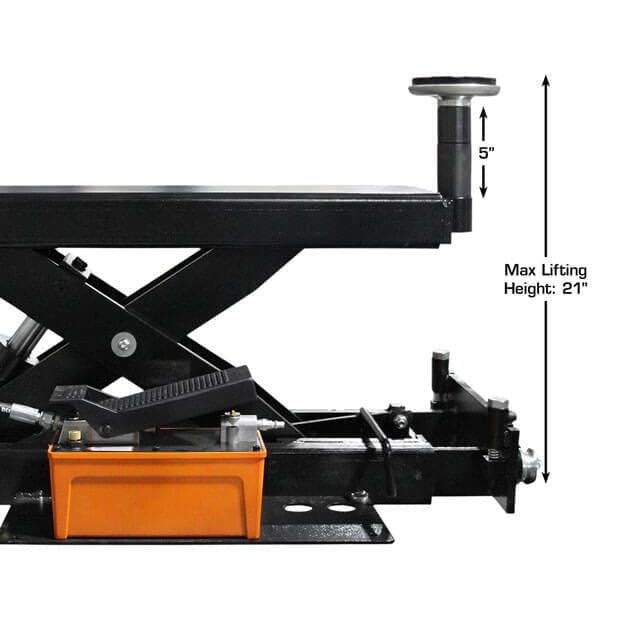

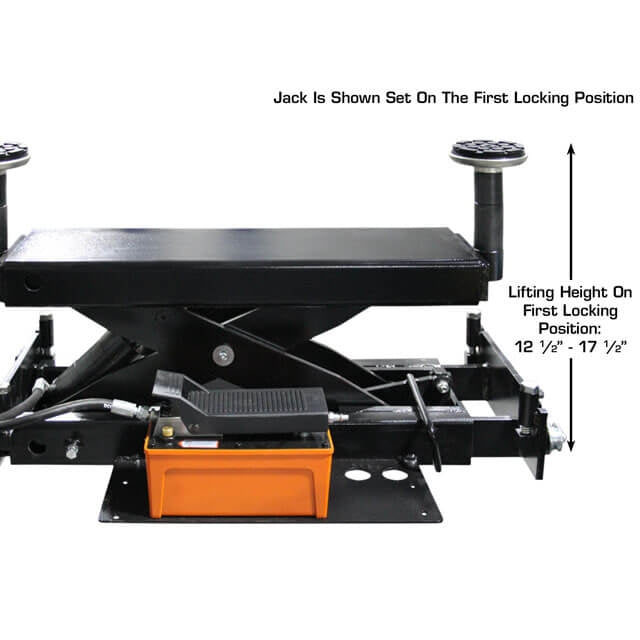

| Maximum Lifting Height (With Adapters) |
21" (1' 9") |
| Air Requirement |
70-115 PSI |
| Shipping Weight |
350 lbs. |
| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
