Atlas ALI Certified Complete Alignment Kit

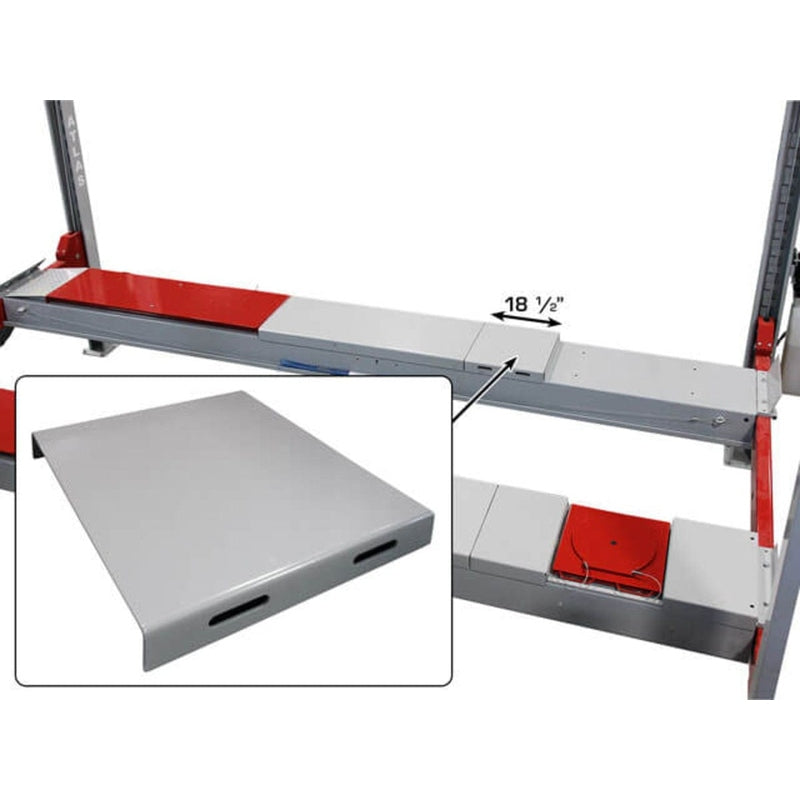

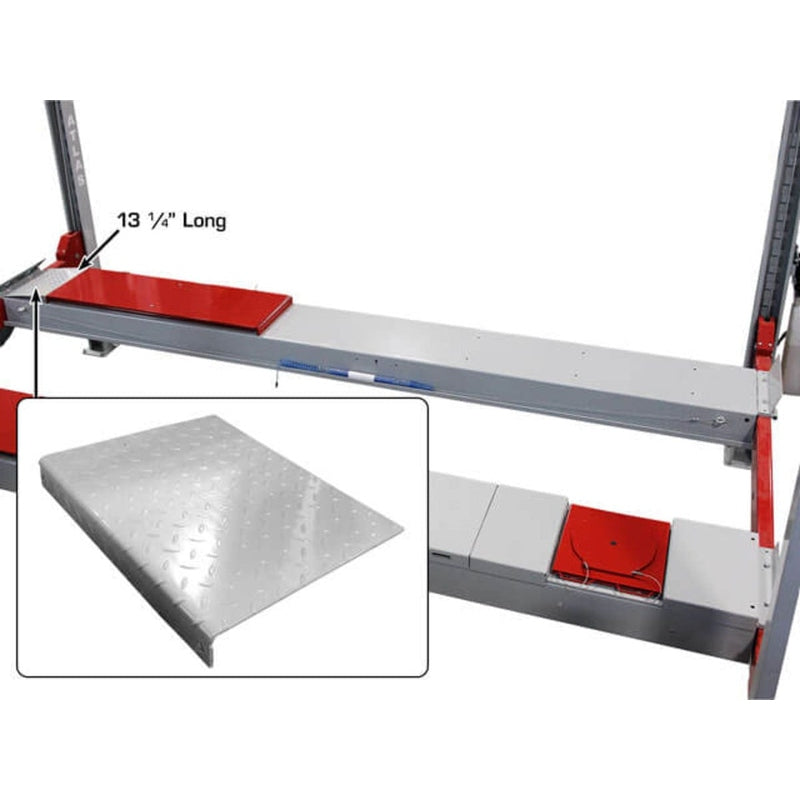

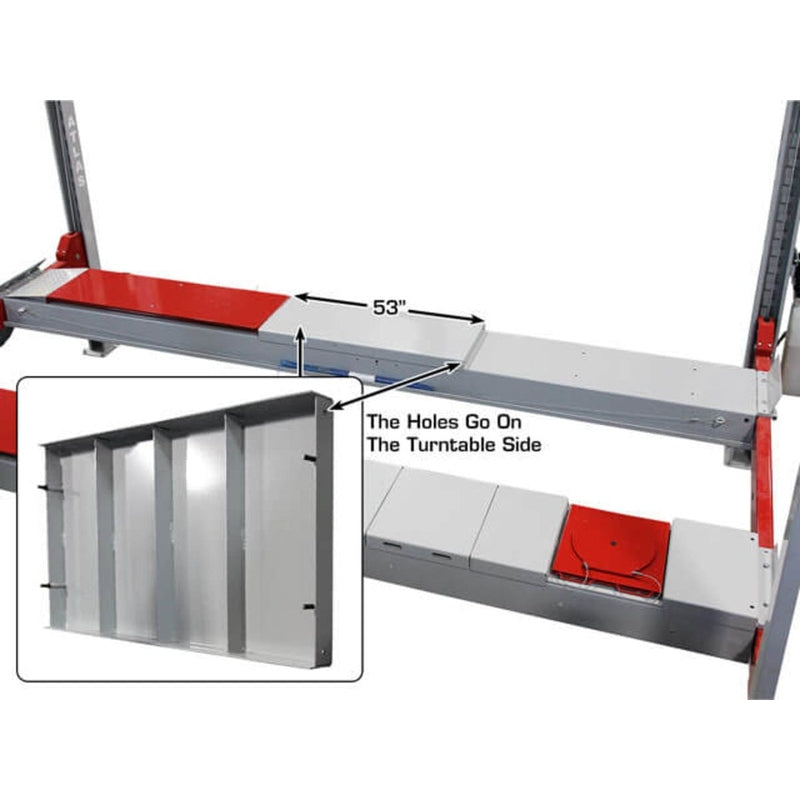

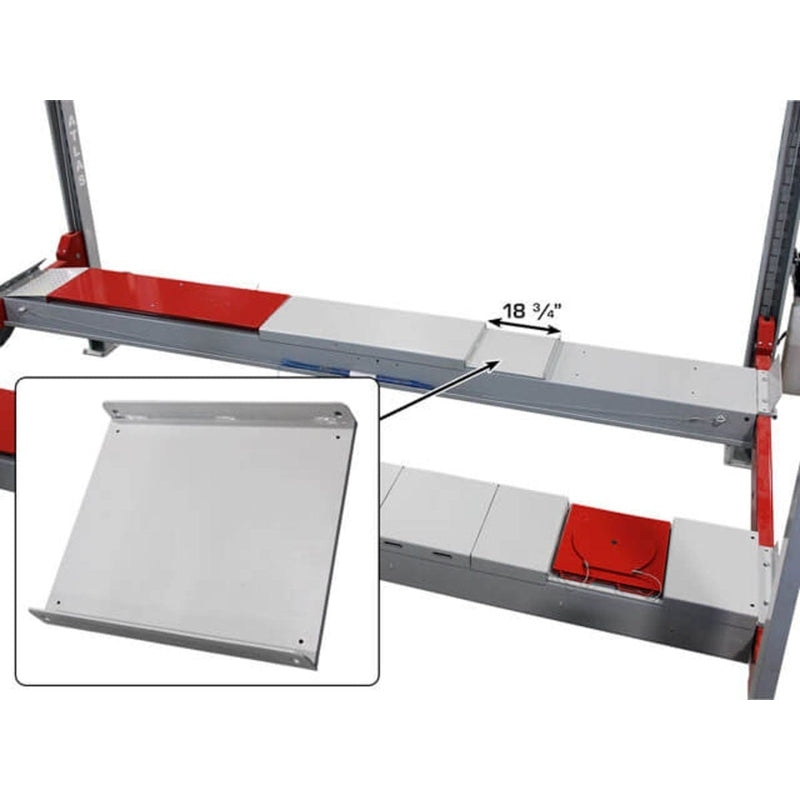

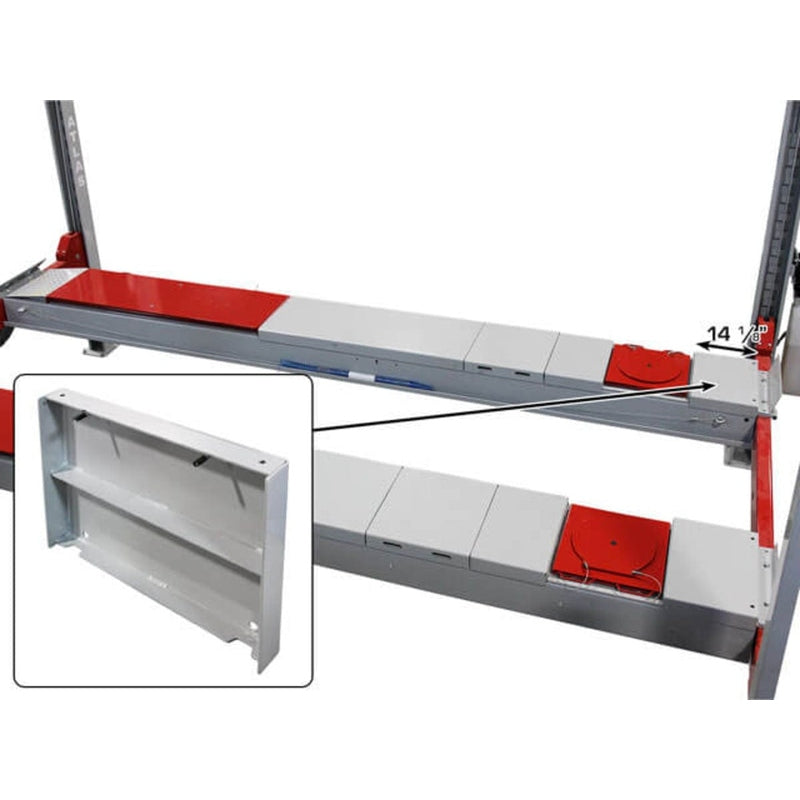

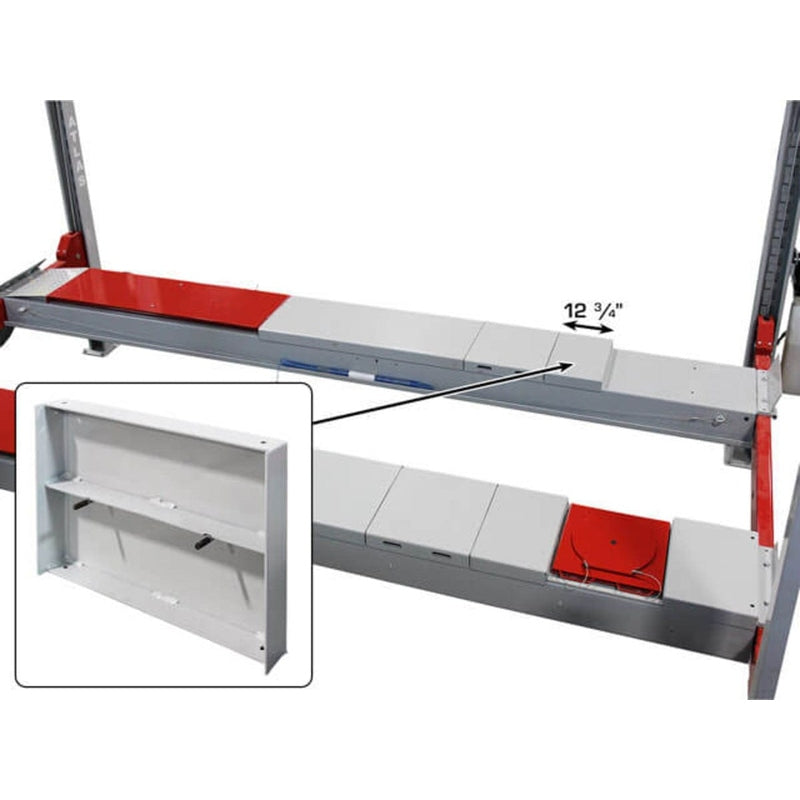

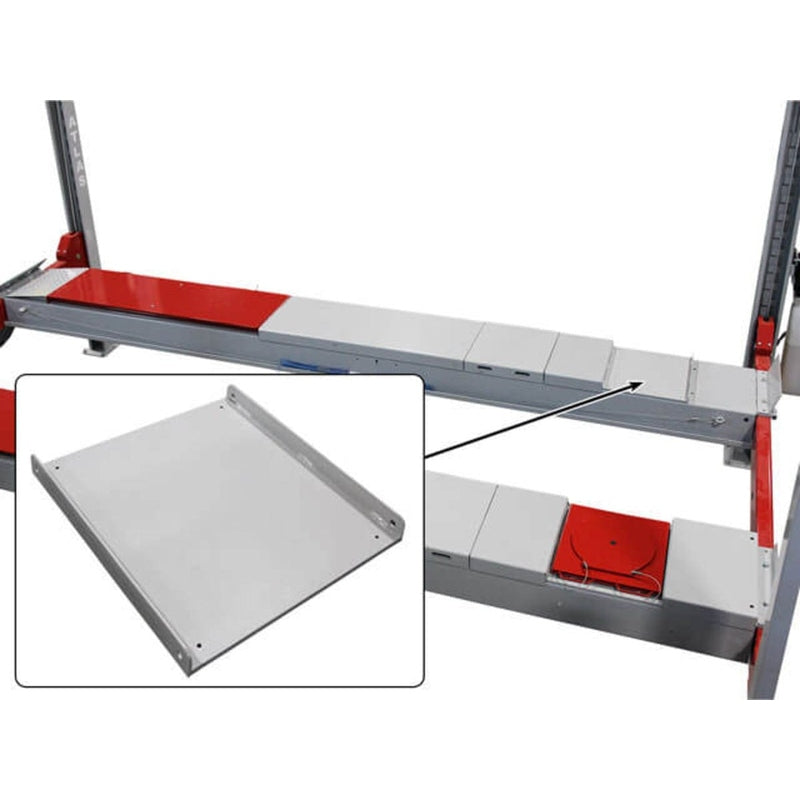

The Atlas Platinum Alignment Kit is an ALI Certified alignment accessory that bolts onto the Atlas Platinum PVL14 four-post lift — or other compatible commercial-grade four-post lifts — converting a standard service lift into a full alignment platform without purchasing a dedicated alignment rack. It includes heavy-duty ball-bearing slip plates, two heavy-duty turntables, and all necessary ramps and spacers for installation. Backed by a 1-year parts warranty. Delivery requires access for a 53-foot truck.

The design addresses the main maintenance problem with built-in alignment systems. Most permanent alignment kits are recessed into the lift runways, where dirt, road salt, chemicals, and debris pack into the turntable and slip plate mechanisms and are difficult to clear without dismantling the runway. The Atlas Platinum kit mounts above the runway surface rather than recessed into it, keeping the moving parts accessible for routine cleaning without special tooling. Even when permanently installed, the entire kit removes with standard bolts for a thorough periodic service of all moving components — a maintenance access point that flush-mount systems don't offer. The rear slip plate runs on 1-inch diameter steel roller bearings for smooth, consistent movement under load.

The Atlas Platinum Alignment Kit is the right fit for shops that already own a compatible four-post lift and want to add alignment capability without a second rack, service facilities that perform alignment work often enough to justify dedicated equipment but not often enough to dedicate a bay to a fixed alignment lift, and anyone who wants the serviceability advantage of an above-runway alignment system over the recessed designs found on most dedicated alignment lifts.

Features

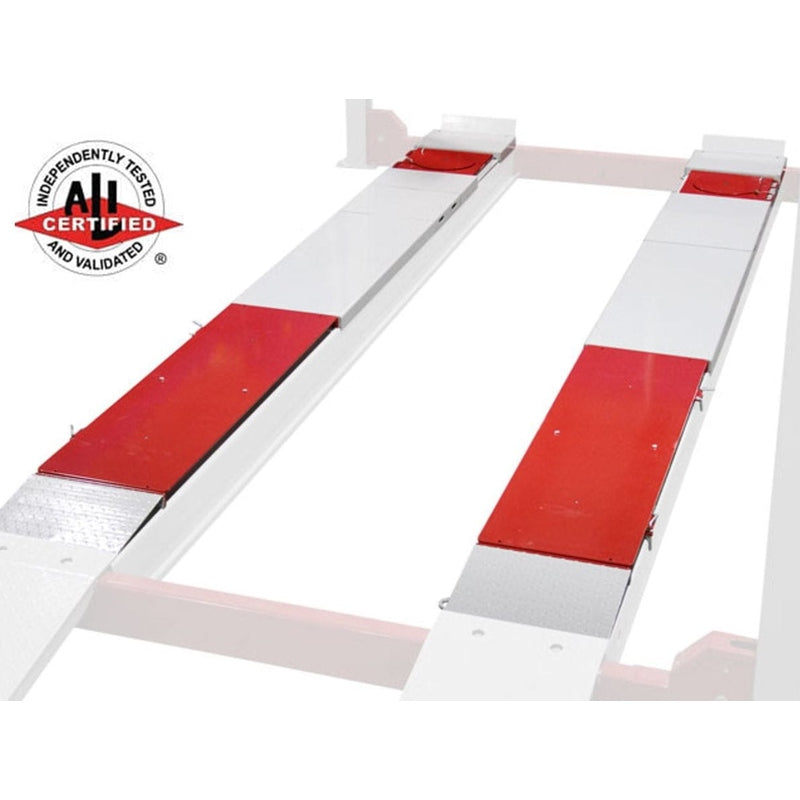

• ALI certified accessory

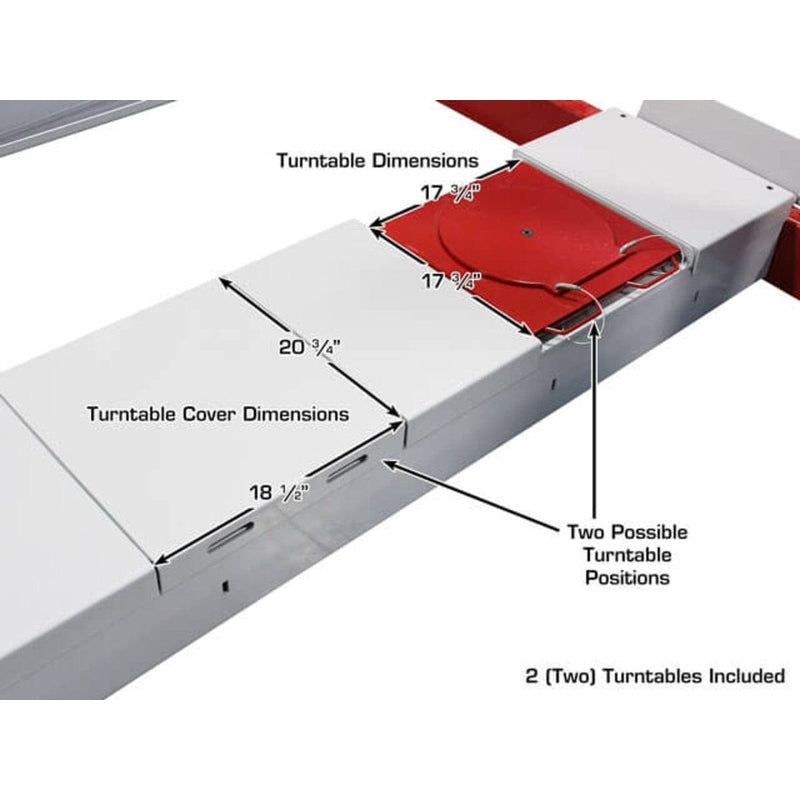

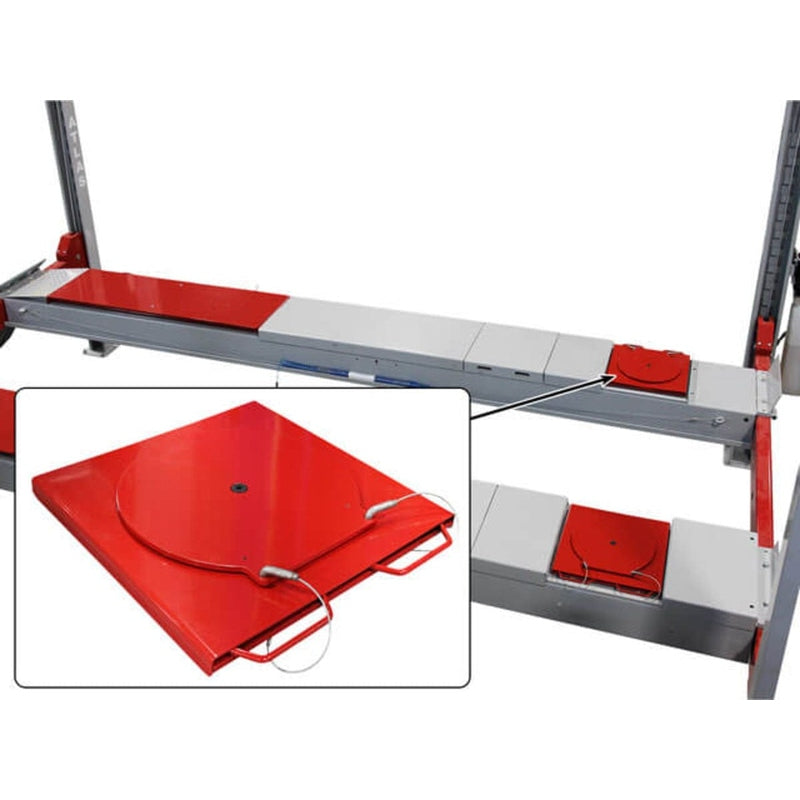

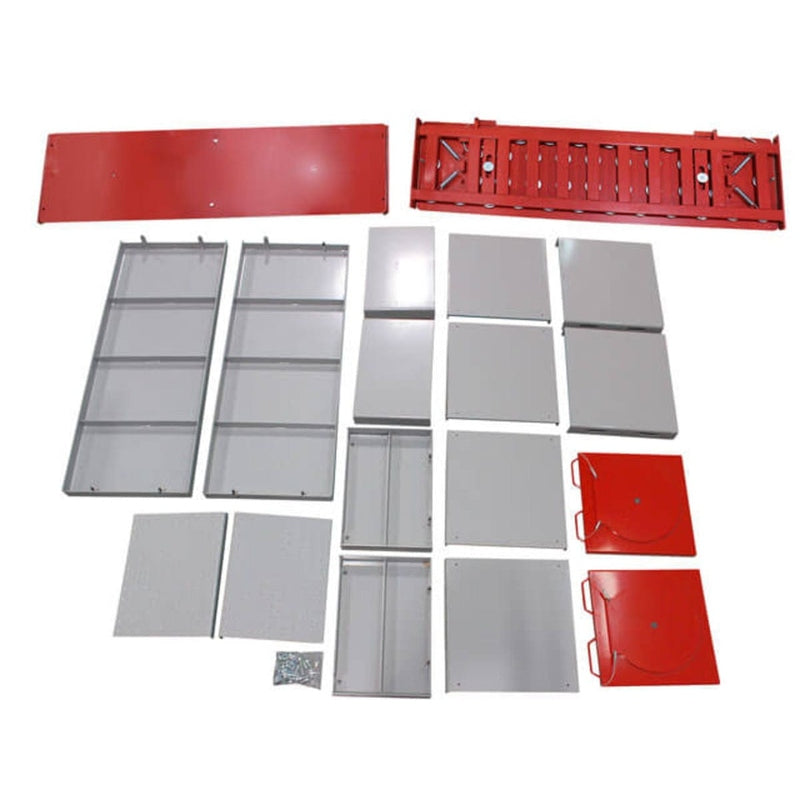

• Includes slip plates and turntables

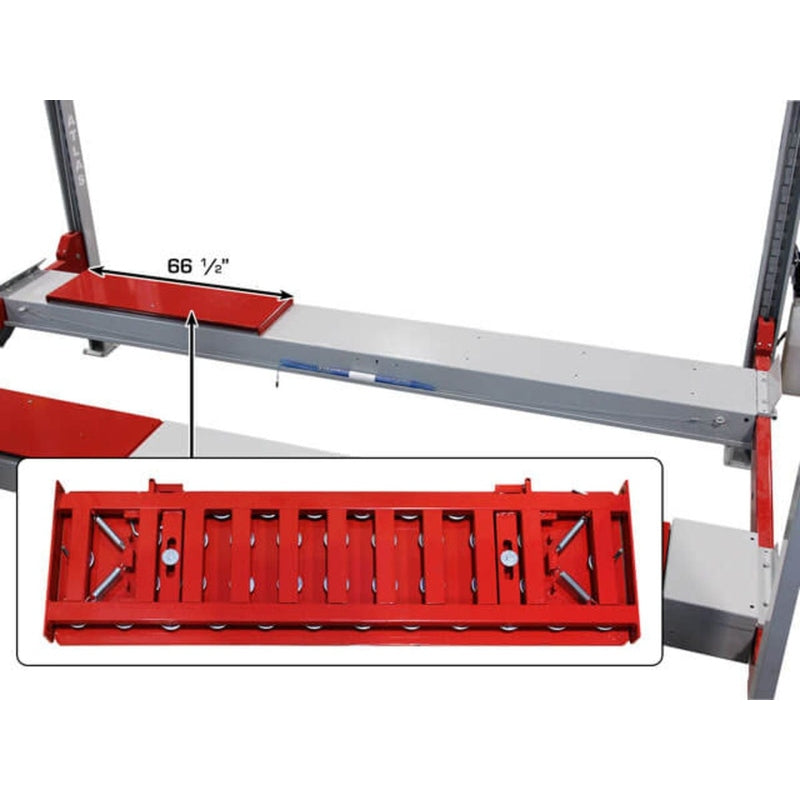

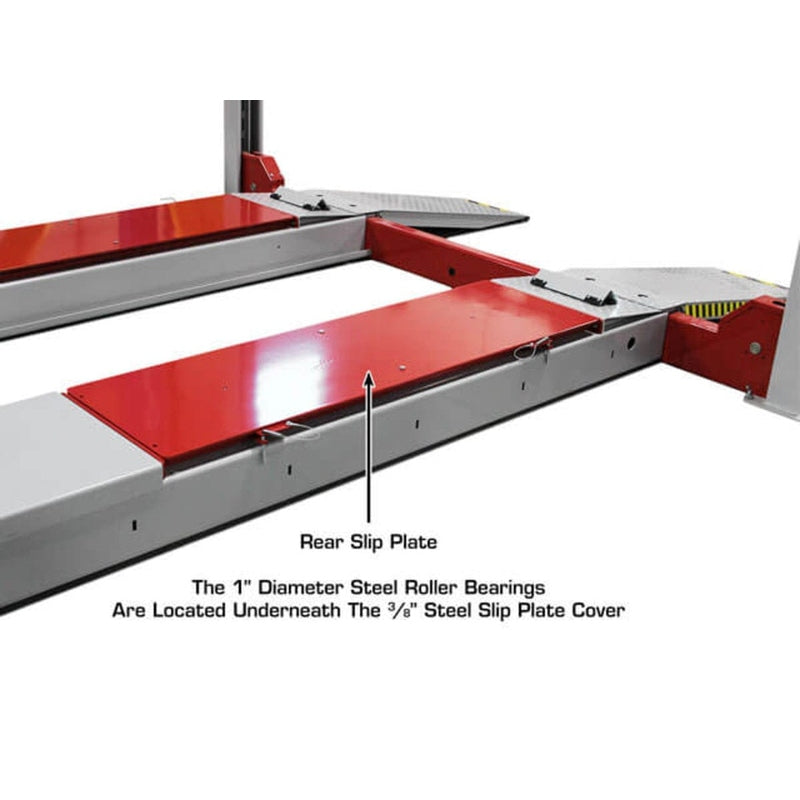

• 1" diameter steel roller bearings on rear slip plate for smooth, precise movement
• Removable and reinstallable as needed for flexible use
• Shipping weight: 1,000 lbs
• 1-year parts-only warranty

Specifications

Documents

Atlas Platinum Alignment Kit Manual
