Atlas Apex 9 9,000 lb 4-Post Lift with Two RJ45A Rolling Bridge Jacks Combo
Original price
$9,699.00
-
Original price
$9,699.00
Original price
$9,699.00
$9,699.00
-
$9,699.00
Current price
$9,699.00
| /

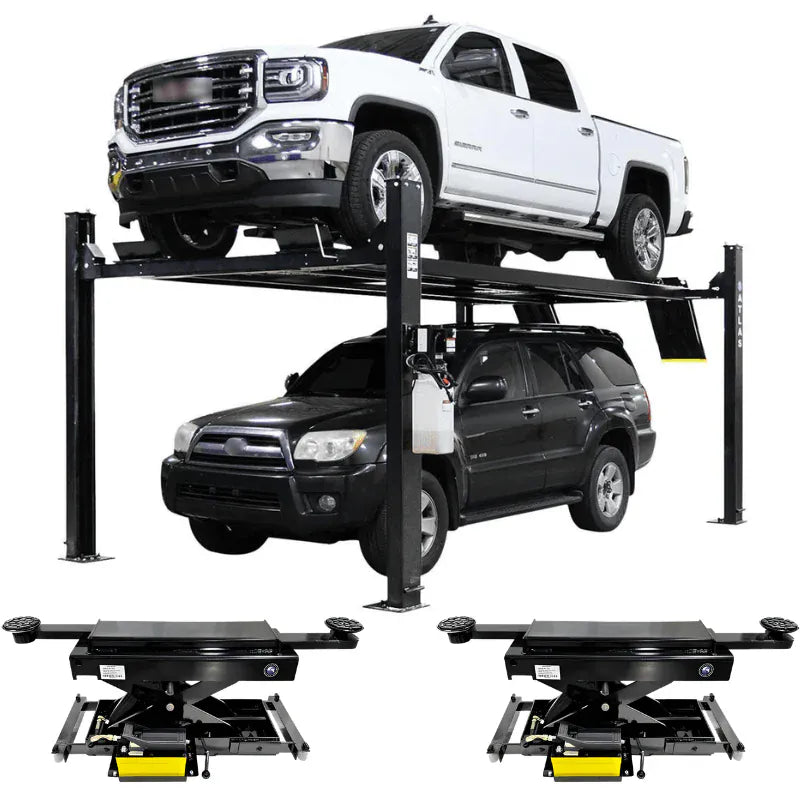

The Atlas APEX9 and RJ45A bundles an ALI Certified 9,000 lb four-post lift with two 4,500 lb air/hydraulic rolling bridge jacks β sized specifically for full-size trucks, SUVs, and crew cabs that smaller four-post lifts can't accommodate on width or length. The lift reaches 86 inches at the top of the runway with 81.25 inches of clearance underneath, enough to park a full-size vehicle below while another sits raised overhead. It runs on a 110V motor on a 30-amp dedicated circuit β standard residential service without a panel upgrade. Note: 3β5 gallons of AW32 or AW46 hydraulic fluid are required for operation and are not included. Delivery requires access for a 53-foot truck.
The APEX9's diamond-plated steel runways provide traction during loading, and the 16-position lock ladder with single-point release and double-lock safety system holds the lift securely at any working height. The two RJ45A rolling bridge jacks are air/hydraulic operated (external air supply required) with a 4,500 lb capacity each and a scissor mechanism for level lifting β they ride the runway tracks to position under the vehicle's axles or subframe for wheels-off work, suspension service, brake jobs, and tire rotations without pulling the vehicle off the rack. Having two jacks included means both axles can be unloaded simultaneously rather than repositioning a single jack between front and rear.
This bundle is built for home garage owners and commercial service bays running full-size trucks and SUVs who want a single lift that handles both overhead storage and full-service work, and for anyone stepping up from a smaller four-post who needs the runway width and length to actually load a crew cab dually without hanging off the edges.
What's Included
Atlas Apex 9 4-post lift
Two RJ45A 4,500-lb rolling bridge jacks
Steel approach ramps
Steel jack tray
Four plastic drip trays
Two rubber wheel chocks
Two 4-piece truck adapter sets (one per rolling jack)
Two 1 1/4" and two 5" chrome adapters per jack, with 1 3/8" lift pads
Features
Atlas Apex 9 Four-Post LiftΒ
9,000 lb lifting capacity

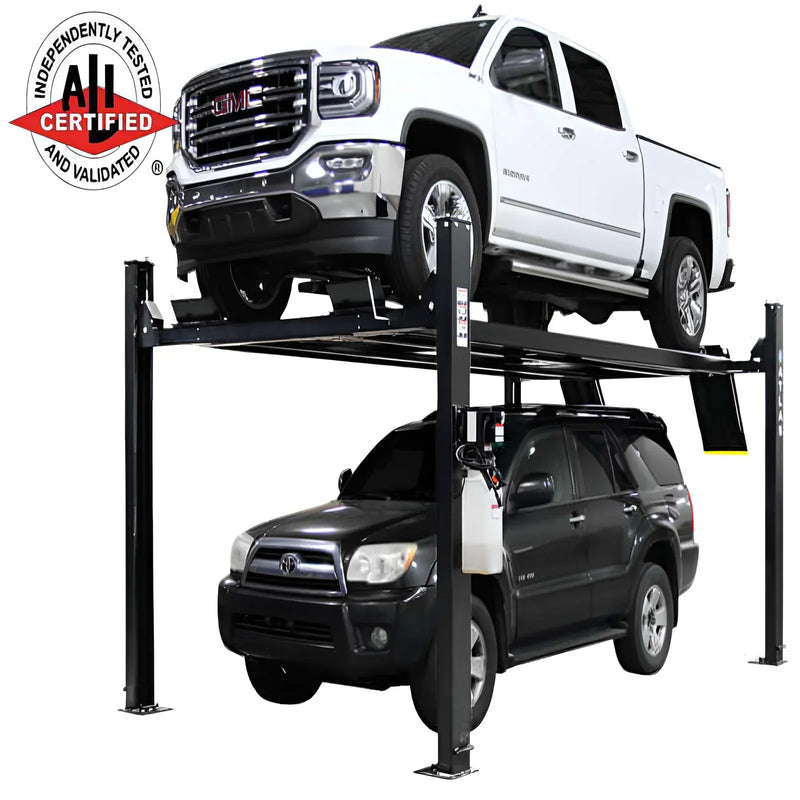

ALI certified β independently tested and validated

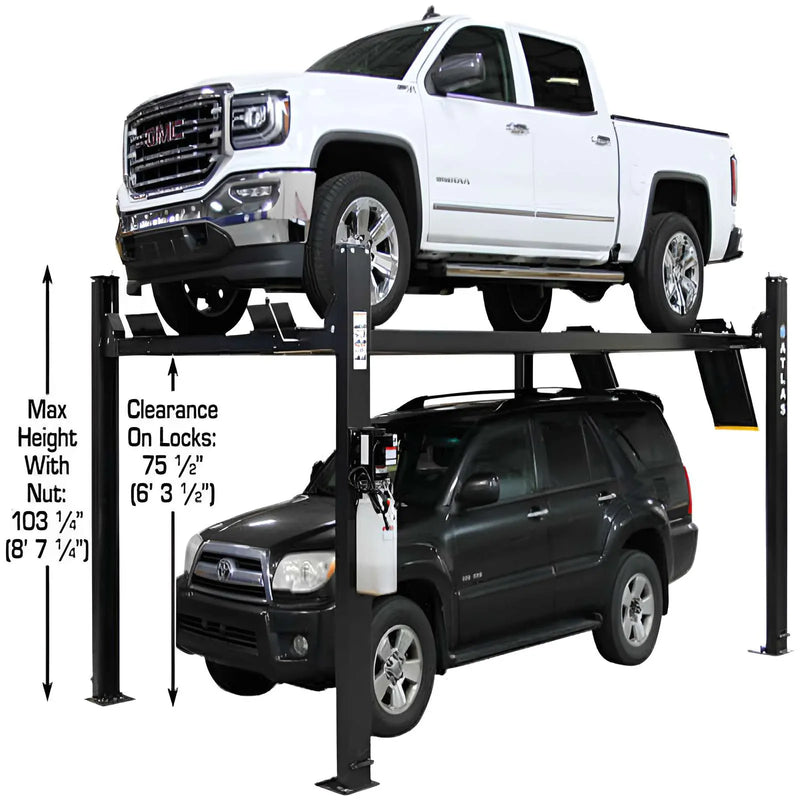

86" maximum lifting height at top of runway (7'2")
81ΒΌ" clearance under runways (6'9ΒΌ")
Diamond-plated steel runways
Single-point lock release
Lock ladder with 16 locking positions and double lock safety system
Durable powder-coat finish
110V operation on a 30-amp breaker
Free-standing, portable design for flexible shop placement
Compact, low-profile body sized for runway clearance
Adjustable lift arms from 30" to 60Β½" pad-to-pad
Fits runway openings from 36" to 54"
Nylon rollers and steel wheel for smooth, effortless movement
4-piece truck adapter set included with each jack
1-year parts warranty
Specificationsc
Atlas Apex 9 4-Post Lift Specifications
Capacity
9,000 lbs
Lifting Height (top of runway)
86" (7' 2")
Clearance Under Runways
81 1/4" (6' 9 1/4")
Height of Columns
99" (8' 3")

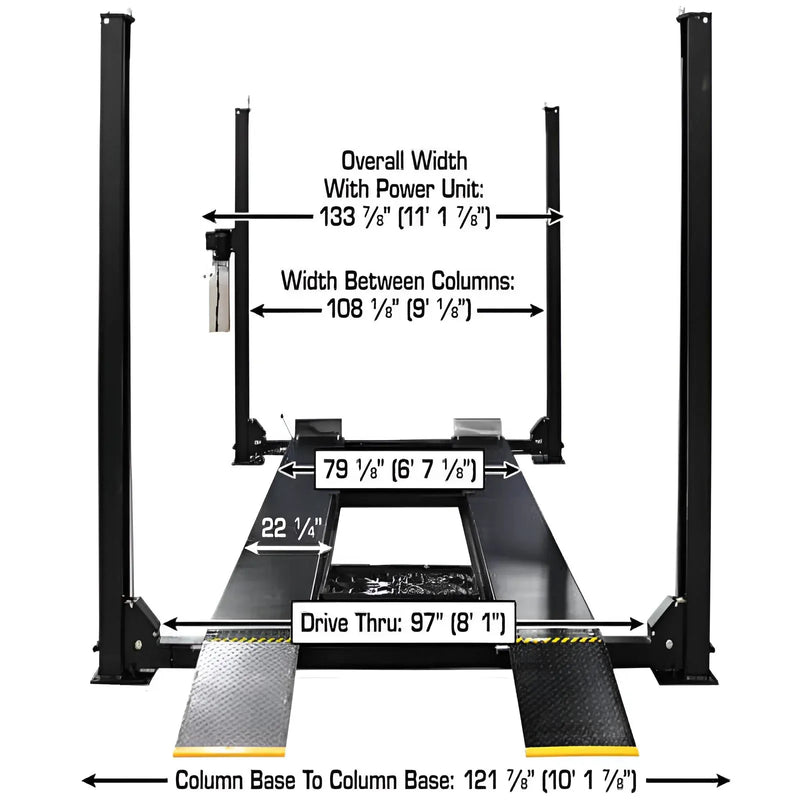

Overall Width
121 7/8" (10' 1 7/8") β 133 7/8" (11' 1 7/8") with motor
Overall Length with Ramps
227 1/2" (18' 11 1/2")
Runway Length
196 1/2" (16' 4 1/2")
Runway Width
20 1/8"
Runway Thickness
4 3/4"
Width Between Runways
38 7/8" β 34 3/4" with rail
Outside Runway to Outside Runway
79" (6' 7")
Clearance Between Columns
108 1/8" (9' 1/8")
Length Between Columns
184 1/4" (15' 4 1/4")
Drive-Thru Width
98 5/8" (8' 2 5/8")
Motor / Electrical
110V, 30-amp breaker required
Hydraulic Oil
3β5 gallons AW32 or AW46 (not included)
Shipping Weight
2,975 lbs
Pallet Size
204"L x 30 1/2"H x 25"W
Warranty
5-year structural / 2-year hydraulic, parts only
110V, 30-amp dedicated circuit required. Hydraulic oil sold separately.

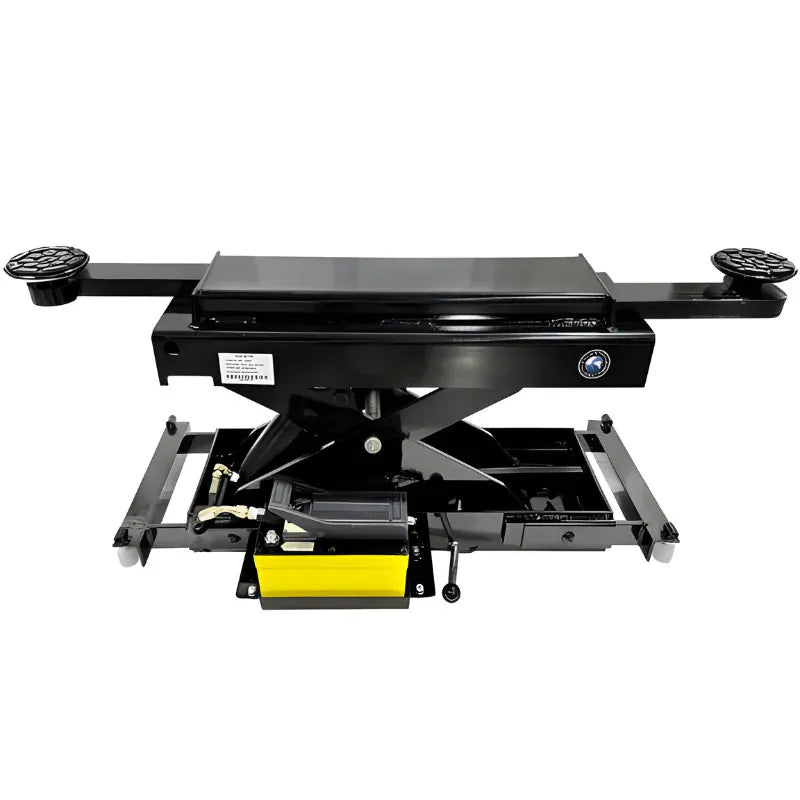

Atlas RJ45A Rolling Bridge Jack Specifications
Capacity
4,500 lbs
Minimum Width (Roller Arms)
36"
Maximum Width (Roller Arms)
54"

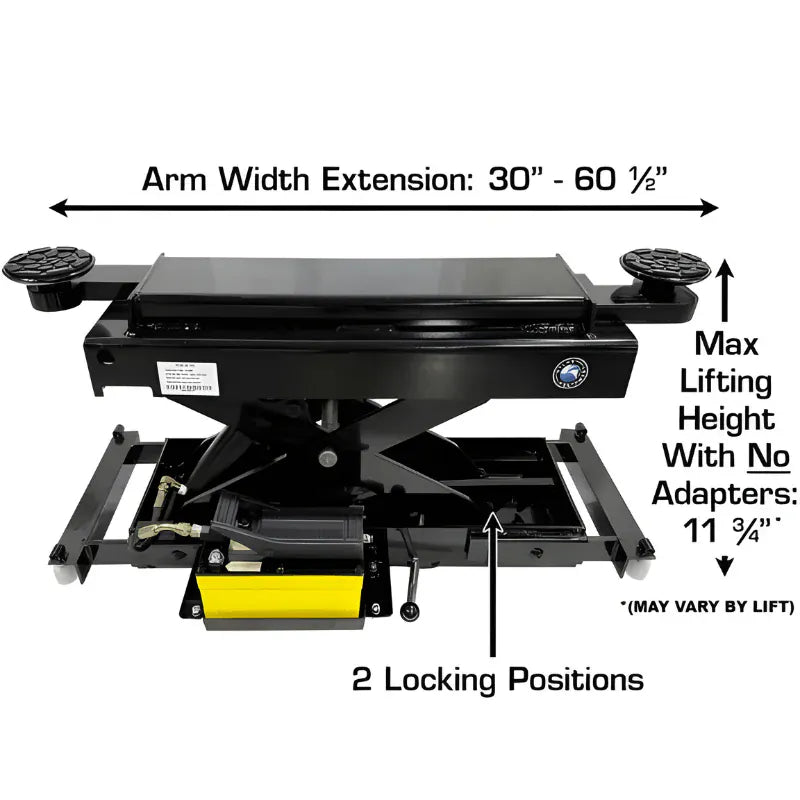

Lift Arm Width (center of pad)
30" β 60 1/2"
Air Requirement
70β115 PSI
Arm Hole / Adapter Peg Size
1 1/2"
Adapter Heights
Two at 1 1/4" and two at 5"
Shipping Weight
380 lbs
Warranty
1-year parts only
External shop air supply required (not included). One 4-piece truck adapter set ships with each jack.
Shipping & Logistics
This combo ships via freight on multiple pallets β the Apex 9 lift in a 17-foot crate at 2,975 lbs, and each RJ45A in a 39 1/2" x 23 1/2" x 12 1/2" crate at 380 lbs. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
