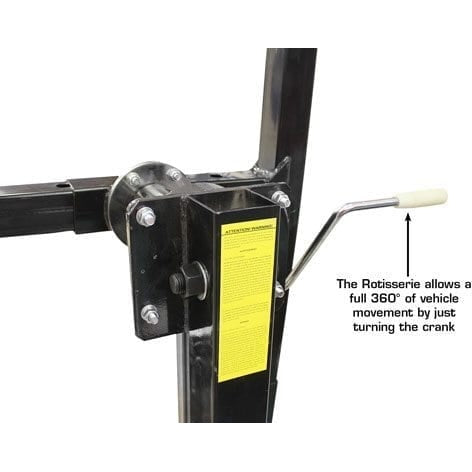

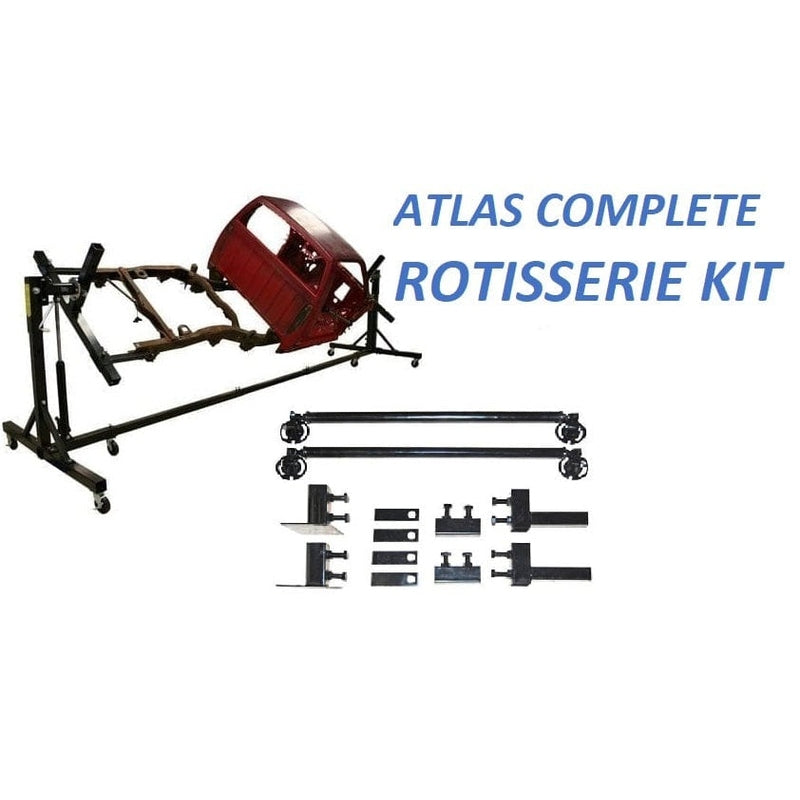

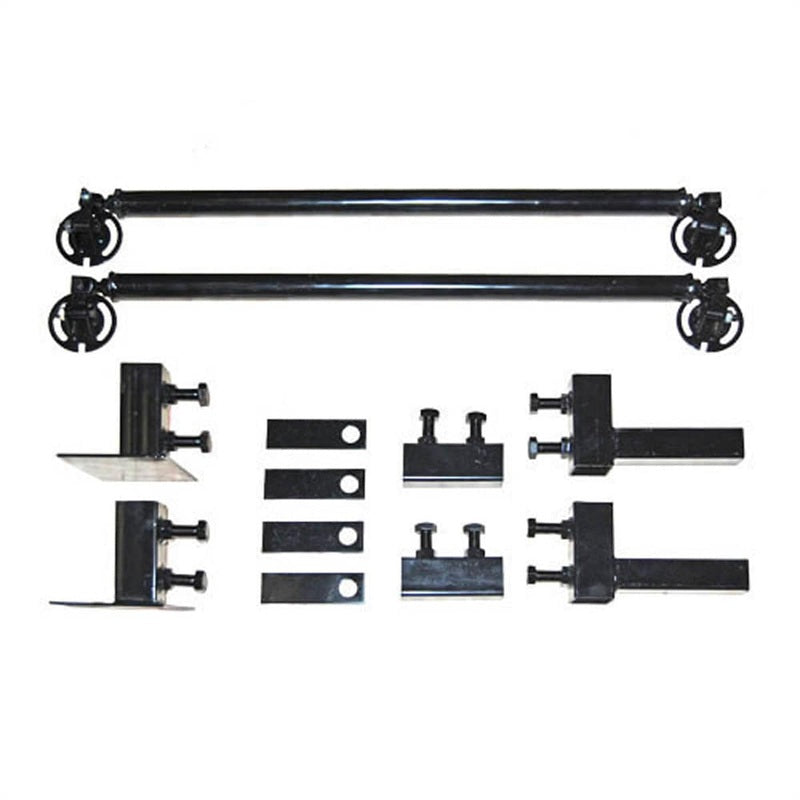

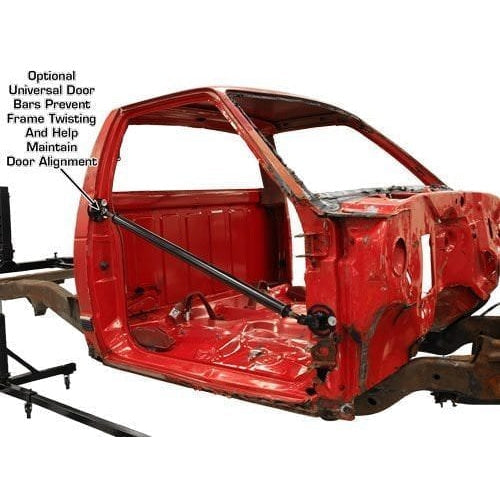

The Atlas Auto SPINS (Simple Position In Seconds) is a hydraulic auto body rotisserie that gives hobbyist and professional restorers 360 degrees of vehicle rotation from a hand crank — full access to every surface for welding, sandblasting, bodywork, and undercoating without repositioning jack stands between passes. This bundle includes the complete adapter kit: valance adapters, unibody adapters, leaf spring brackets, and door bars, covering the mounting configurations needed for both body-on-frame and unibody vehicles without sourcing hardware separately.

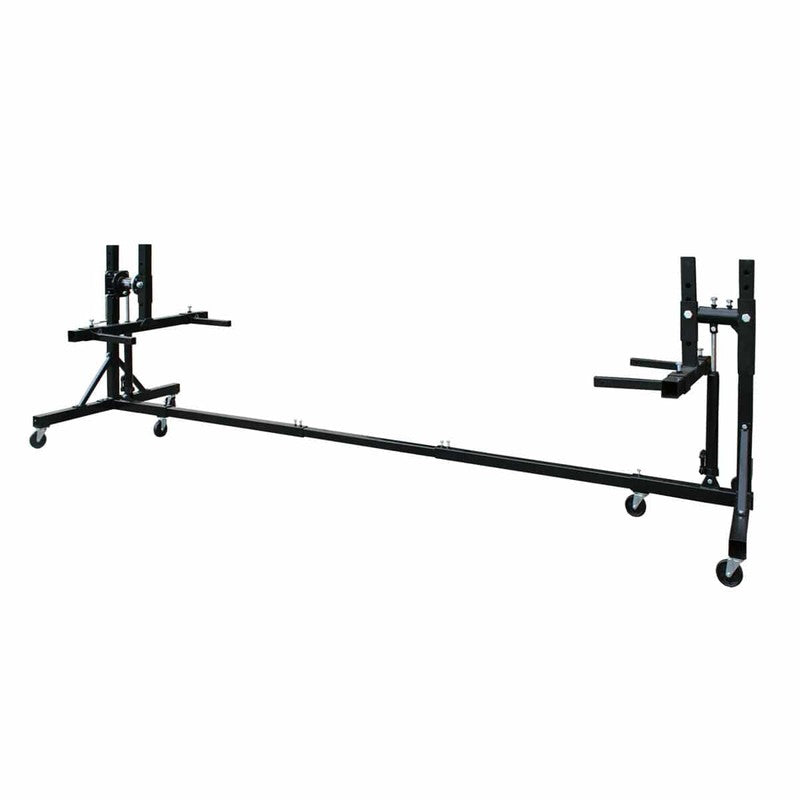

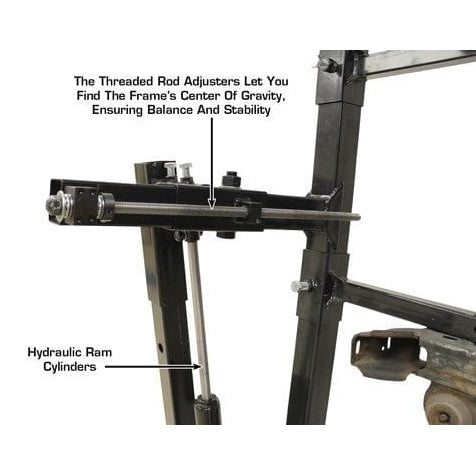

Two hydraulic rams handle height adjustment and initial mounting — the body or frame lifts directly from jack stands to working height without additional equipment. Threaded rod adjusters locate the frame's true center of gravity before rotation begins, preventing an unbalanced body from swinging under its own weight mid-job. The frame adjusts in width, length, and height to fit a range of vehicle sizes, and three 6-inch polyurethane swivel casters on each end let the loaded rotisserie reposition on a concrete floor without unloading the vehicle first.
The Atlas SPINS with adapter kit is built for restoration shops that work across a mix of vehicle types — full-frame trucks, unibody passenger cars, and everything between — where having the right mounting hardware on hand for each job matters as much as the rotisserie itself. It's equally well suited for serious hobbyist restorers doing a single full body-off project who want a complete, ready-to-mount setup rather than discovering missing adapters after the rotisserie arrives.
Features
- 360° of movement for full maneuverability and precise positioning

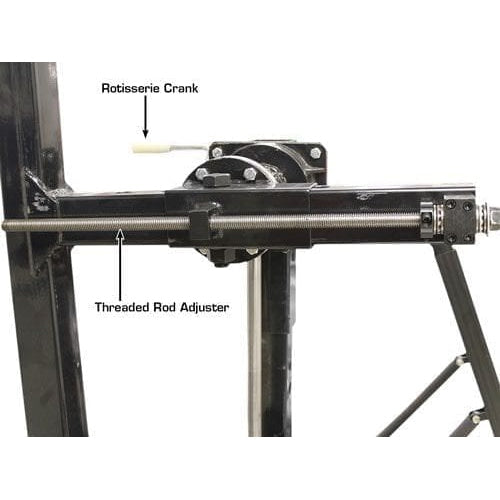

- Threaded rod adjuster simplifies locating the center of gravity
- Durable powder-coat finish
- Heavy-duty construction for long-term reliability

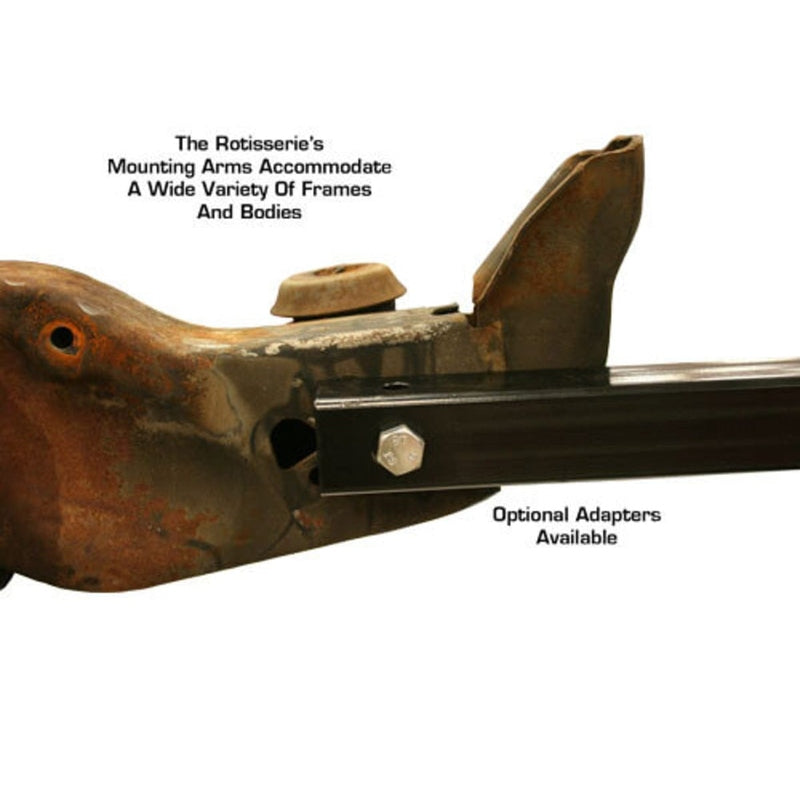

- Adjustable width, height, and centering to accommodate a variety of vehicles

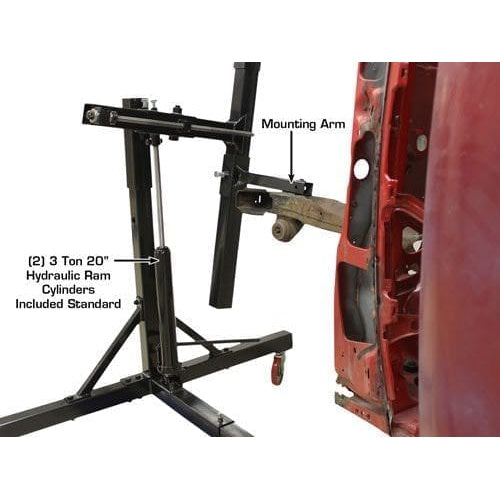

- Dual hydraulic rams for greater height adjustability

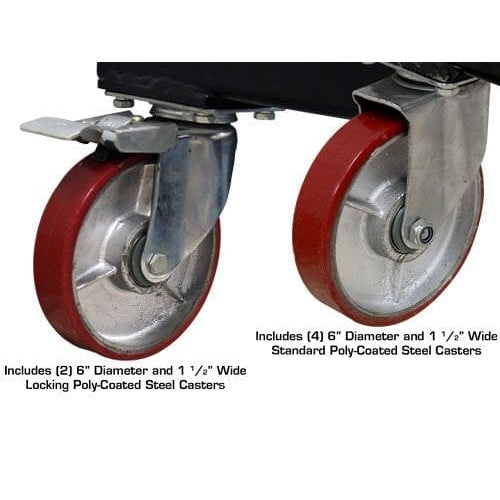

- 6" diameter, 1½" wide polyurethane swivel caster wheels for smooth, stable rolling
- 1-year parts-only warranty
Specifications
| Capacity |
3,000 LB. |
| Width (Mounting Brackets) |
14 1/4” – 48 3/4" |
| Width Capacity (Car or Truck Body) |
85” |

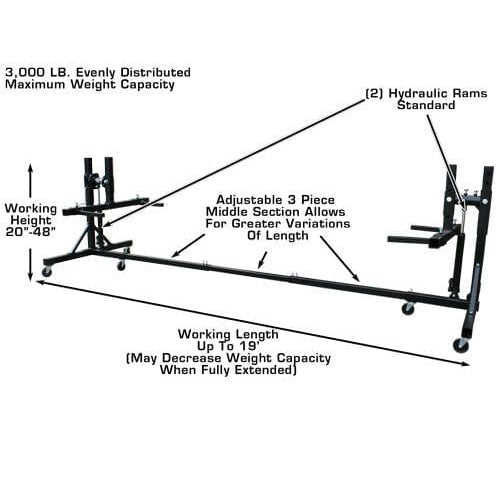

| Working Height |
20 1/2" – 48 1/2" |

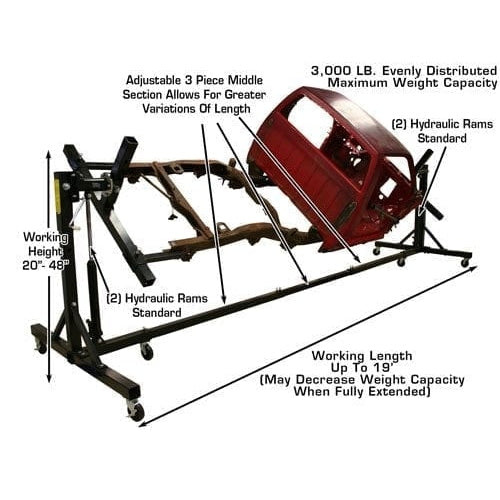

| Working Length (Weight Capacity Decreased at Full Extension) |
Up to 19’ |
| Ceiling Height Requirement |
8’ |
| Thickness of Steel |
1/8” or 9 Gauge |
| Construction of Main Structure |
3” x 3” Square Tubing |

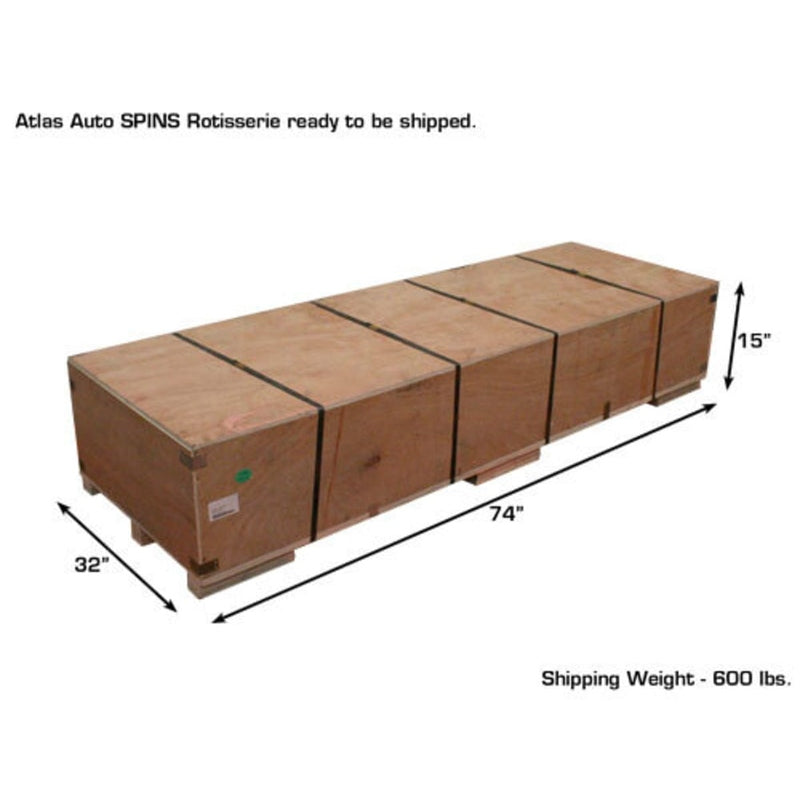

| Shipping Weight |
600 lbs. |
Documents
Atlas® Auto "SPINS" Rotisserie Manual
