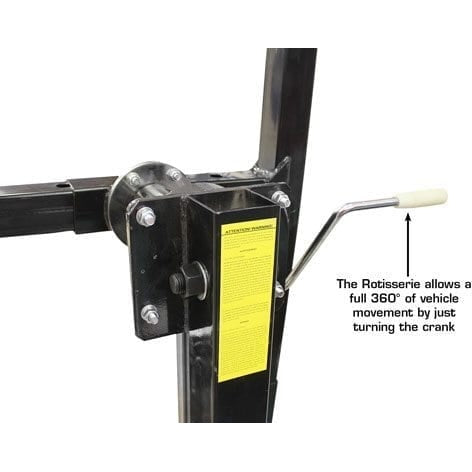

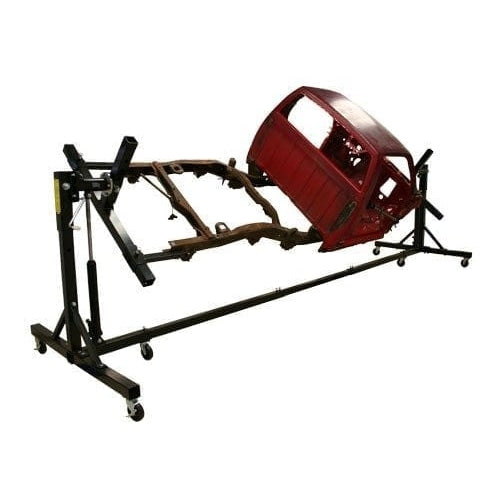

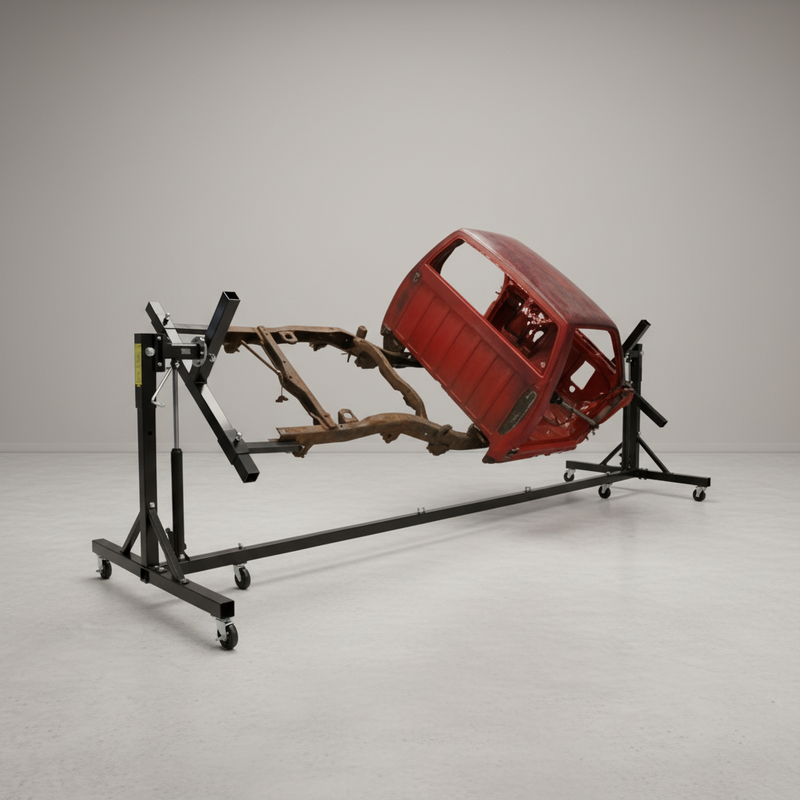

The Atlas Auto SPINS (Simple Position In Seconds) is a hydraulic auto body rotisserie built for hobbyist and professional restorers who need full access to every surface of a body or frame without repositioning jack stands between passes. Once the vehicle is mounted, a hand crank delivers 360 degrees of rotation — any angle, any surface, positioned in seconds rather than minutes. Two hydraulic rams handle the height adjustment, lifting the body or frame directly from jack stands to working height without additional equipment, and threaded rod adjusters let the operator locate the frame's true center of gravity before committing to rotation — the step that keeps an unbalanced body from swinging unexpectedly under its own weight.
The frame adjusts in width, length, and height to fit a wide range of vehicle bodies and frames, and three 6-inch polyurethane swivel casters on each end make the loaded rotisserie easy to reposition on a concrete floor without unloading the vehicle. The hydraulic height adjustment handles the heavy lifting on initial mounting — no floor jack choreography required to get the body seated at the right height. Specialty adapters are available separately for non-standard mounting configurations.
The Atlas SPINS is built for restoration shops processing multiple project vehicles who need a repeatable, stable rotation platform for welding, sandblasting, bodywork, and undercoating, and for serious hobbyist restorers tackling a full body-off restoration who want hands-free access to every surface without a second person holding the vehicle in position.
Features
- 360° of movement for full maneuverability and precise positioning

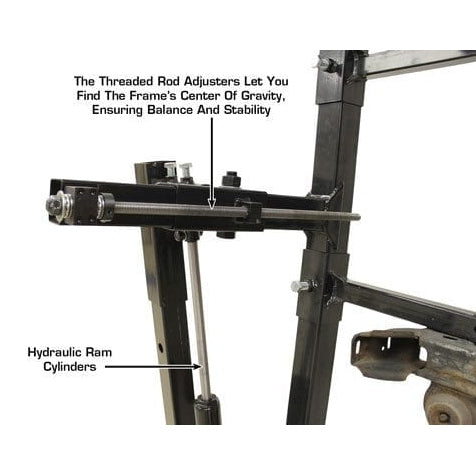

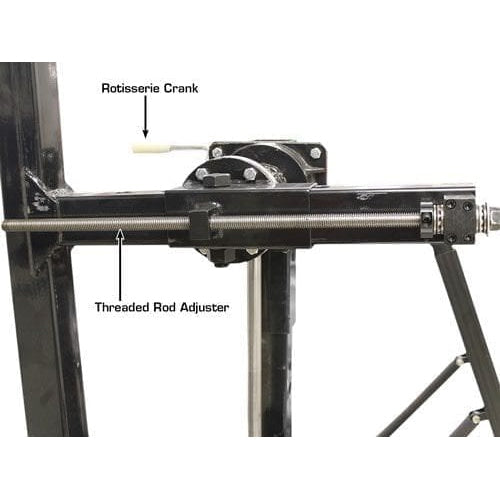

- Threaded rod adjuster simplifies locating the center of gravity
- Durable powder-coat finish
- Heavy-duty construction for long-term reliability

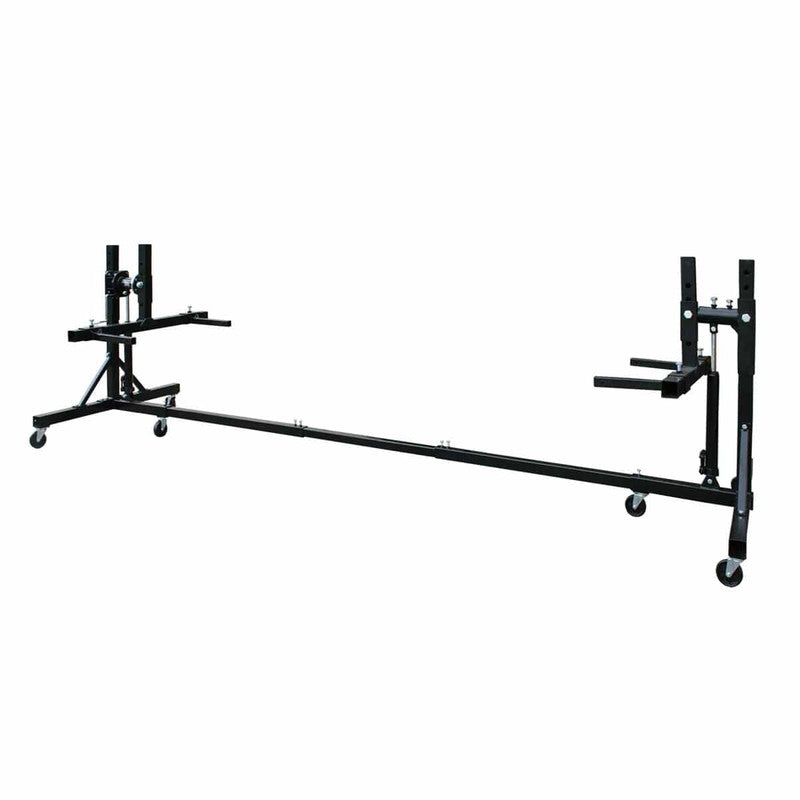

- Adjustable width, height, and centering to accommodate a variety of vehicles

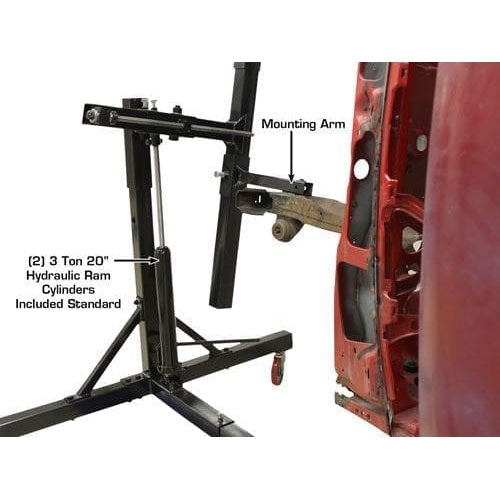

- Dual hydraulic rams for greater height adjustability

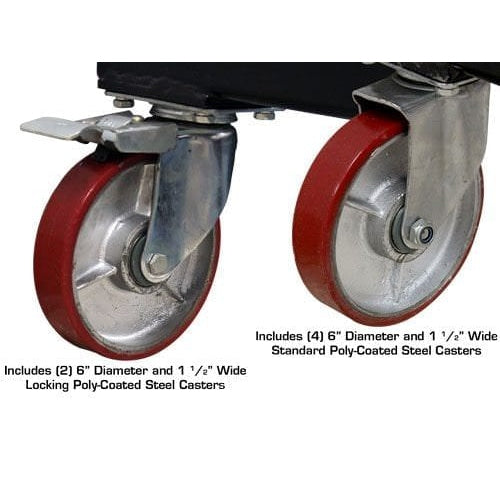

- 6" diameter, 1½" wide polyurethane swivel caster wheels for smooth, stable rolling

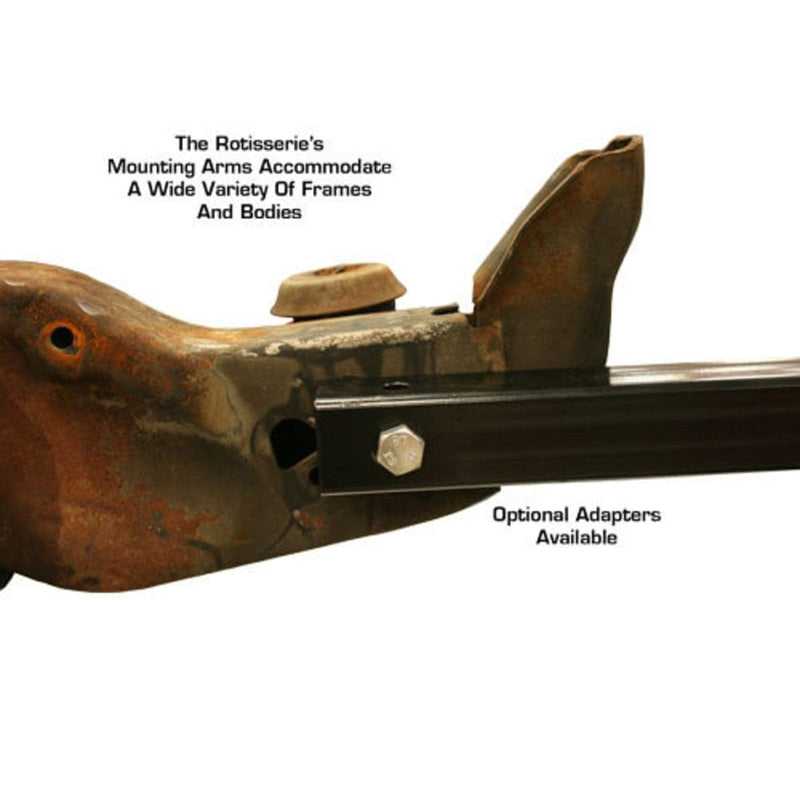

- Specialty adapters available separately
- 1-year parts-only warranty
Specifications
| Capacity |
3,000 LB. |
| Width (Mounting Brackets) |
14 1/4” – 48 3/4" |
| Width Capacity (Car or Truck Body) |
85” |

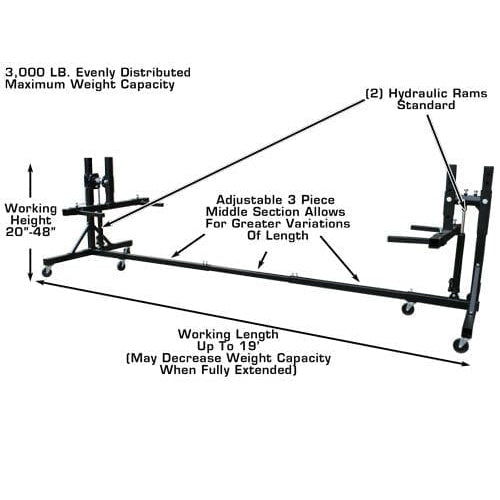

| Working Height |
20 1/2" – 48 1/2" |

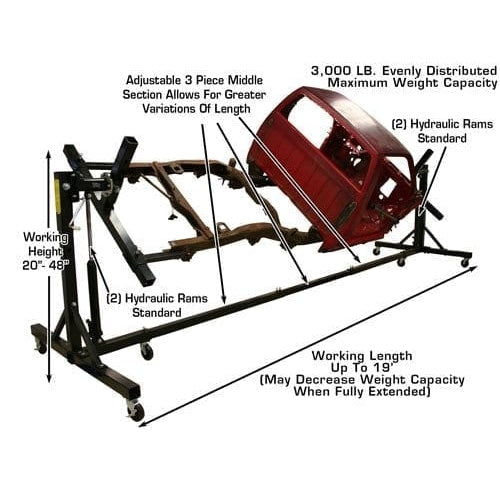

| Working Length (Weight Capacity Decreased at Full Extension) |
Up to 19’ |
| Ceiling Height Requirement |
8’ |
| Thickness of Steel |
1/8” or 9 Gauge |
| Construction of Main Structure |
3” x 3” Square Tubing |

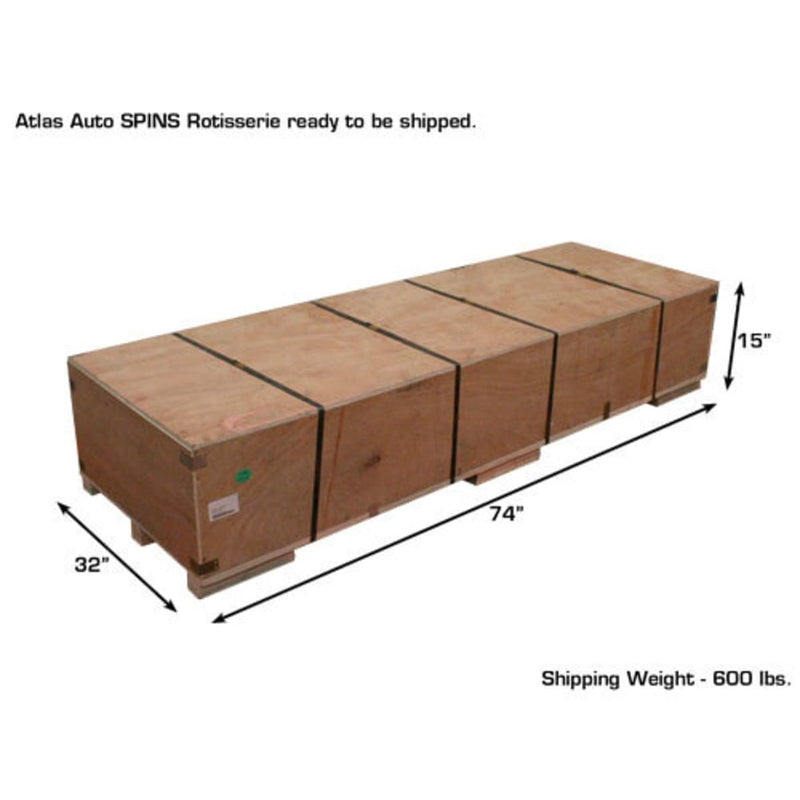

| Shipping Weight |
600 lbs. |
Documents
Atlas® Auto "SPINS" Rotisserie Manual
