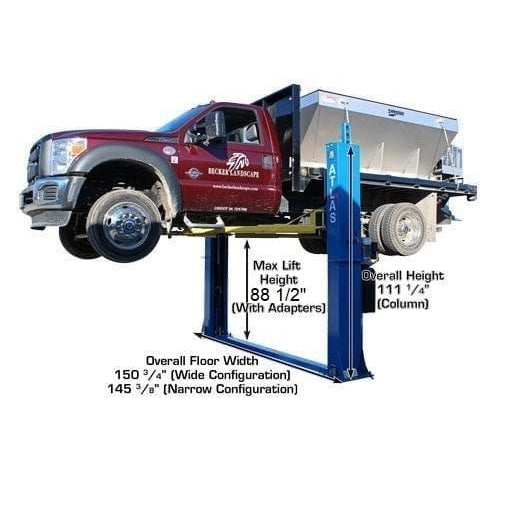

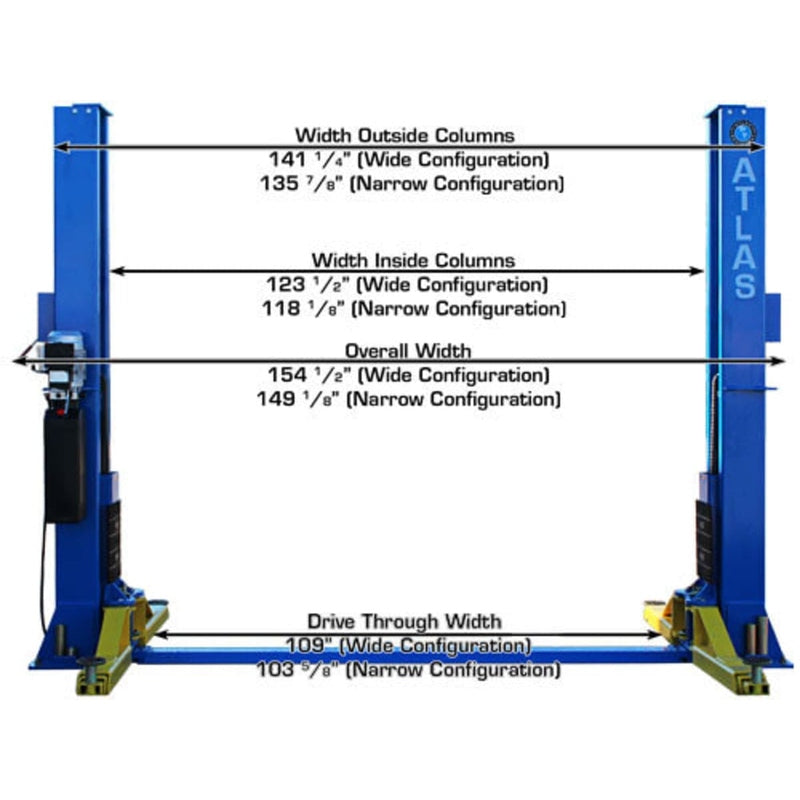

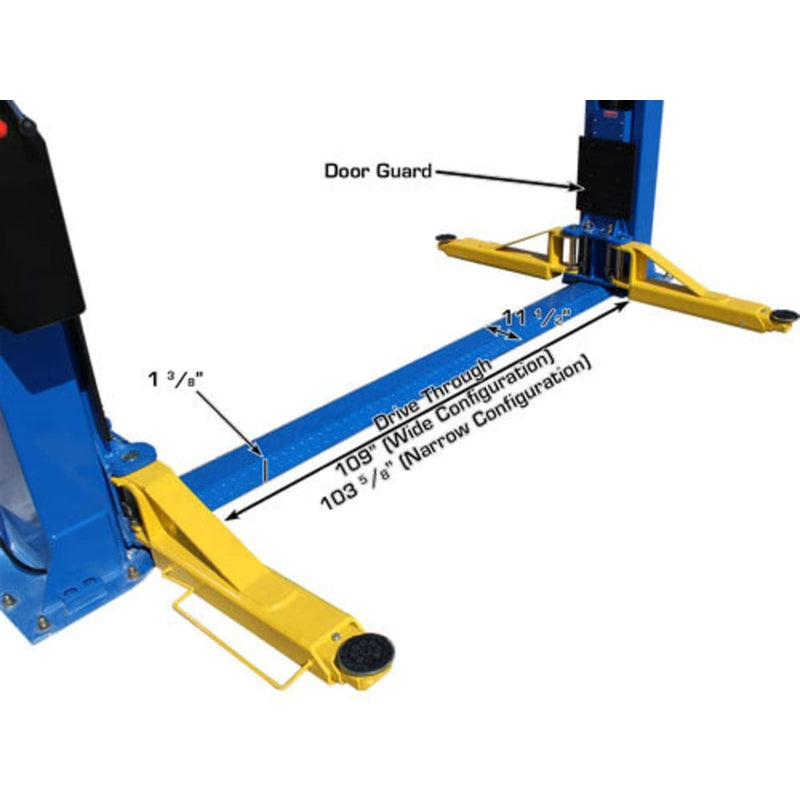

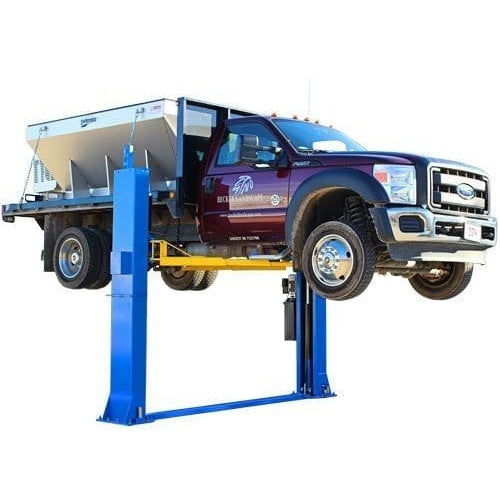

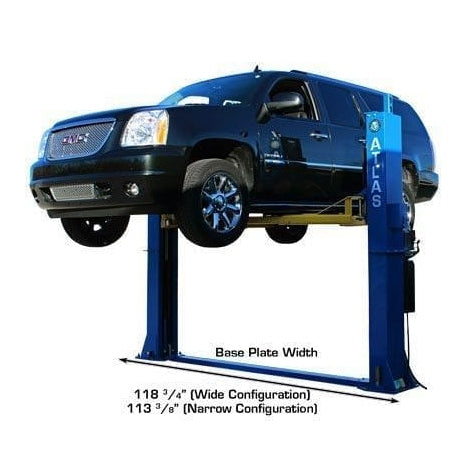

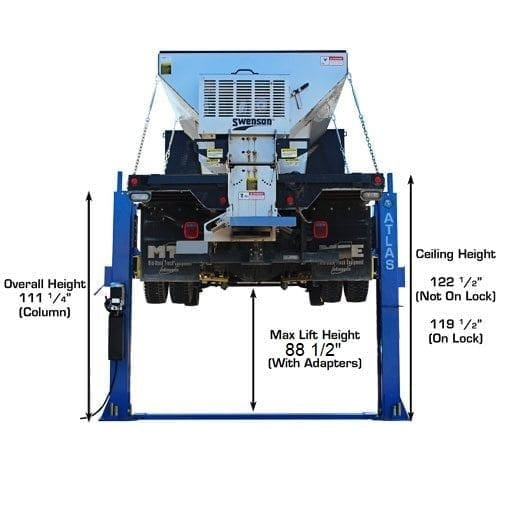

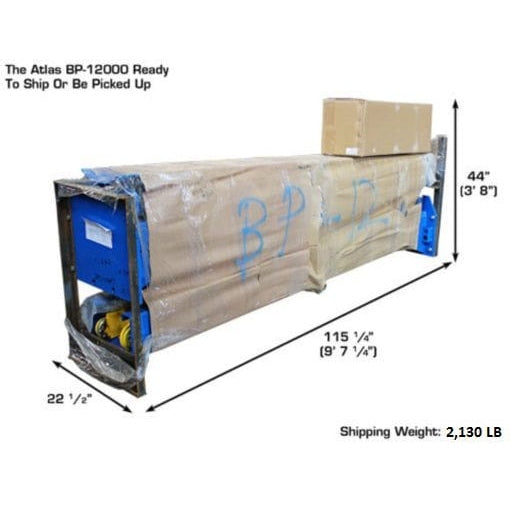

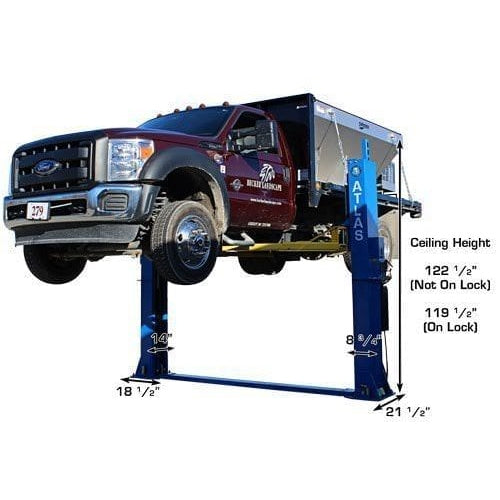

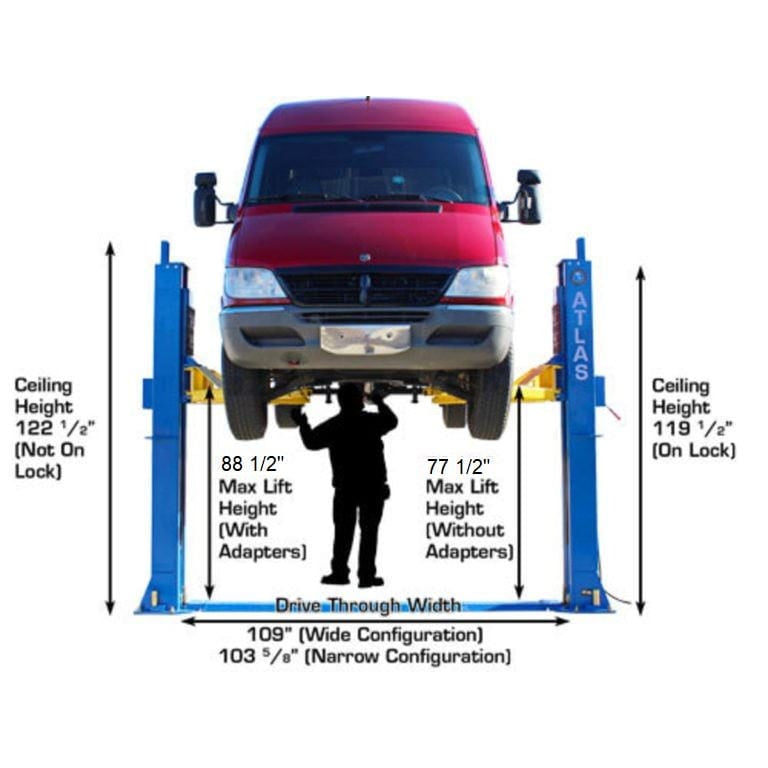

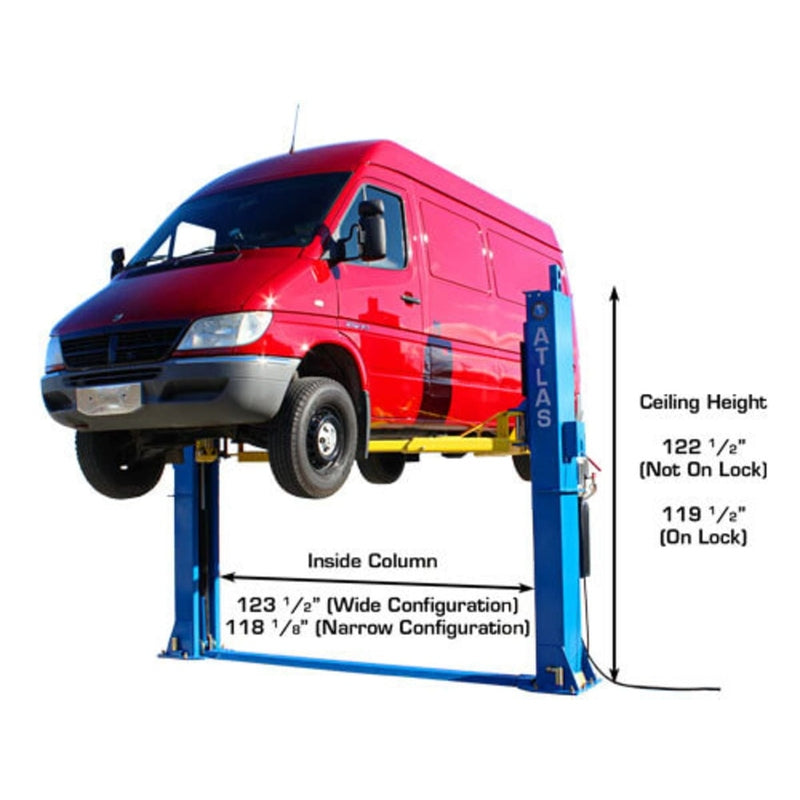

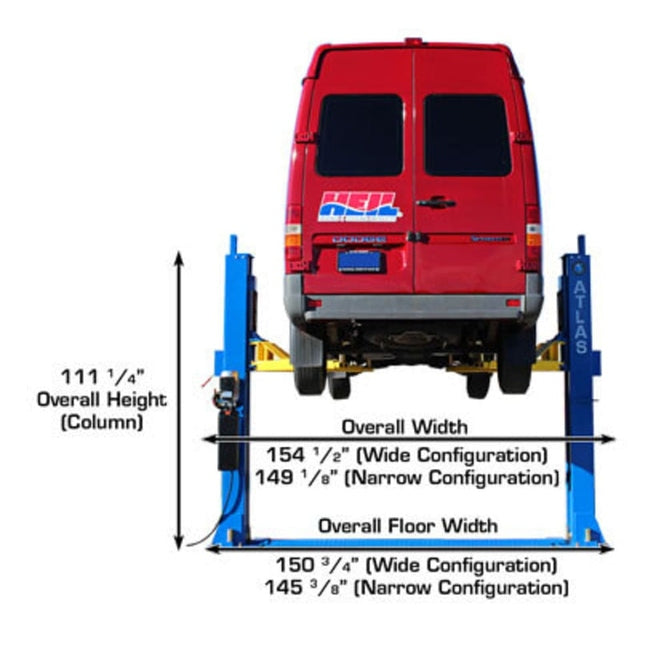

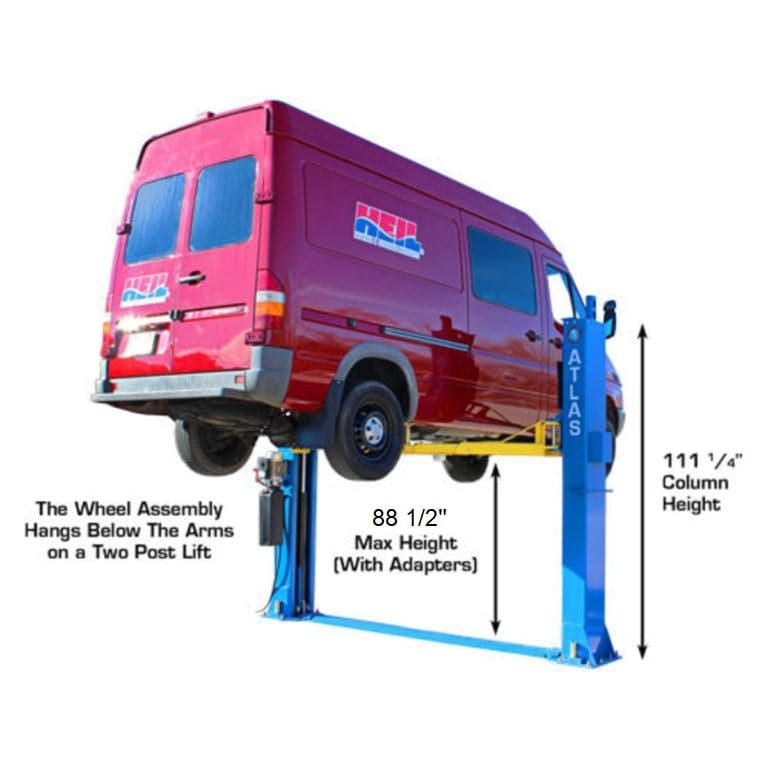

The Atlas BP12000X is a 12,000 lb commercial-grade baseplate two-post lift built for heavy vehicle service in shops with limited ceiling height. At 122.5 inches (10 feet 2.5 inches) of total column height, it fits facilities that can't accommodate a standard commercial overhead two-post, while the oversized columns and dual hydraulic chain-over cylinders deliver the structural capacity needed for heavy trucks, vans, and larger commercial vehicles. An adjustable column width setting accommodates wider trucks and trailers and allows vehicles to drive between the columns — useful in shops where the lift doubles as a drive-through bay between jobs. Delivery requires access for a 53-foot truck. Backed by a 5-year structural and 2-year hydraulic parts warranty.

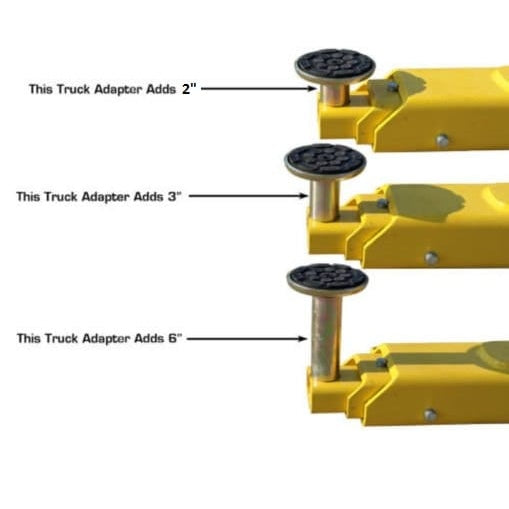

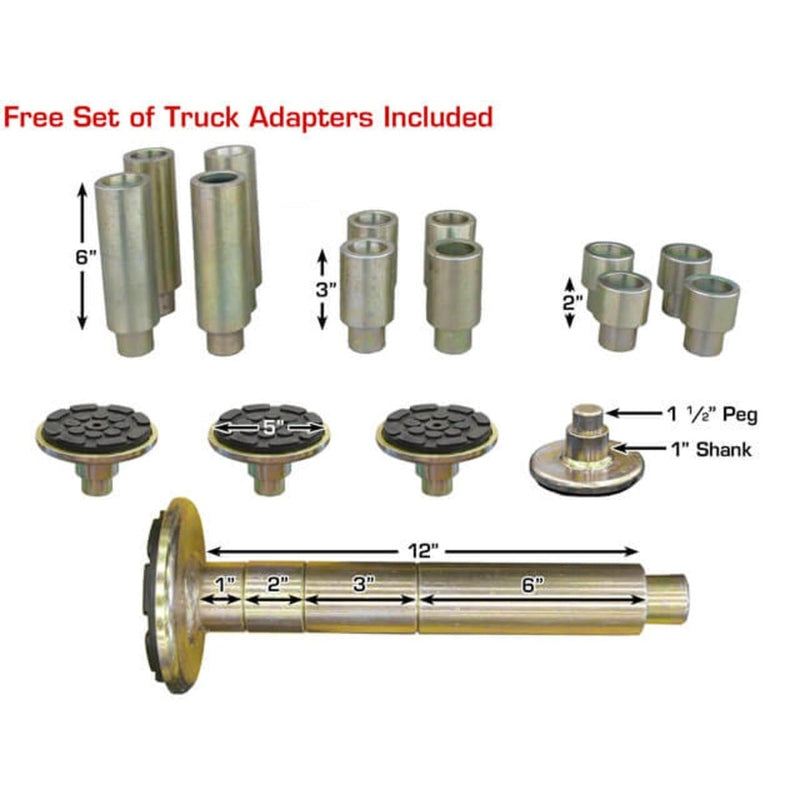

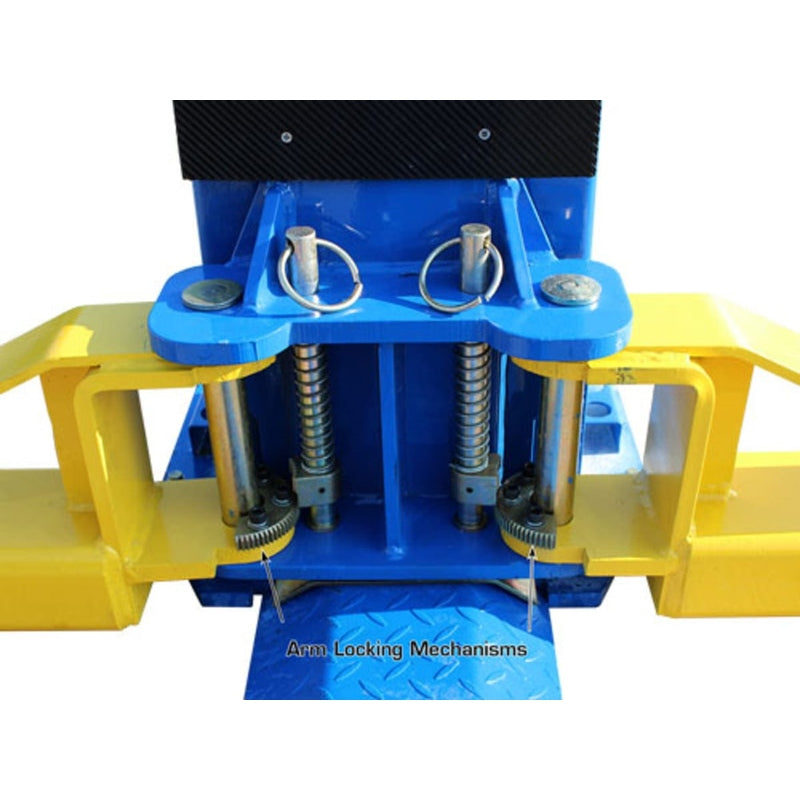

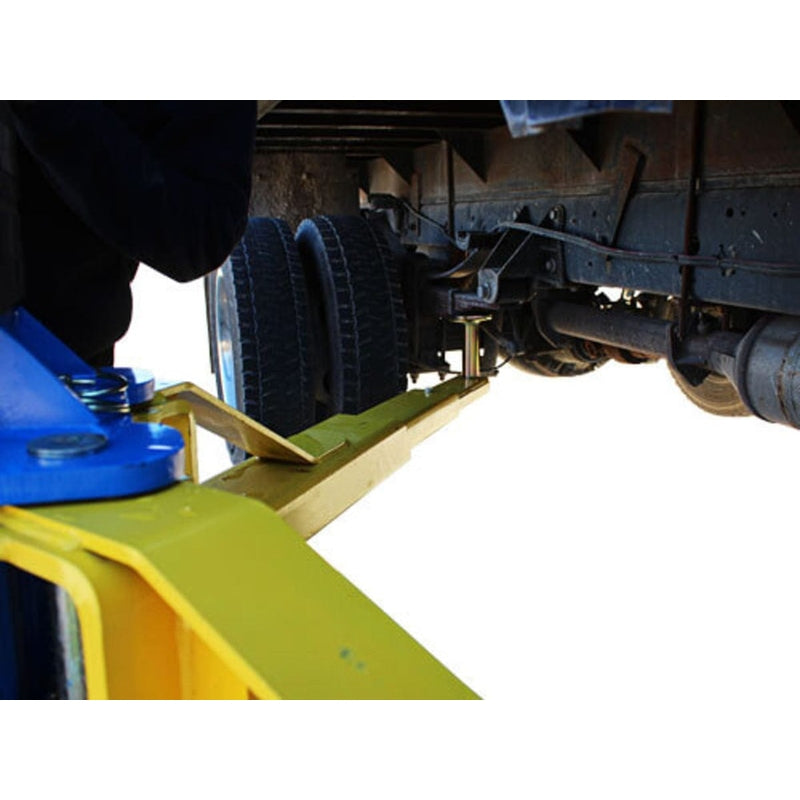

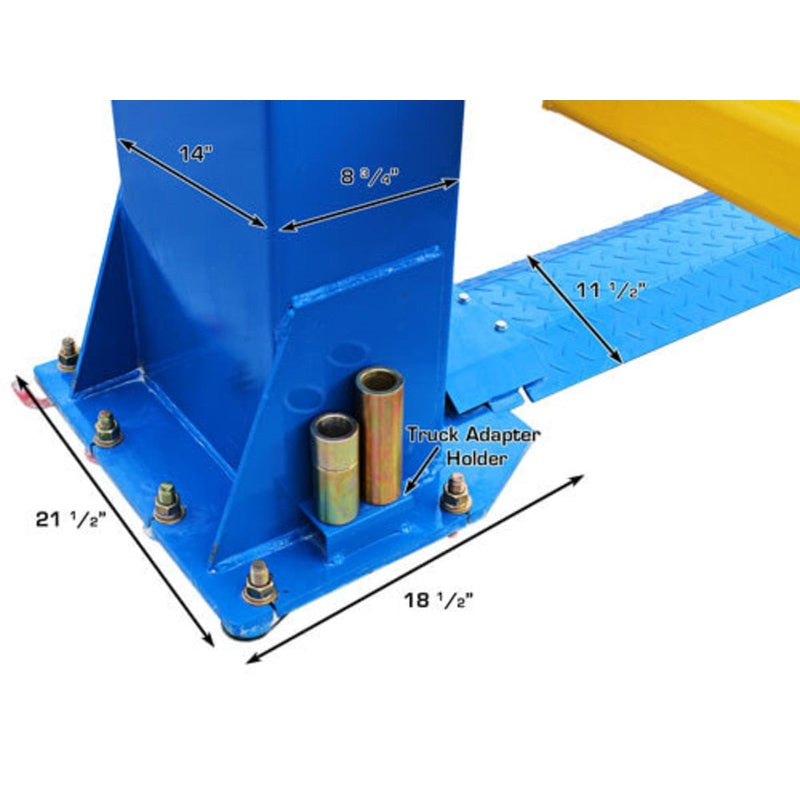

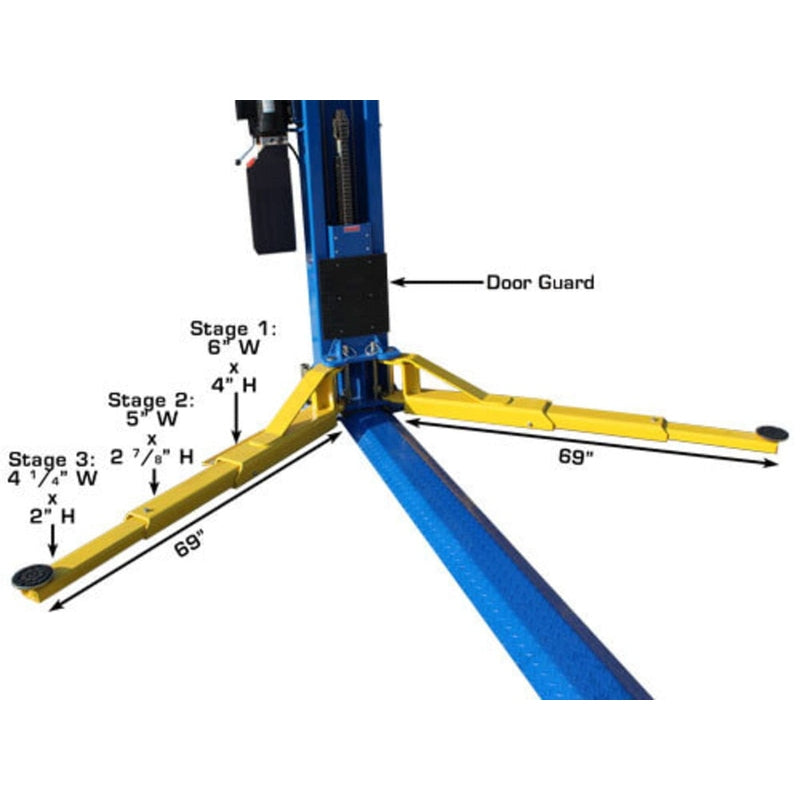

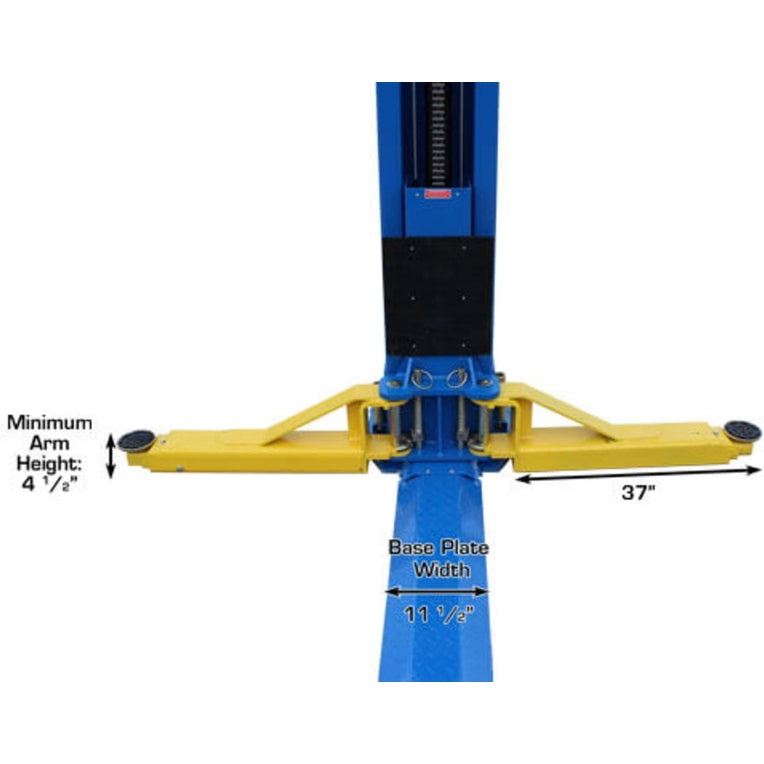

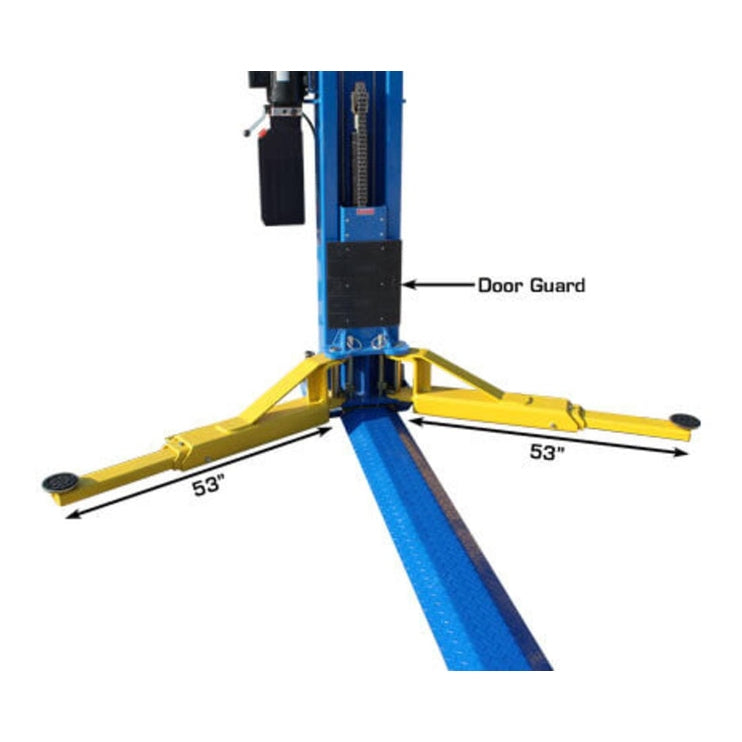

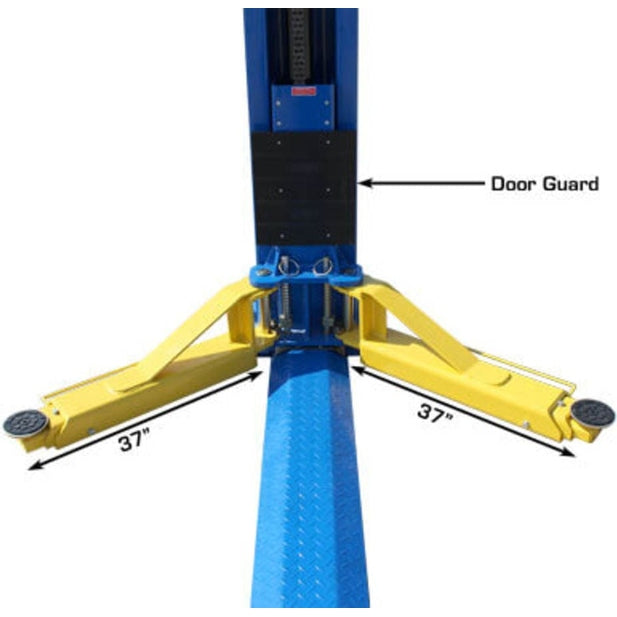

Three-stage symmetric arms extend the reach range to accommodate a wide variety of wheelbases and vehicle widths, and automatic arm restraints hold position during vehicle loading. Single-point lock release disengages both columns simultaneously for controlled, even lowering on heavy vehicles where asymmetric descent creates risk. Rubber guards on the carriages protect door sills and body panels during contact, and a 12-piece truck adapter set is included for the extended pad heights that trucks and commercial vehicles require.
The BP12000X is built for commercial repair shops, fleet maintenance facilities, and truck service operations in buildings with ceiling heights that rule out standard overhead two-post installations, and for body shops and dealership service departments that regularly handle full-size trucks, passenger vans, and larger vehicles and need a lift rated for that weight class with the column clearance to drive wide vehicles straight through.
Features
10,000 lb lifting capacity
Commercial-grade construction

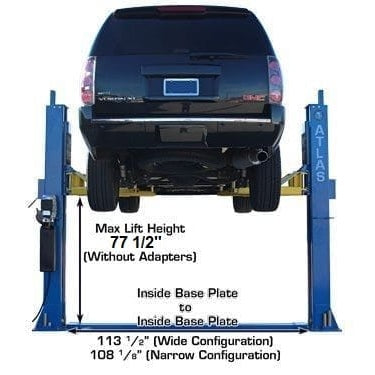

Baseplate, open-top style lift
Overall height: 111⅞" (9'3⅞")

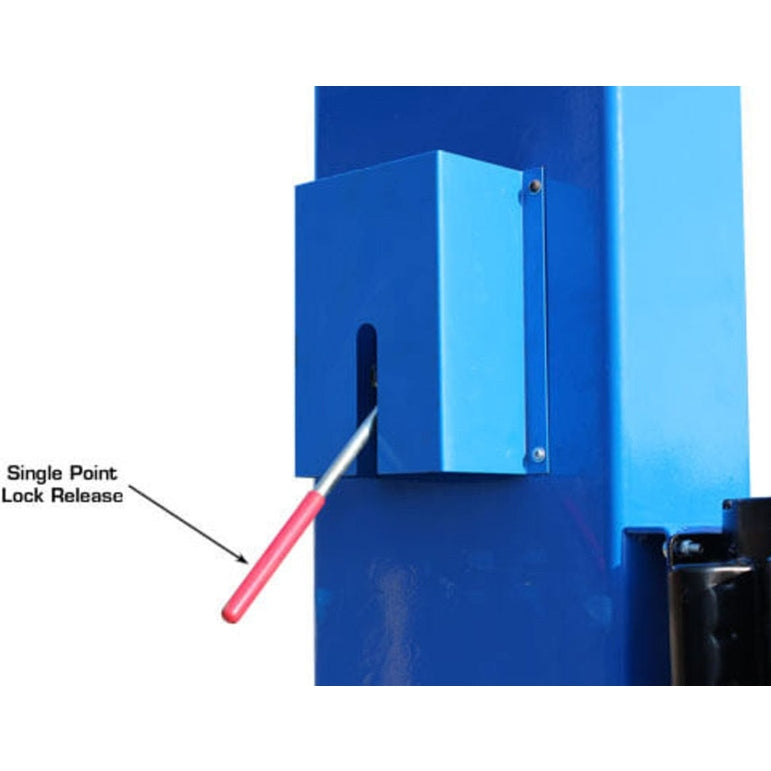

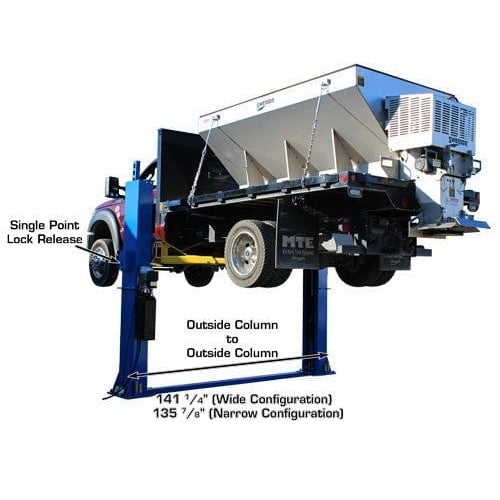

Single-point lock release simultaneously disengages both columns
Super-symmetric arms for balanced, flexible vehicle positioning

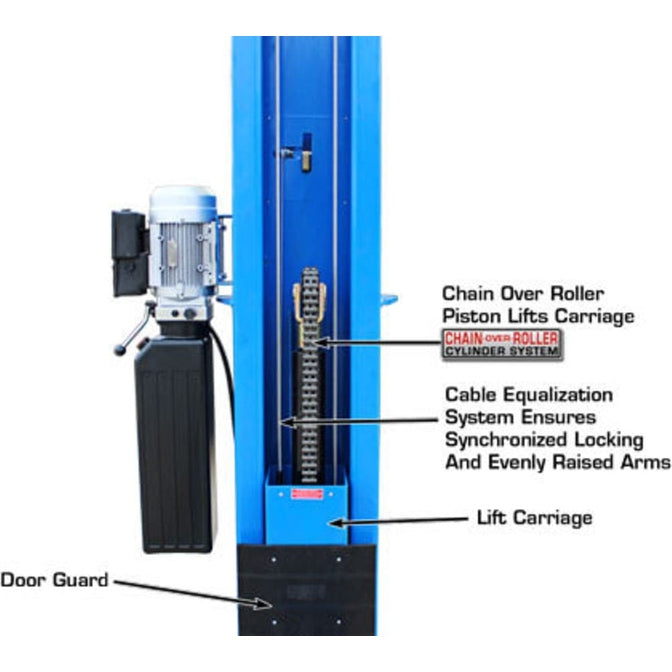

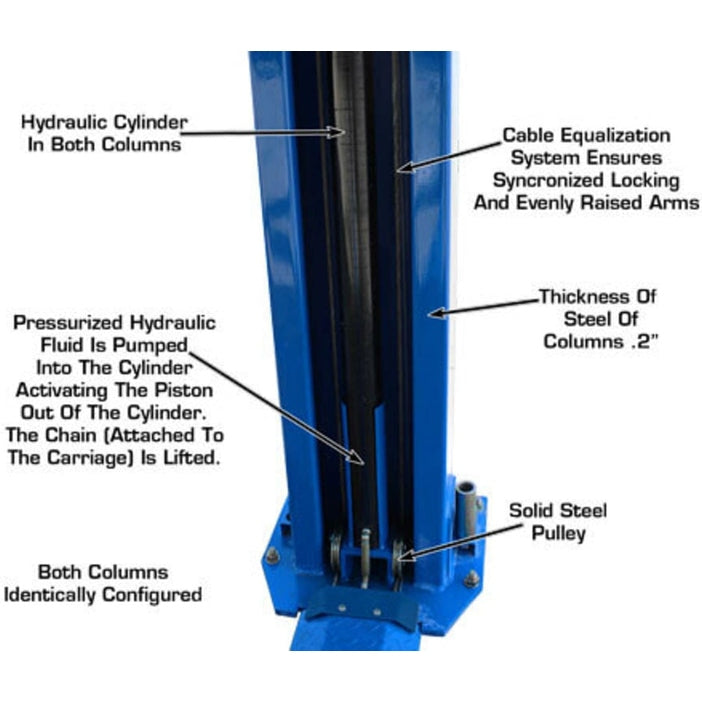

Dual hydraulic chain-drive cylinders manufactured to ANSI standard
Welded support gussets for increased column strength
