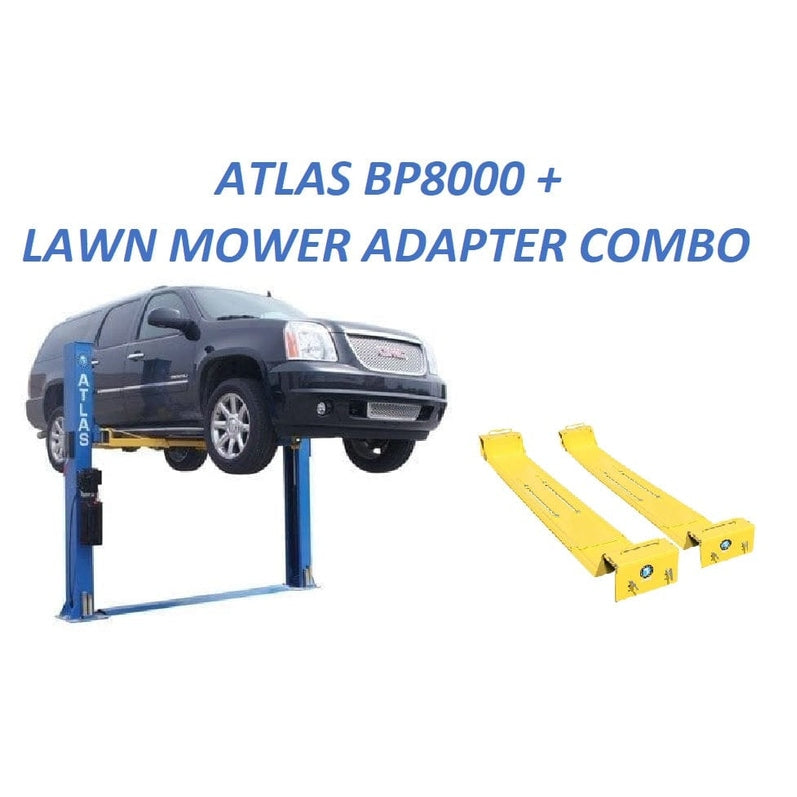

The Atlas BP8000 and LMA bundles an 8,000 lb baseplate two-post lift with the Atlas Lawn Mower Adapter, making it a practical single-lift solution for home garages that work on cars, light trucks, ATVs, UTVs, and riding lawnmowers. The BP8000 is built for low-ceiling installations — at 108 inches (9 feet) of total column height, it fits garages with ceilings as low as 9 feet 3 inches where standard overhead two-post lifts can't be installed. Note: the BP8000 is rated for hobbyist and light home use — not intended for heavy commercial applications. LMA capacity varies by plate position and vehicle weight distribution, is higher when plates are closer to the columns, and leveling blocks may be required — compatibility is not guaranteed with all vehicles. Delivery requires access for a 53-foot truck. Backed by a 5-year structural and 2-year hydraulic parts warranty.
The BP8000 runs on dual hydraulic chain-drive cylinders with single-point lock release and a double safety lock system for redundant hold at working height. Super-symmetric arms in a 3-stage front and 2-stage rear configuration extend reach across the wheelbase range from compact cars through light trucks, and automatic arm restraints hold position during vehicle loading. A 12-piece truck adapter set is included for vehicles requiring extended pad height. The LMA includes 4 plates and all mounting hardware and adjusts along the arm length to handle different wheelbases across ATVs, UTVs, and mower sizes.
This bundle is built for home garage owners who need low-ceiling two-post capability and want one lift that handles the full range of what's in their garage — cars, trucks, and outdoor power equipment — without a separate machine for each category.
Features
BP8000 Two-Post Lift
- 8,000 lb lifting capacity
- Hobbyist-grade lift — not intended for heavy commercial use
- Baseplate, open-top style lift

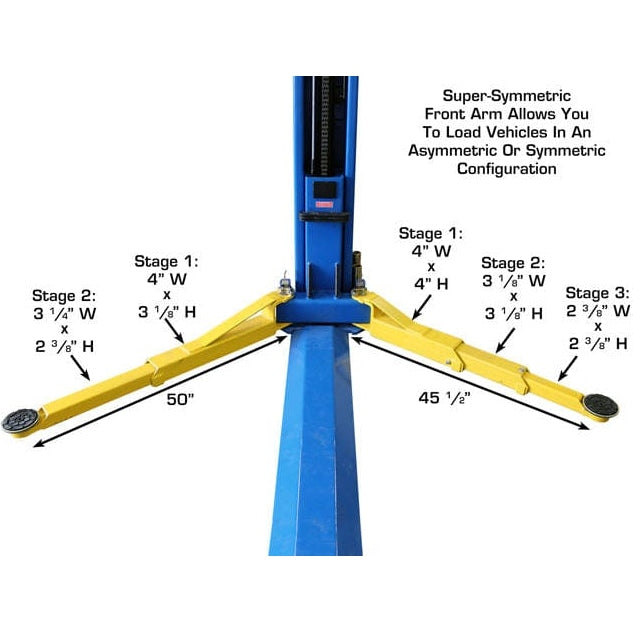

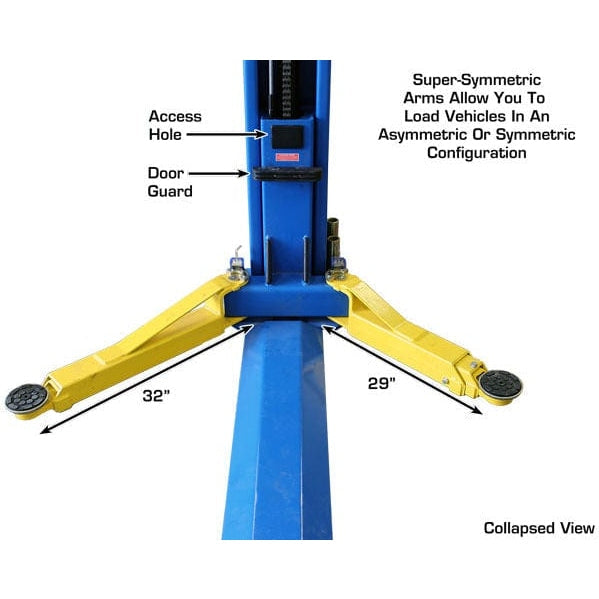

- 3-stage front arms and 2-stage rear arms for versatile vehicle positioning

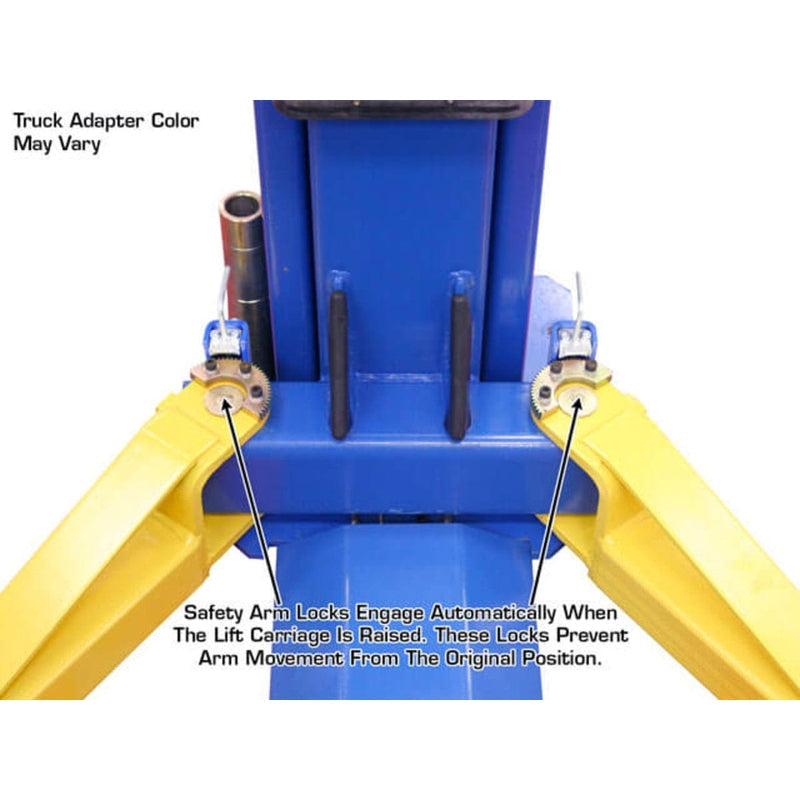

- Automatic arm restraints

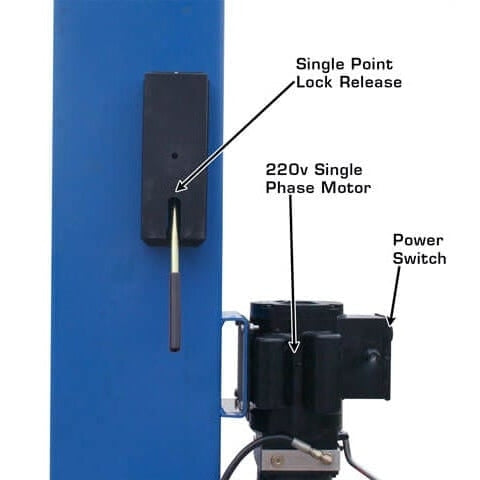

- Single-point lock release
- Double safety lock system for added security

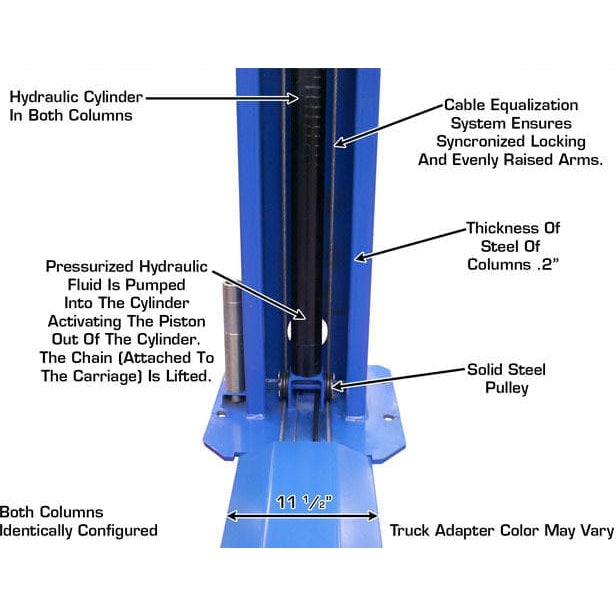

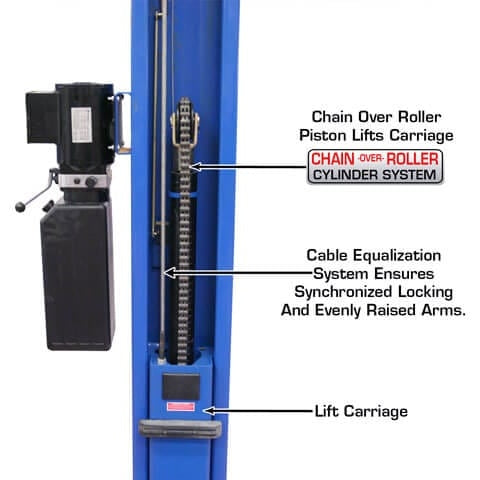

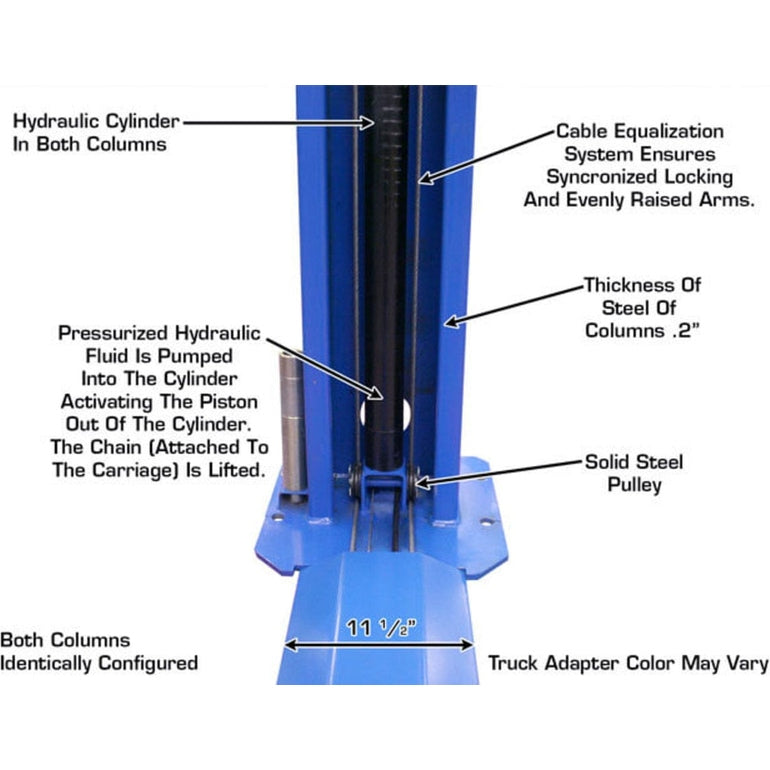

- Dual hydraulic chain-drive cylinders for smooth, reliable lifting
- Mounting hardware included

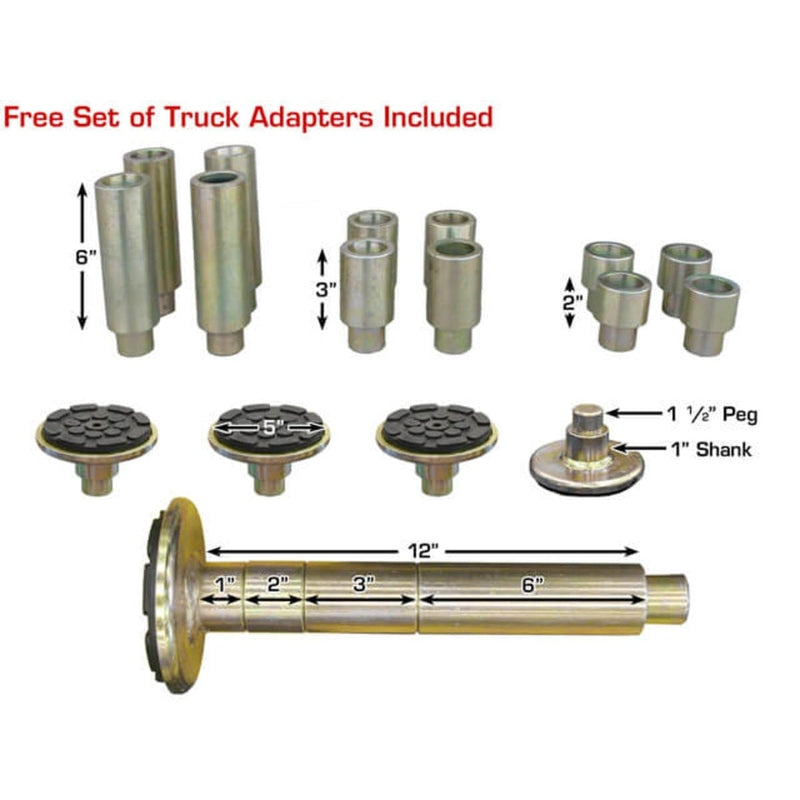

- Free 12-piece truck adapter set included
- Shipping weight: 1,300 lbs
- 5-year structural / 2-year hydraulic parts-only warranty

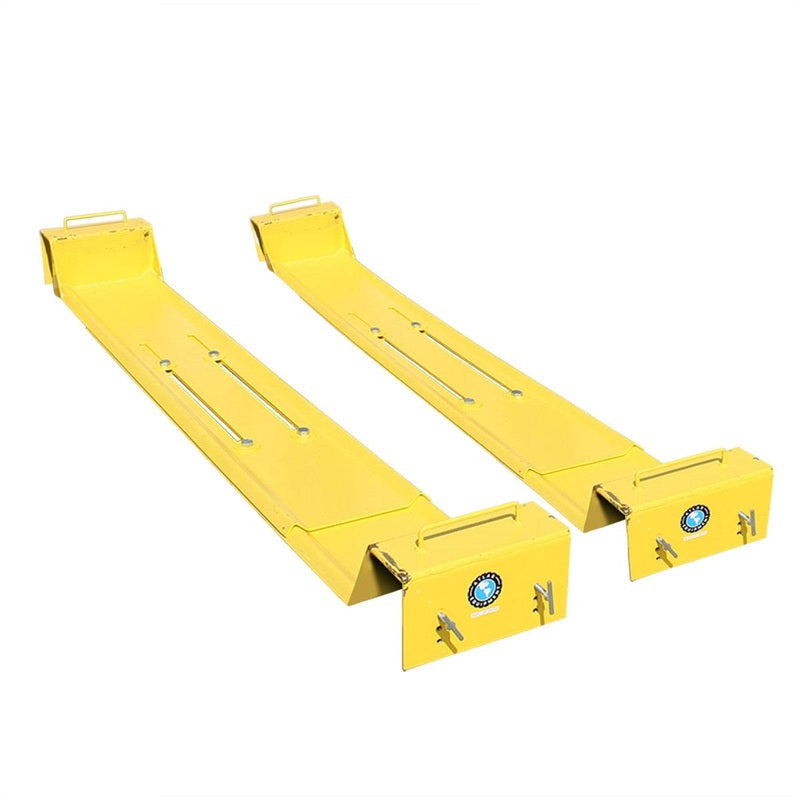

Lawnmower Adapter
- Compatible with most 2-post lifts for lifting lawnmowers and small equipment
- Includes 4 plates and all necessary hardware

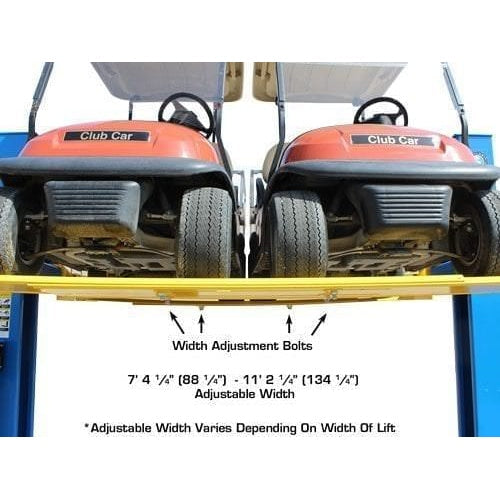

- Adjustable design fits a variety of sizes and lift brands (may not be compatible with all lifts)
- Supports up to 5,000 lb capacity (varies by lift and wheelbase)
- Positionable along the length of the lift arms (leveling blocks may be required)
Specifications
Atlas® ATTD-BP8000 2 Post Lift
| Capacity |
8,000 LB. |

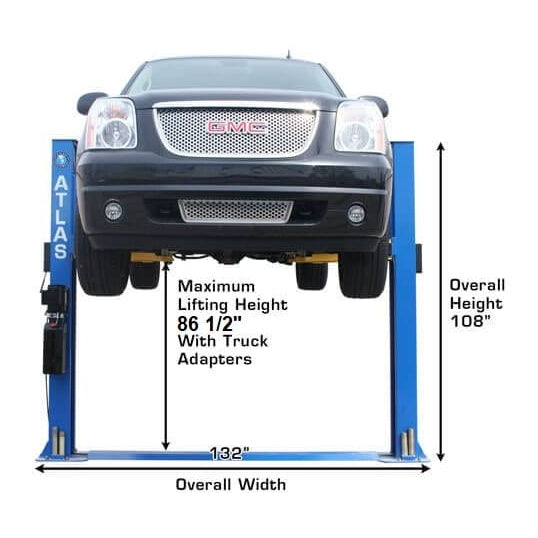

| Overall Height |
108" (9’) |

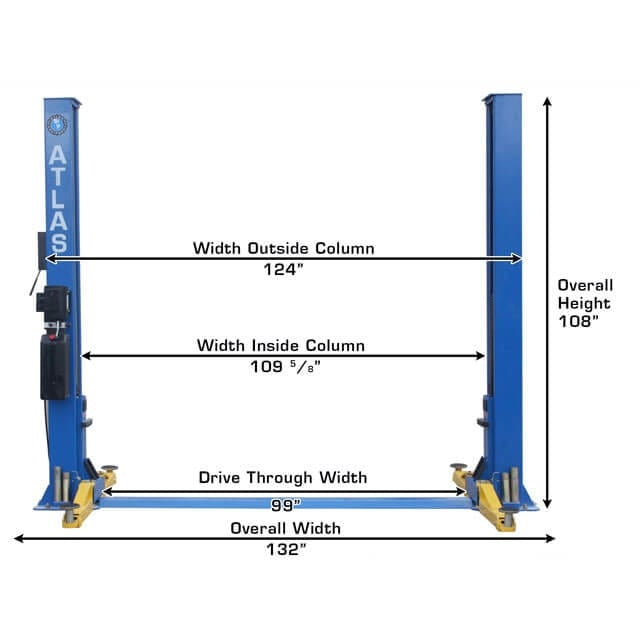

| Overall Floor Width |
132" (11’) |
| Outside Column to Outside Column |
124" (10’ 4") |

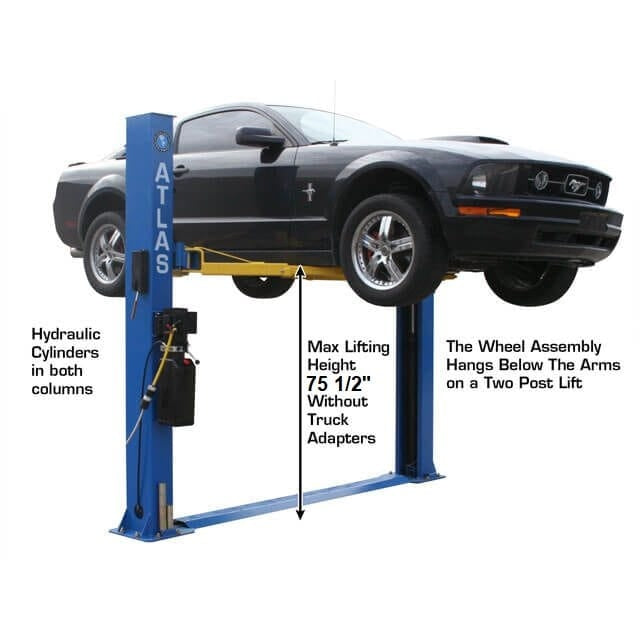

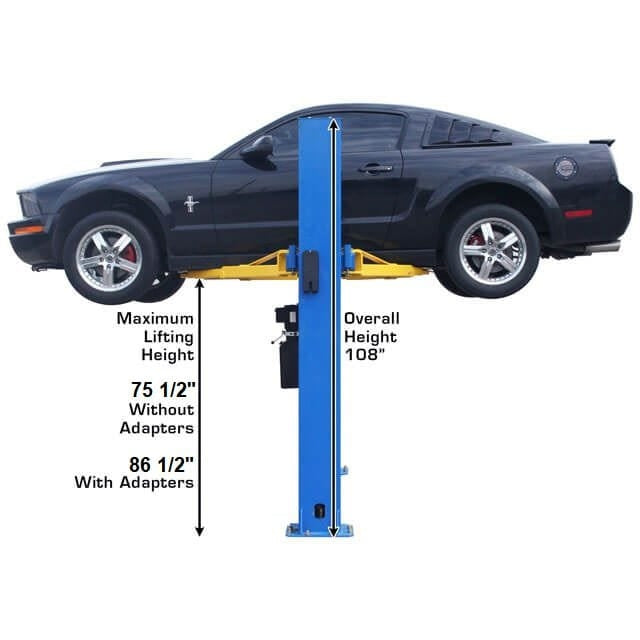

| Maximum Lift Height (Without Adapters) |
75 1/2" |

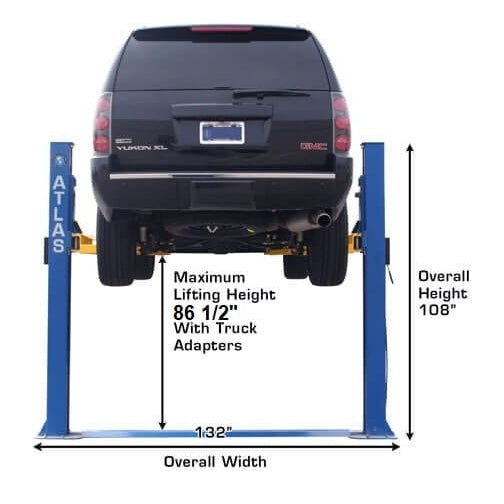

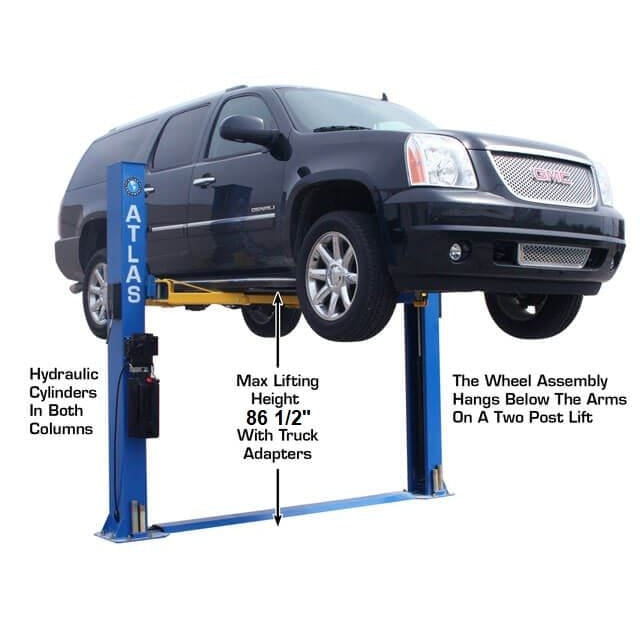

| Maximum Lift Height (With Adapters) |
86 1/2" |
| Minimum Arm Height |
4" |
| Inside Column |
109 1/8” (9’ 1 1/8”) |

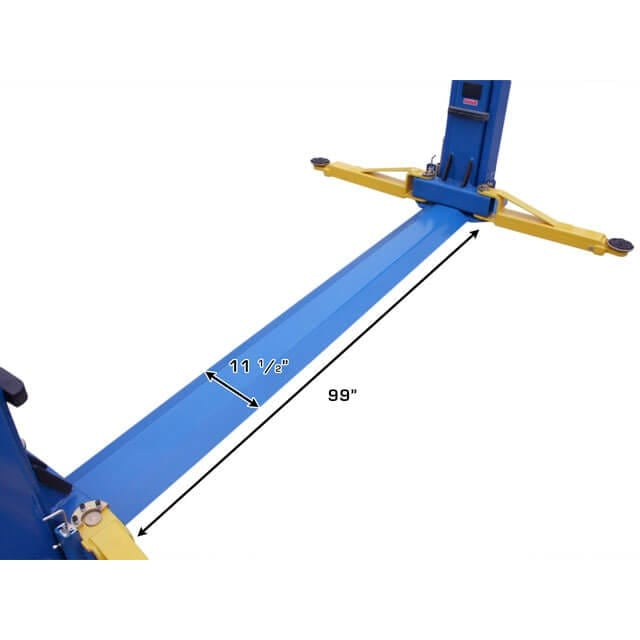

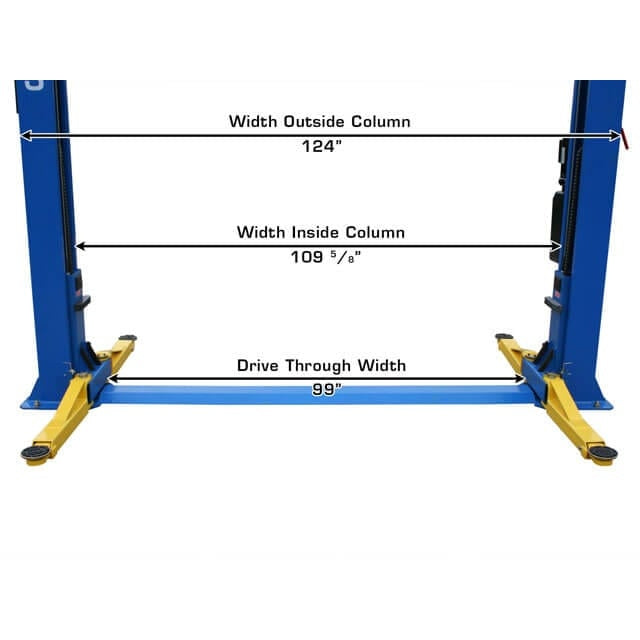

| Drive Thru |
99” (8’ 3”) |

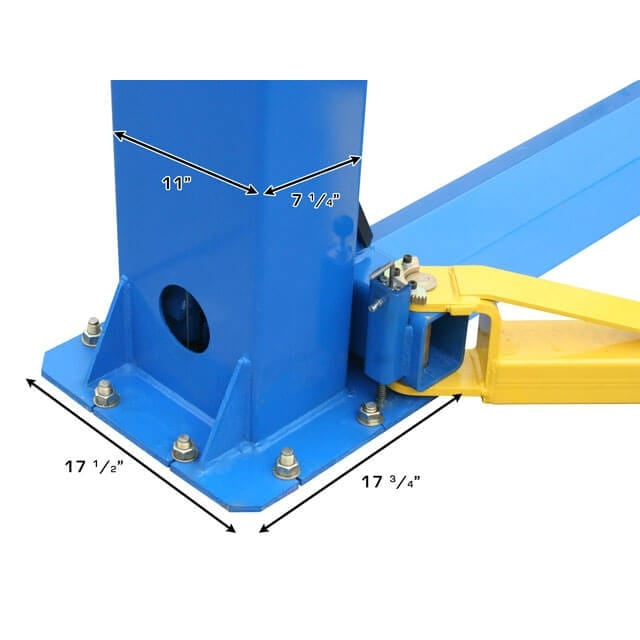

| Column Size |
7 1/4" x 11" |
| Column Thickness of Steel |
6mm |
|

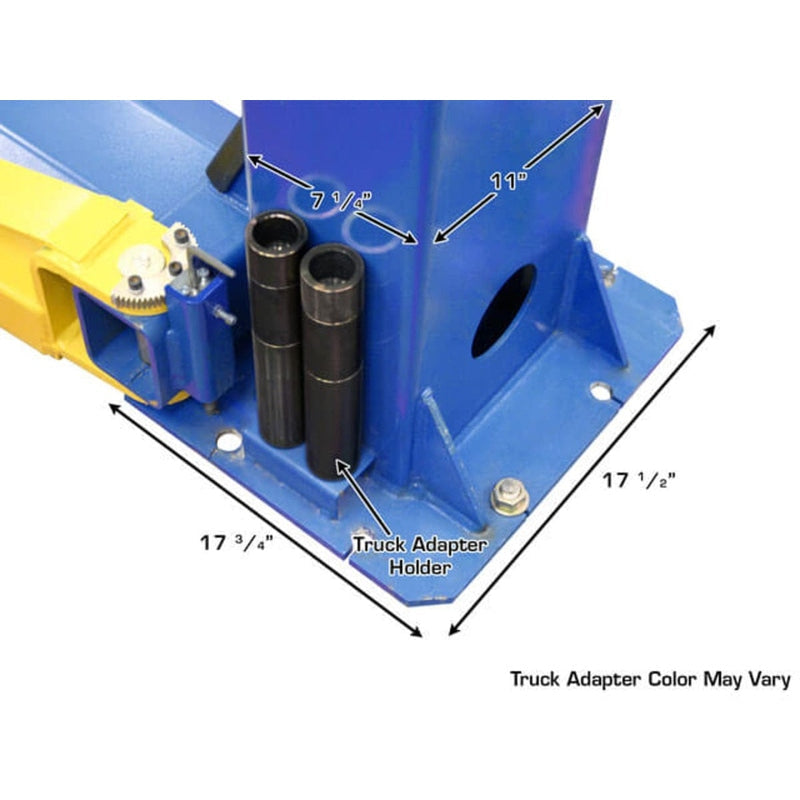

| Base Of Lift |
17 1/2" x 17 3/4" |

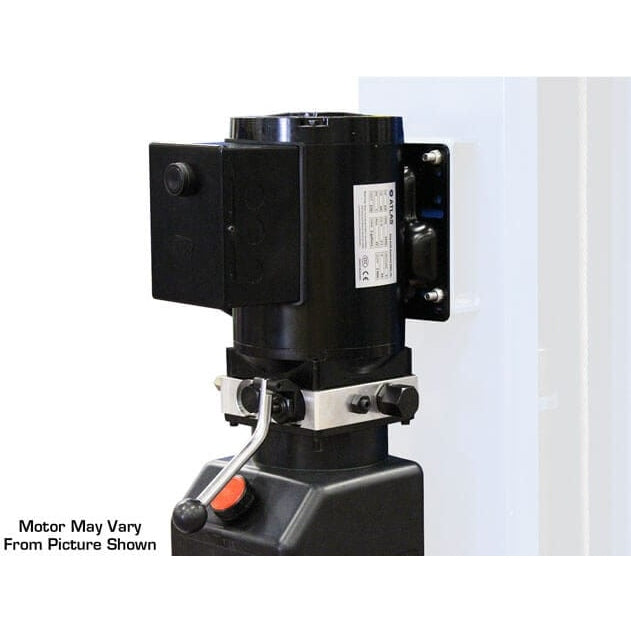

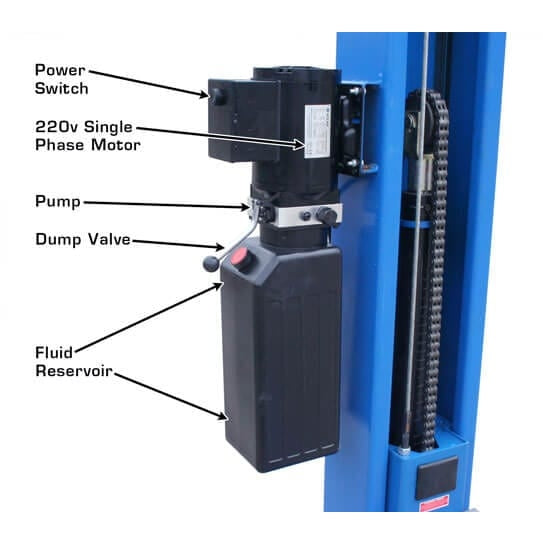

| Motor/Electrical Requirement |
220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

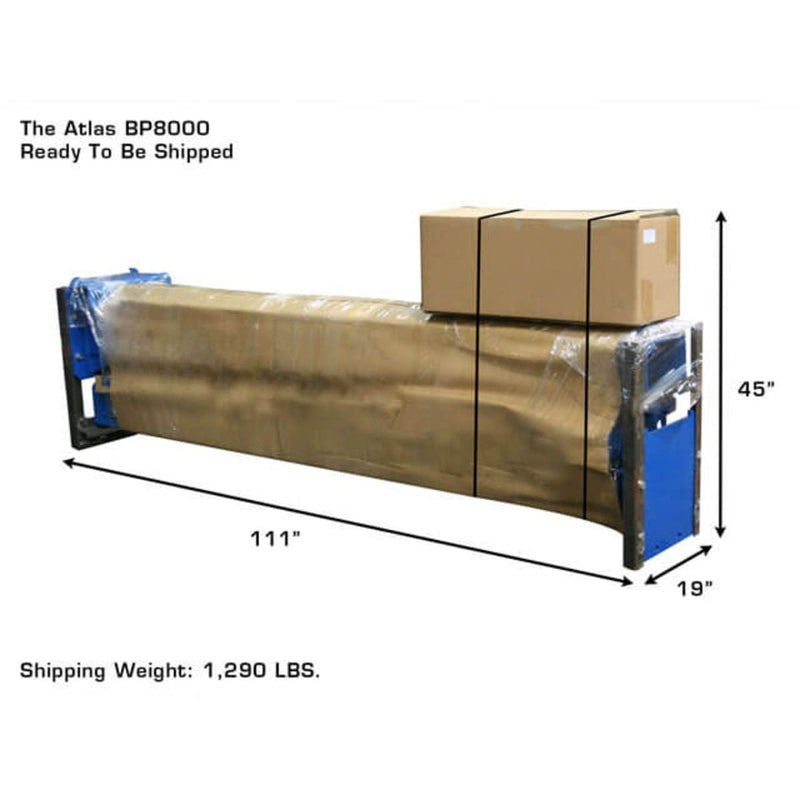

| Shipping Weight |
1,300 LBS. |

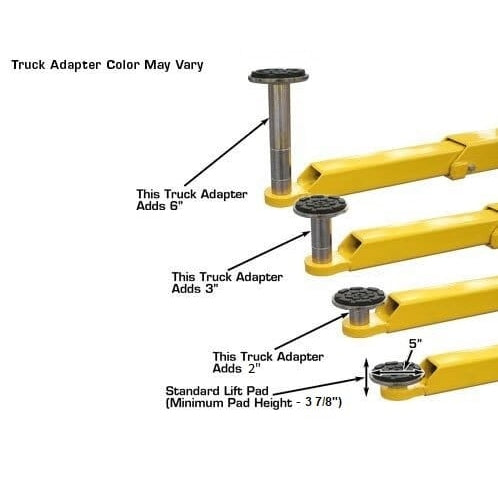

| Adapter Heights |
4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
| Requires a minimum of 4" of concrete with a 3000 psi. rating |

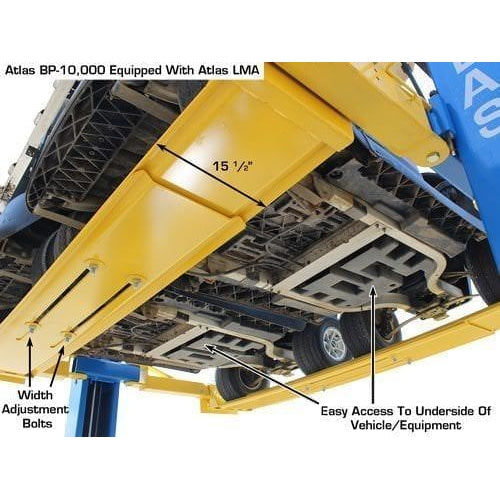

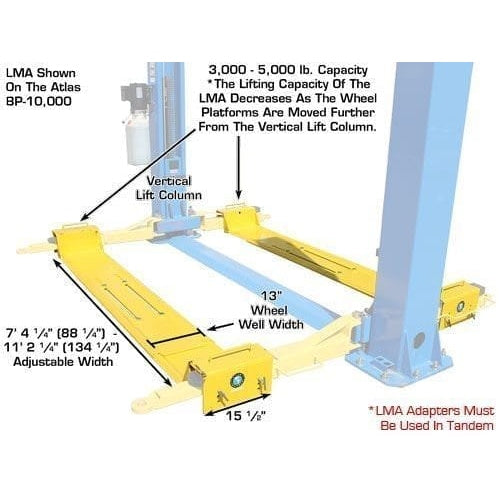

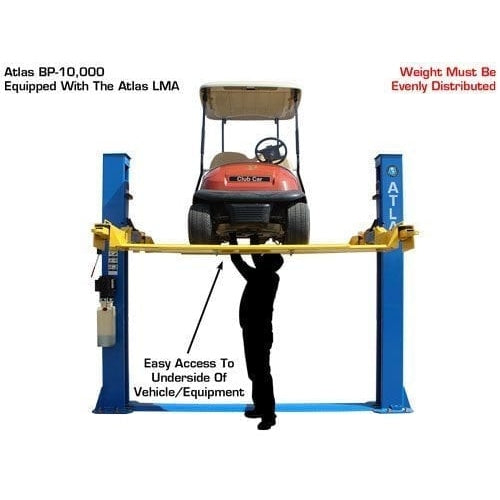

Atlas® Lawn Mower Adapter (LMA)
| Capacity |
Up To 5,000 lbs. * |

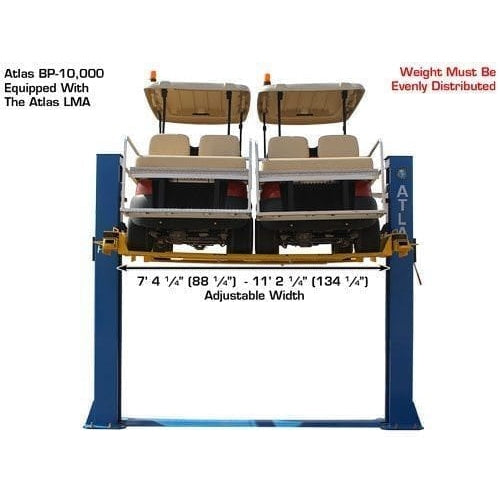

| Adjusts In Width |
8' 11" |

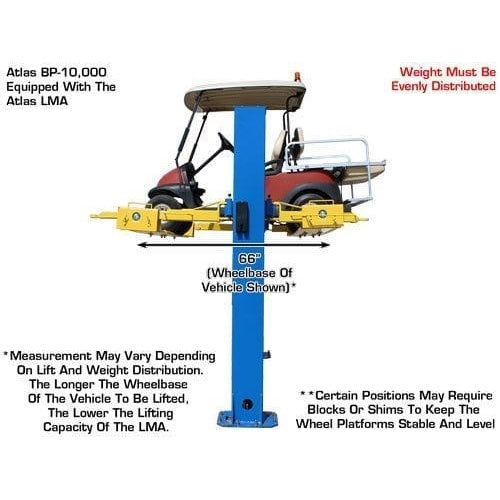

| Wheel Base |
32" to 90" ** |

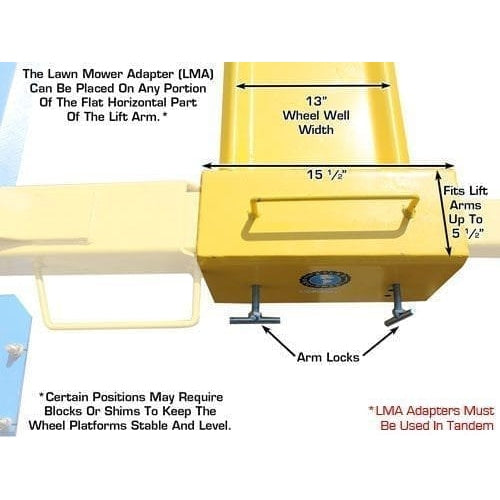

| Wheel Well Width |
12" |
| Thickness Of Steel |
1/4" (2 Gauge) |

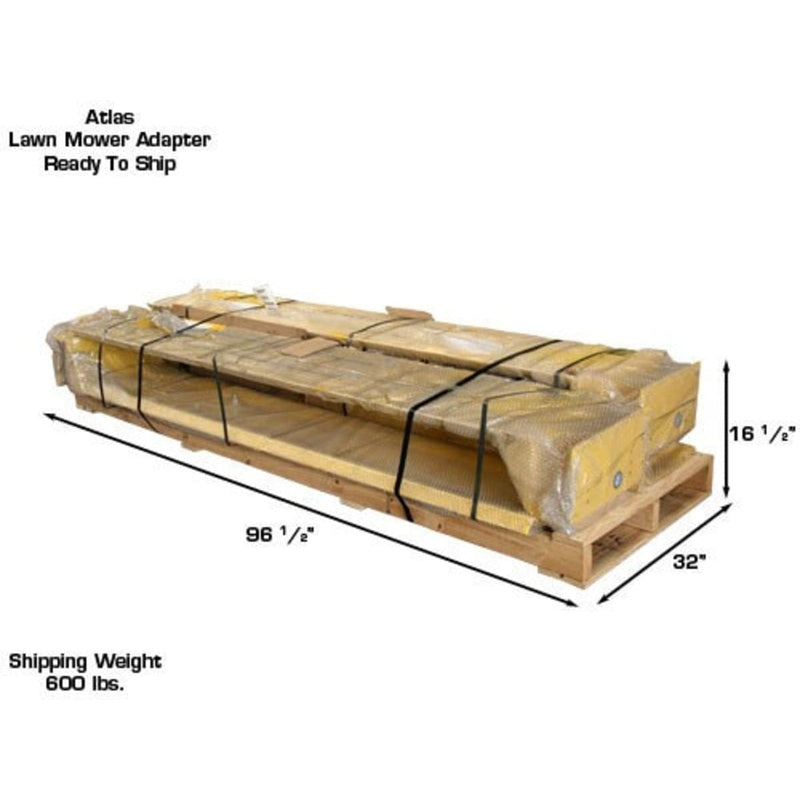

| Shipping Weight |
600 lbs. |
| |
| LMA Consists Of Two Wheel Platforms. Lift not included. |
| * May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA. |
| ** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level. |
Documents
Atlas® BP8000 Manual
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
