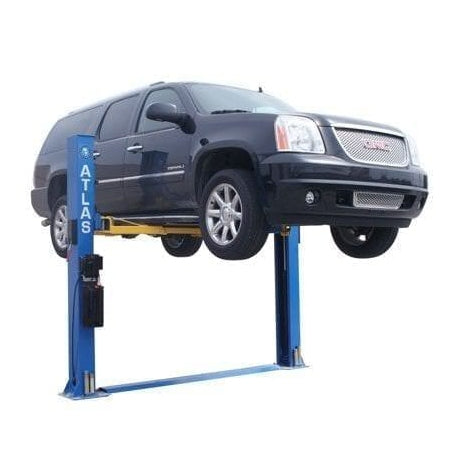

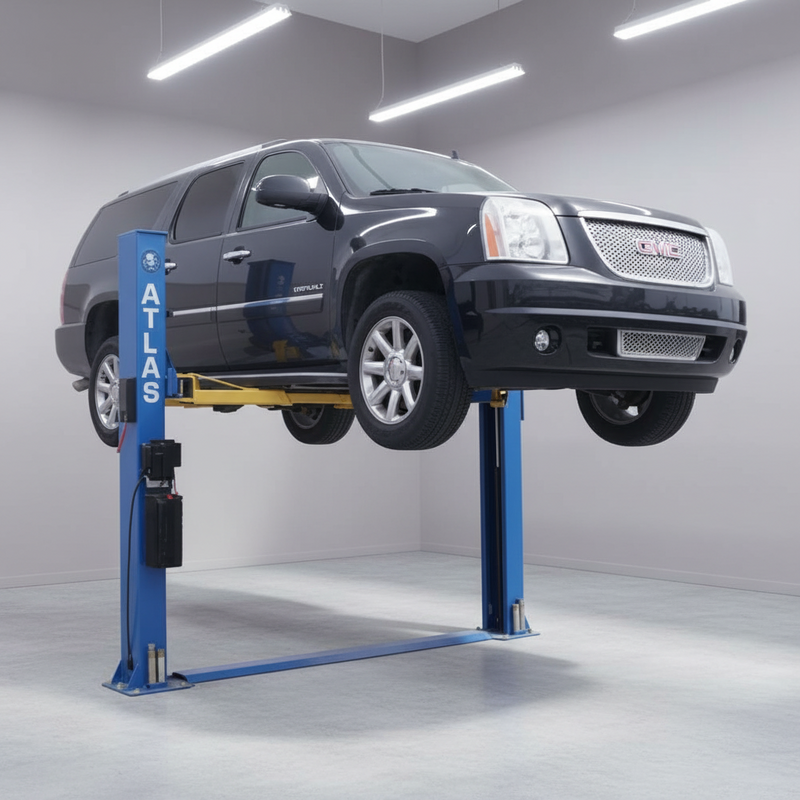

Atlas BP8000 8,000 lb Baseplate 2 Post Lift

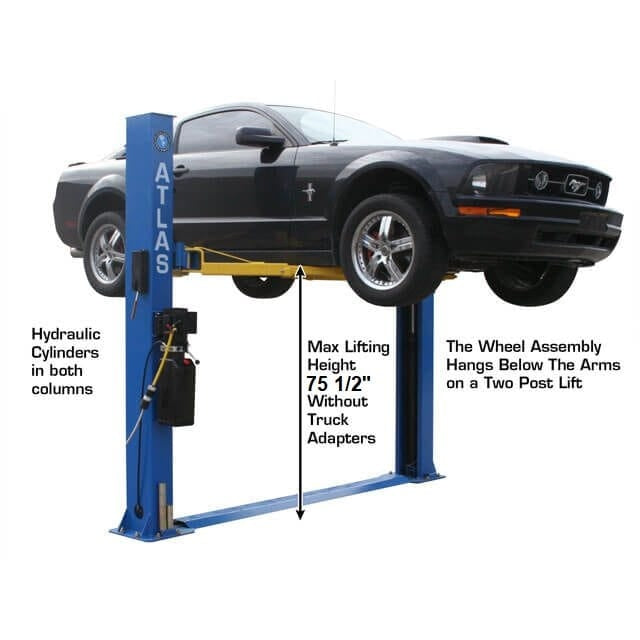

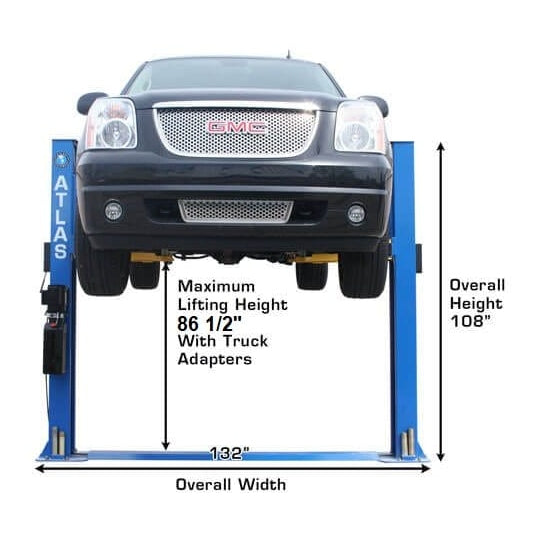

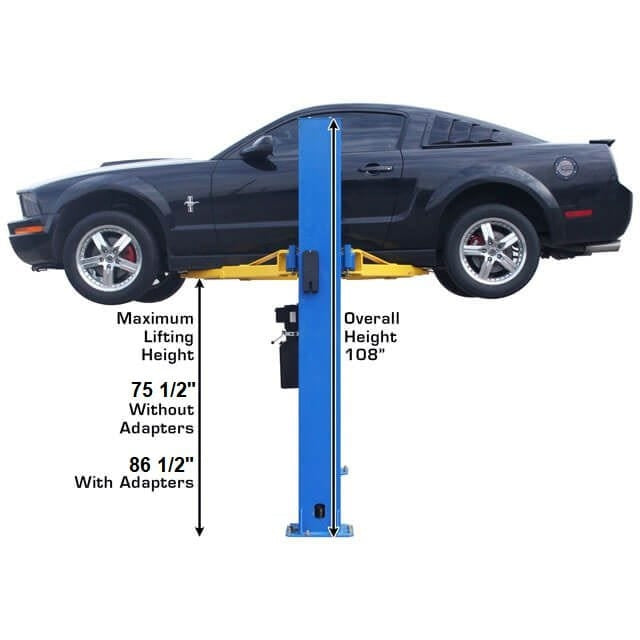

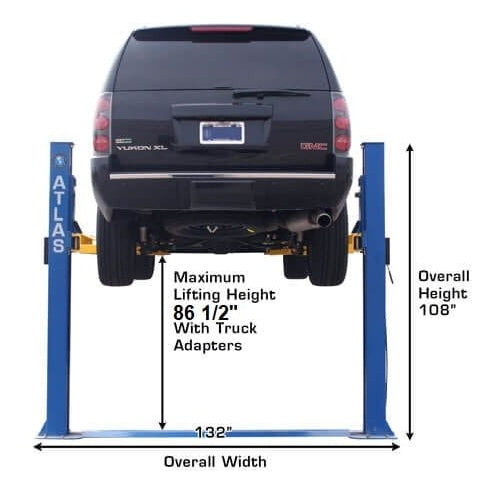

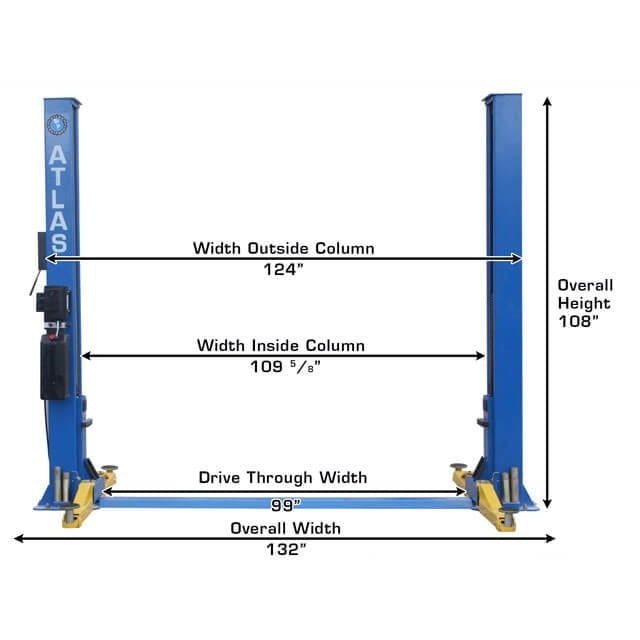

The Atlas BP8000 is an 8,000 lb baseplate two-post lift designed for low-ceiling home garages and small shops where a standard overhead two-post won't fit. At 108 inches (9 feet) of total column height, it installs in spaces with ceilings as low as 9 feet 3 inches — the compact column profile that makes a two-post viable in a standard residential garage. Note: the BP8000 is rated for hobbyist and light home use — not intended for heavy commercial applications. Delivery requires access for a 53-foot truck. Backed by a 5-year structural and 2-year hydraulic parts warranty.

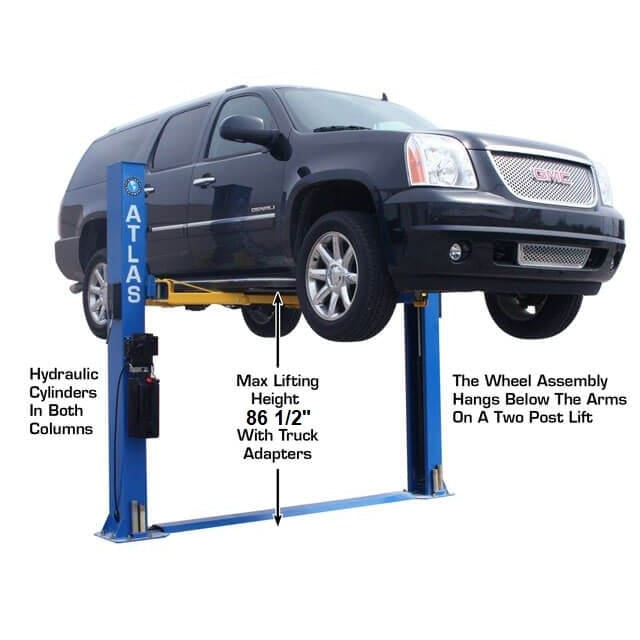

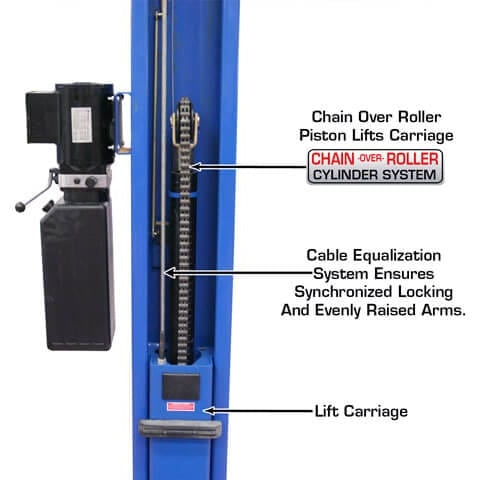

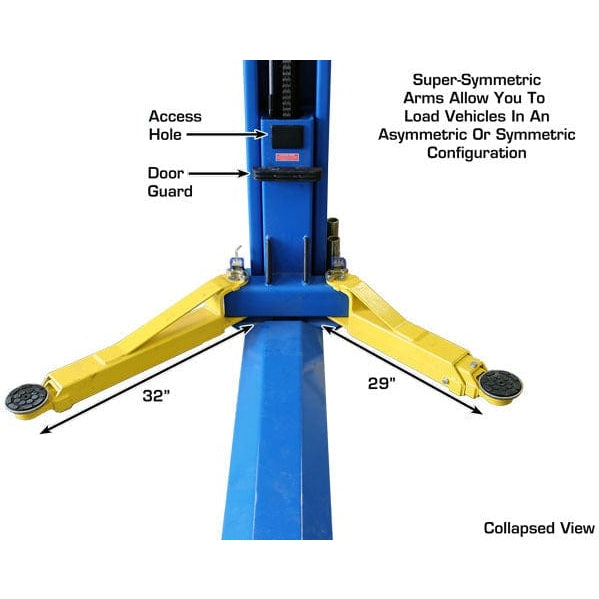

Dual hydraulic chain-drive cylinders handle the lifting, and a double safety lock system provides redundant hold at working height. Single-point lock release disengages both columns simultaneously for even, controlled lowering. The super-symmetric arms in a 3-stage front and 2-stage rear configuration reach the range of lifting points across compact cars, SUVs, and light trucks, and automatic arm restraints hold position during vehicle loading. A 12-piece truck adapter set is included — the same adapter count found on larger commercial lifts — for vehicles requiring extended pad height.

The BP8000 is the right fit for home garage owners who've measured their ceiling and need a low-column two-post that doesn't sacrifice the features — single-point release, symmetric arms, full truck adapter set — typically reserved for larger and more expensive lifts, and for small shops in older buildings with ceiling heights that commercial two-post columns can't clear.

Features

• 8,000 lb lifting capacity
• Hobbyist-grade lift — not intended for heavy commercial use

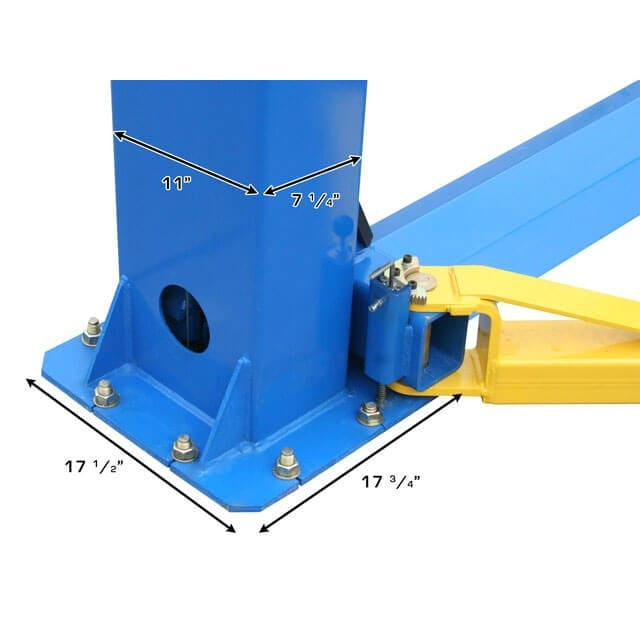

• Baseplate, open-top style lift

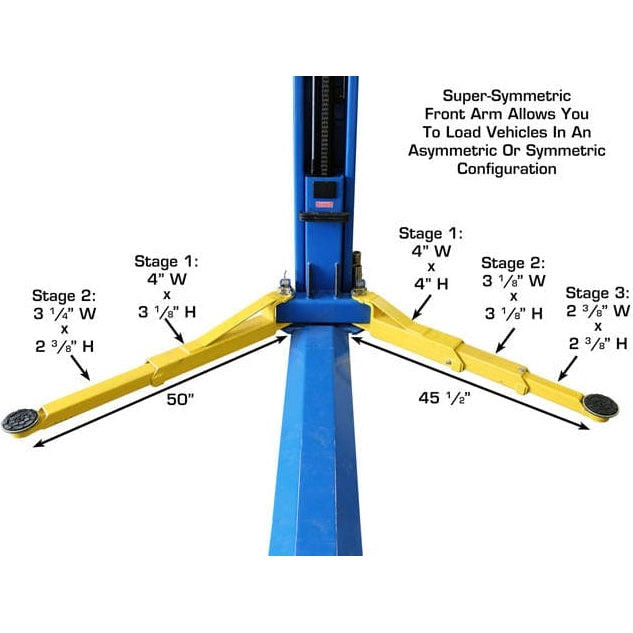

• 3-stage front arms and 2-stage rear arms for versatile vehicle positioning

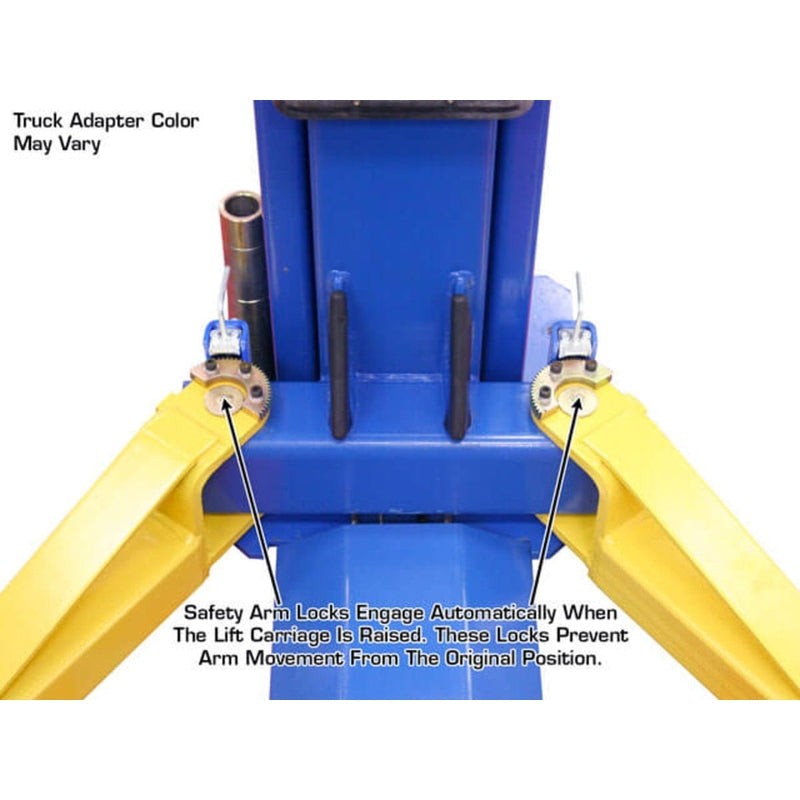

• Automatic arm restraints

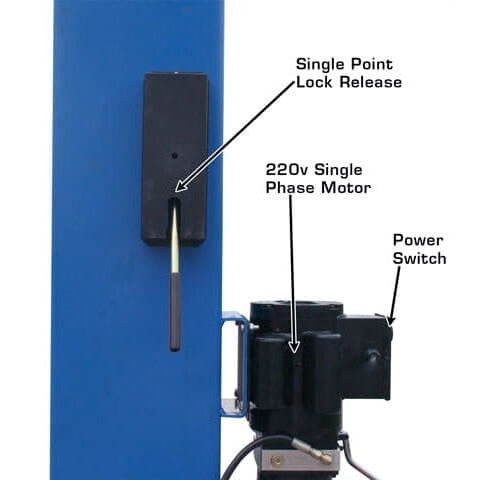

• Single-point lock release
• Double safety lock system for added security

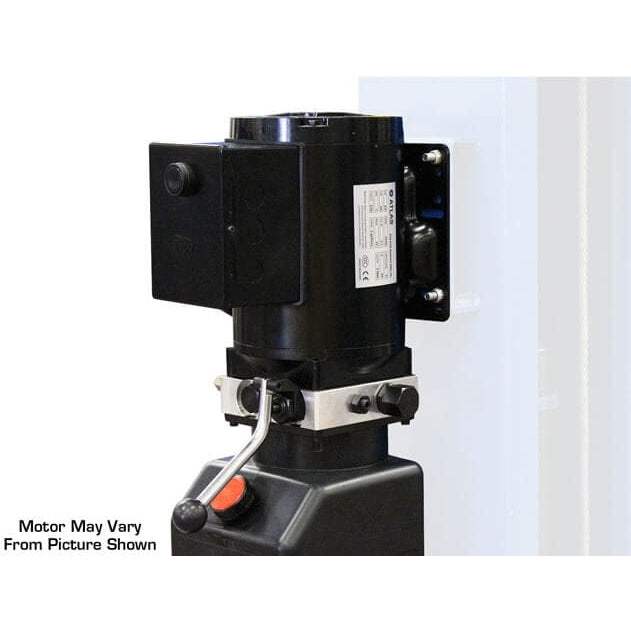

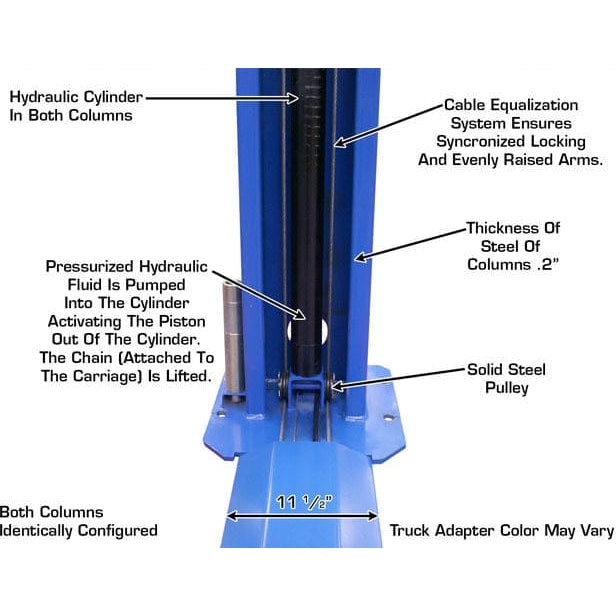

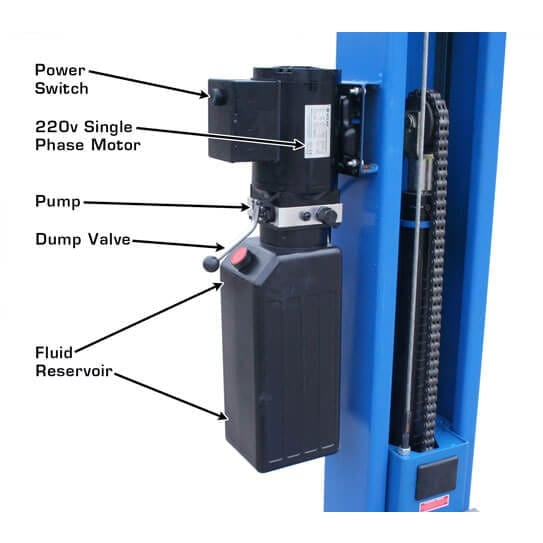

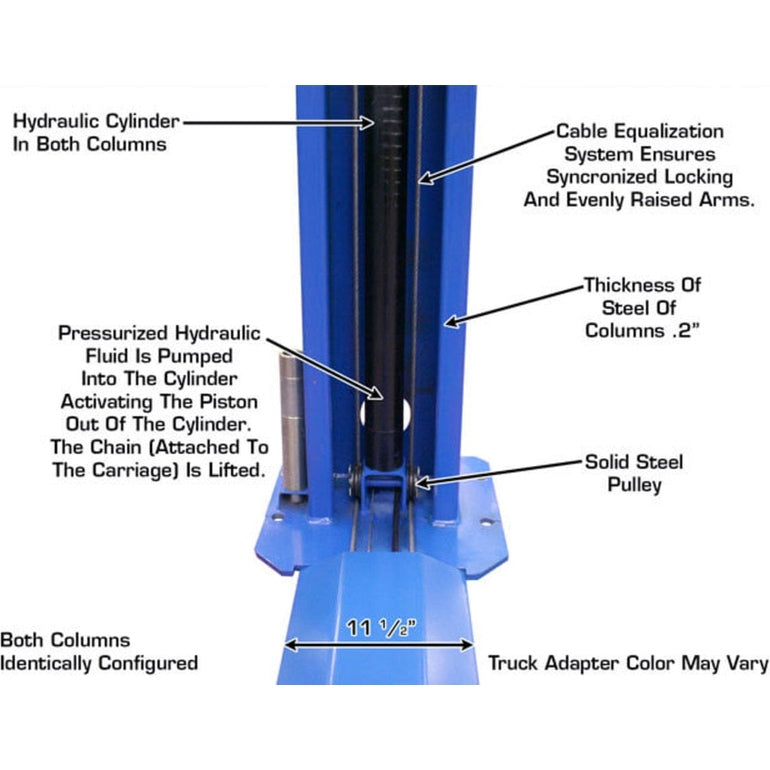

• Dual hydraulic chain-drive cylinders for smooth, reliable lifting
• Mounting hardware included

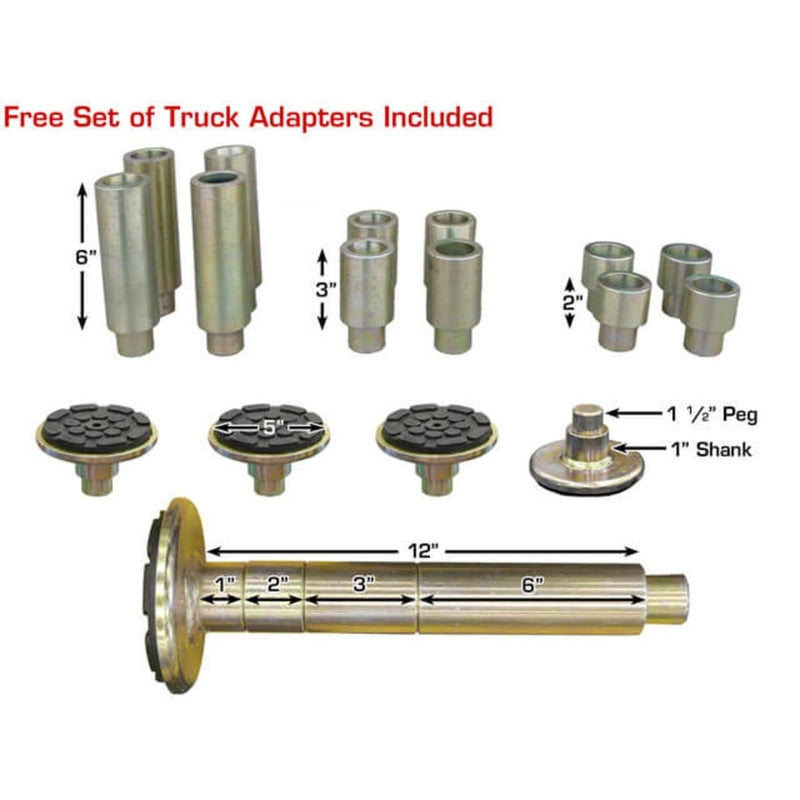

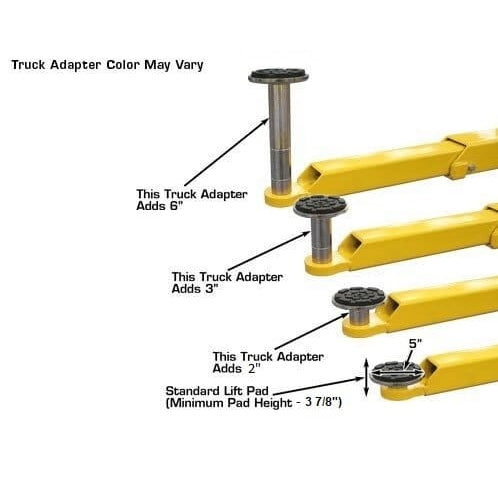

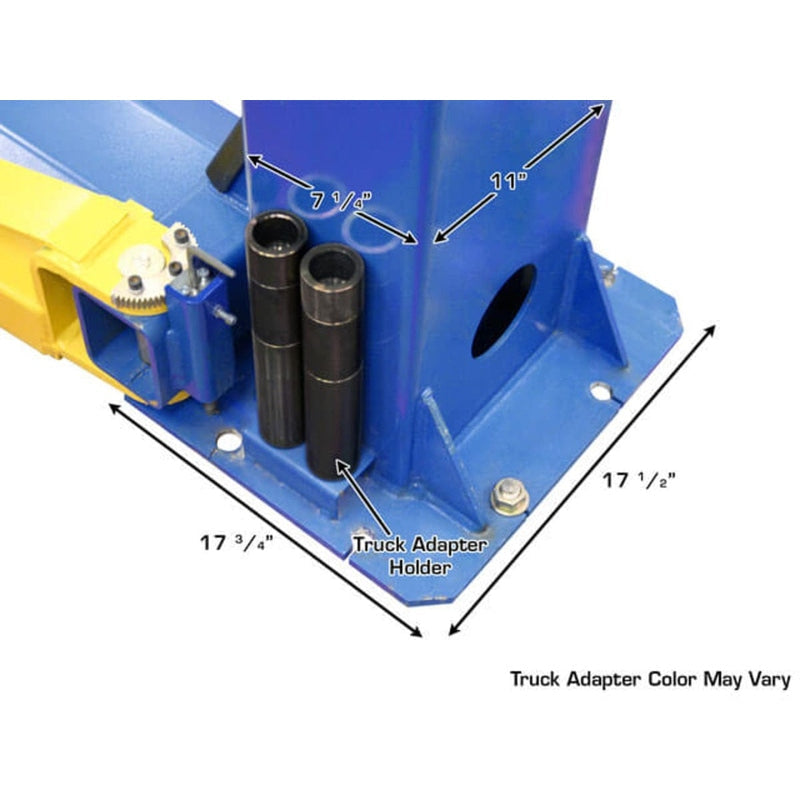

• Free 12-piece truck adapter set included

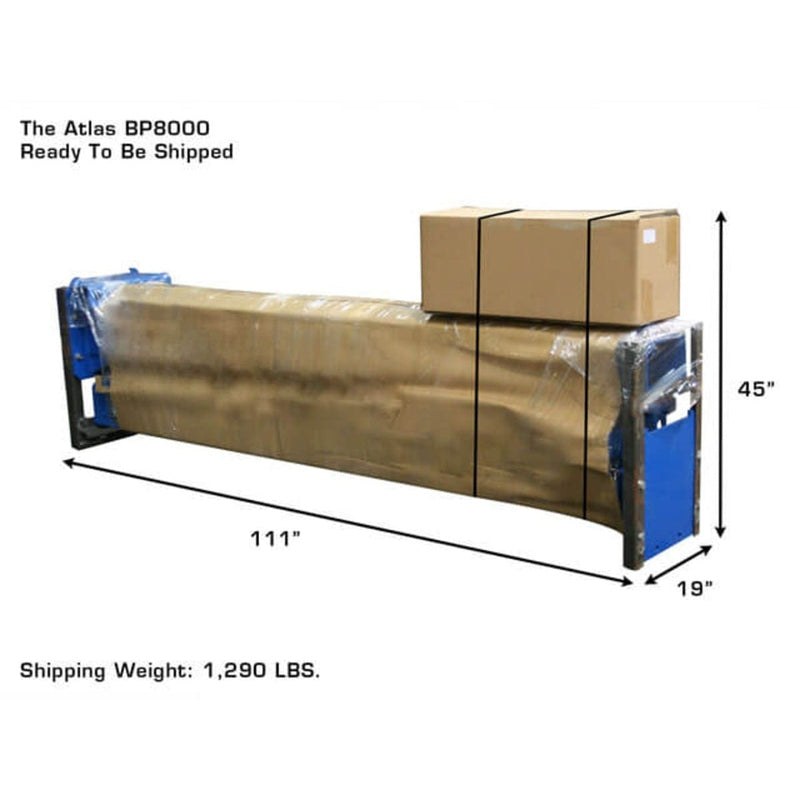

• Shipping weight: 1,300 lbs
• 5-year structural / 2-year hydraulic parts-only warranty

Specifications

Documents

Atlas® BP8000 Manual

Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
