Atlas Edge TD2.0 Deluxe WiFi Wheel Alignment System with 8-Camera Optical Sensors, Turntables and 4-Point Wheel Clamps

The Atlas Edge TD2.0 Deluxe is a Ravaglioli-built WiFi wheel alignment system centered on an 8-camera optical sensor array with Bluetooth data transmission, packaged as a complete ready-to-align kit — STDA46EU 4-point non-runout wheel clamps, heavy-duty turntables, two-post lift adapters, brake pedal depressor, and steering wheel lock are all included. Operation runs through the TEQ-LINK app on the included tablet, so the technician moves freely around the vehicle rather than returning to a fixed console between measurements. WiFi and Bluetooth links between the sensors, clamps, and tablet eliminate cable management entirely. Delivery requires access for a 53-foot truck. Backed by a 2-year limited parts warranty with remote technical support included; vehicle specification database updates are sold separately.

The 8-camera optical array captures alignment data across all four corners simultaneously, and the non-runout clamp technology on the STDA46EU clamps eliminates the compensating runout step that adds time to every alignment on systems using standard clamps. The system is portable and lift-agnostic — it works across drive-on ramps, two-post lifts, and scissor lifts, so a shop with multiple bays moves one alignment system between configurations rather than dedicating a fixed rig to a single bay. Between jobs, two instrument storage boards and four wall pegs for the wheel clamps keep the full kit organized and ready without searching for components across the shop.

The TD2.0 Deluxe is built for independent alignment shops and full-service repair facilities that want a European-built optical system with the full accessory kit included, and for multi-bay operations that need a portable, wireless alignment system that follows the work rather than anchoring one bay permanently to alignment service.

Features

• Ravaglioli TD2.0 WiFi alignment system, designed and manufactured in Europe
• 8-camera optical sensor array with Bluetooth wireless transmission for accurate, cable-free measurements
• Full WiFi operation between sensors, clamps, and tablet for a streamlined, wireless workflow
• TEQ-LINK app and tablet included for intuitive, guided alignment procedures
• Upgraded STDA46EU 4-point non-runout technology wheel clamps included (set of 4)
• Pair of heavy-duty alignment turntables included
• Two-post lift adapters included
• Brake pedal depressor and steering wheel lock included
• Two storage boards for instruments plus four wall pegs for wheel clamp organization
• Extensive vehicle database with free ongoing operating software updates
• Compatible with all common lift configurations for maximum shop versatility
• Portable, lightweight design for easy repositioning between bays
• Remote technical support included

Specifications

What's Included

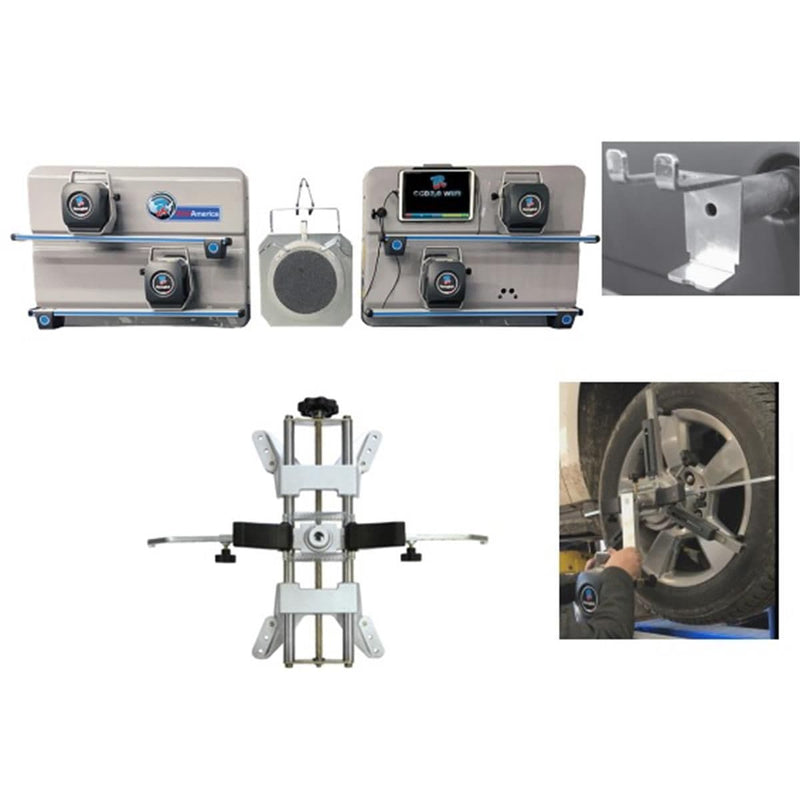

• Ravaglioli TD2.0 WiFi alignment system with 8-camera optical sensors
• Tablet with TEQ-LINK app preloaded

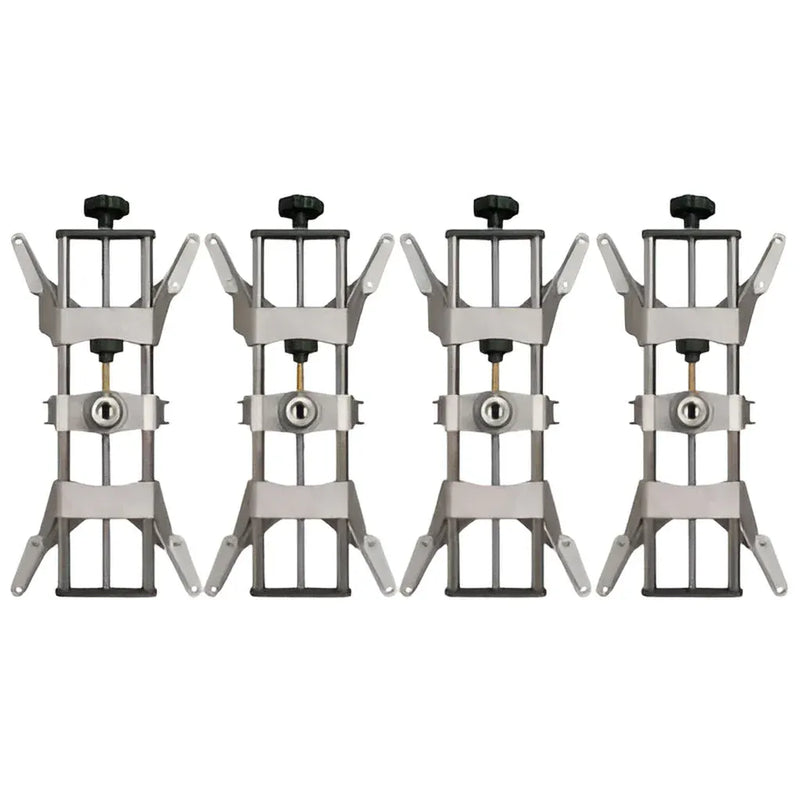

• 4 STDA46EU 4-point non-runout wheel clamps

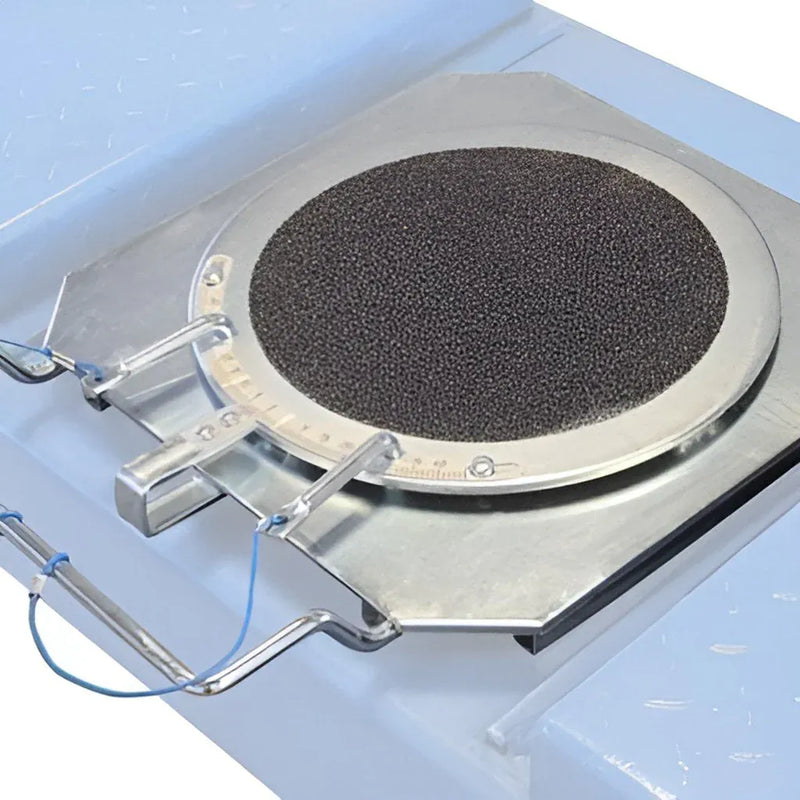

• 2 alignment turntables (14 5/8" x 14 5/8" each)
• 2 two-post lift adapters

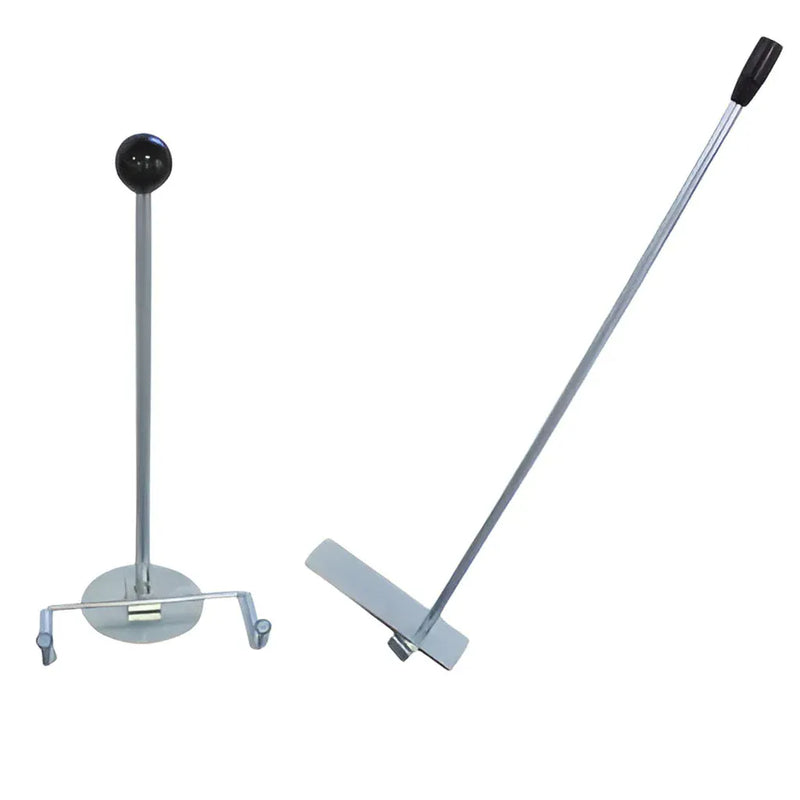

• 1 brake pedal depressor
• 1 steering wheel lock
• 2 instrument storage boards
• 4 wall pegs for wheel clamp storage

Documents

Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
