The Atlas Edge TD2.0 Premium is a Ravaglioli-built WiFi wheel alignment system on the TD2.0 platform, stepping up from the Deluxe with 3-Point Touchless Clamps and wall-mounted storage panels with built-in charging plugs that keep the bay clear between alignments. The touchless clamps grip the tire rather than the rim, which eliminates both roll-back and runout compensation steps — two time-consuming procedures that standard rim clamps require between every vehicle. The 8-camera CCD optical measurement system transmits sensor data over Bluetooth to a magnetically-backed tablet running the TEQ-LINK app, which communicates with the wall cabinet over WiFi. No overhead beam, no floor-locked console, no cables across the bay. Delivery requires access for a 53-foot truck. Backed by remote technical support; vehicle specification database is licensed separately with free software updates over WiFi.
The Premium package includes a VIN code scanner for single-scan vehicle identification against the on-tablet database — one scan pulls the vehicle spec without manual lookup or model-year cross-referencing. Alignment turntables, two-post lift adapters, brake pedal depressor, and steering wheel lock are all included, covering the hardware needed for passenger car and light truck alignment on most common lift configurations. The wall-mounted storage panels charge the sensor heads and tablet between jobs and store the full kit in a single organized location, keeping the alignment bay functional as a general service bay when the system is not in use.
The TD2.0 Premium is built for high-volume alignment shops and dealership service departments that run alignments back-to-back and want to eliminate the roll-back and runout steps that add minutes to every job, and for well-equipped independent shops that want a complete European-built wireless system with clean bay storage rather than a portable kit that lives on a cart between uses.
Features
Ravaglioli TD2.0 platform, designed and manufactured in Europe
8-camera CCD optical measurement system for precise, reliable alignment readings

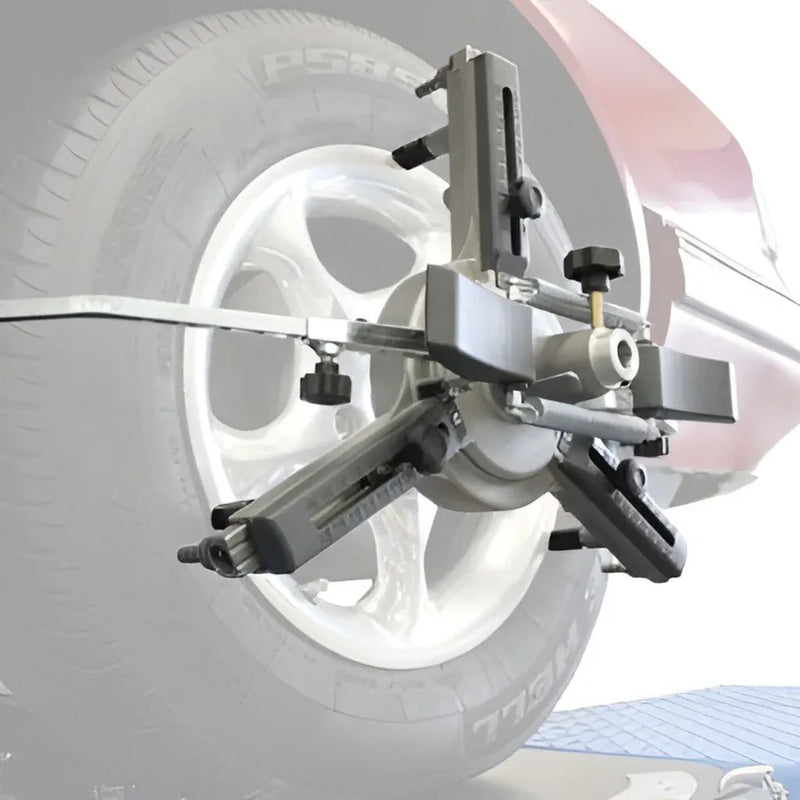

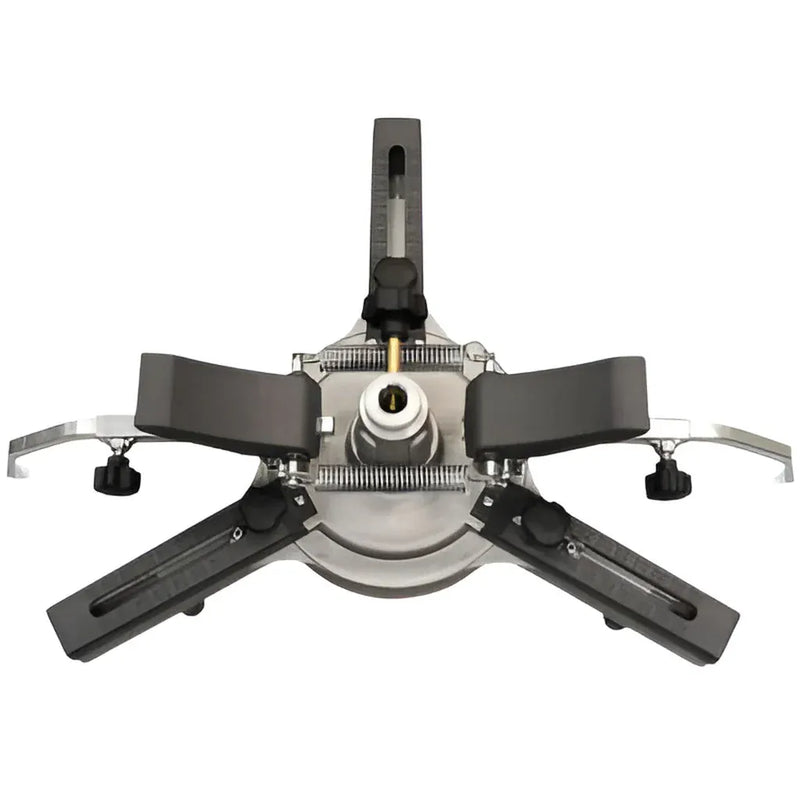

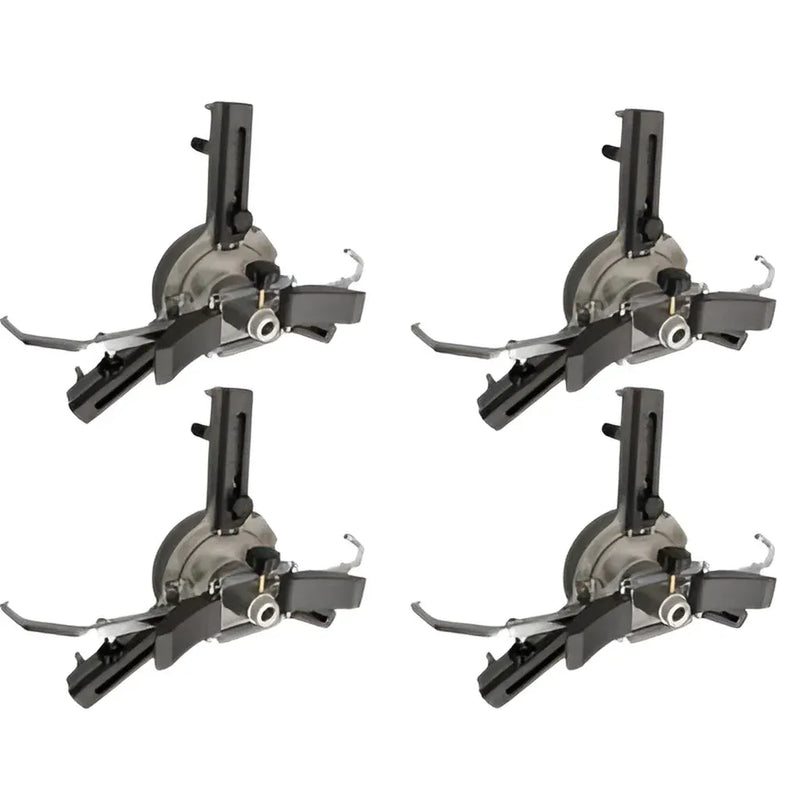

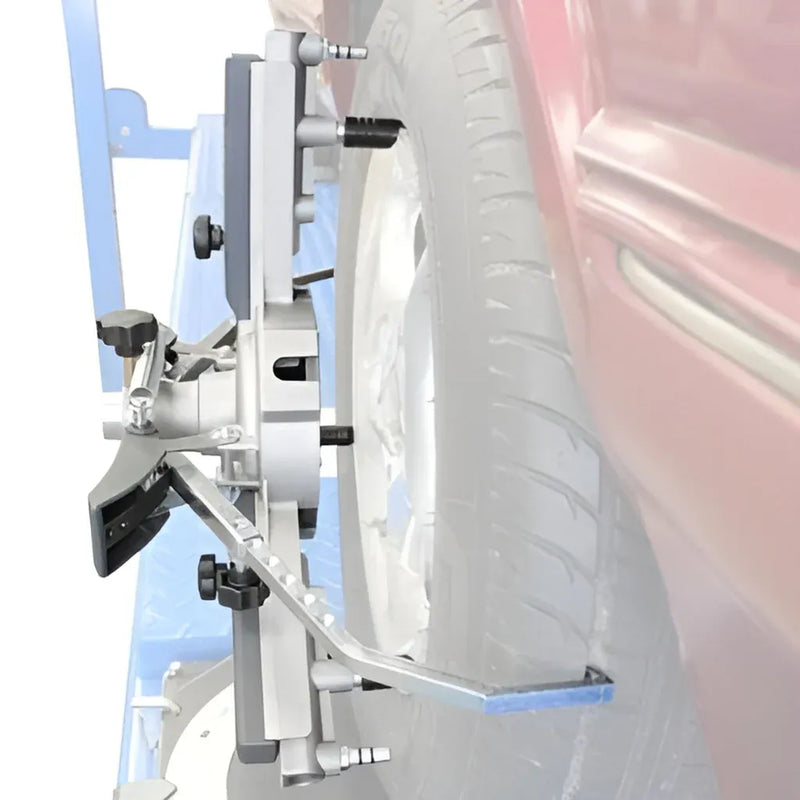

3-point touchless clamps eliminate the need for roll-back or runout compensation
WiFi system control with Bluetooth sensor data transmission for a fully wireless workflow
Magnetically-backed tablet preloaded with the TEQ-LINK app for intuitive, guided operation
Wall-mounted storage panels with built-in charging plugs for organized, ready-to-use equipment
Extensive on-tablet vehicle database for broad vehicle coverage
Compatible with most lift configurations for maximum shop versatility
VIN code scanner included for fast, accurate vehicle identification
Free software updates delivered over WiFi (vehicle specifications licensed separately)
Atlas Edge TD2.0 Premium WiFi Wheel Alignment System Specifications
Manufacturer
Ravaglioli (made in Europe)
Measurement system
8-camera CCD optical
Wireless
WiFi system control, Bluetooth sensor data
Wheel clamps
3-Point Touchless (no roll-back or runout compensation)
Tablet
Magnetically-backed, TEQ-LINK app preloaded
Storage
Wall-mounted panels with built-in charging plugs
Lift compatibility
Designed for most lift varieties; two-post adapters included
Software updates
Free over WiFi
Vehicle specifications database is licensed separately and not included with free software updates.
Warranty & Support
This product is backed by a 2-year limited parts warranty. Warranty coverage excludes damage resulting from abuse, neglect, wear items, and consumables. Onsite service visits are not included. Remote technical support is provided at no charge.
