Atlas Edge TD2.0 Select WiFi Wheel Alignment System with Ravaglioli 8-Camera Optics and TEQ-LINK Tablet

The Atlas Edge TD2.0 Select is a Ravaglioli-built fully wireless wheel alignment system on the TD2.0 platform, built around an 8-camera optical sensor array with Bluetooth transmission to the included TEQ-LINK tablet. It's the entry point into the TD2.0 lineup — the Select package includes everything needed to align passenger cars and light trucks on day one: STDA33EU 4-point rolling-runout wheel clamps (no jacking required for runout compensation), two precision front turntables, two-post lift adapters, brake pedal depressor, and steering wheel lock. Two storage boards and four wall pegs keep the kit organized between jobs. Made in Europe. Delivery requires access for a 53-foot truck. Backed by a 2-year limited parts warranty with remote technical support included.

The STDA33EU rolling-runout clamps perform runout compensation while rolling the vehicle rather than requiring it to be jacked — a faster compensation method than static runout procedures and one that doesn't require additional equipment in the bay. The 8-camera optical array captures all four corners simultaneously, and the untethered WiFi and Bluetooth workflow between cameras, clamps, and tablet works across drive-on ramps, two-post lifts, and scissor lifts without reconfiguring the system between lift types — the portability that lets one alignment system serve multiple bays.

The TD2.0 Select is built for independent alignment shops and full-service repair facilities adding a wireless optical alignment system to an existing service menu, and for multi-bay operations that want a portable, lift-agnostic system at the TD2.0 platform's entry price point before stepping up to the non-runout clamp technology of the Deluxe or the touchless clamps of the Premium.

Features

• Ravaglioli TD2.0 Select WiFi alignment platform, designed and manufactured in Europe
• 8-camera optical measurement system for precise, reliable alignment readings
• WiFi camera-to-tablet operation with Bluetooth data transmission for a fully wireless workflow
• TEQ-LINK app pre-installed on the included tablet for intuitive, guided alignment procedures
• STDA33EU 4-point runout wheel clamps with rolling runout compensation — no jacking required
• Pair of alignment turntables included
• Two-post lift adapters included
• Brake pedal depressor and steering wheel lock included
• Two storage boards for instruments and four wall pegs for organized clamp storage
• Extensive vehicle database with free ongoing software updates
• Compatible with all lift types for maximum shop versatility
• Portable and lightweight design for easy repositioning between bays

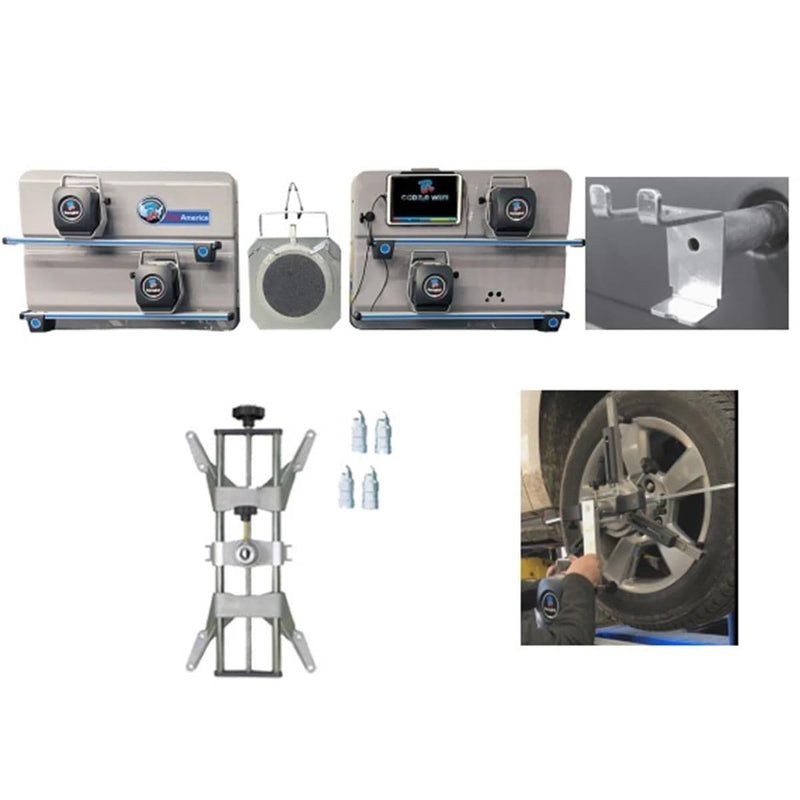

What's Included

• Ravaglioli TD2.0 sensor head with 8-camera optical system
• Tablet with TEQ-LINK app pre-installed
• STDA33EU 4-point runout wheel clamps (set of 4)
• Pair of alignment turntables
• Two-post lift adapters
• 1 brake pedal depressor
• 1 steering wheel lock
• 2 storage boards for instruments
• 4 wall pegs for clamp storage

STDA33EU 4-Point Runout Wheel Clamps

Four rolling-runout wheel clamps are included. The 4-point design grips the wheel from four contact points so runout compensation can be performed by rolling the vehicle, without raising the wheels.

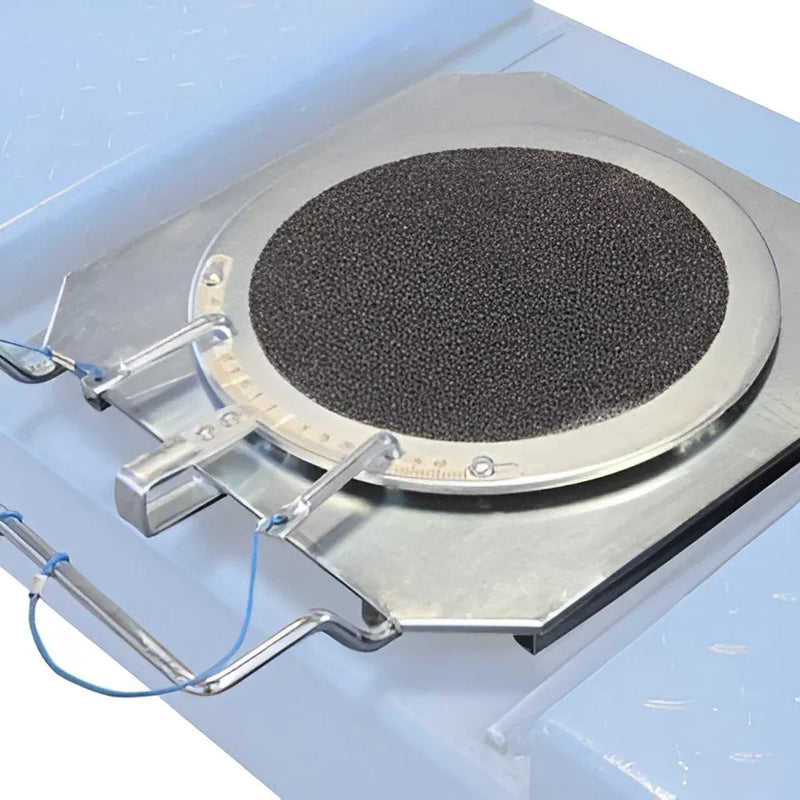

Alignment Turntables

A pair of precision turntables for the front wheels is included for steering-angle measurement during alignment.

Brake Pedal Depressor and Steering Wheel Lock

One brake pedal depressor and one steering wheel lock are included to hold the brakes engaged and lock the wheel straight during measurement.

Specifications

Documents

Manuals and technical documents are available upon request — contact us at support@carliftsupply.com or call 877-600-5227.

Shipping & Warranty

2-year limited parts warranty. Warranty coverage excludes damage from abuse, neglect, wear items, and consumables. Onsite service visits are not included. Free software updates do not include vehicle specifications.
