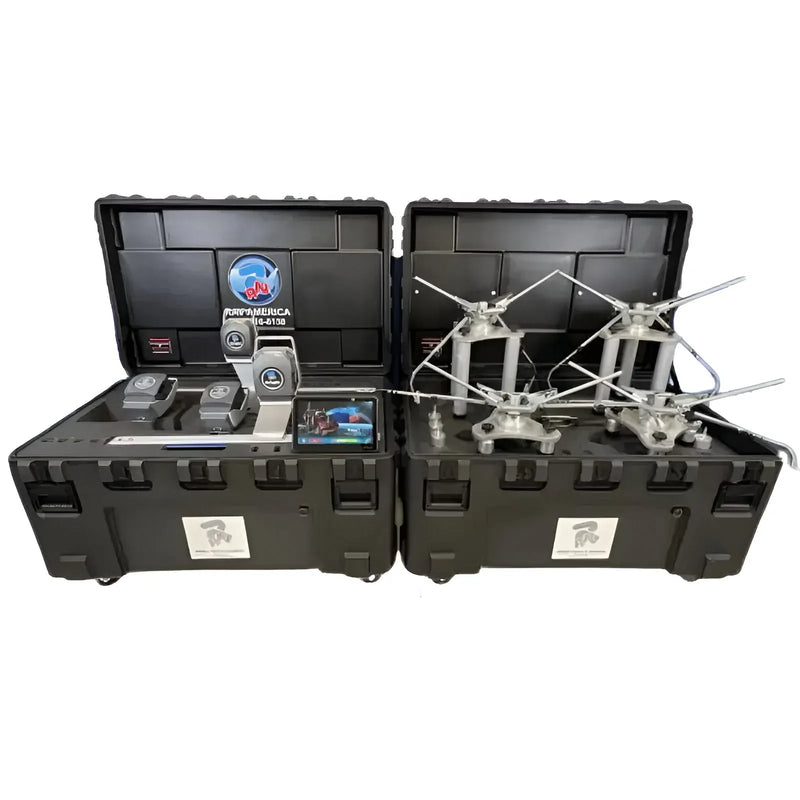

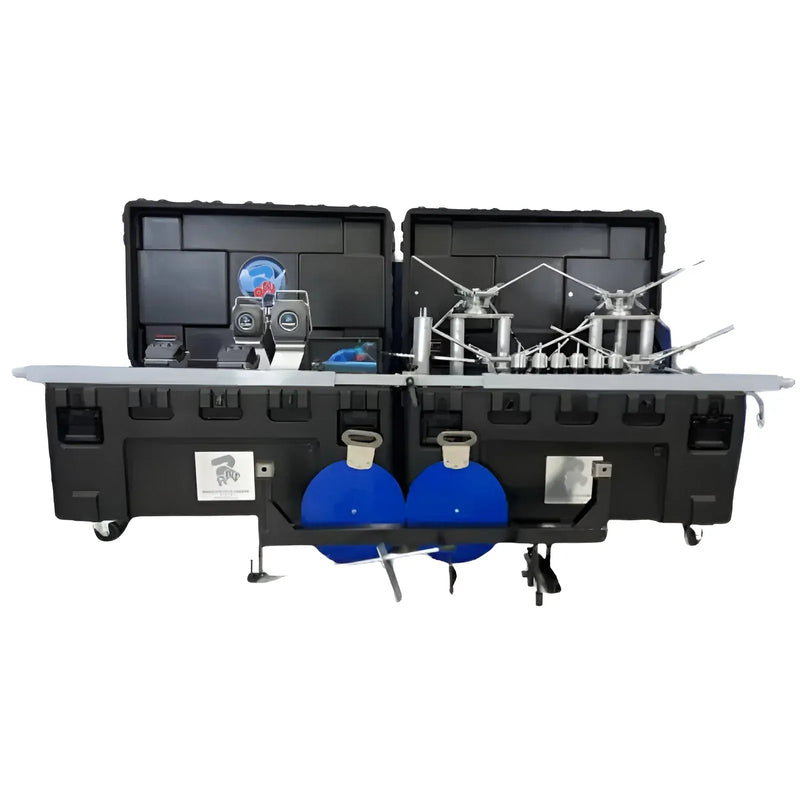

The Atlas Edge TD6000CNAK2 is a Ravaglioli Sprint Mobile 2 portable heavy-duty truck alignment system that handles 2, 3, 4, and 5 axle configurations — trucks, trailers, buses, and coaches — from a kit that lives in two industrial-grade wheeled cases with built-in calibration plates. The cases roll between bays or load onto a service vehicle for on-site fleet alignment without breaking down or recalibrating the kit between locations. Four FastClamp non-runout wheel heads transmit measurement data wirelessly to a rugged Windows 10 tablet with hand strap over WiFi and Bluetooth, and the system supports no roll-back alignment — the capability that matters on parked trailers and in bays with limited rolling clearance where a standard roll-back compensation procedure isn't practical. Made in Europe. Backed by a 2-year limited parts warranty with free software updates and remote technical support included; vehicle specifications database is licensed separately.

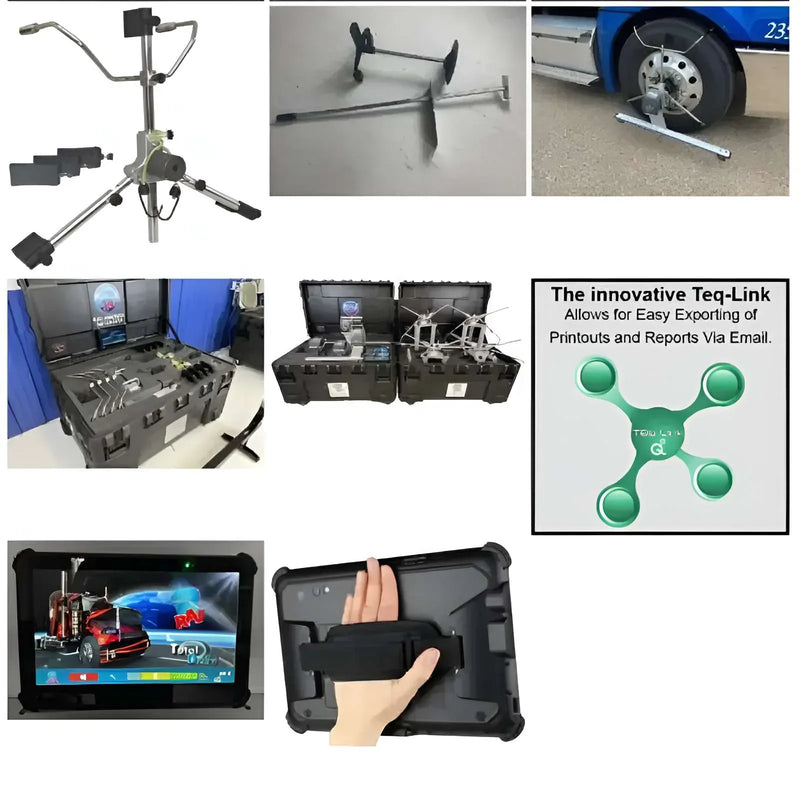

Two-Head Steer Axle Mode lets a single technician complete a steer-axle measurement without repositioning sensors mid-job — the workflow that reduces two-person dependency on routine steer alignments. The TEQ-LINK app exports printouts and alignment reports by email directly from the tablet at job completion. The full kit ships ready to work: four FastClamp wheel heads, twelve-piece standoff tube kit (six short, six long), superlight alloy turntables, trailer alignment package, calibration package, brake pedal depressor, and steering wheel lock — all stored in the two wheeled cases.
The TD6000CNAK2 is built for truck fleet service operations and heavy-duty alignment shops that align multi-axle vehicles regularly and need a system accurate enough for commercial compliance work, and for mobile alignment services that wheel the same calibrated kit to customer sites rather than maintaining separate shop and mobile equipment.
Features
- Ravaglioli "Sprint" Mobile 2 heavy-duty truck alignment platform, designed and manufactured in Europe
- No roll-back alignment system purpose-built for trucks and trailers
- Handles 2, 3, 4, and 5 axle configurations for broad commercial vehicle coverage
- Two custom heavy-duty cases on casters with built-in calibration plates for organized, portable storage
- WiFi operation with Bluetooth data transmission for a fully wireless workflow
- TEQ-LINK app supports easy export of printouts and reports by email
- Two-Head Steer Axle Mode enables single-technician steer-axle alignments
- Rugged Windows 10 tablet with hand strap included
- Four non-runout FastClamp wheel clamps included
- Twelve-piece standoff tube kit (six short, six long) included
- Pair of superlight alloy alignment turntables included
- Trailer alignment package and calibration package included
- Brake pedal depressor and steering wheel lock included
- Extensive vehicle database with free ongoing software updates (vehicle specifications not included)
- Remote technical support included
- 2-year limited parts warranty
Specifications
| Atlas Edge TD6000CNAK2 Mobile 2 Specifications |
| System type |
Portable heavy-duty truck alignment |
| Vehicle range |
Trucks, trailers, buses, coaches |
| Axle configurations |
2, 3, 4, and 5 axle |
| Wireless |
Wi-Fi and Bluetooth |
| Software |
TEQ-LINK app on Windows 10 tablet |
| Wheel clamps |
4 non-runout FastClamp |
| Roll-back required |
No |
| Steer axle mode |
Two-Head |
| Cases |
Two industrial cases on casters with built-in calibration plates |
| Origin |
Made in Europe |
| Weight |
400 lbs |
| Warranty |
2-year limited parts |
| 2-year limited parts warranty does not cover damage from abuse, neglect, wear items, consumables, or onsite visits. Free software updates do not include vehicle specifications. |
What's Included
- Two custom industrial cases on casters with built-in calibration plates
- Rugged Windows 10 tablet
- 4 non-runout FastClamp wheel clamps
- 12-piece standoff tube set (6 short, 6 long)
- Pair of superlight alloy alignment turn tables
- Trailer alignment package
- Calibration package
- 1 brake pedal depressor
- 1 steering wheel lock
- TEQ-LINK app
Documents
Manual and technical documents available on request — contact support@carliftsupply.com or call 877-600-5227.
