Atlas Electric Vehicle Battery Lifting Table

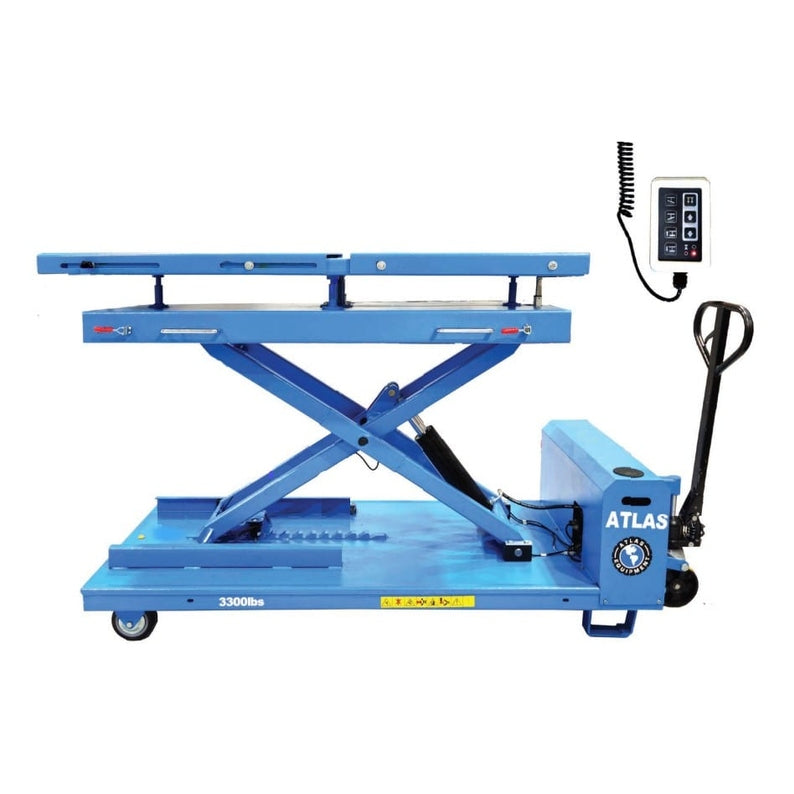

The Atlas Electric Battery Lift Table is a 3,300 lb electric/hydraulic lift table built specifically for removing, handling, and reinstalling EV battery packs and battery assemblies — the service task that's becoming routine as electric vehicles make up a growing share of the shop's car count. It runs on 110V single-phase power (external supply required) and operates through a wired remote control for both lifting and platform tilting, keeping the technician's hands free and positioned away from the load during movement.

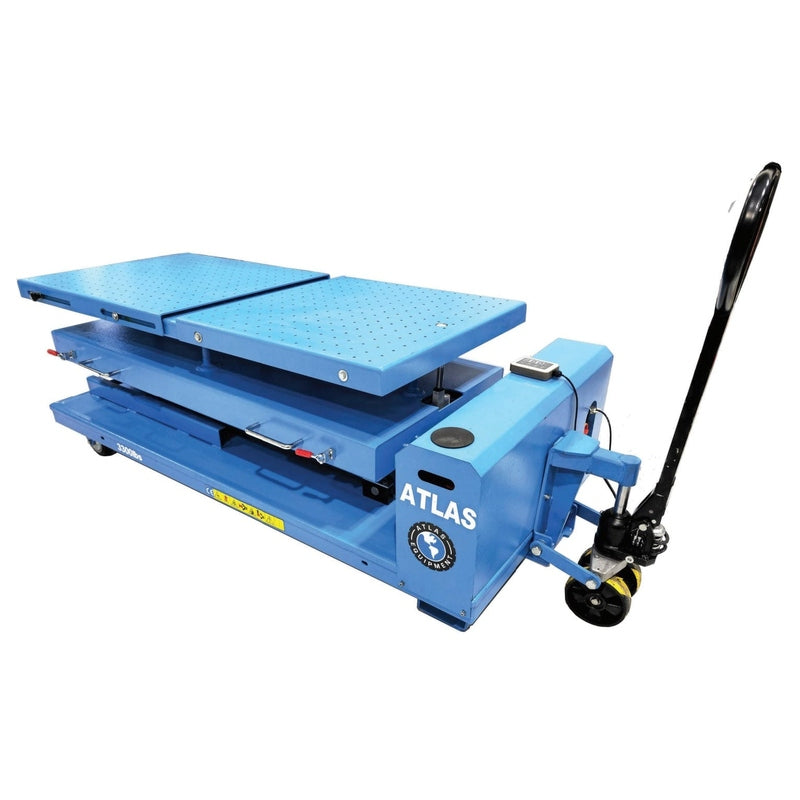

The platform is designed around the variability of EV battery geometry across different makes and models. Adjustable tilt accommodates battery packs that need to be angled during removal or reinstallation rather than lifted perfectly level, and an extendable platform length covers longer battery assemblies that a fixed-length table can't fully support. Multiple threaded holes on the tabletop accept an accessory kit (sold separately) for securing specific battery configurations during transport and positioning. A built-in safety lock ladder with manual release holds the table at working height independently of the hydraulic circuit, and reinforced legs provide stability under a fully loaded platform during service. The wheeled base makes the table easy to reposition between bays or vehicles without unloading it first.

The Atlas Battery Lift Table is the right fit for EV-capable independent shops and dealership service departments adding battery service to their workflow, and for high-volume EV service centers that handle battery removals regularly and need a purpose-built table rather than adapting general-purpose equipment to a task it wasn't designed for.

Features

• 3300 lb. Capacity
• 110v Electric/Hydrualic Operated (external 110v power supply required)
• Easy to move, highly portable

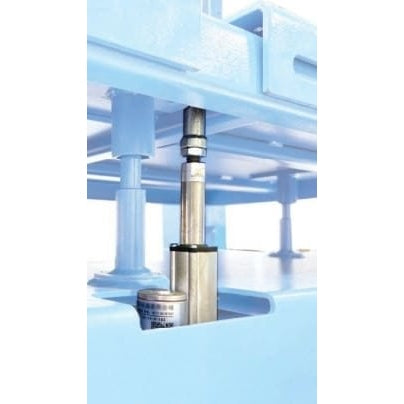

• Versatile Tilting Platform Adjustments
• Extendable Platform Length

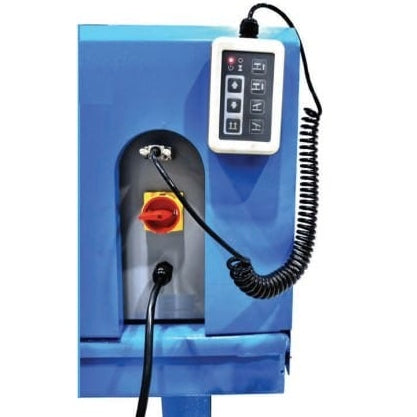

• Wired Remote control for lifting and tilting
• Tabletop features multiple threaded holes for accessory attachment (accessory kit sold separately)

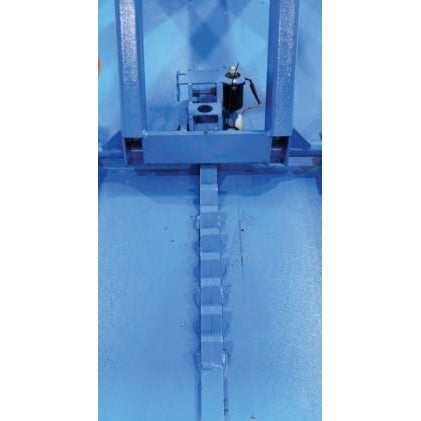

• Built in safety lock ladder, with manual release
• Reinforced legs for extra stability when in use
• 2 Year Structural/Hydraulic Warranty

Specifications

• Capacity 3,300 LB.
• Threaded holes on tabletop: 50mm center to center
• Maximum Lift Height 71 1/4"
• Minimum Lift Height 29 1/4"
• Expandable Lifting Platform Length: 68 1/4" - 79 3/4"
• Platform Width: 31 3/4"
• Tilting Angles of +/- 5.1 degree (left/right) - +/-2.2 degrees (front/rear)
• Motor/Electrical Requirement 110 volt single (1) phase (A 30 amp breaker is recommended)
• Shipping Weight 1,500 LBS.

Documents

Atlas® EVBL3310 Manual

Atlas® EVBL3310 Parts Breakdown
